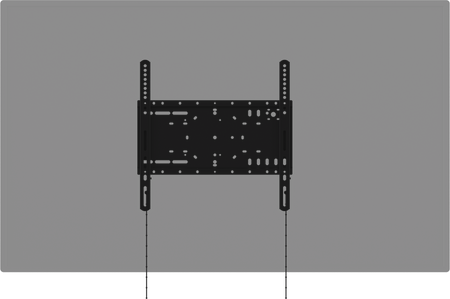

Vision Heavy Duty Flat-Panel Wall Mount 400×400
Heavy Duty Flat-Panel Wall Mount 400×400
In stock
Regular price
£66.11
Secure Checkout
Warranty Protection
Hassle-Free Returns

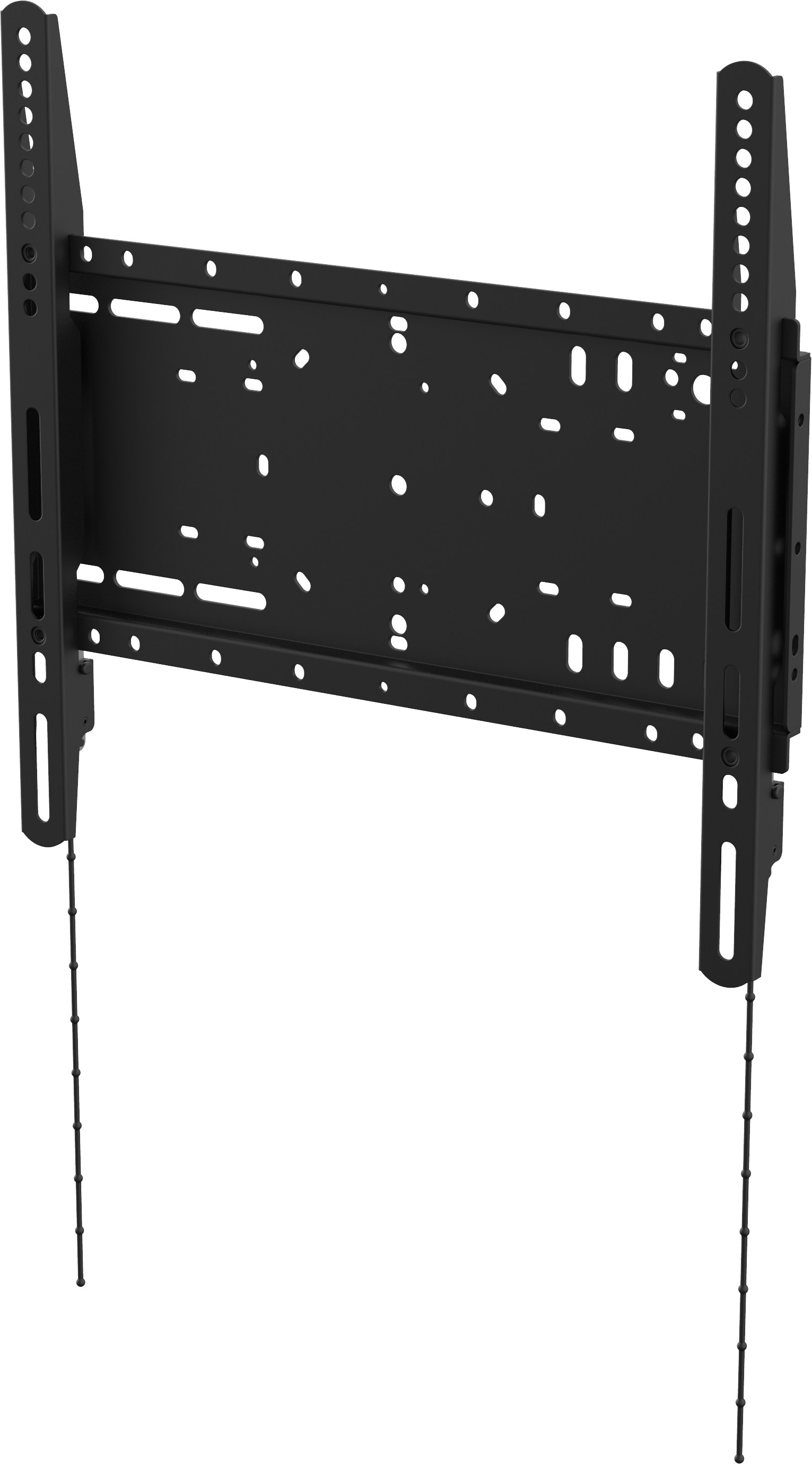

The Vision Heavy Duty Flat-Panel Wall Mount 400×400 vision’s Vision Flat-panel Mount - Wall range is designed by Vision's engineering team for professional AV installers. This mount is no-compromise: very strong, fast to install, highly adjustable, everything included.
Key Features
- Heavy Duty: Interactive flat panels are large and very heavy. Vision’s VFM-W4X4 uses heavy gauge sheet metal to take the weight up to SWL 100 kg / 220 lb safely.
- Everything Included: Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.
- For 32-75" Displays: Fits most displays from 32-75″ subject to VESA pattern and weight limit. Note: curved screens are not supported by this mount.

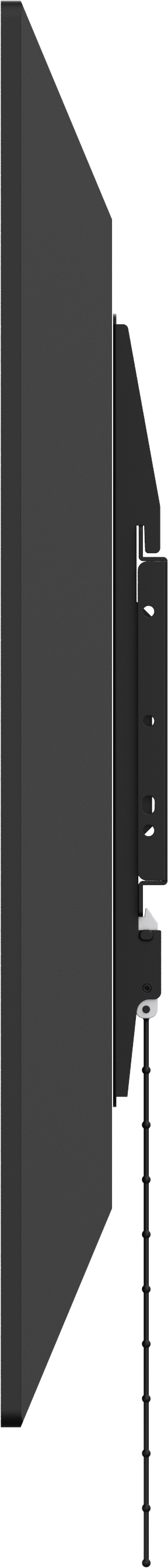

- Meets ADA Regulations: The thin design holds the display just 30 mm / 1.2" off the wall. This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.

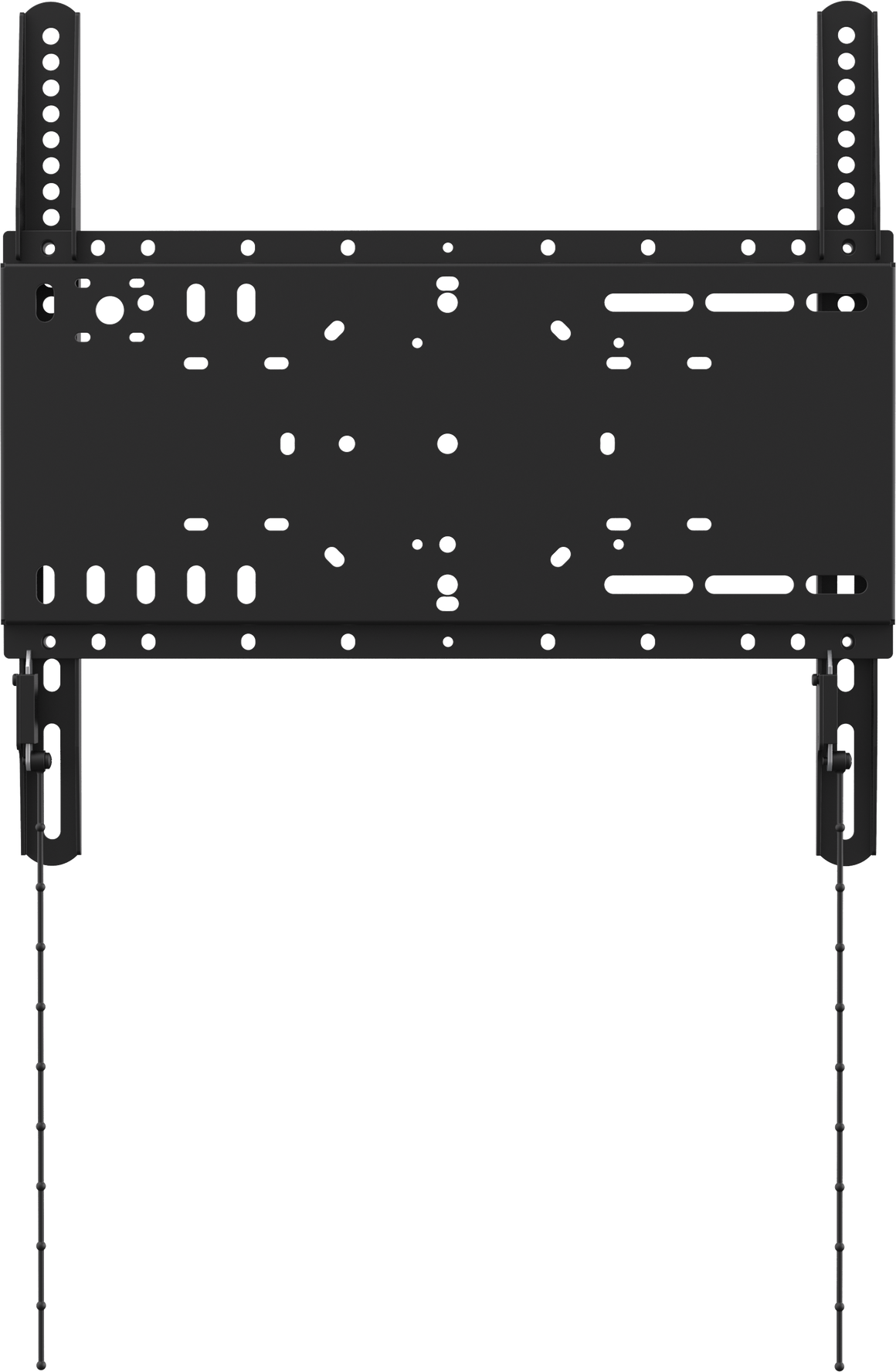

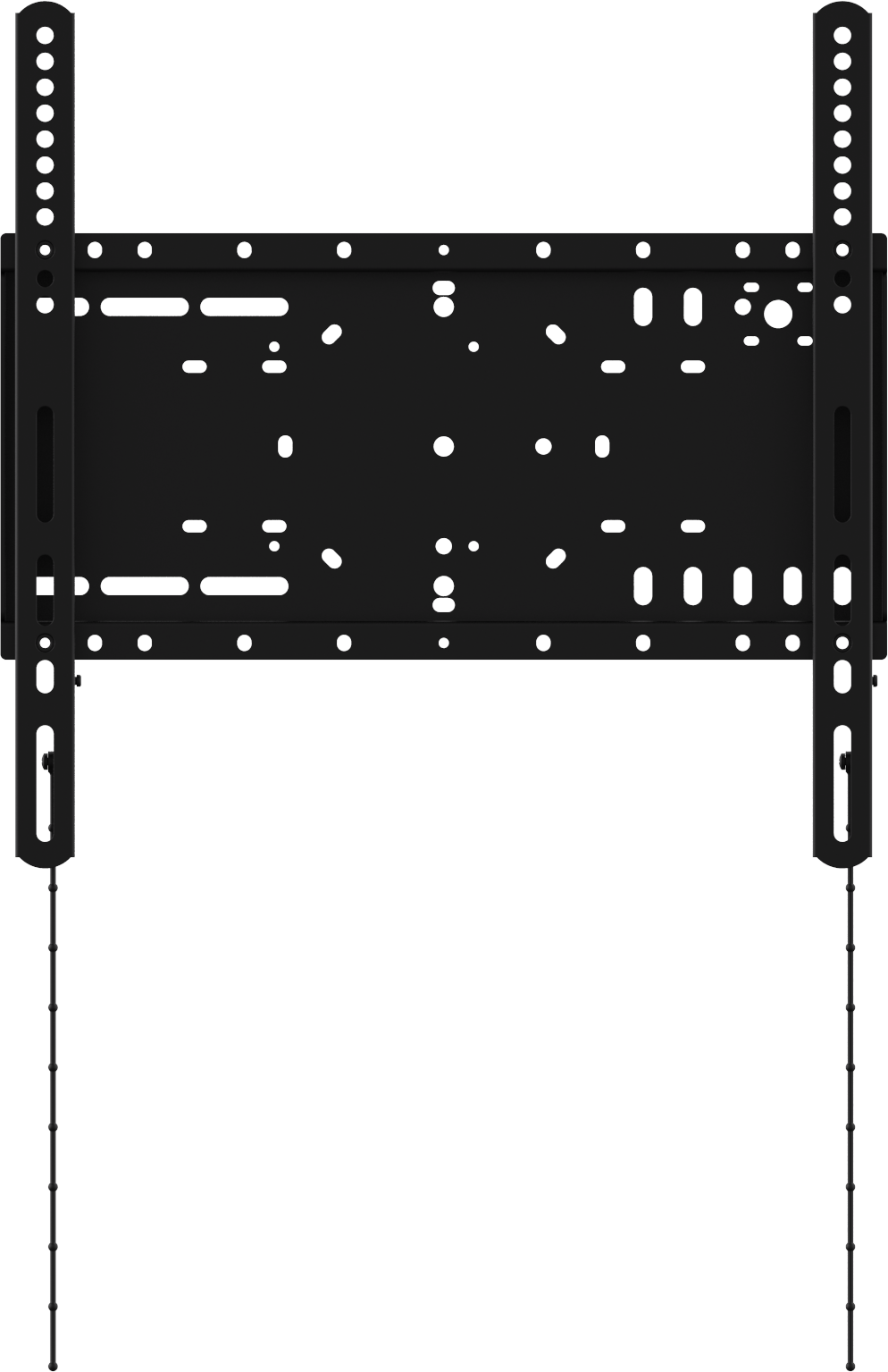

- Designed for Professionals: A proven design allows fast fixing to stud or masonry walls. Vertically slotted holes on the horizontal part allowing leveling adjustment after fixing, and side to side adjustment.

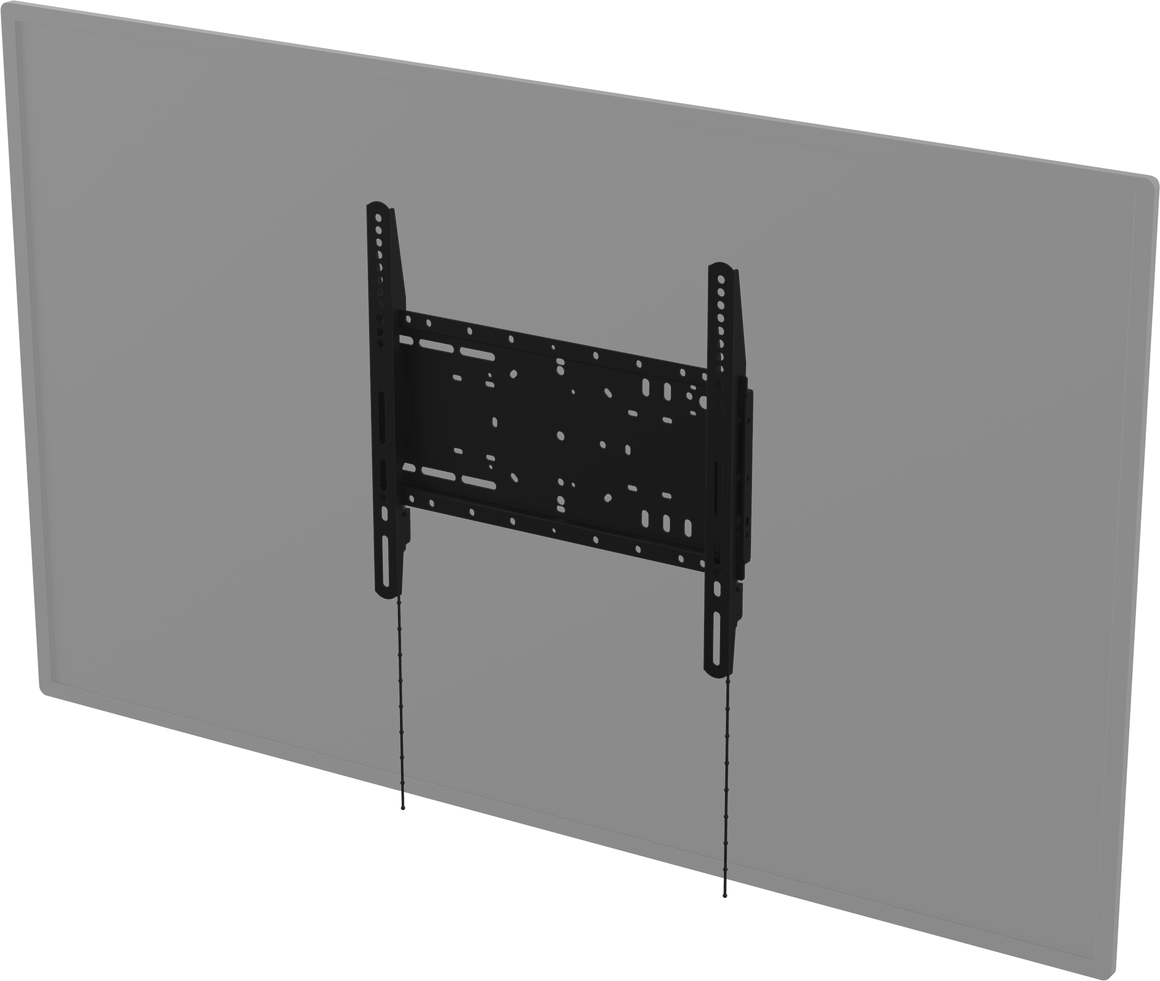

- Latches Securely: The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.
- Side by Side: Two horizontal sections can be fixed together side by side for dual-display video conference or huddle room applications. Or extend the horizontal to bridge wide load bearing points in a wall.

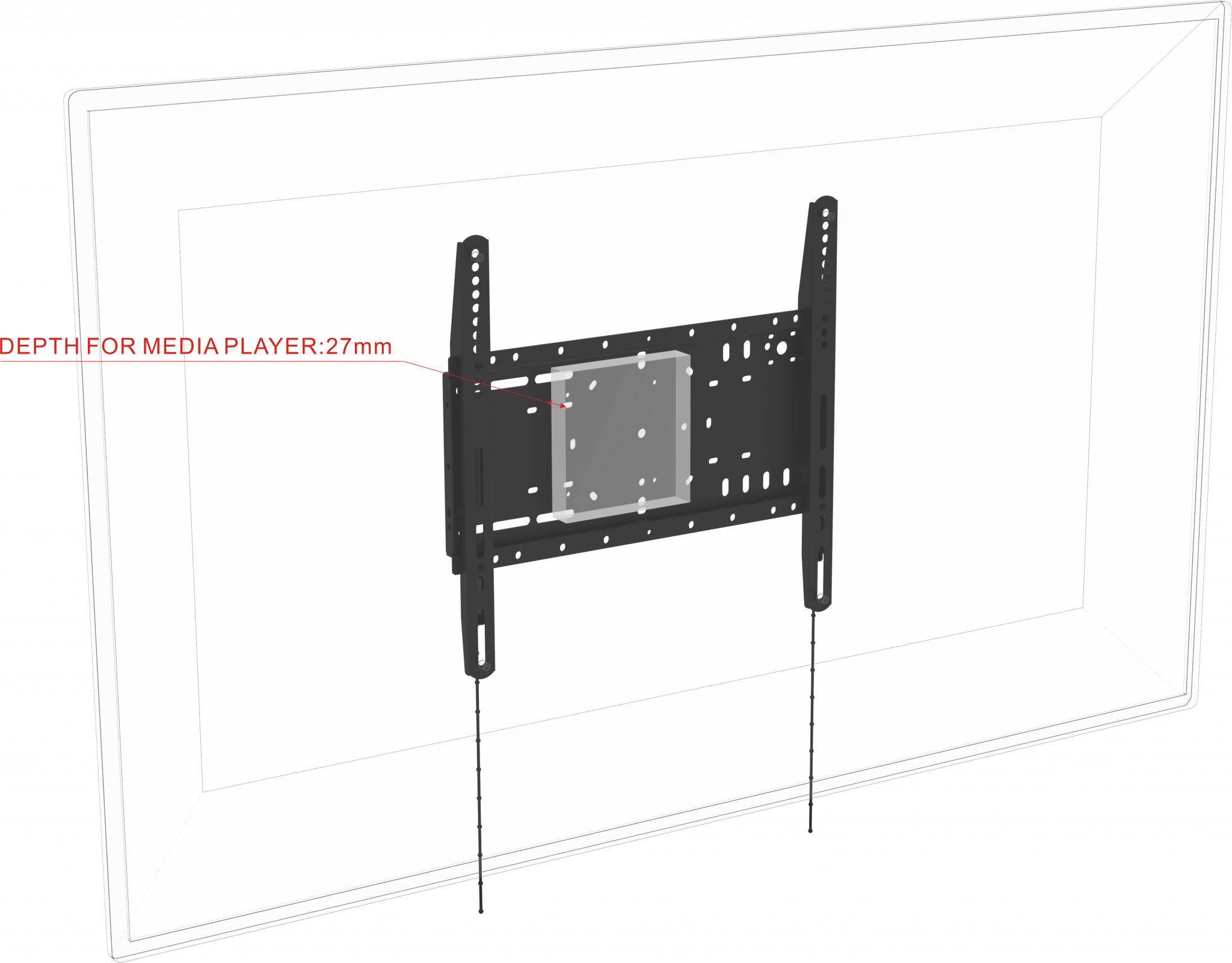

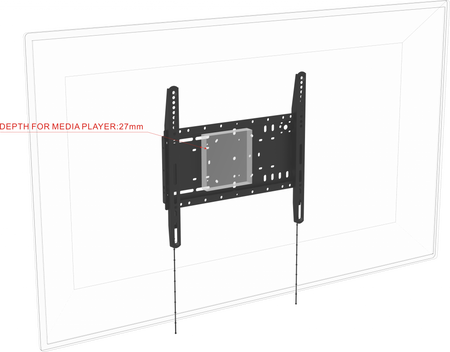

- Hide Media Player: Thoughtfully placed VESA 100 x 100 mm holes on the horizontal part allow a thin media player to fix behind the display out of sight.
- Video Conference Shelf: An optional shelf fixes in the centre above or below the display. Any camera including the Logitech Rally or Meetup can be fixed to the shelf. Part Number: VFM-WVC/2 [SAP: 8271288]
- Non-Tilting Wall Mount for large-format flat panels 32-75": Non-Tilting Wall Mount for large-format flat panels 32-75"
Specifications
| Product Dimensions | 445 x 435 x 30 mm / 17.5″ x 17.1″ x 1.2″ (width x height x depth) |
| Packaged Dimensions | 480 x 235 x 40 mm / 18.9″ x 9.3″ x 1.6″ |
| Product Weight | 2.9 kg (6.3 lbs) |
| Packaged Weight | 3.5 kg (7.7 lbs) |
| Safe Working Load | 100 kg (220 lbs) |
| Construction Material | Cold-rolled Steel 2.5 mm (0.10") |
| Colour | Black |
| Vesa Sizes | 400 x 400 mm 400 x 300 mm 400 x 200 mm 300 x 400 mm 300 x 300 mm 200 x 400 mm 200 x 300 mm 200 x 200 mm 150 x 200 mm |
| Compliances | RoHS, ADA (Americans with Disability Act) Compliant |
| Optional Add-Ons | VFM-WVC/2 Video Conferencing Shelf [SAP: 8271288] |
| Country of origin | China |
What's in the Box
- 4 x M5 16 mm screw
- 4 x M6 16 mm screw
- 4 x M6 25 mm screw
- 4 x M8 30 mm screw
- 4 x M8 50 mm screw
- 4 x 13 mm thick nylon spacers
Warranty
The Vision Heavy Duty Flat-Panel Wall Mount 400×400 is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Meeting Rooms | Vision Heavy Duty Flat-Panel Wall Mount 400×400 supports meeting and presentation spaces where a dependable professional AV mounting product is required. |
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
