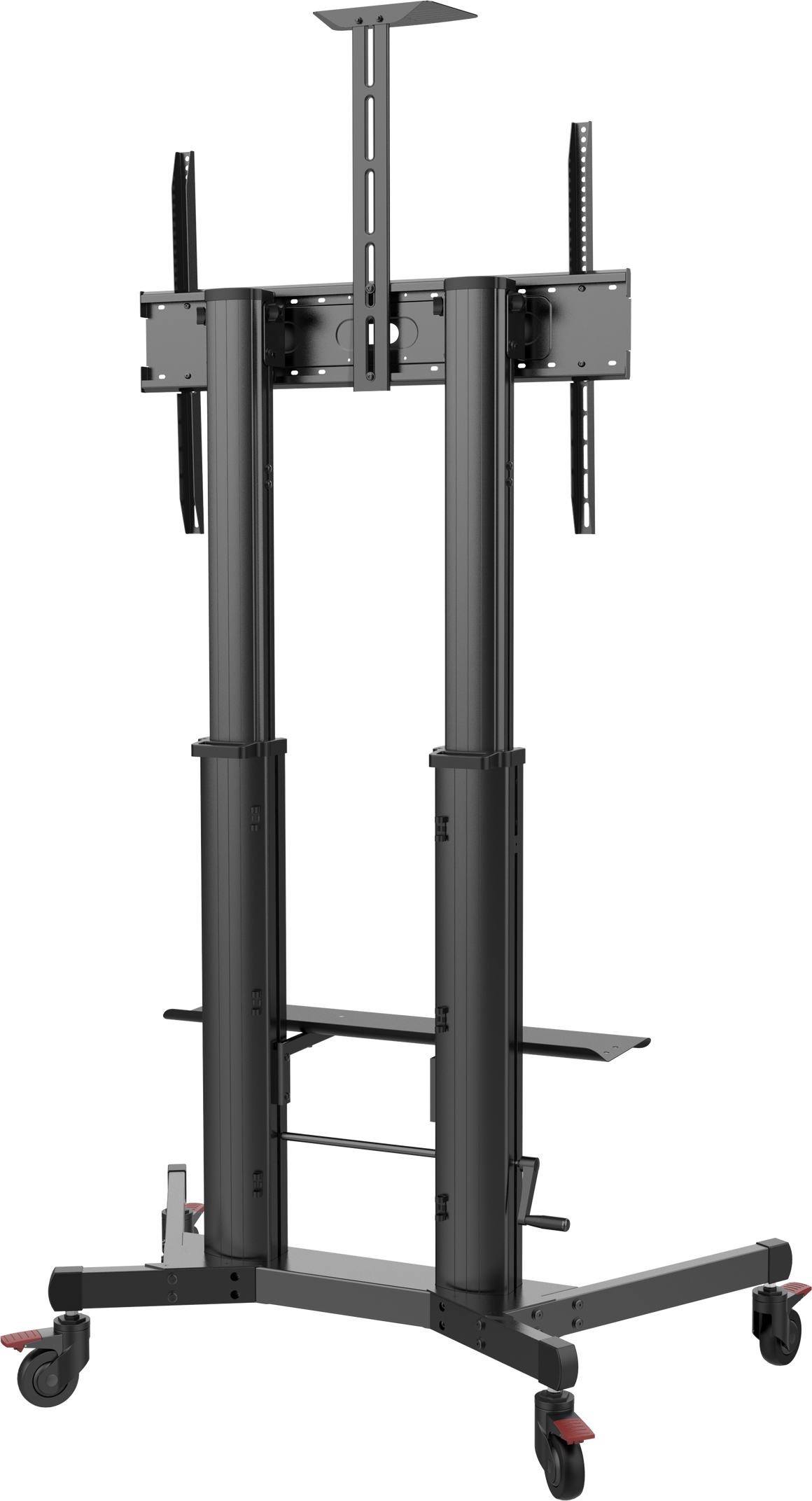

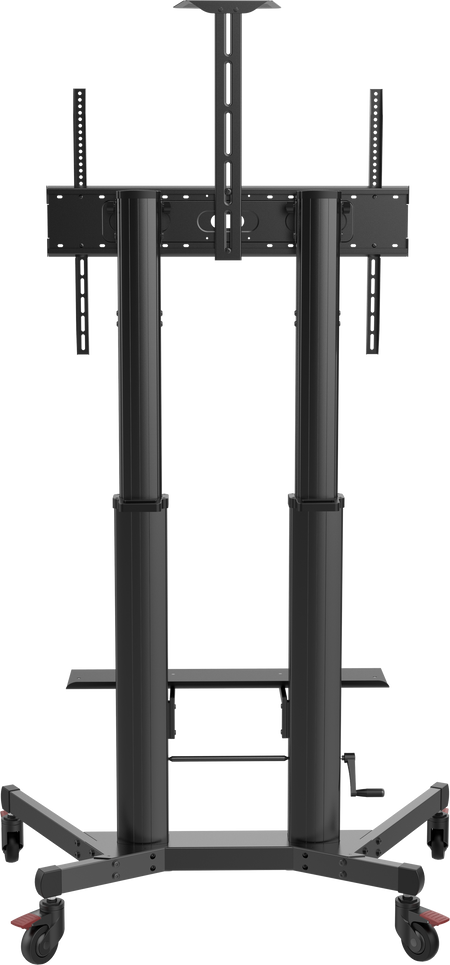

Vision Height-Adjustable Aluminium Display Cart 90 kg
Height-Adjustable Aluminium Display Cart 90 kg
In stock
Regular price
£541.73
Secure Checkout
Warranty Protection
Hassle-Free Returns

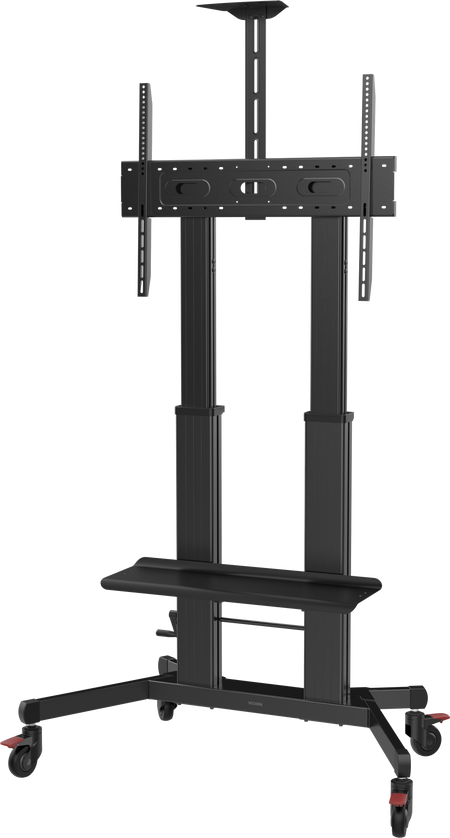

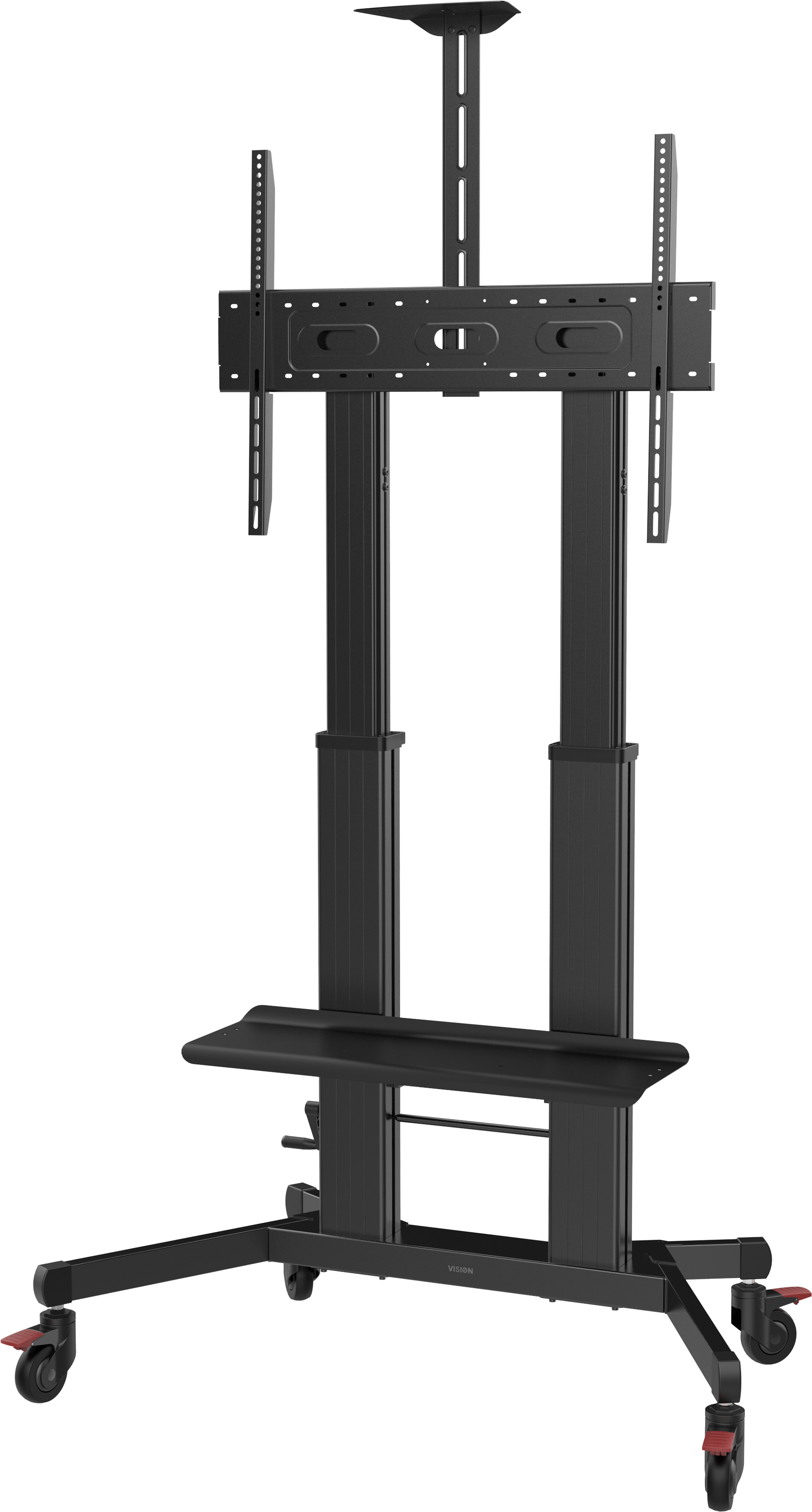

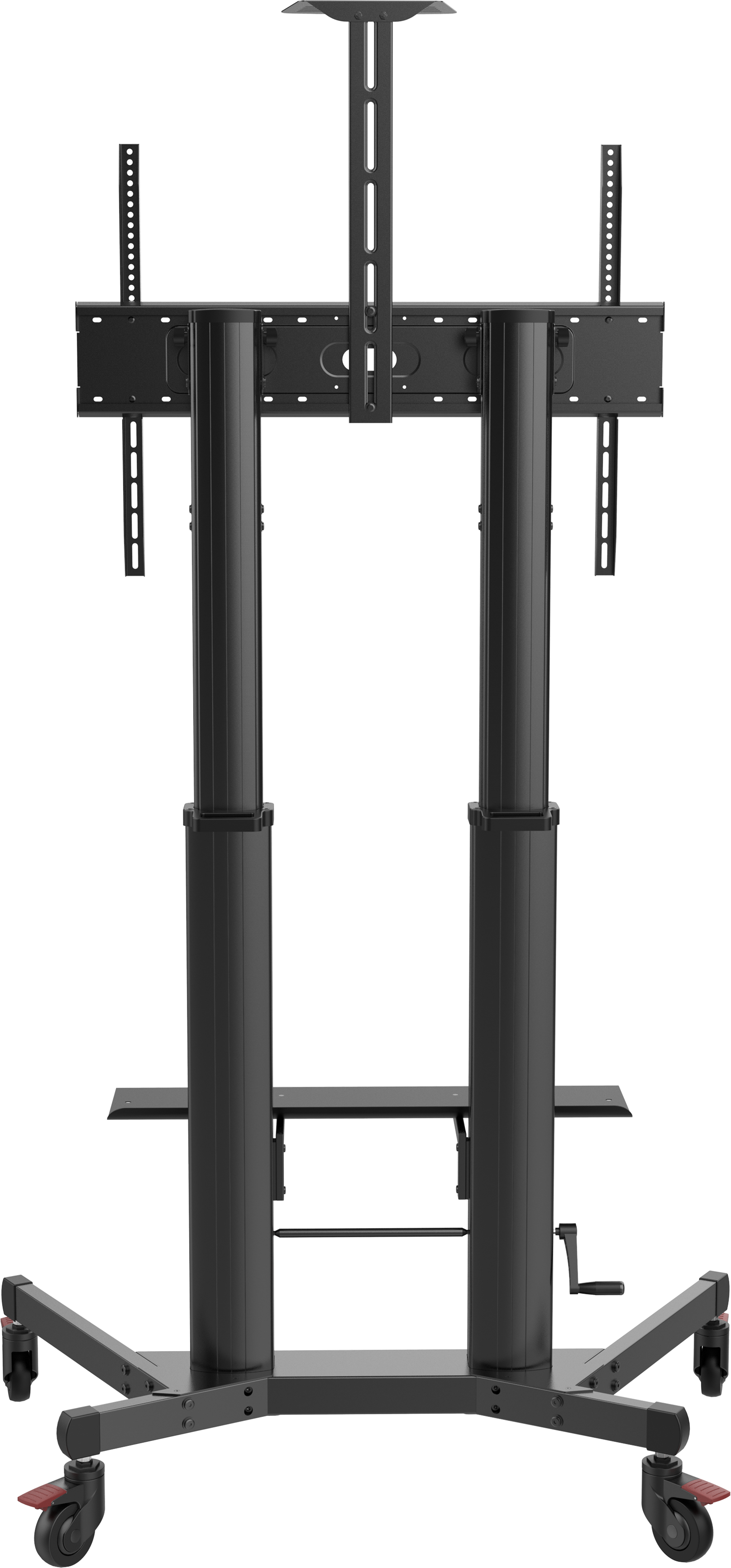

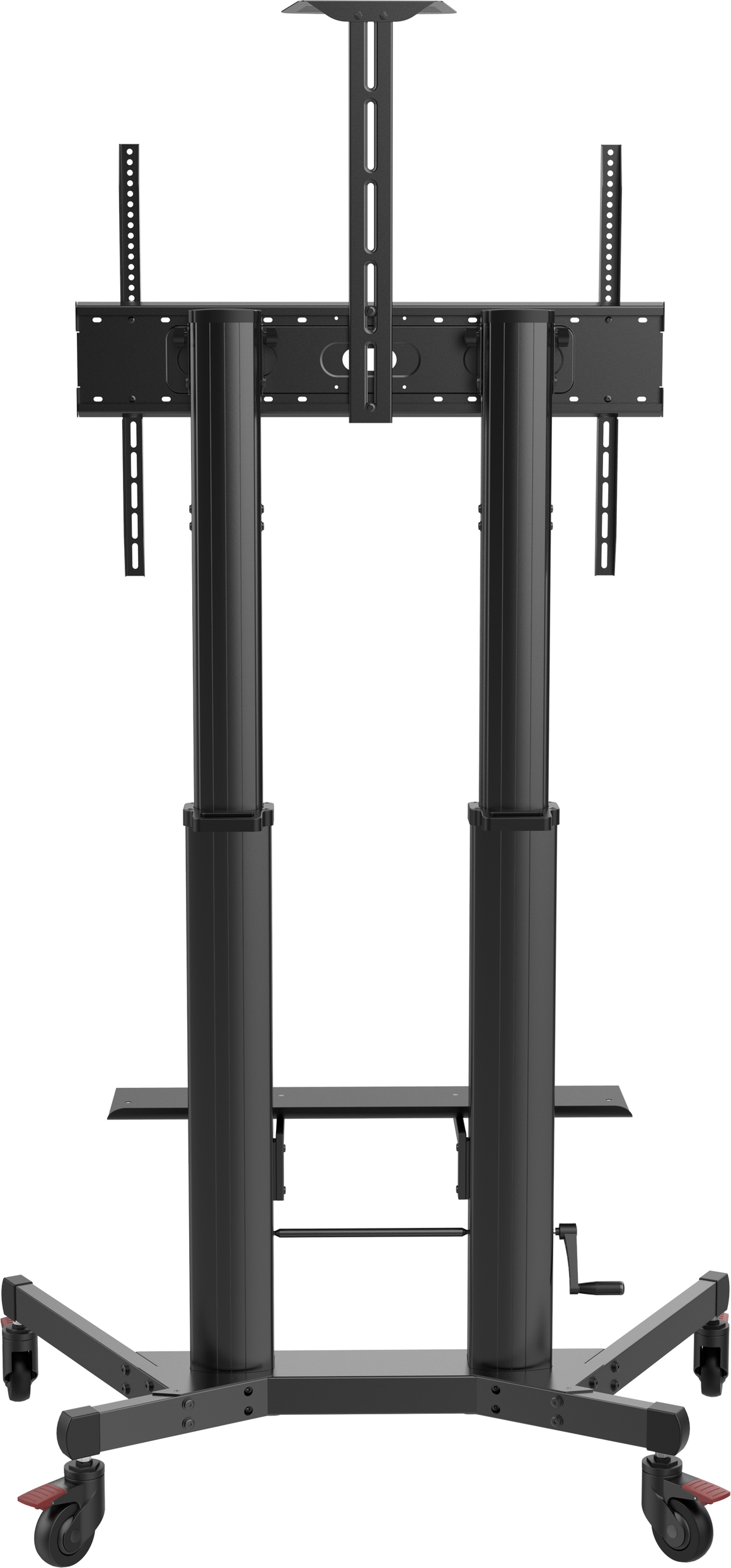

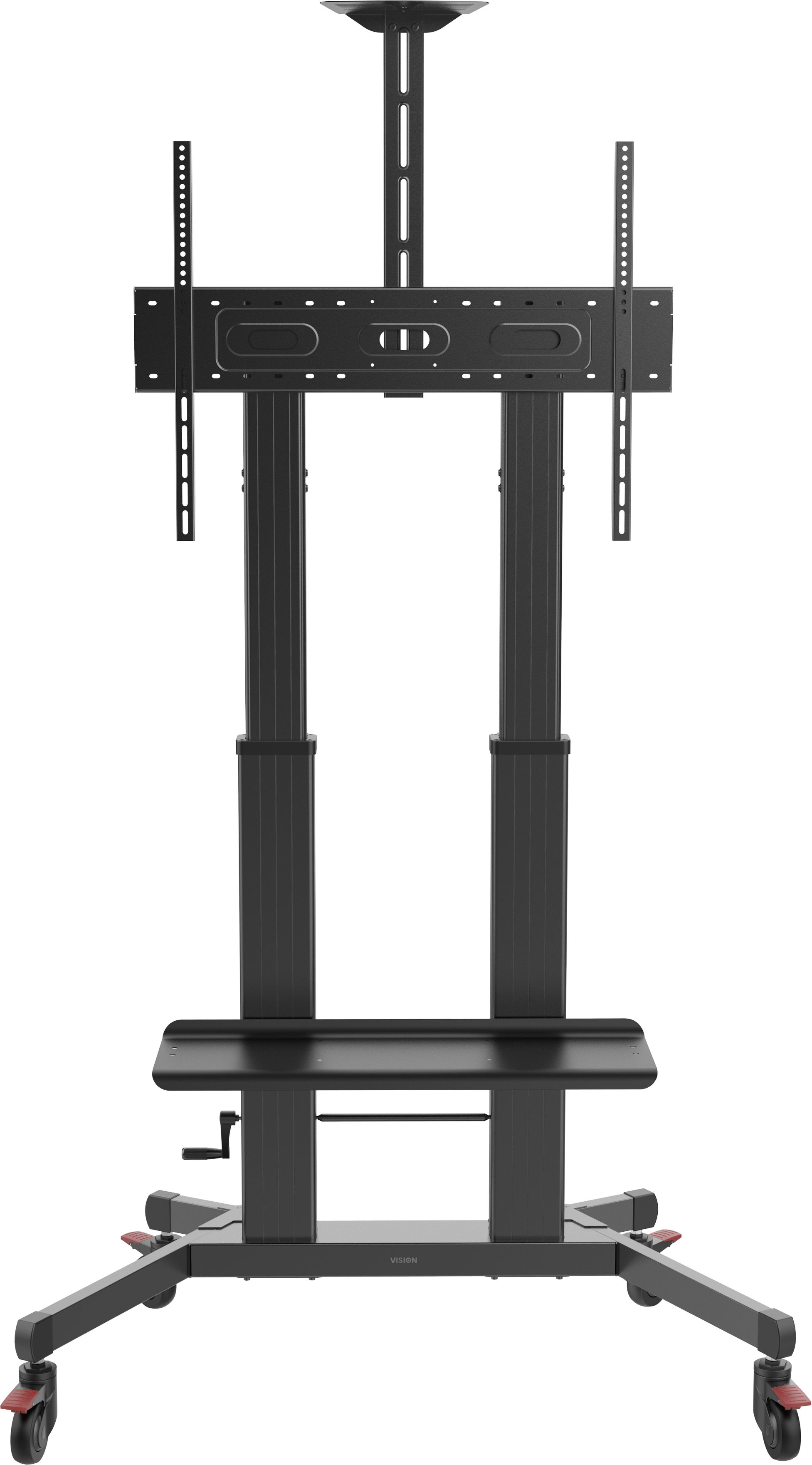

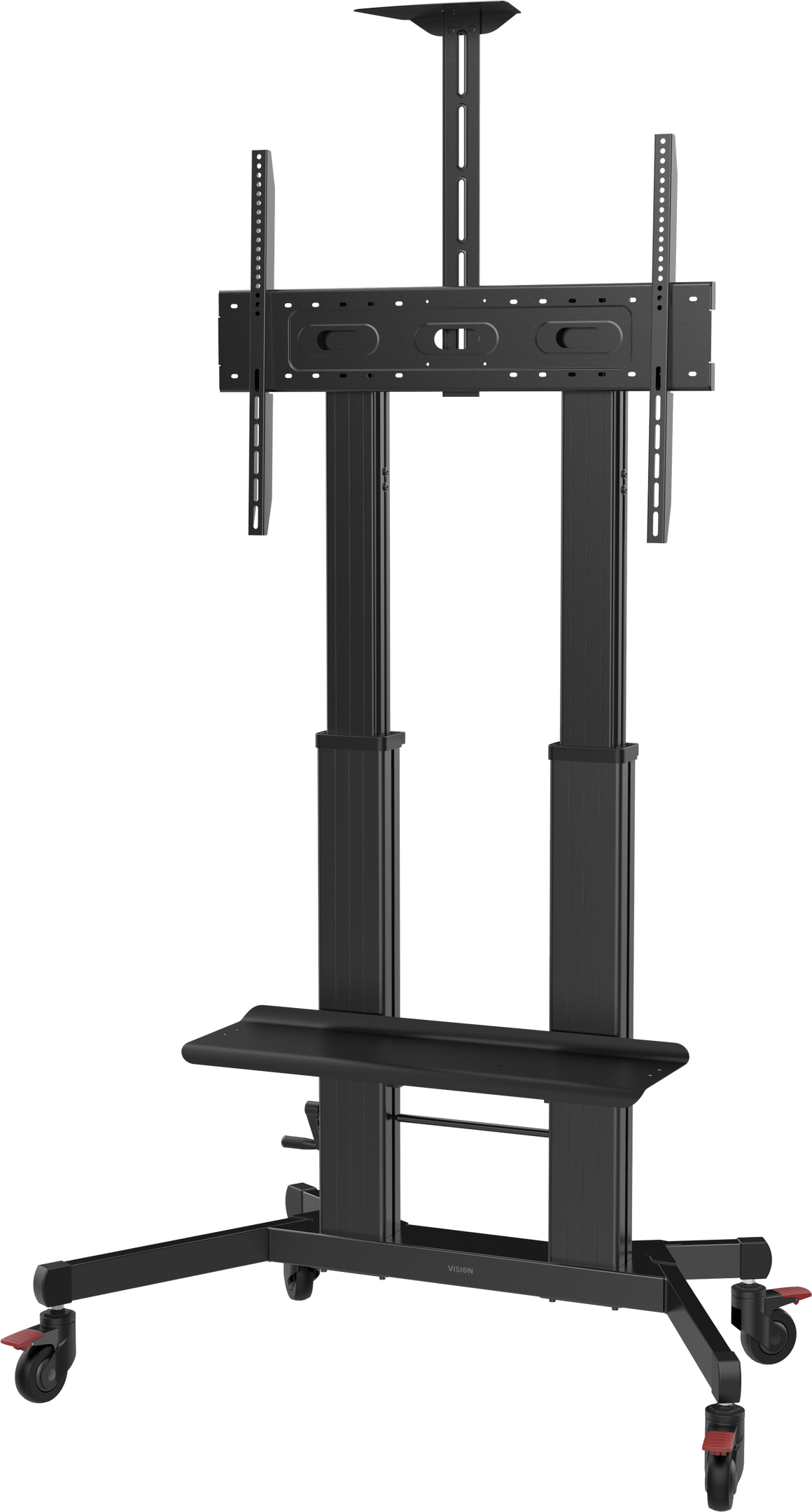

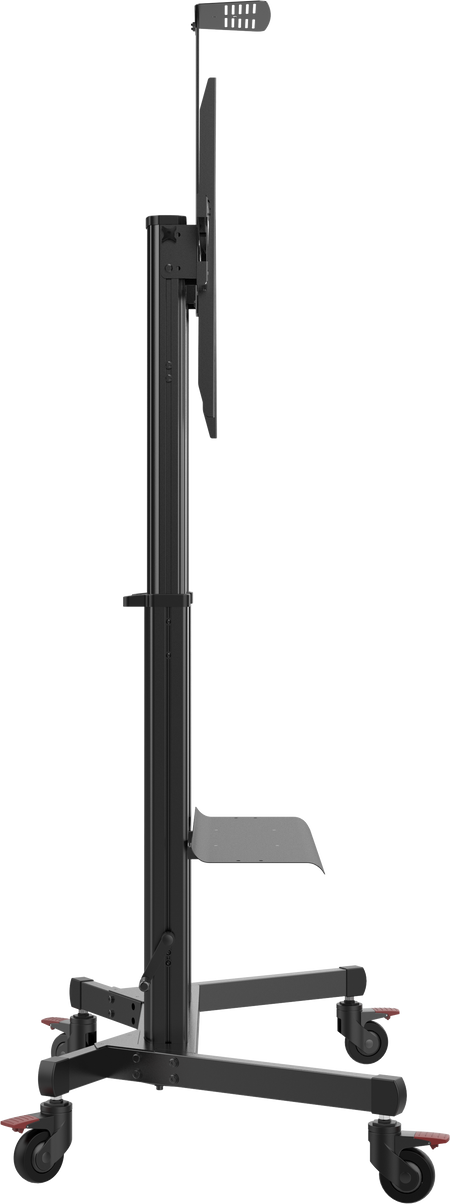

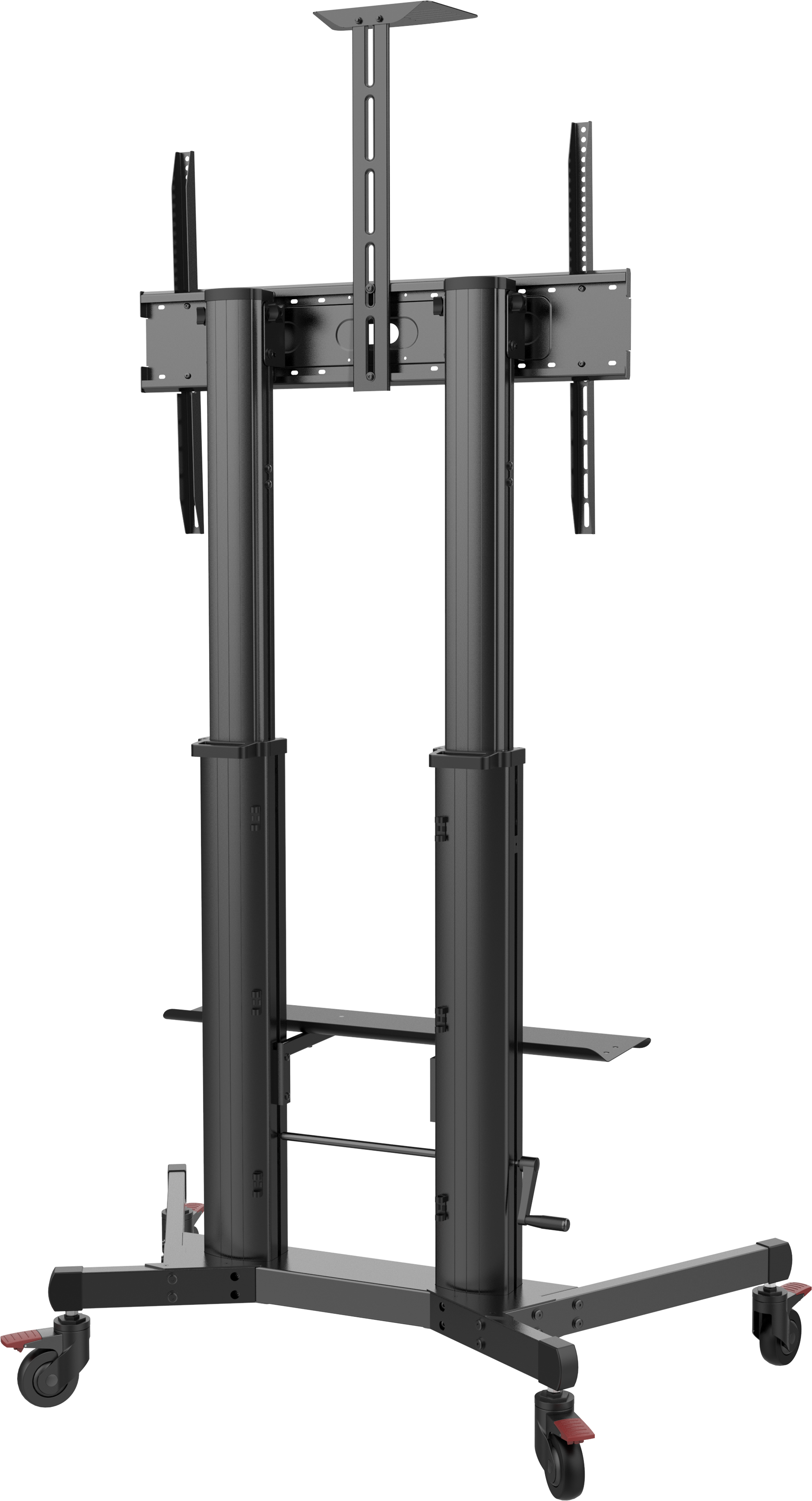

The Vision Height-Adjustable Aluminium Display Cart 90 kg the Vision F27 floor stand is like the standard F25 but elevates with a premium aluminium column and better components which enhance rigidity. It has a large bottom shelf, suited to accommodating Zoom and Teams video bars.
Key Features
- SWL 90 kg (198 lbs): The sturdy steel frame can support displays that weigh up to 90 kilograms.
- 55-100″ Displays: The suitability of a stand is also determined by the weight of the display and the dimensions of the mounting points. Displays that weigh under 90 kg and have a VESA pattern up to 800 x 600 mm are compatible with this stand.
- Premium 4" Wheels: The 4-inch (100 mm) casters ensure the cart glides easily over thick carpet and minimizes vibration to sensitive electronic equipment. All four wheels can lock.
- Adjustable Height: Turn the crank handle located at the side of the column to adjust the display height by 400 mm (16 inches).
- Tilt: The VESA mount is adjustable and can be tilted downwards to prevent reflections from overhead lighting.
- Conference Bar Shelf: The generous bottom shelf, measuring 800 mm (32 inches) in width and 250 mm (10 inches) in depth, is designed to accommodate Teams or Zoom video bars beneath the display. It can also serve as a convenient place for laptops.
- Camera Shelf: The cart includes a small top shelf for a video conference camera above the display. Both shelves are height adjustable.

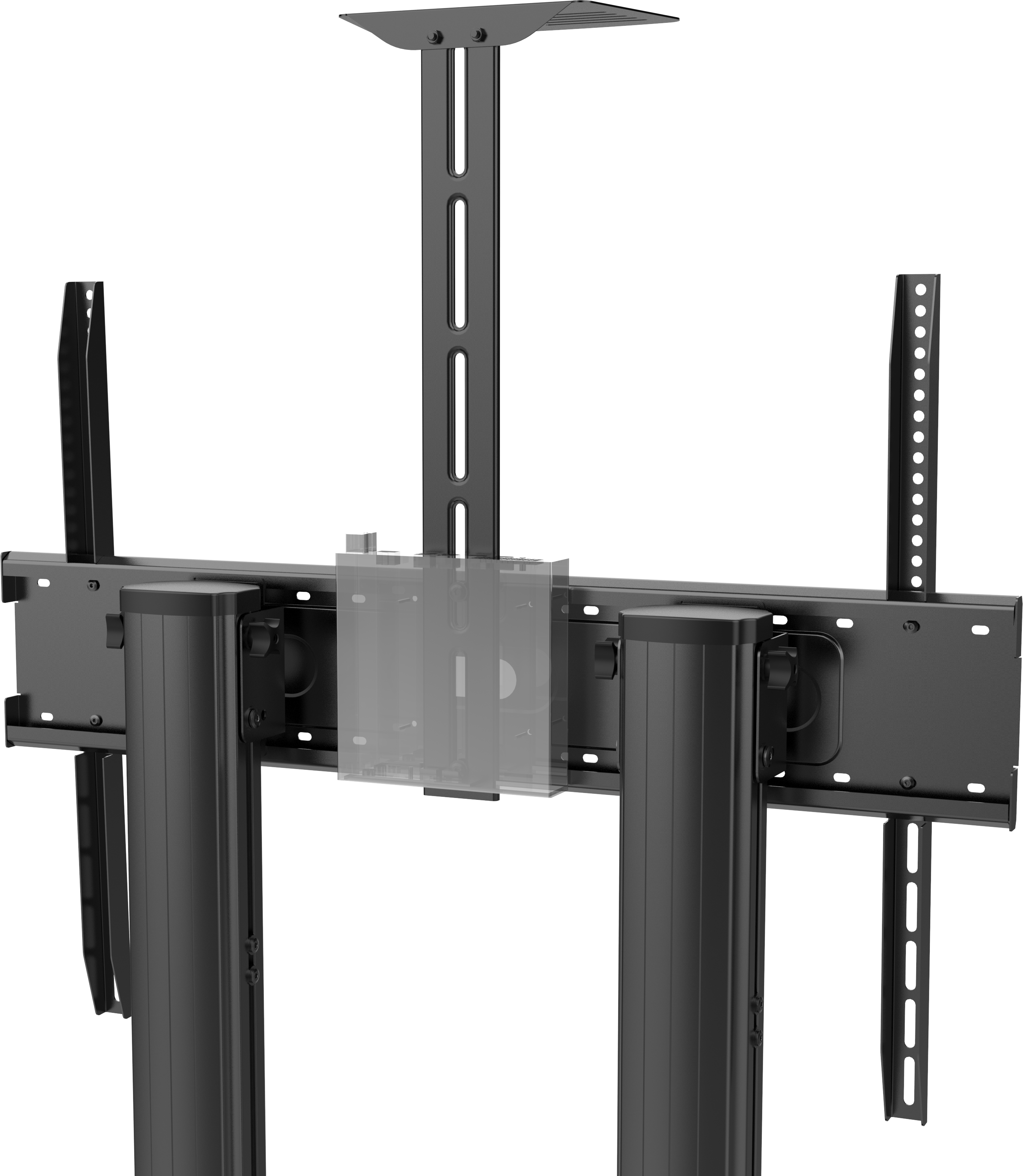

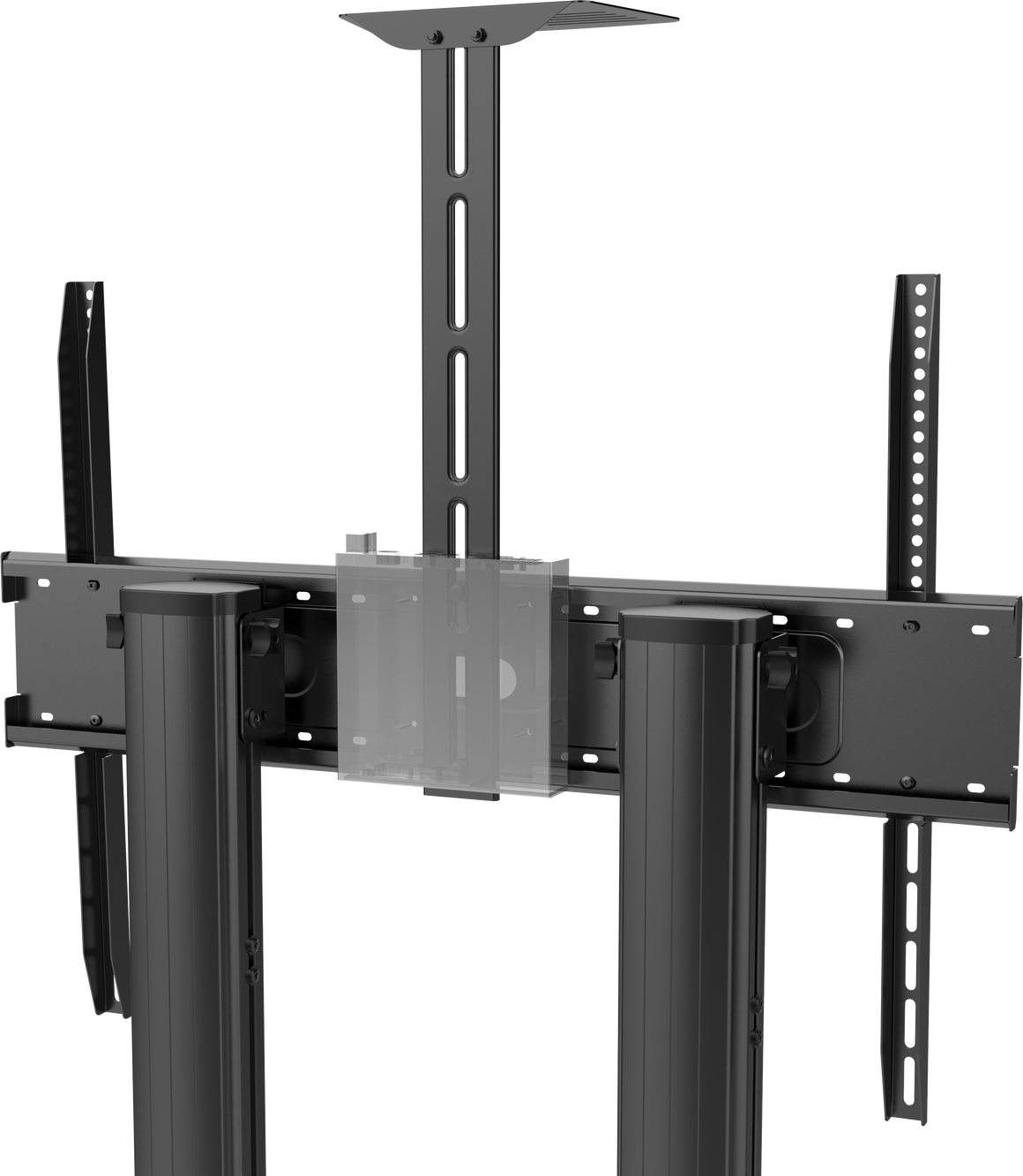

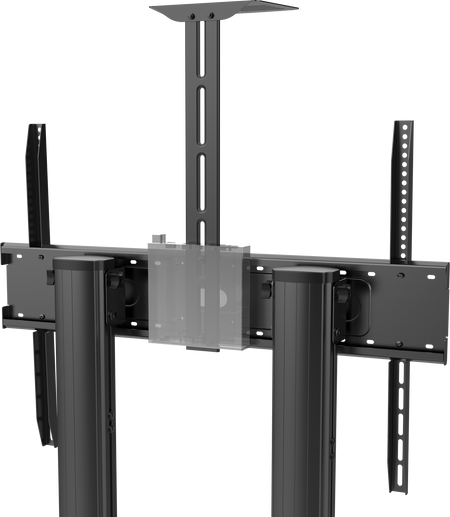

- Mini PC Mount: VESA100 mounting holes and M4 stand-offs are provided, allowing for attachment of a mini-PC, such as a Dell Optiplex or Intel NUC, to the VESA mount behind the display.
- Cable Management: Vision considers every detail! Included are stick-on cable clips that allow for discreet cable routing up the column.
- Feet Included: To convert the F27 into a non-portable floor stand fit the included feet, instead of the wheels.
Specifications
| Packaged Dimensions | 1315 x 520 x 260 mm / 51.8″x 20.5″x 10.2″ (length x width x height) |
| Product Weight | 30.3 kg (66.8 lbs) |
| Packaged Weight | 36.6 kg (80.7 lbs) |
| Safe Working Load (Swl) | 90 kg (198 lbs) |
| Shelf Safe Working Load | 5 kg (11 lbs) |
| Construction Material | Aluminium, Steel |
| Colour | Matt Black |
| Vesa Sizes | 800 x 600 mm 800 x 400 mm 600 x 600 mm 600 x 400 mm 500 x 400 mm 400 x 600 mm 400 x 400 mm 400 x 300 mm 400 x 200 mm 300 x 400 mm 300 x 300 mm 200 x 400 mm 200 x 200 mm |
| Compliances | RoHS, REACH Certification not held but complies with ISO 22881:2004 BS EN 12527:1999 BS EN 12531:1999 |

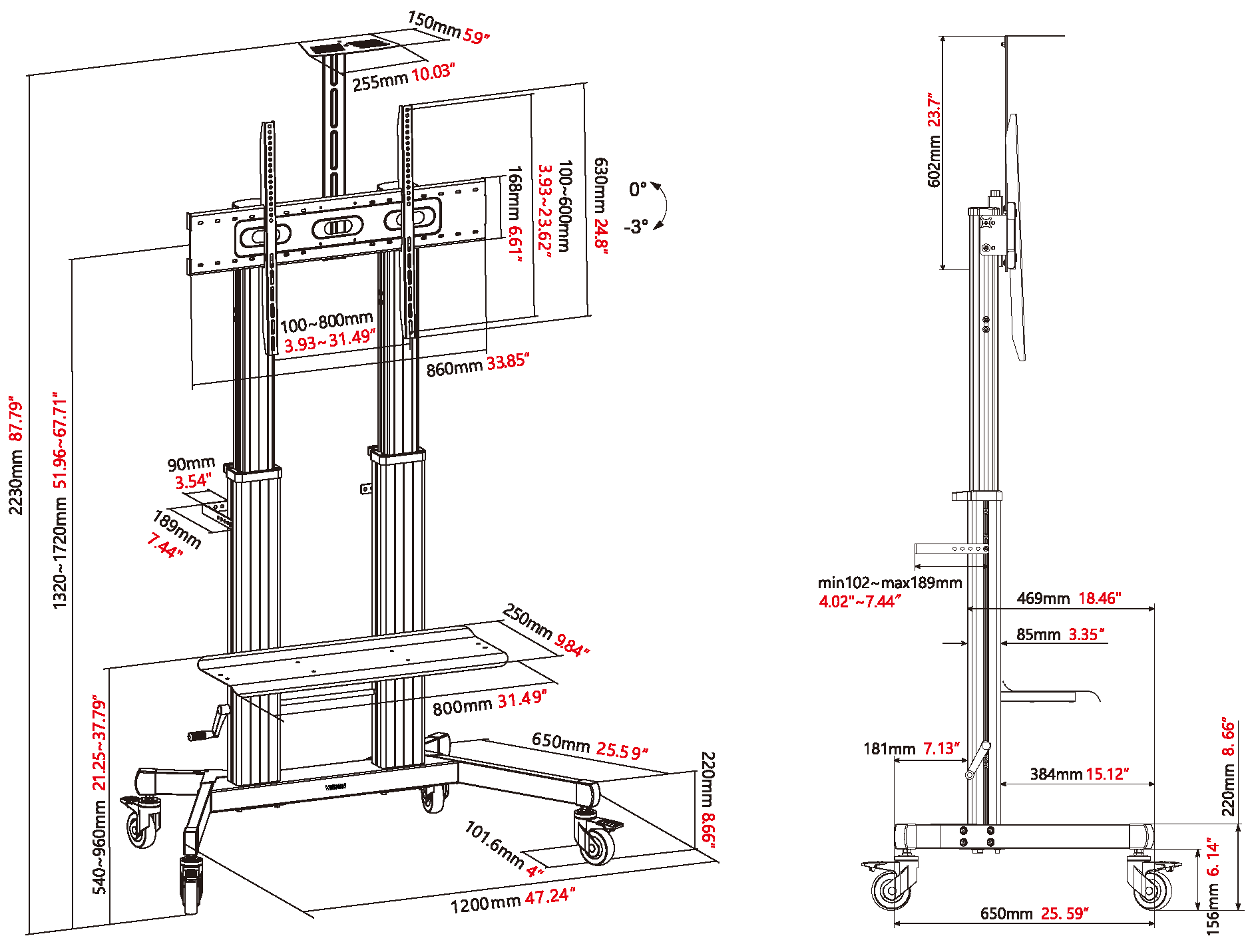

| Product Dimensions | 650 x 1200 x 2230 mm / 26″ x 47″ x 88″ (depth x width x height) |
| Country of origin | China |
What's in the Box
- 4 x M5 14 mm screw
- 4 x M6 14 mm screw
- 4 x M6 30 mm screw
- 4 x M8 30 mm screw
- 4 x M8 50 mm screw
- 8 x Cable Management Clips
- 4 x Feet (to replace wheels in freestanding applications, or for wall fixing applications)
Warranty
The Vision Height-Adjustable Aluminium Display Cart 90 kg is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Meeting Rooms | Vision Height-Adjustable Aluminium Display Cart 90 kg supports meeting and presentation spaces where a dependable professional AV mounting product is required. |
| Education and Training Spaces | A practical option for classrooms, lecture rooms, and training spaces using Vision AV infrastructure. |
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
