Vision Menu Wall Mount Kit - Portrait 4 x 50-55"
Menu Wall Mount Kit - Portrait 4 x 50-55"
In stock
Regular price
£778.13
Secure Checkout
Warranty Protection
Hassle-Free Returns

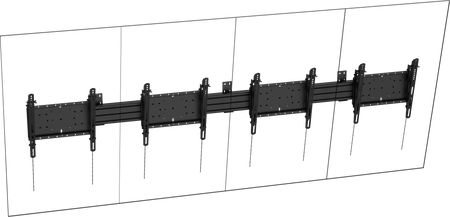

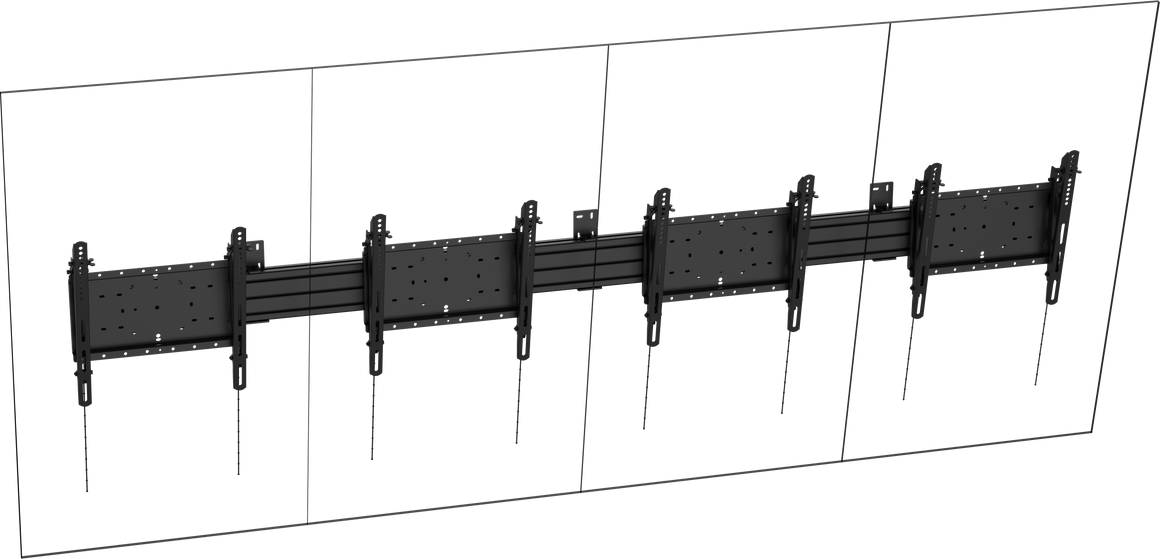

The Vision Menu Wall Mount Kit - Portrait 4 x 50-55" designed for AV integrators serving Quick Service Restaurant (QSR) customers, this wall rail mount kit is expandable and user-friendly.
Key Features
- SWL 120 kg: This product utilizes heavy-gauge components to support the weight. The weight of all displays combined cannot exceed this.
- Five cartons: This kit contains several different products combined for this application, so it will arrive in five cartons. If you need a different combination you can order each part separately.
- Three Wall Brackets: The wall brackets have an adjustable reach to allow for walls that aren’t perfectly flush. They slide easily along the rail, making it simple to anchor the rail to a load-bearing structure in the wall.

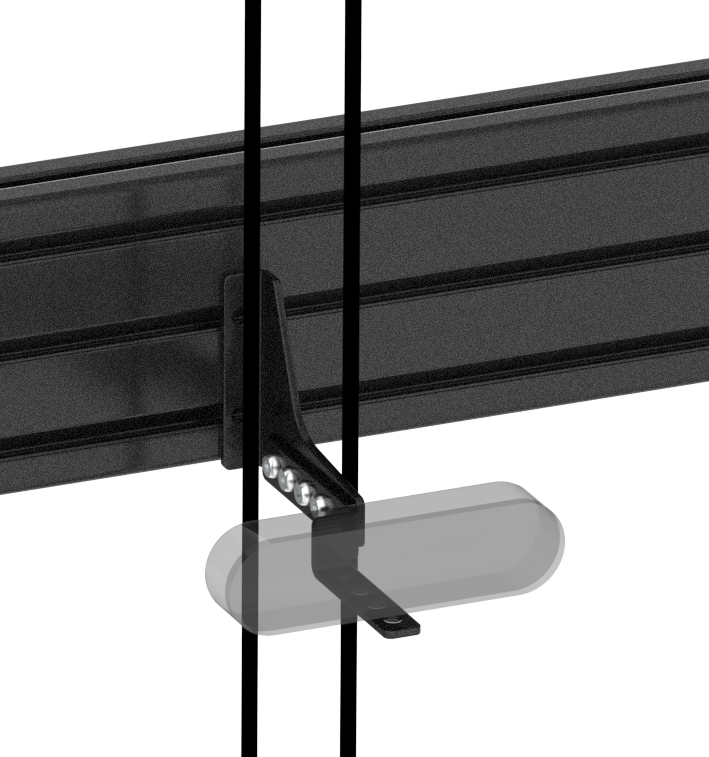

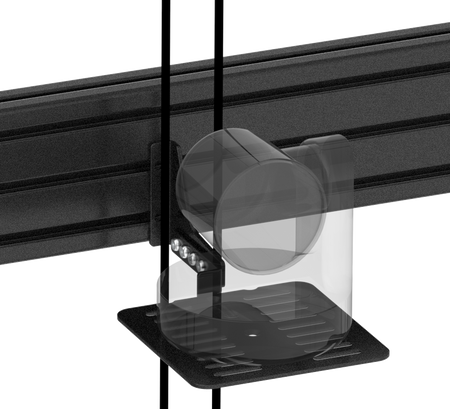

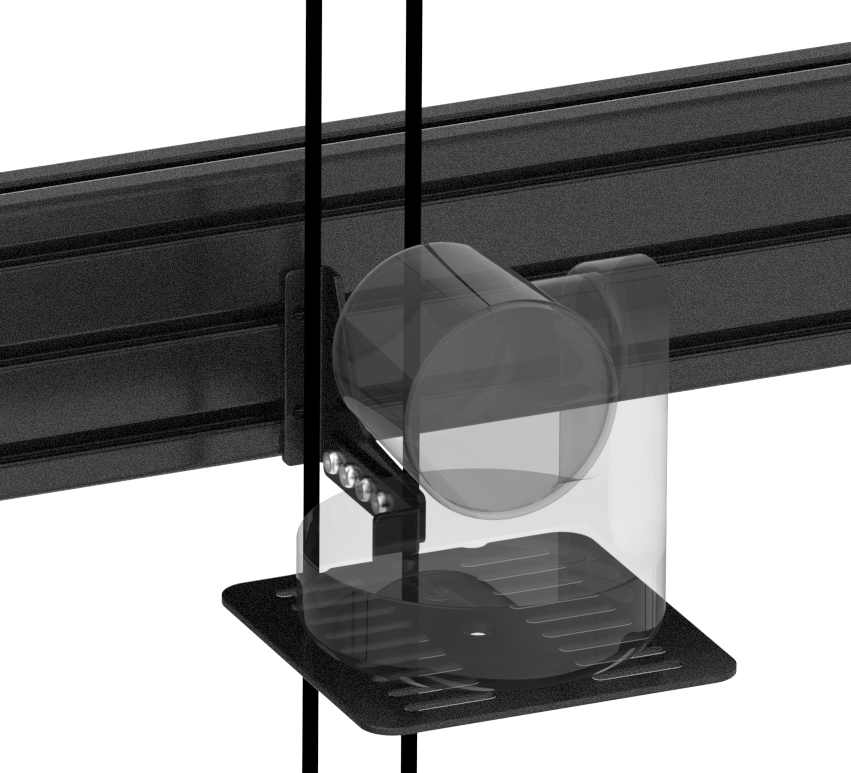

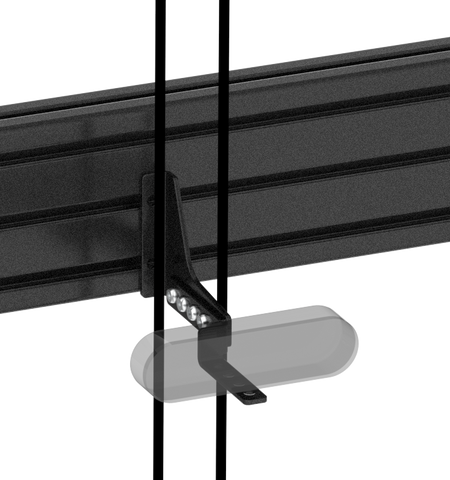

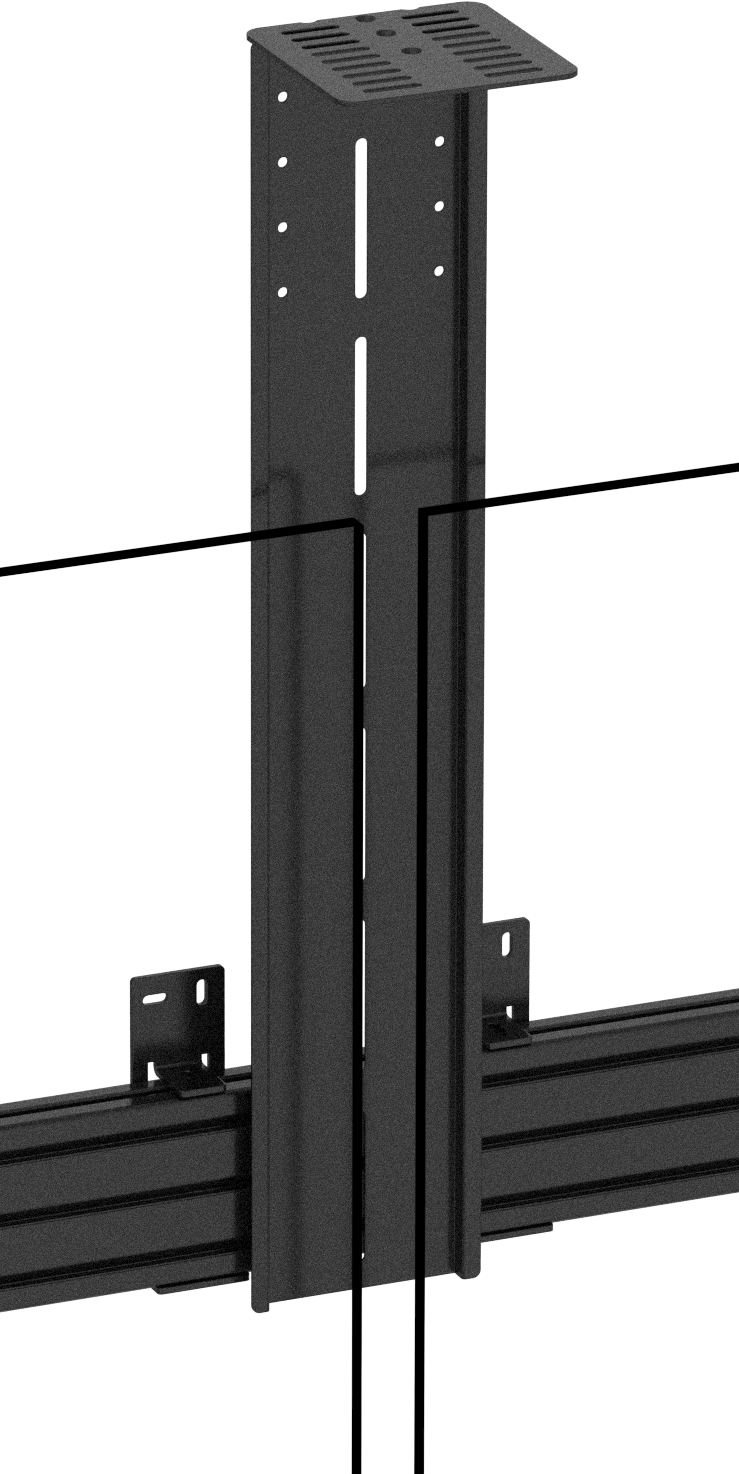

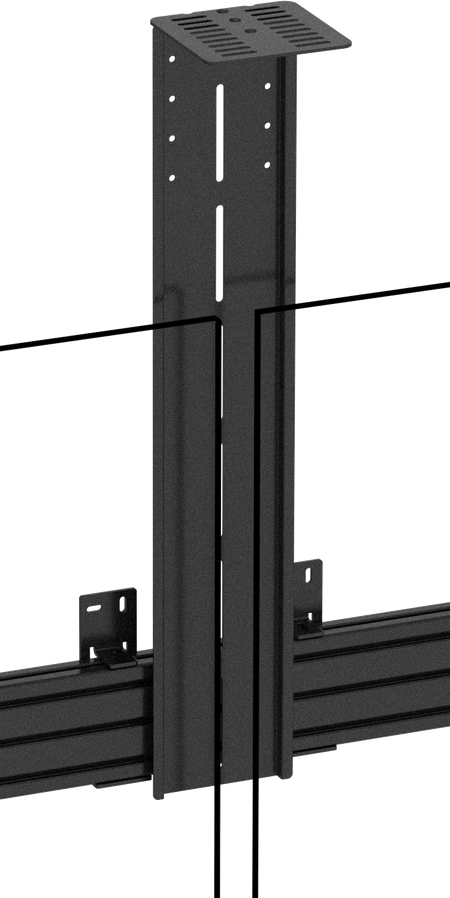

- Camera Shelf: The setup includes a camera shelf that can hold a camera above, below, or between the screens, making it a convenient way to position security monitoring for the point of sale area.

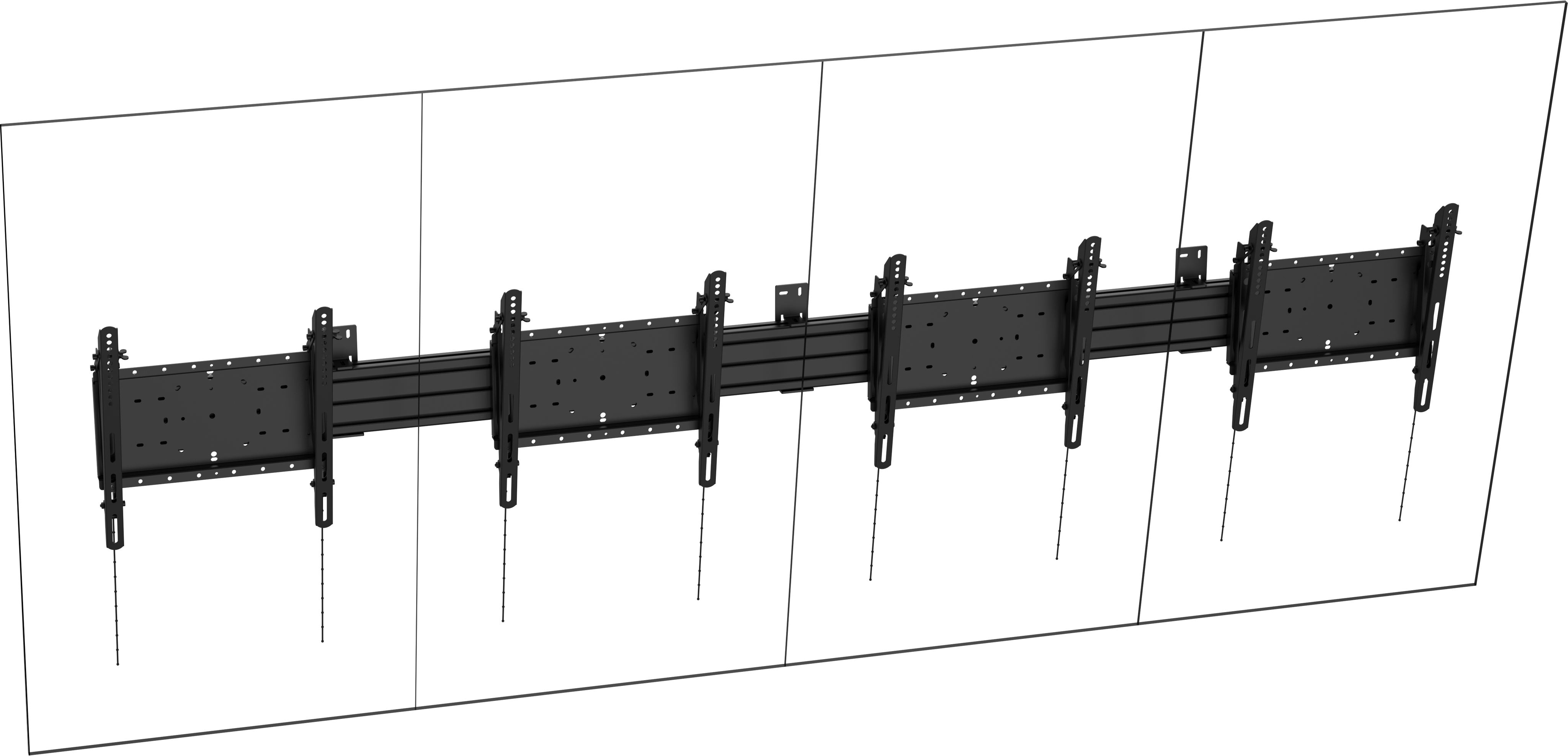

- 4 x Displays: This kit is designed for four 50" to 55" portrait displays. We have a variety of other kits available, so if you’re looking for something different, just search VFM-MNU/P above.

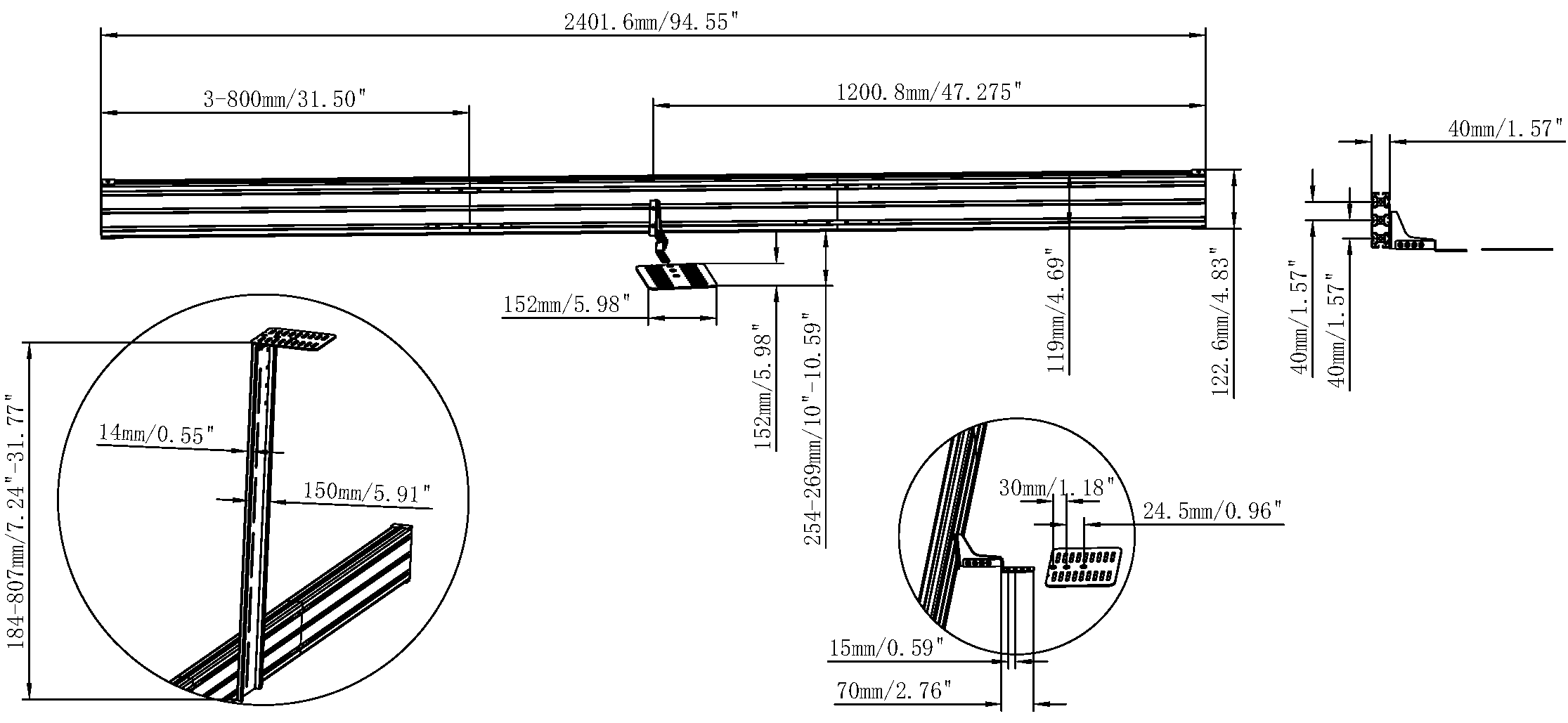

- 2400 mm Wide Rail: The aluminium rail comes in three sections, each 800 mm wide, with joiners fitted into the top and bottom grooves. It can be extended as needed.
- Heavy-duty rail-based wall mount: Heavy-duty rail-based wall mount
- Supports four 50"-55" displays in portrait: Supports four 50"-55" displays in portrait
- Camera shelf included: Camera shelf included
- Safe Working Load: 120 kg / 265 lbs (30 kg / 66 lbs per display)
Specifications

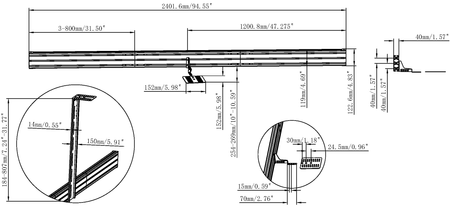

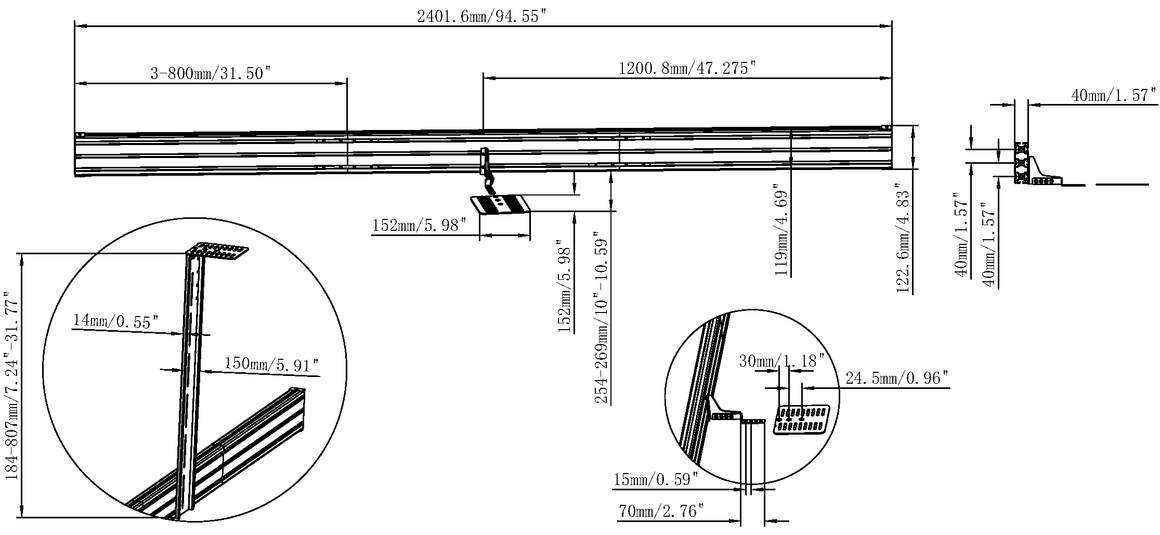

| Product Dimensions | See CAD |
| Safe Working Load | 120 kg / 265 lbs (30 kg / 66 lbs per display) |
| Construction Material | Steel, Aluminium |
| Colour | Powercoated Matt Black |
| Vesa Sizes | 400 × 400 mm 400 x 300 mm 400 × 200 mm 300 × 400 mm 300 × 300 mm 200 x 200 mm |
| Compliances | RoHS, WEEE, REACH |
| Packaging Dimensions | This kit contains five cartons: 1 x rail: 884 x 224 x 237 mm / 34.8″ x 8.8" x 9.3″ 4 x wall mounts: 480 x 235 x 55 mm / 18.9″ x 9.3″ x 2.2″ |
| Packaged Weight | This kit contains five cartons: 1 x rail: 12.1 kg (26.7 lbs) 4 x wall mounts: 4.0 kg (8.8 lbs) |
| Country of origin | China |
What's in the Box
- 1 x Camera Shelf
- 2 x Extrusion end covers
- 6 x Joiners
- 80 x T-Slot M6 Bolts
- 28 x T-Slot nuts
Warranty
The Vision Menu Wall Mount Kit - Portrait 4 x 50-55" is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
