Vision Motorised Dual Flat Panel Floor Stand
Motorised Dual Flat Panel Floor Stand
In stock
Regular price
£1,856.12
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Vision Motorised Dual Flat Panel Floor Stand need to install a Microsoft Teams or Zoom room? Vision’s VFM-F50T Dual trolley makes it easy to install two displays on one floor stand.
Key Features
- SWL 80 kg (176 lbs): The F50T utilizes heavy-gauge components to support the weight. The weight of all displays combined cannot exceed this.
- Four cartons: This kit contains 1 x VFM-F50T floor stand (comes in two cartons strapped together), 1 x VFM-F50_DL rail accessory, and 1 x VFM-W8X6 wall mount. If you need a different combination you can order each part separately.
- Wired Control or RS-232: A wired remote control offers up and down functions. Additionally, you have the option to use an RS-232 control system, which allows you to add pre-set positions, as well as upper and lower limits.
- 4" Wheels: Medical-grade 4″ (100 mm) castors glide over any bumps, making the stand easy to pull even on deep carpet. Big wheels reduce vibration. All wheels are lockable.
- Hide Mess: The front cover is removable, facilitating cable routing. And you can conceal source devices or power distribution boards inside the column.
- Landscape or Portrait: Vision's VESA mounts support portrait or landscape orientation.
- 800 mm / 31.5" Motorised Height Adjustment: Motorized height adjustment allows for easy alteration of the display's height to accommodate different audience preferences and needs.
- Increased Safety: A safety sensor halts motor when display lowers onto obstacle.

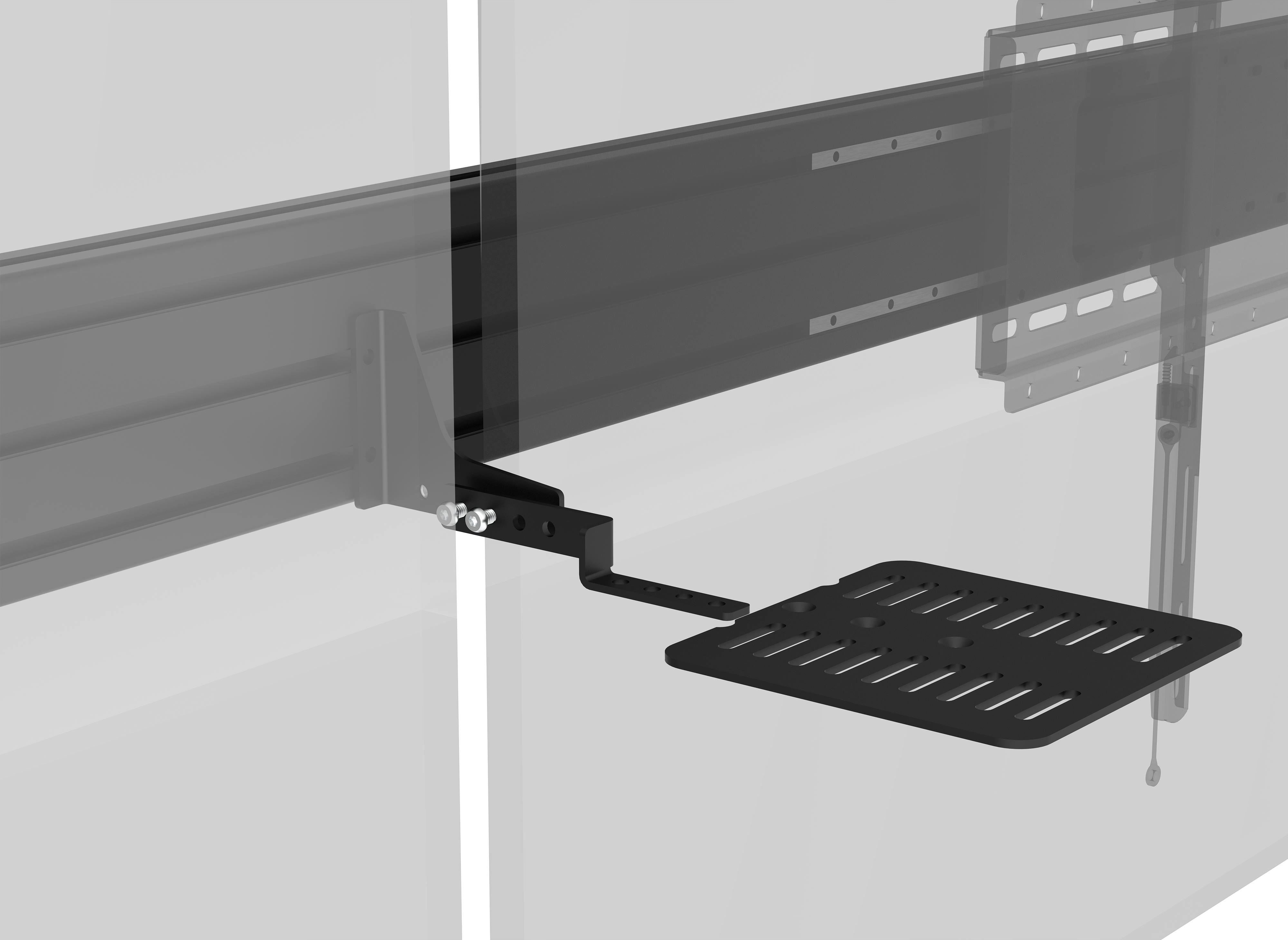

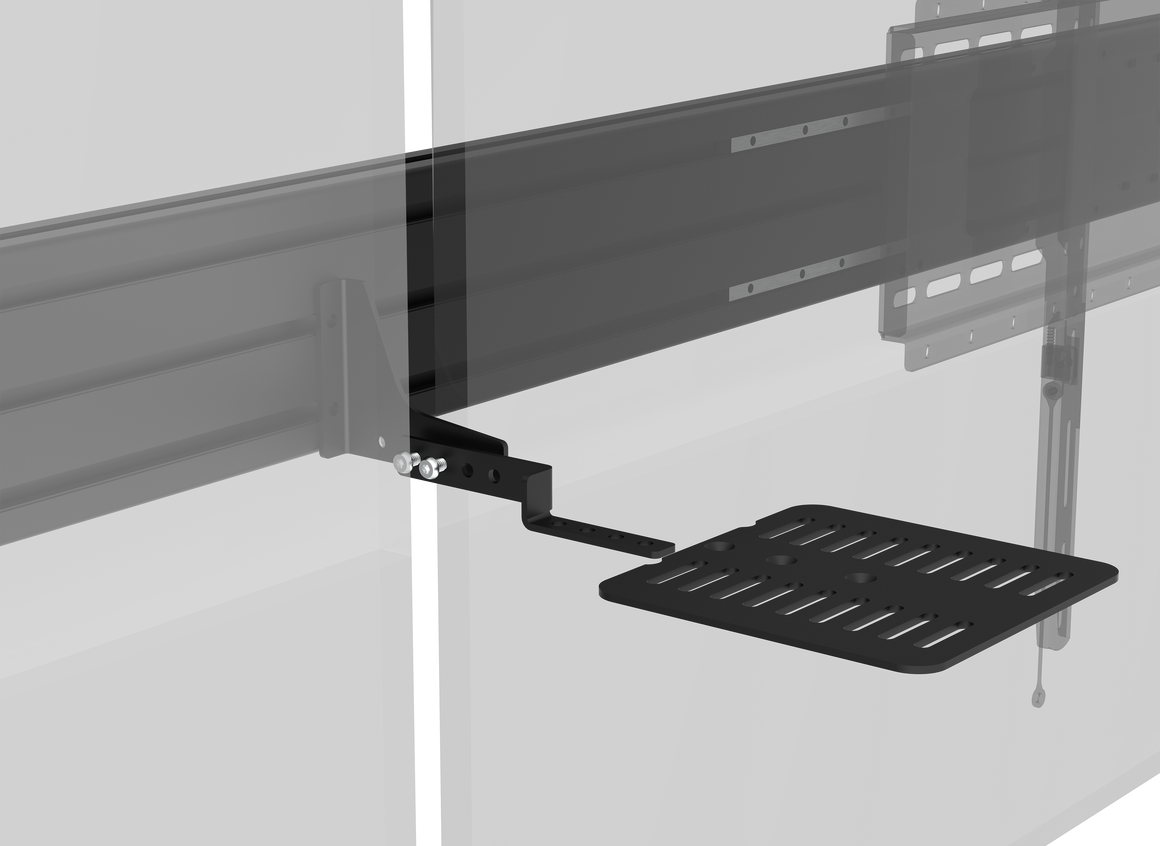

- Camera Shelf: Positioning the camera at the centre of the two screens enhances the impression of natural eye contact for remote participants.
- 2 x Displays: Support two displays from 55" to 86". Each display can weight up to 40 kg. The aluminium rail comes in three parts and allows side to side adjustment of the displays.
Specifications

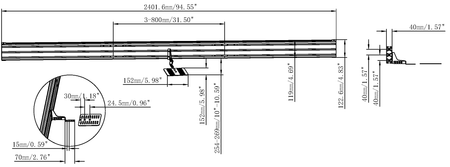

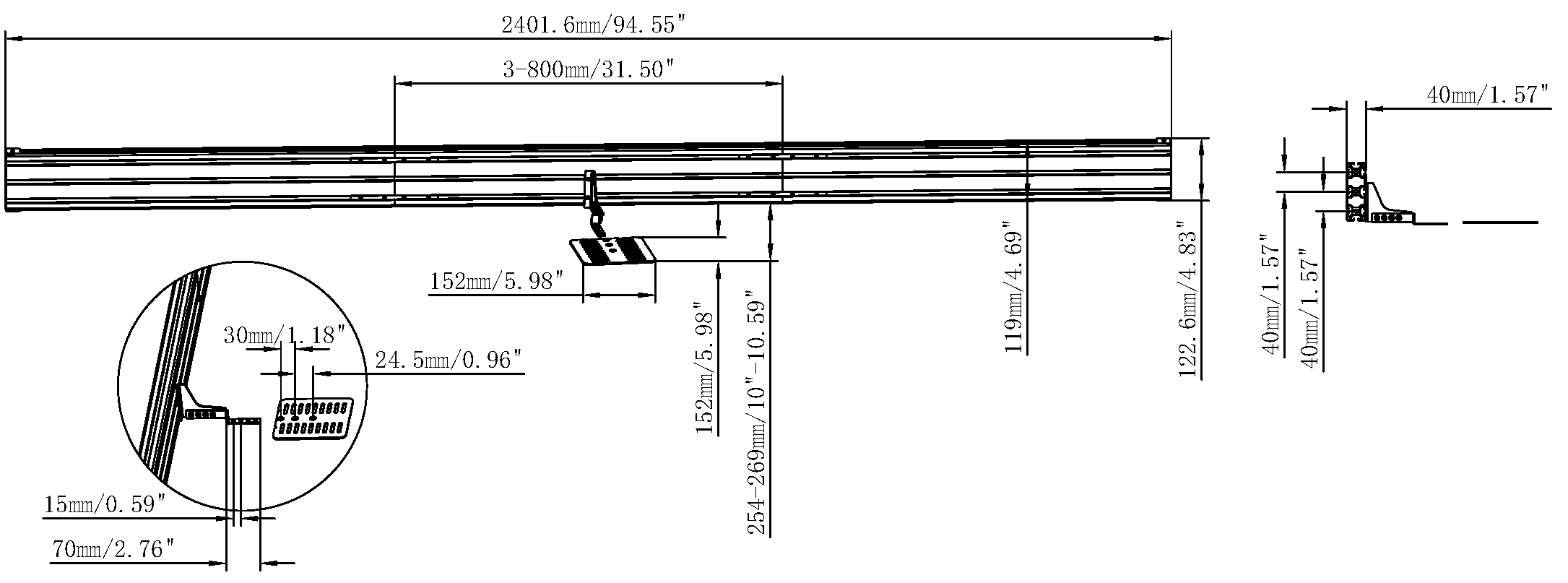

| Product Dimensions | See CAD |
| Safe Working Load | 80 kg / 176 lbs (40 kg / 88 lbs per display) |
| Construction Material | Steel, Aluminium |
| Colour | Powercoated Matt Black |
| Vesa Sizes | 800 x 600 mm 800 x 500 mm 800 x 400 mm 600 × 600 mm 600 x 500 mm 600 × 400 mm 500 x 500 mm 500 x 400 mm 400 x 600 mm 400 × 400 mm 400 x 300 mm 400 × 200 mm 300 × 400 mm 300 × 300 mm |
| Motor Type | Linear-drive |
| Movement Speed | 16 mm / 0.6" per second |
| Height Adjustment Range | 800 mm / 31.5″ |
| Power Supply | 110-230V Integrated Power Supply |
| Compliances | RoHS, WEEE, FCC, CE/EMC, CE/LVD, RCM/DOC, RCM/POC Certification not held but complies with ISO 22881:2004 BS EN 12527:1999 BS EN 12531:1999 |
| Country of origin | China |
What's in the Box
- 1 x EU Figure-8 C7 Power cable 2.5 m (8 ft) long
- 1 x UK Figure-8 C7 Power cable 2.5 m (8 ft) long
- 1 x AU Figure-8 C7 Power cable 2.5 m (8 ft) long
- 1 x Remote Control with cable 1.5 m (5 ft) long
- 2 x Wall Brackets
- 8 x M5 16 mm screw
- 8 x M6 16 mm screw
- 8 x M6 25 mm screw
- 8 x M8 30 mm screw
- 8 x M8 50 mm screw
- 8 x 15 mm thick nylon spacers (for 2S 85" Microsoft Surface Hub)
- 8 x 20 mm thick nylon spacers (for 2S 85" Microsoft Surface Hub)
Warranty
The Vision Motorised Dual Flat Panel Floor Stand is backed by Lifetime return-to-base UK Only: 5 years onsite, 1 engineer provided so requires assistance, providing cover for professional and commercial deployments.
Application Examples
| Meeting Rooms | Vision Motorised Dual Flat Panel Floor Stand supports meeting and presentation spaces where a dependable professional AV mounting product is required. |
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
