Vision Motorised Flat Panel Floor Stand

The Vision Motorised Flat Panel Floor Stand do you trust the wall enough to securely hold a heavy interactive flat panel? With Vision's F50 floor stand, you can say goodbye to those worries.

Key Features

• SWL 95 kg: The F50 utilizes heavy-gauge components to support the display's weight, and it employs a linear drive system with twin drive shafts to generate vertical motion.

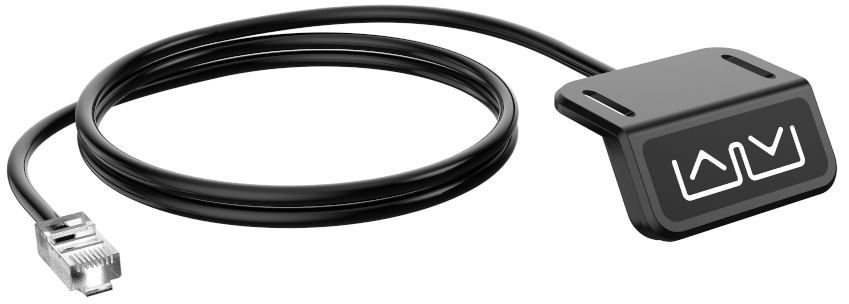

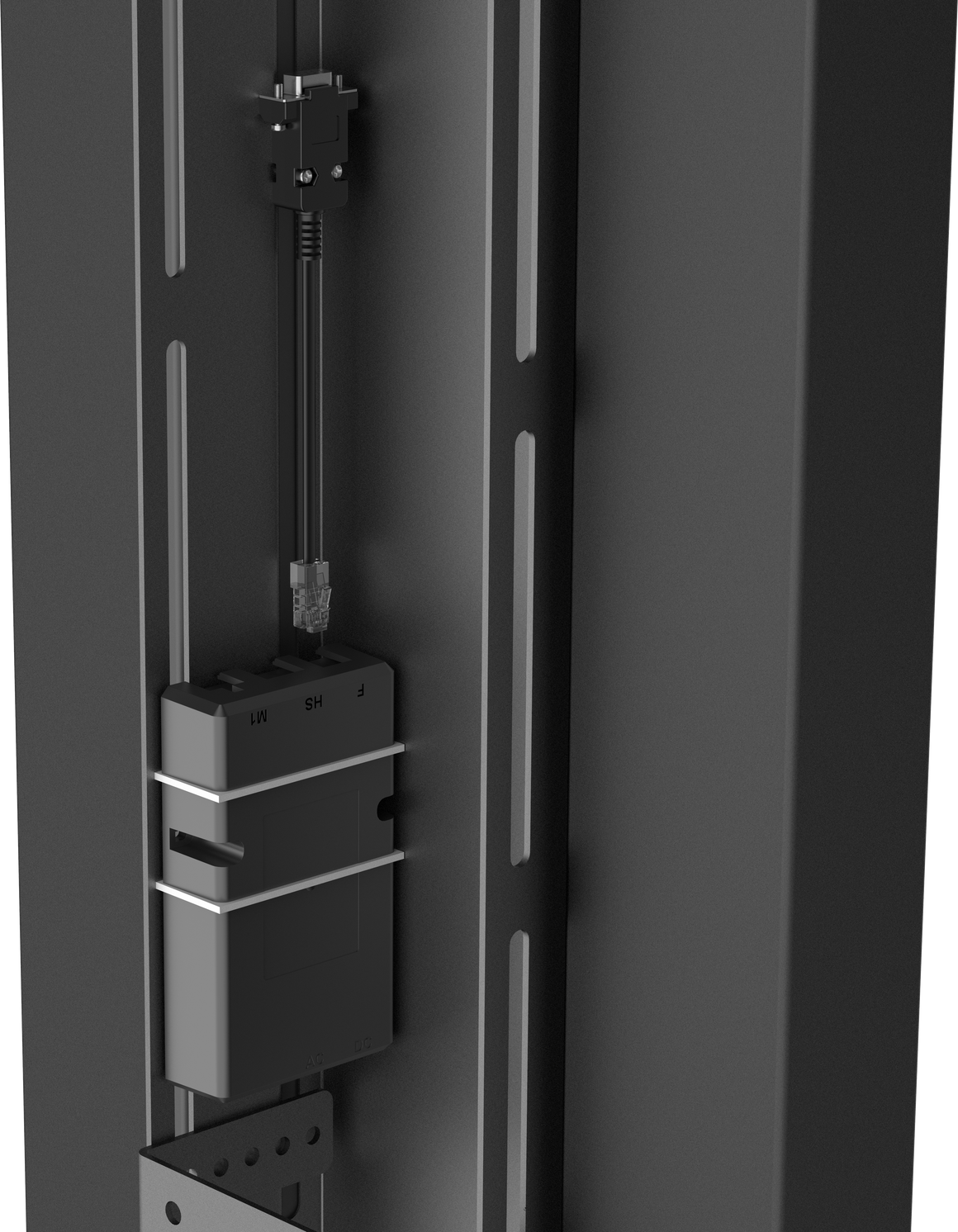

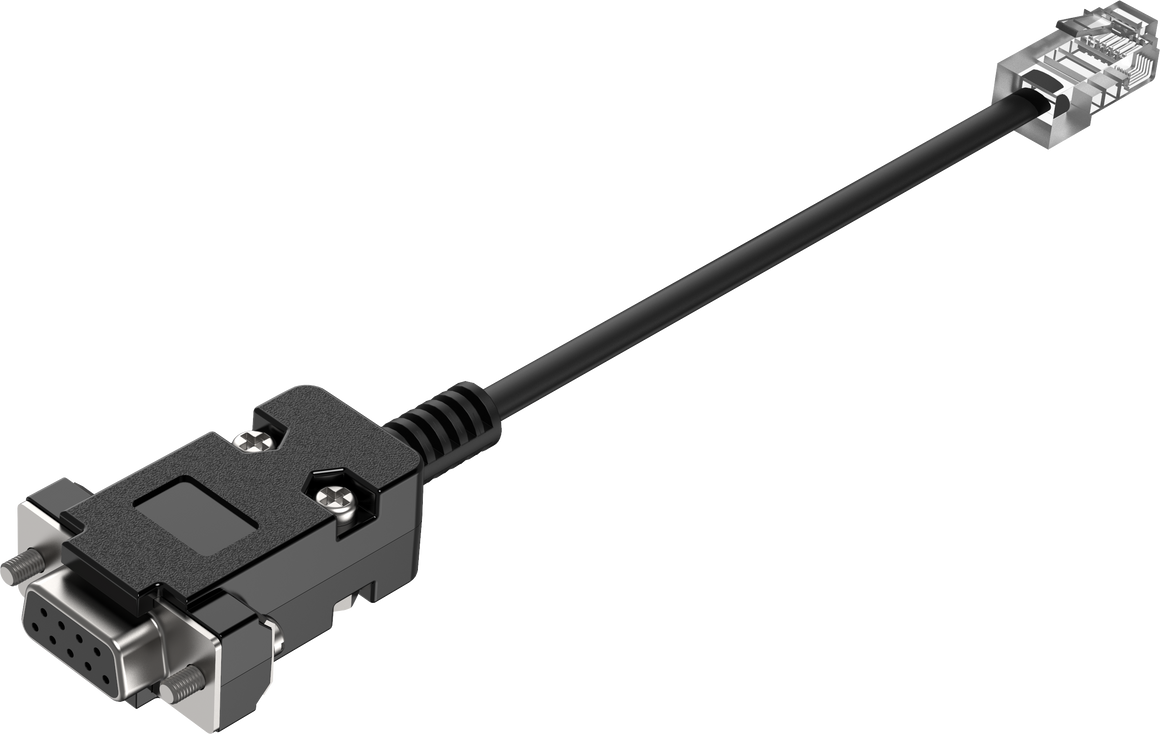

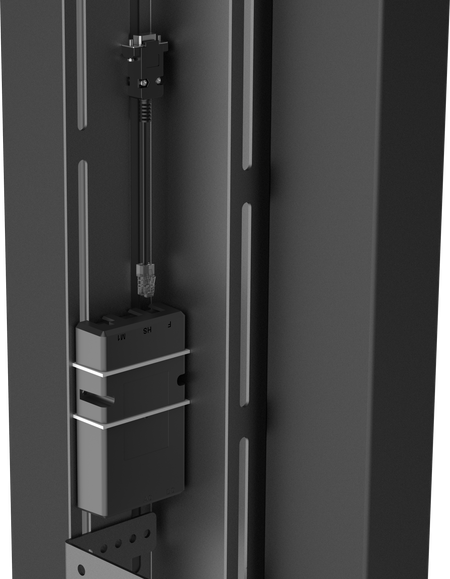

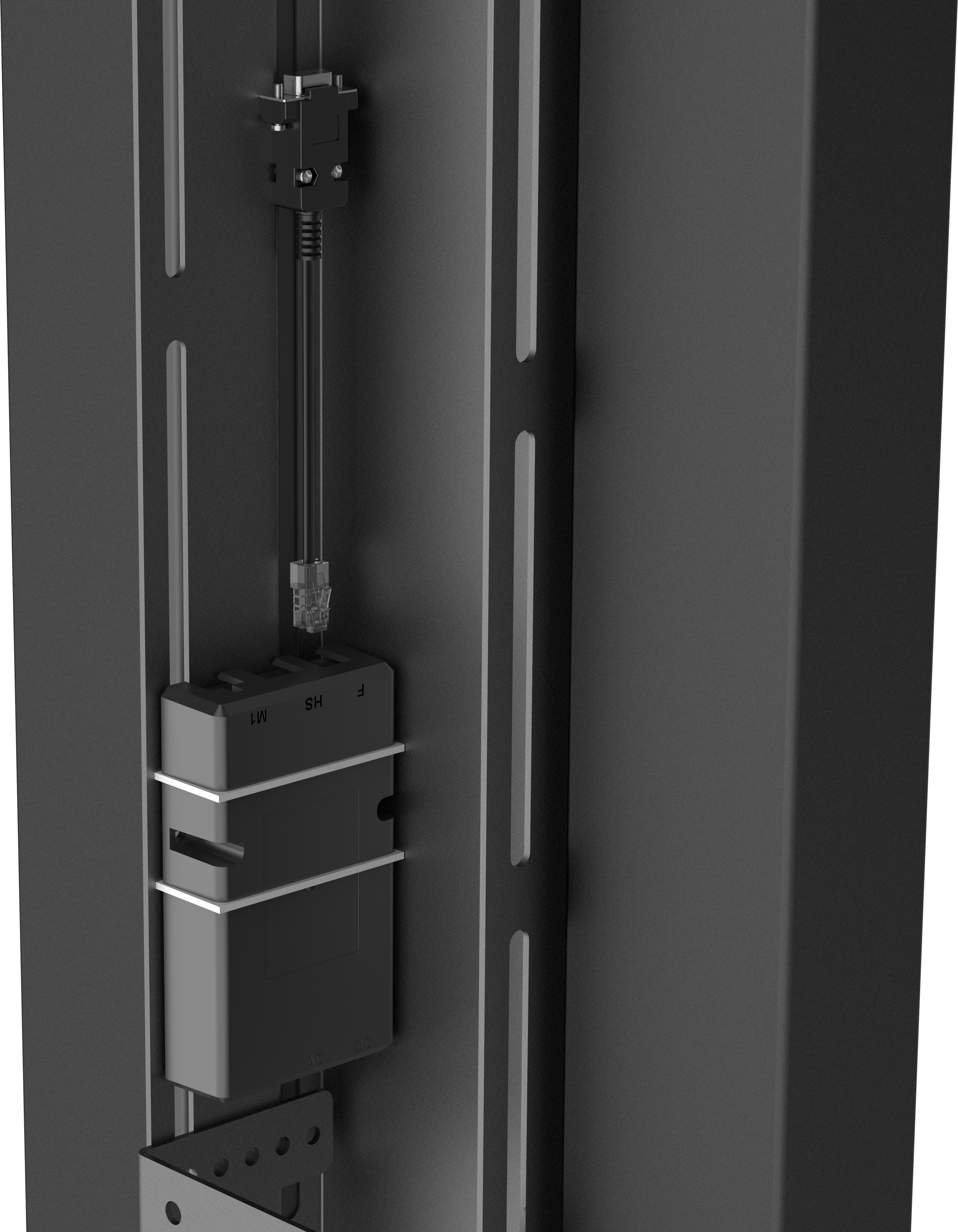

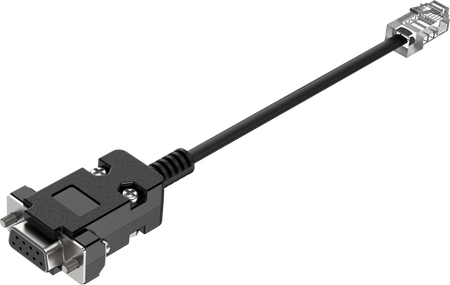

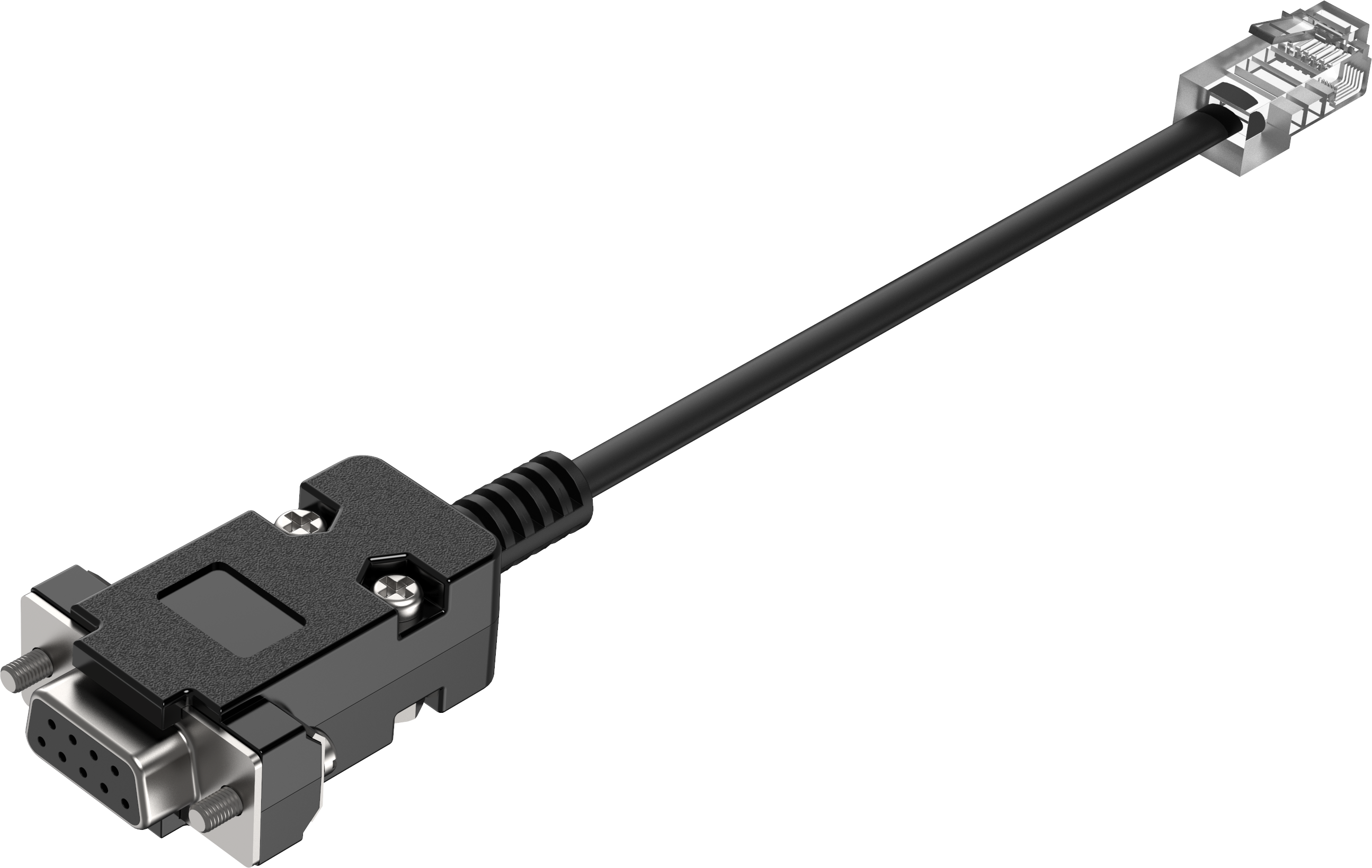

• Wired Control or RS-232: A wired remote control offers up and down functions. Additionally, you have the option to use an RS-232 control system, which allows you to add pre-set positions, as well as upper and lower limits.
• Highly Adjustable Wall Brackets: Two brackets attach the lower part of the F50 to the wall. These brackets allow you to secure the column either almost flush to the wall or standing out from the wall to allow cable channels to pass behind.

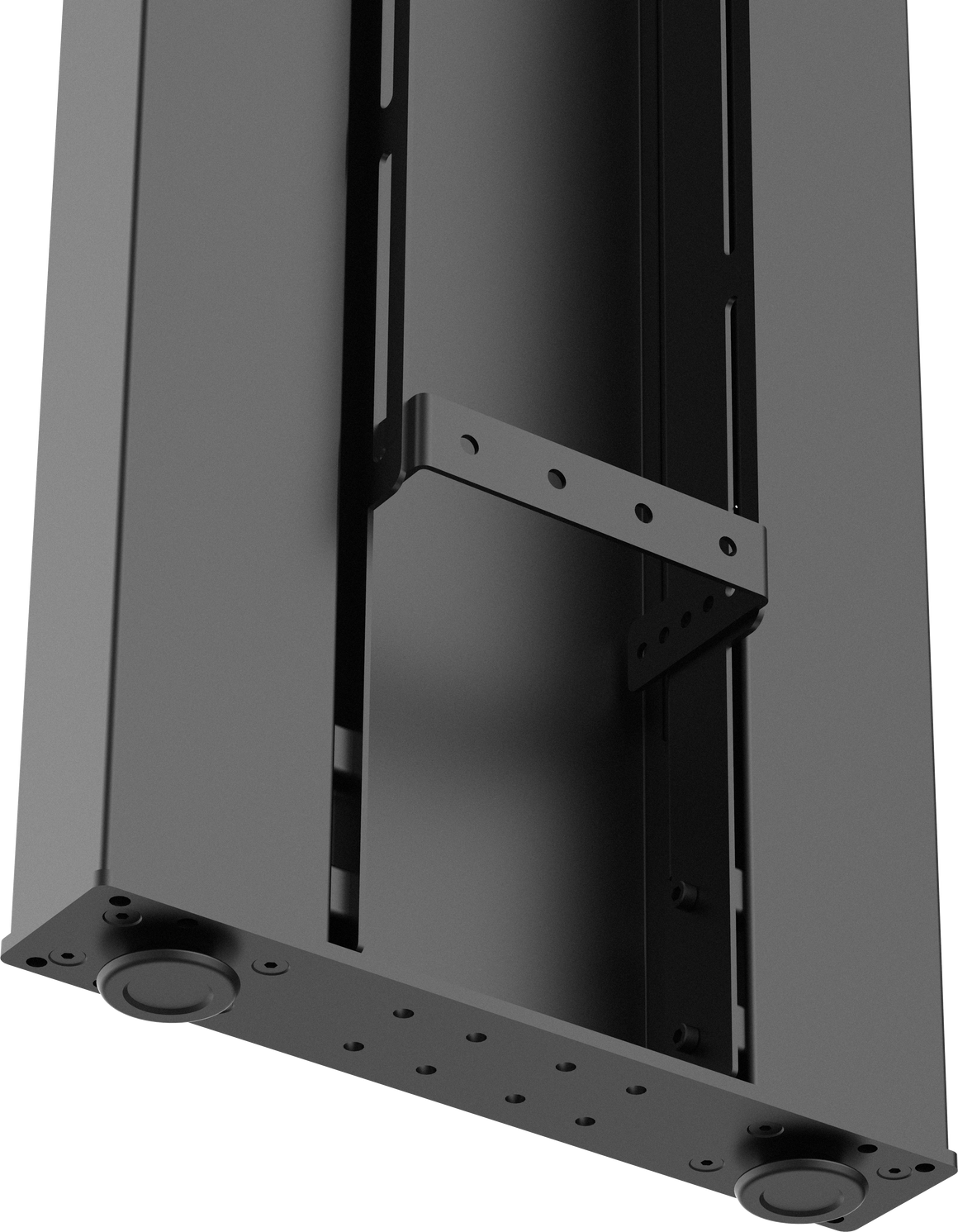

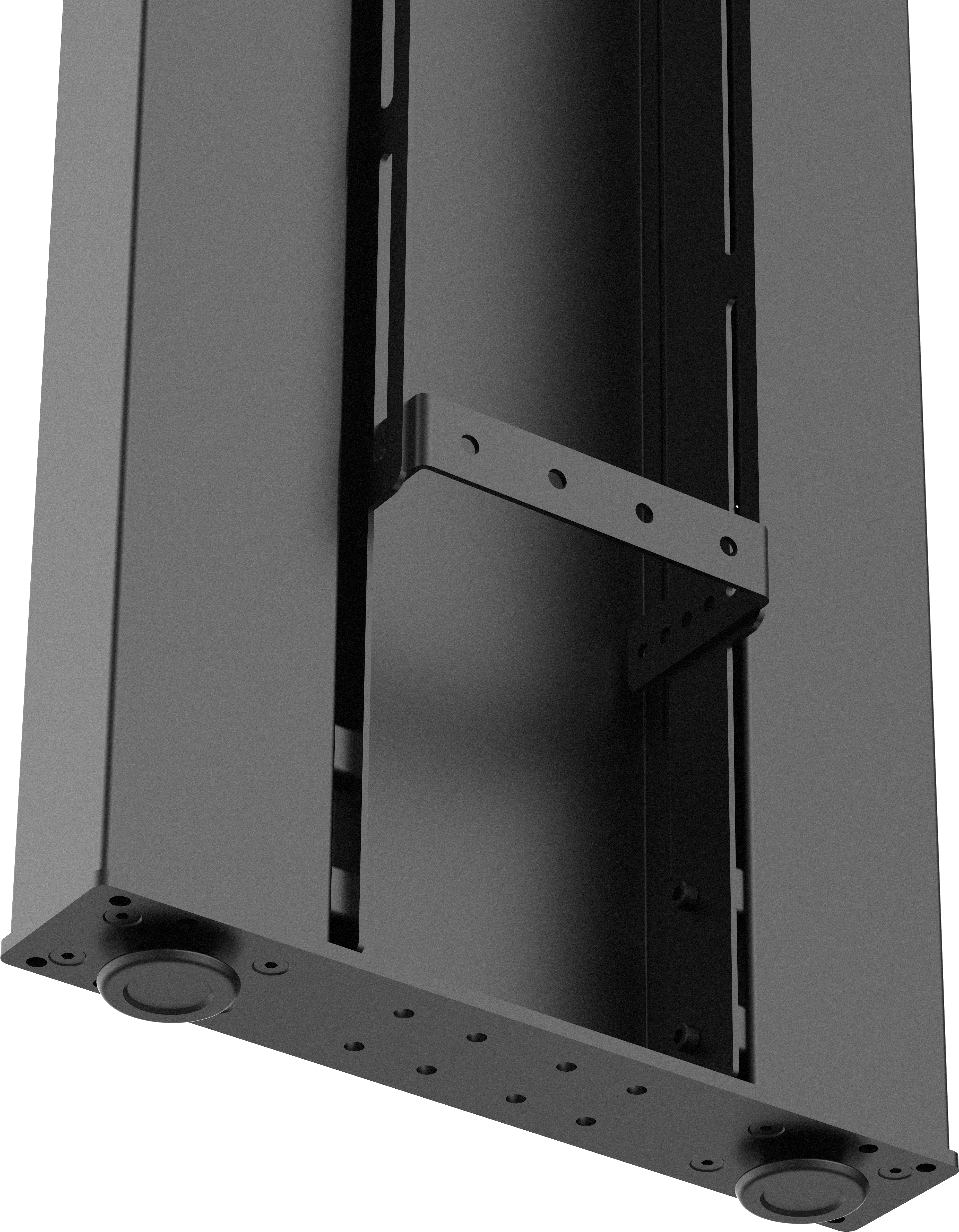

• Feet or Fixed: Adjustable feet make levelling adjustment simple. Or remove the feet and fix the column to the floor.
• Hide Mess: The front cover is removable, facilitating cable routing. And you can conceal source devices or power distribution boards inside the column.

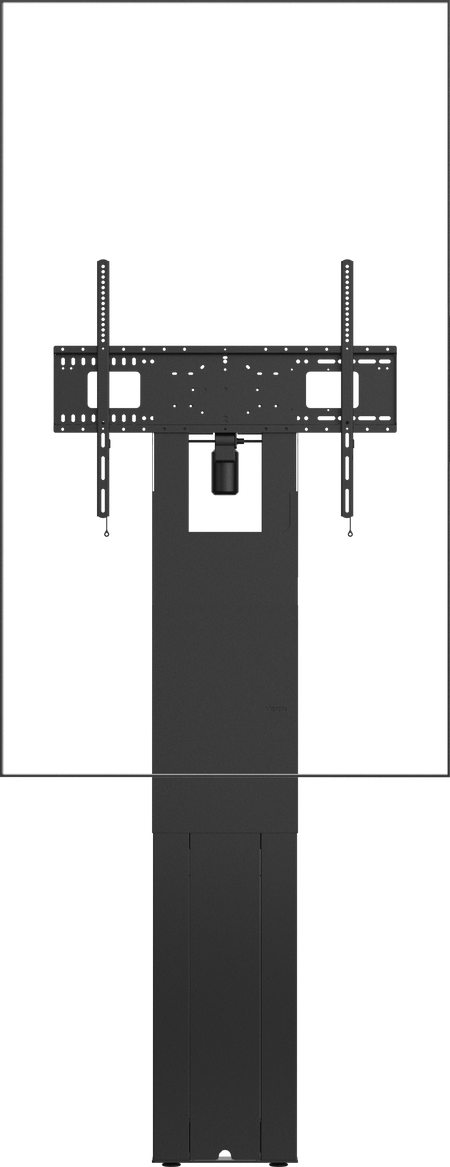

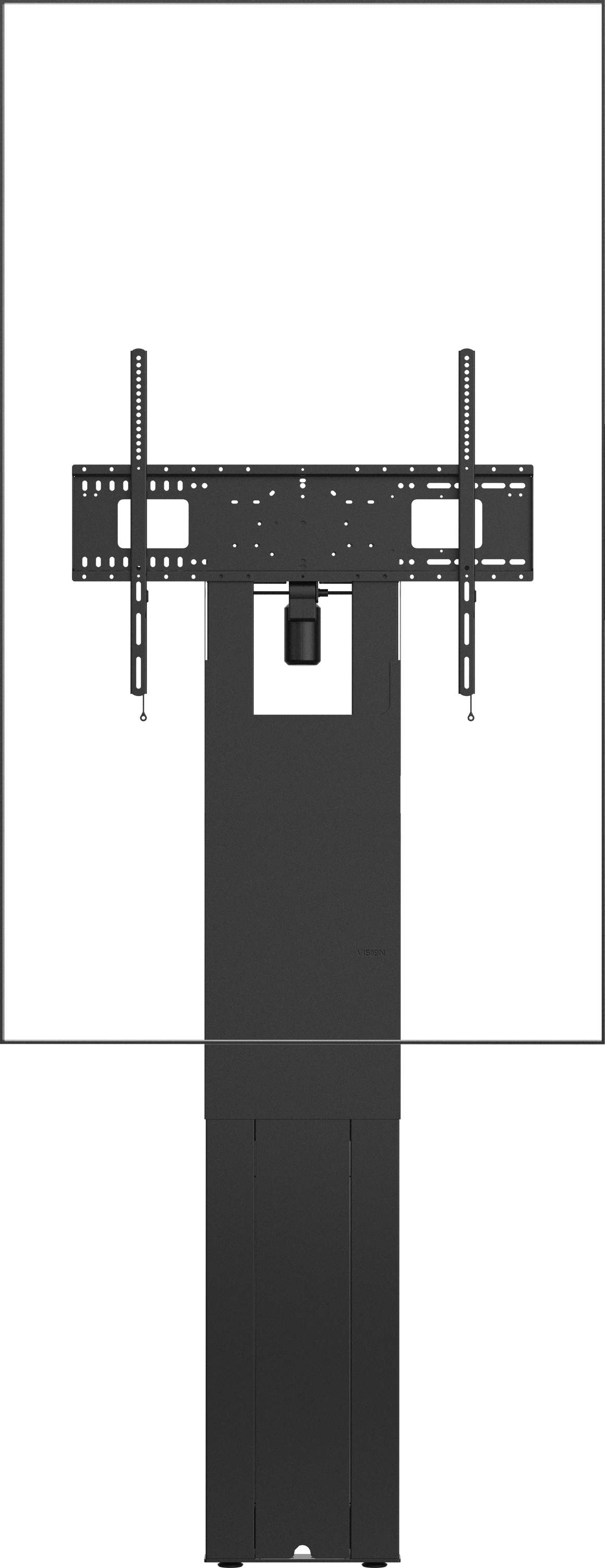

• VESA 800 x 600: This stand includes Vision’s heavy-duty 800×600 wall mount, which fits most large-format flat panels from 47-100″ subject to VESA pattern and weight limit.

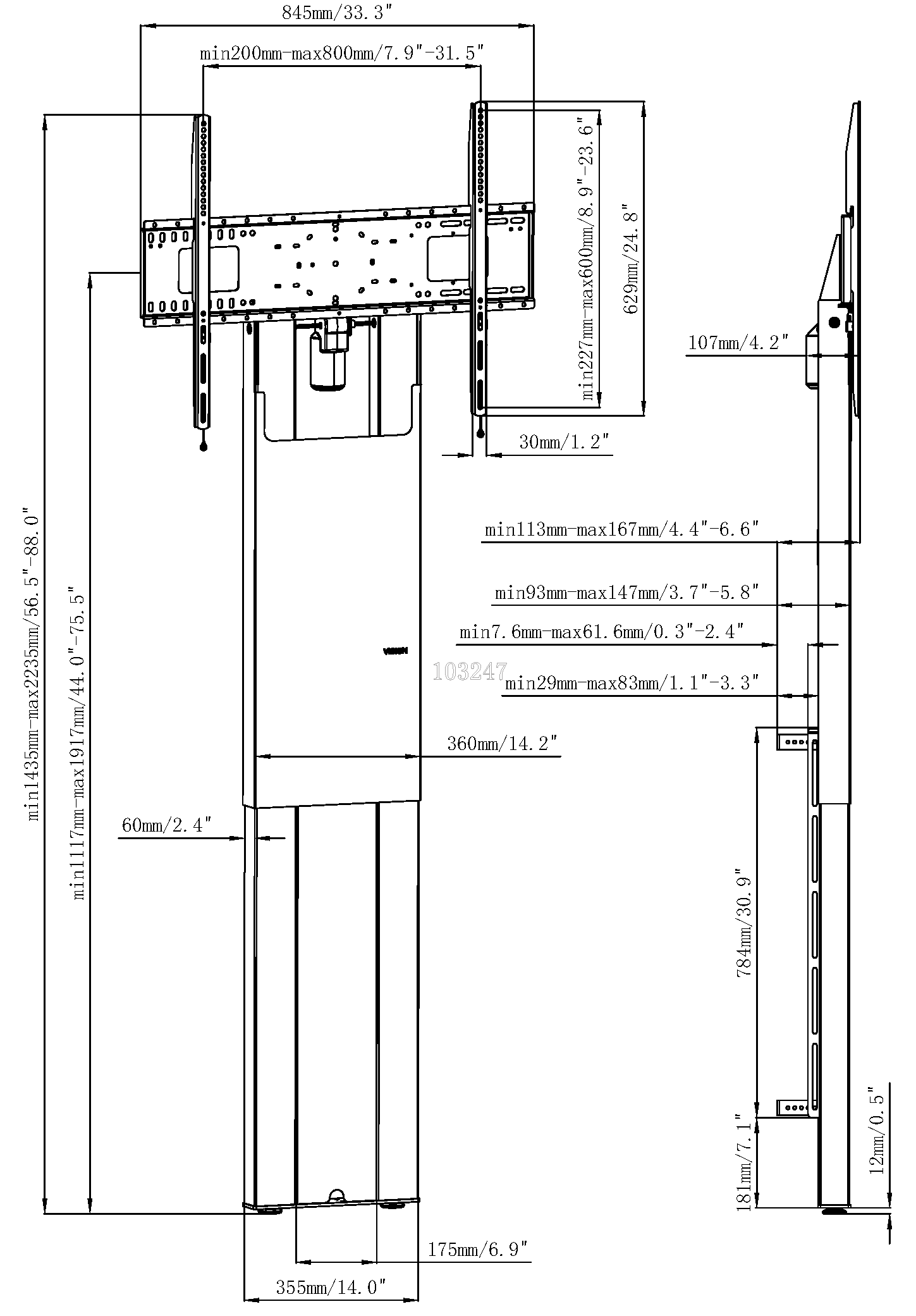

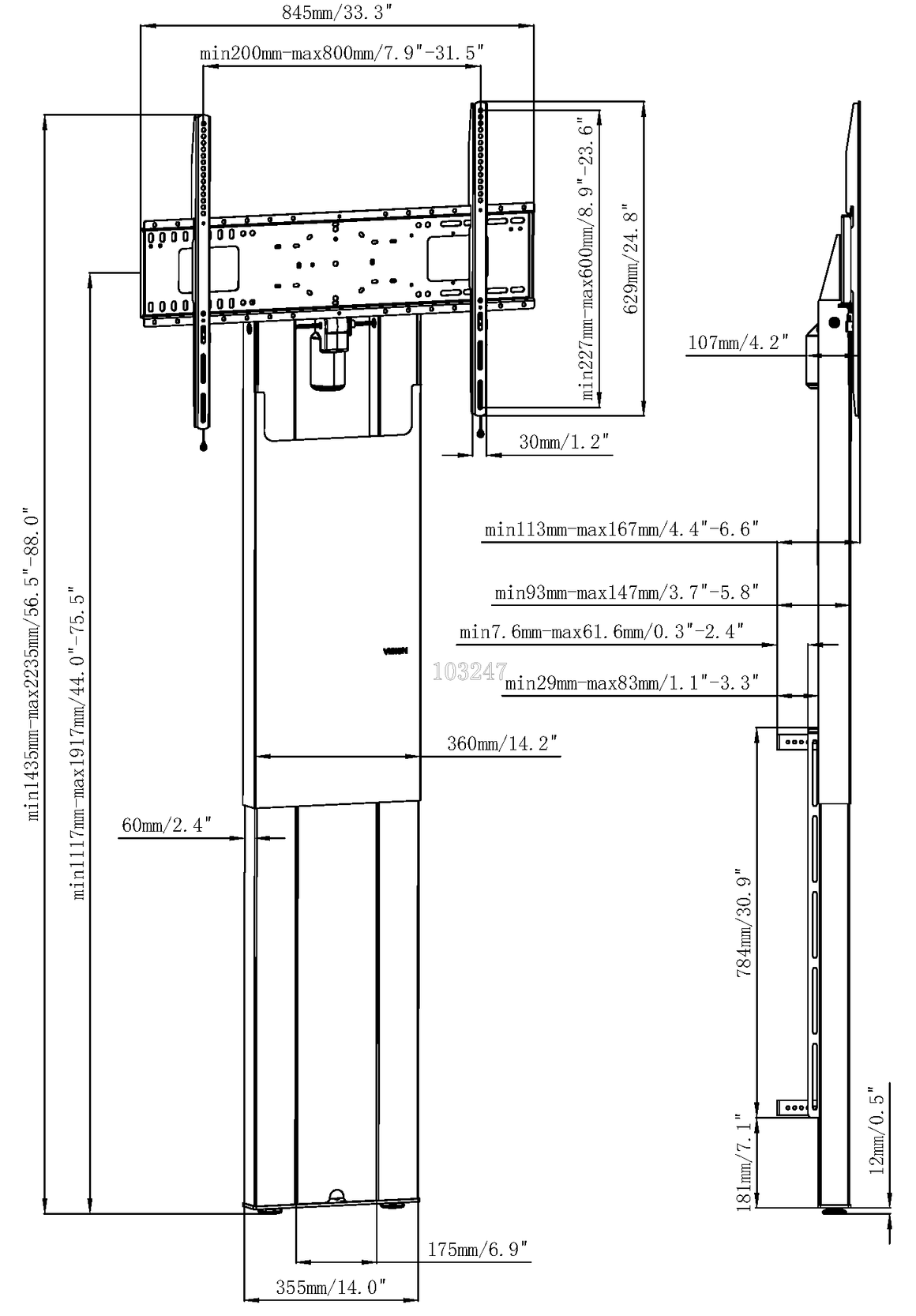

• 800 mm / 31.5" Motorised Height Adjustment: Motorized height adjustment allows for easy alteration of the display's height to accommodate different audience preferences and needs.
• Increased Safety: A safety sensor halts motor when display lowers onto obstacle.
• Compatible with Surface Hub: Spacers are included to work with the 85" Microsoft Surface Hub.
• Optional VC Shelf: An optional shelf fixes in the centre above or below the display. Any camera including the Logitech Rally or Meetup can be fixed to the shelf. Part Number: VFM-WVC/2 [SAP: 8271288]

Specifications

What's in the Box

• 1 x EU Figure-8 C7 Power cable 2.5 m (8 ft) long
• 1 x UK Figure-8 C7 Power cable 2.5 m (8 ft) long
• 1 x AU Figure-8 C7 Power cable 2.5 m (8 ft) long
• 1 x US Figure-8 C7 Power cable 2.5 m (8 ft) long (removed after Sep 23)
• 1 x Remote Control with cable 1.5 m (5 ft) long
• 2 x Wall Brackets
• 4 x M5 16 mm screw
• 4 x M6 16 mm screw
• 4 x M6 25 mm screw
• 4 x M8 30 mm screw
• 4 x M8 50 mm screw
• 4 x 15 mm thick nylon spacers (for 2S 85" Microsoft Surface Hub)

Warranty

The Vision Motorised Flat Panel Floor Stand is backed by Lifetime return-to-base UK Only: 5 years onsite, 1 engineer provided so requires assistance, providing cover for professional and commercial deployments.
