Vision Motorised Flat Panel Trolley
Motorised Flat Panel Trolley
In stock
Regular price
£1,333.73
Secure Checkout
Warranty Protection
Hassle-Free Returns

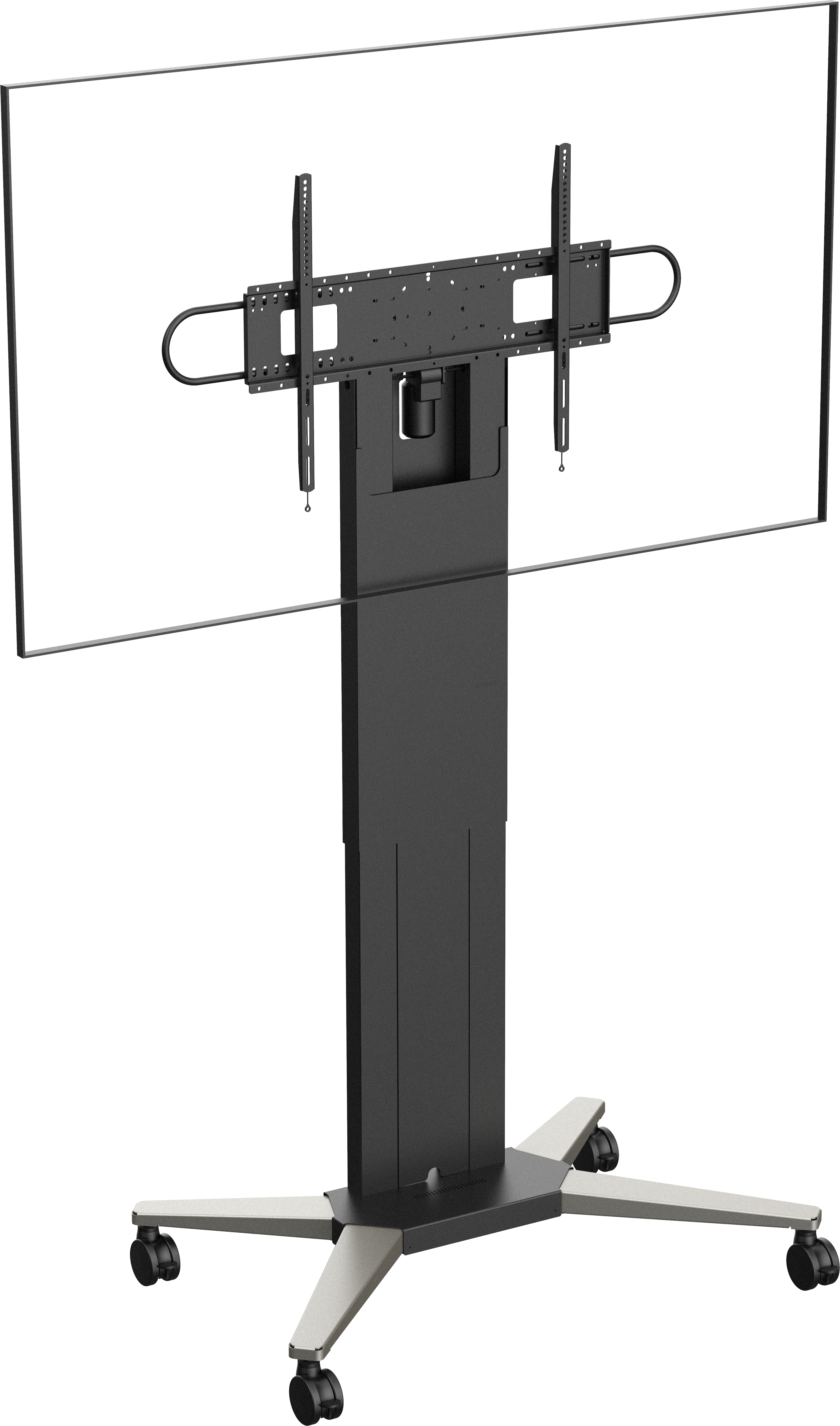

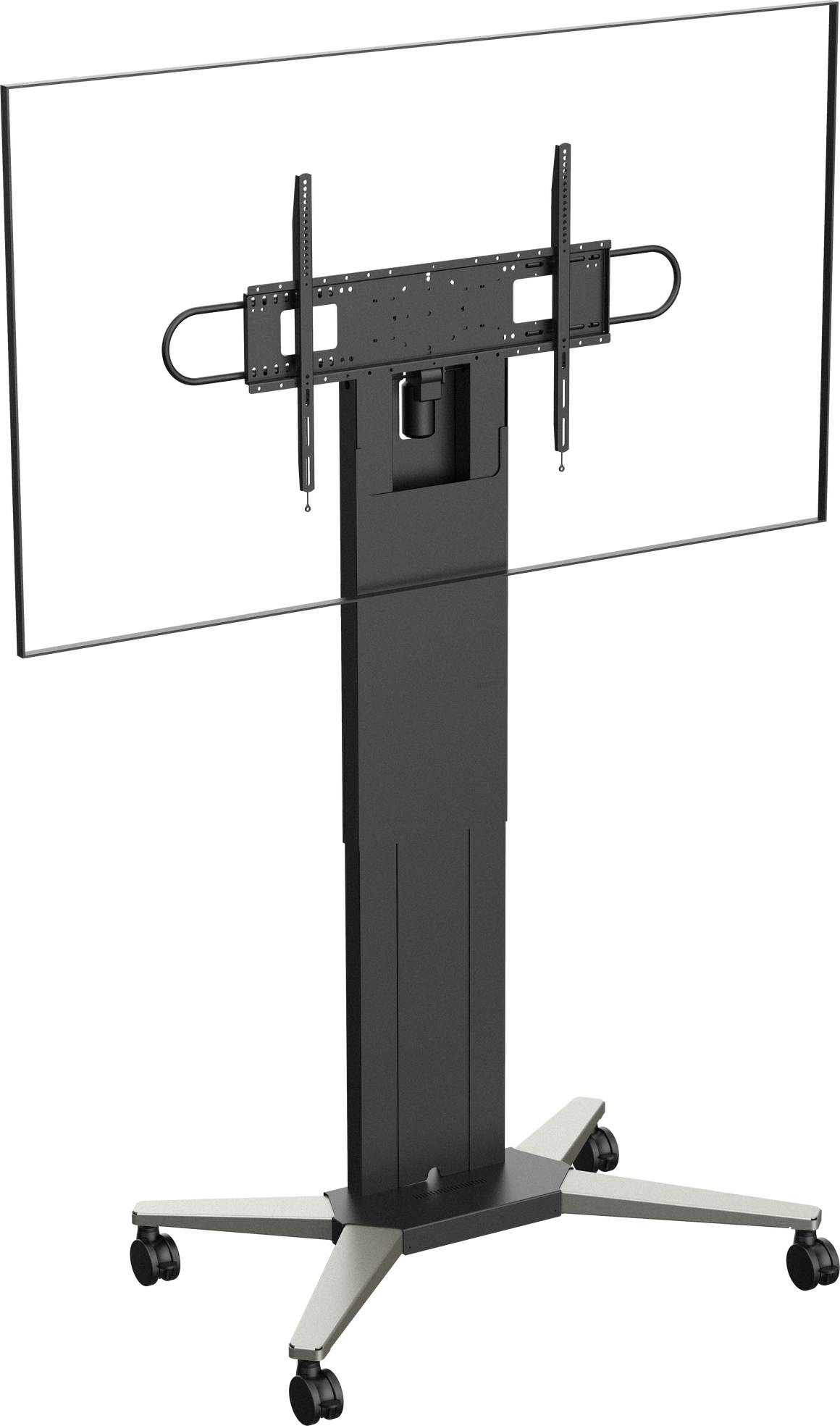

The Vision Motorised Flat Panel Trolley looking for a safe and reliable solution to support and move your heavy interactive flat panel? Look no further than Vision's F50T mobile cart, designed for stability, strength, and smooth mobility.
Key Features
- SWL 110 kg (242 lbs): The F50T utilizes heavy-gauge components to support the display's weight, and it employs a linear drive system with twin drive shafts to generate vertical motion.

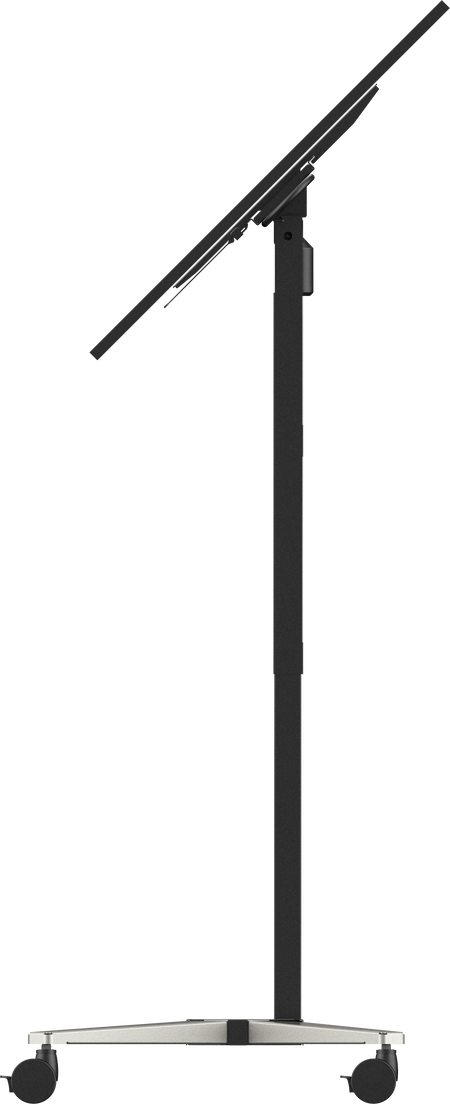

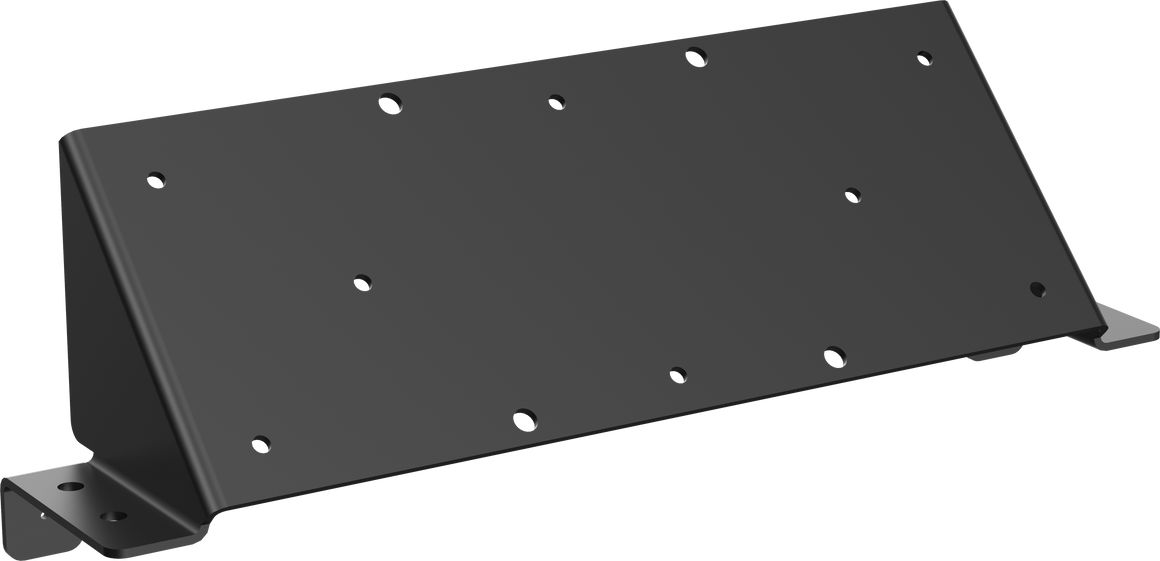

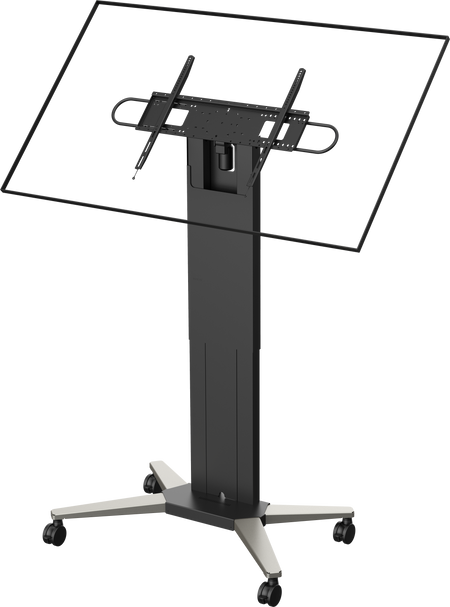

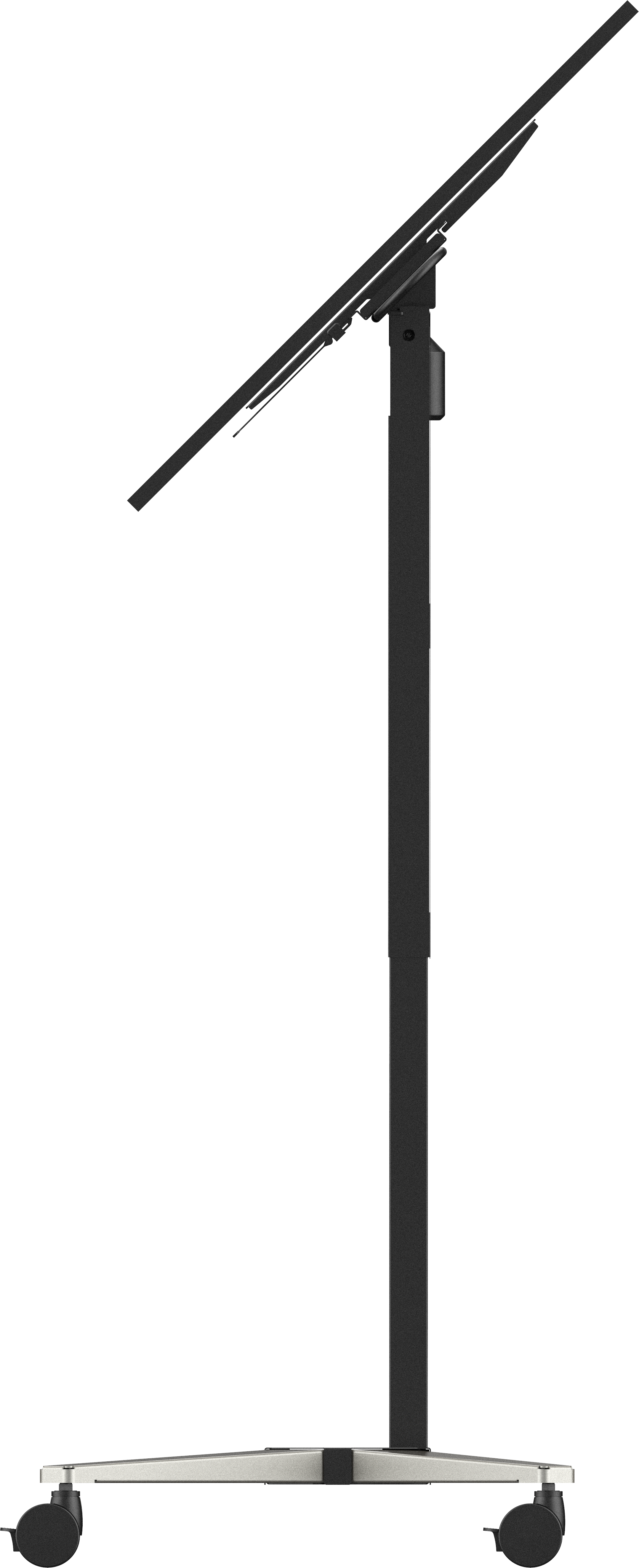

- Kiosk Angle Brackets Included: The display mount can be fixed on a 45° angle for kiosk or wayfinding applications. (SWL is reduced to 50 kg / 110 lb)
- Anti Tip Over: This trolley meets strict UL 1678 stability requirements. For this test a 100kg (220lb) load is set at maximum height, then the floor is tipped 16° is all directions.
- 4" Wheels: Medical-grade 4″ (100 mm) castors glide over any bumps, making the stand easy to pull even on deep carpet. Big wheels reduce vibration. All wheels are lockable.

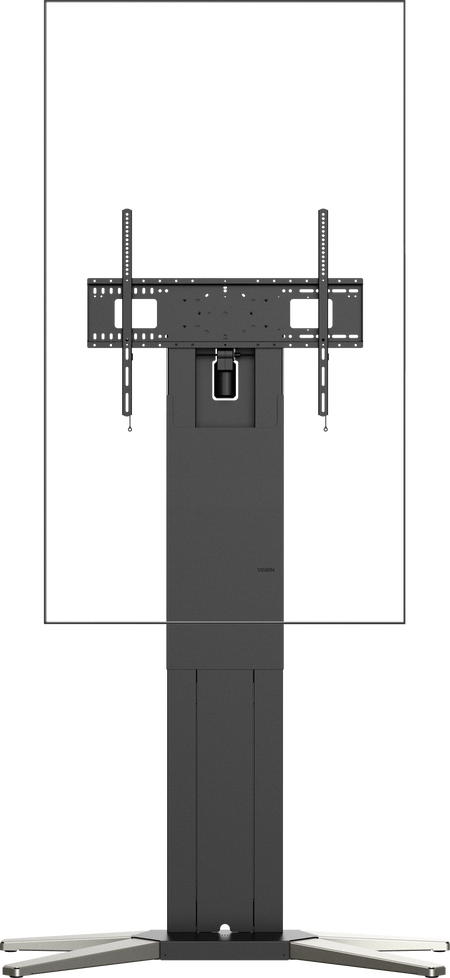

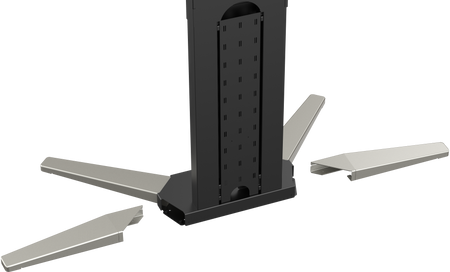

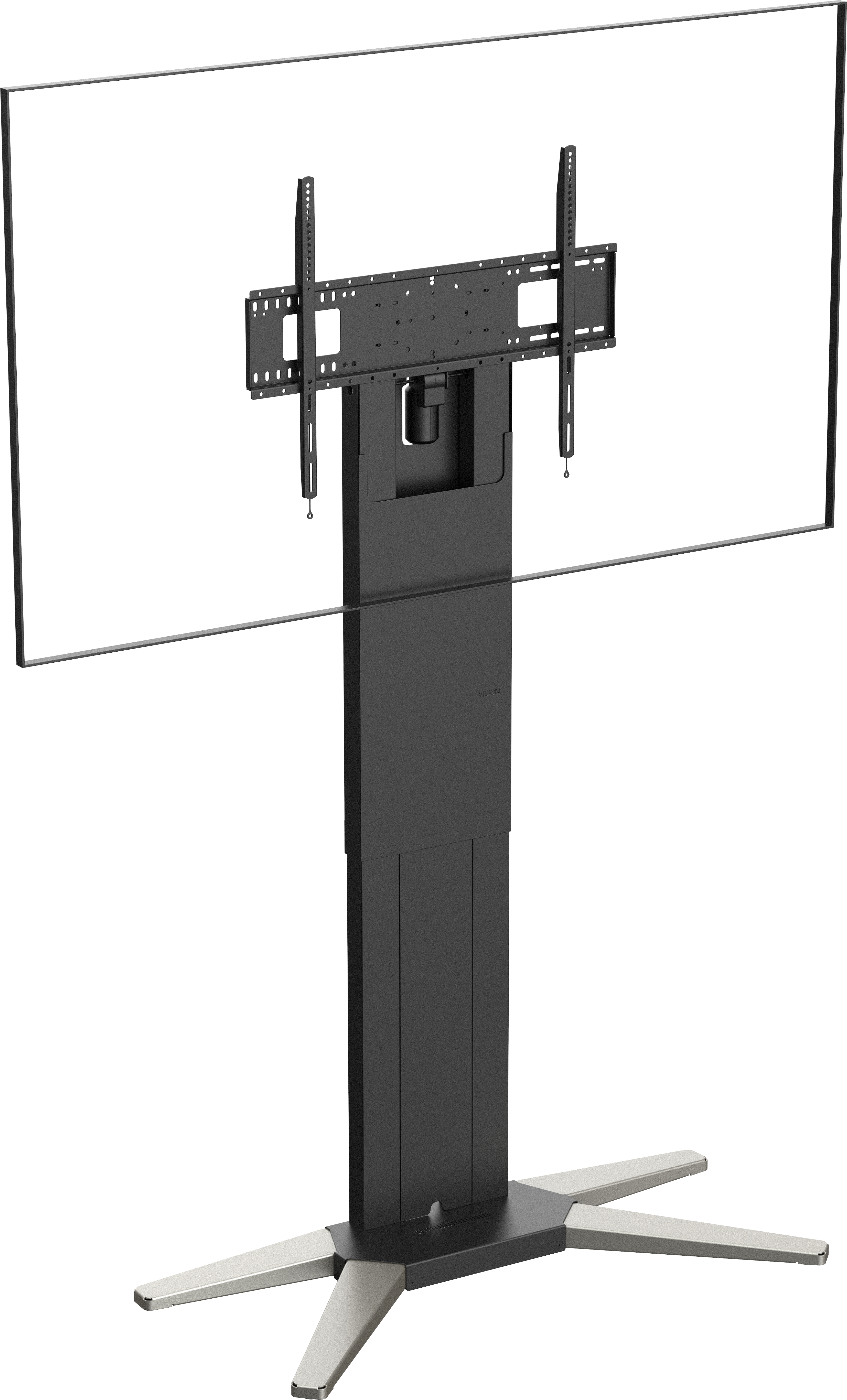

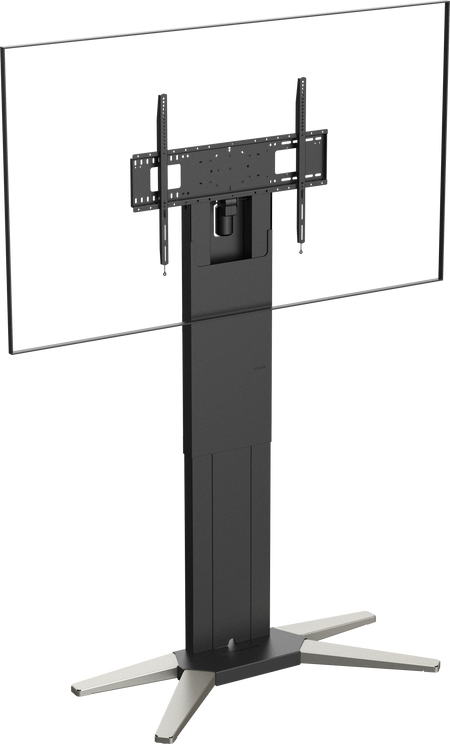

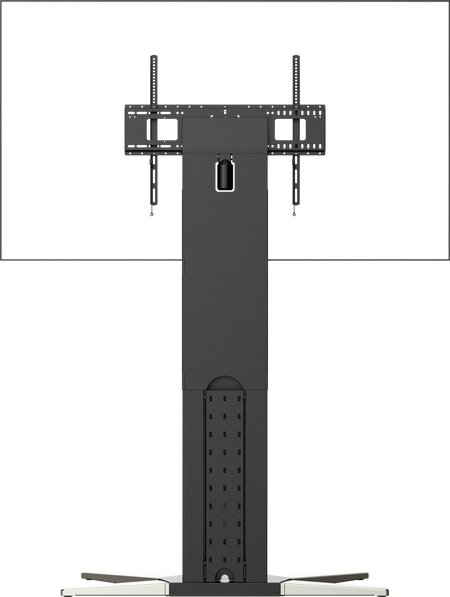

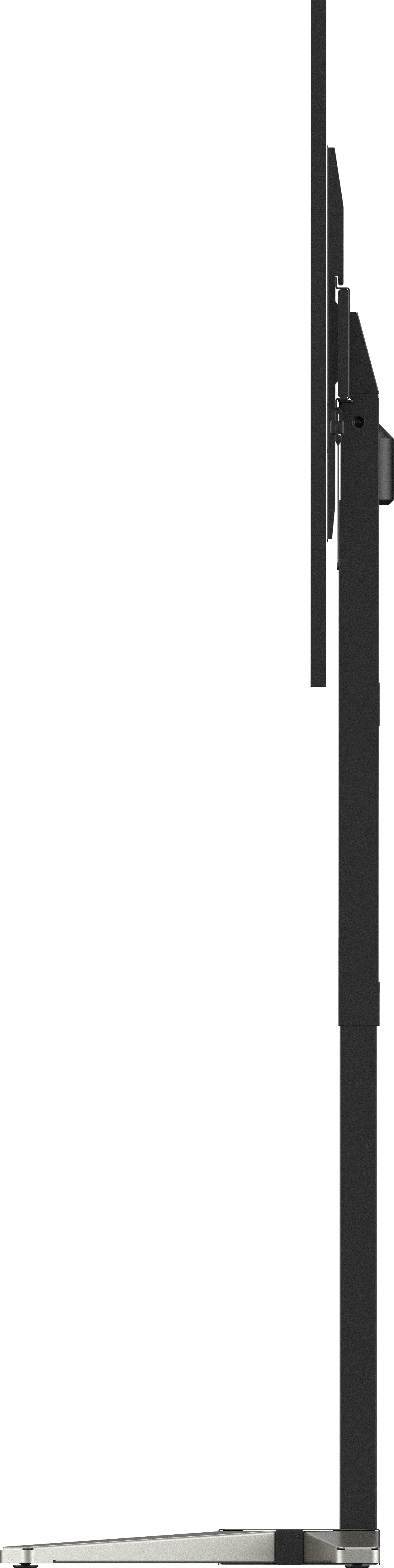

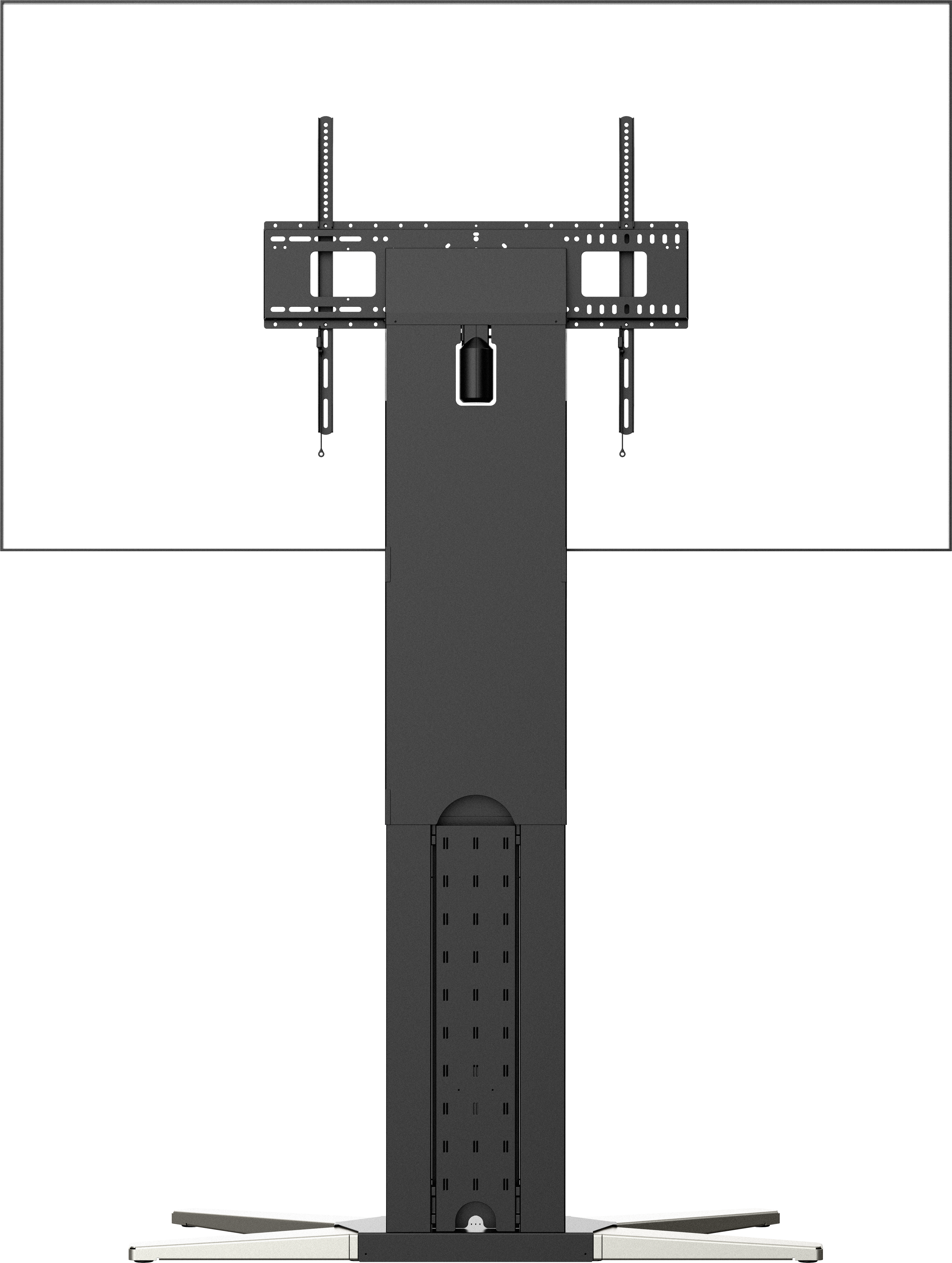

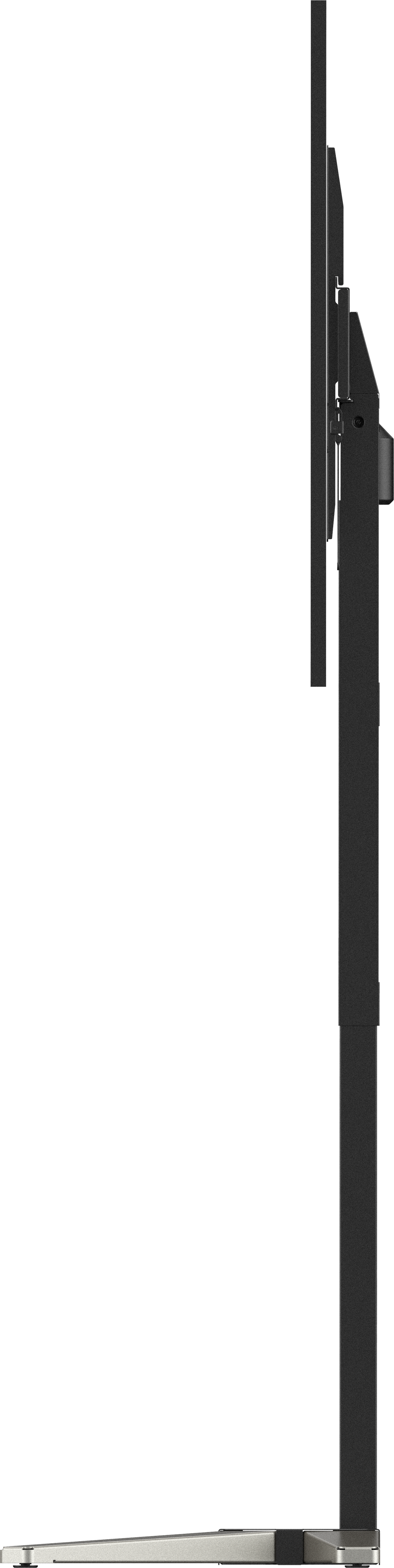

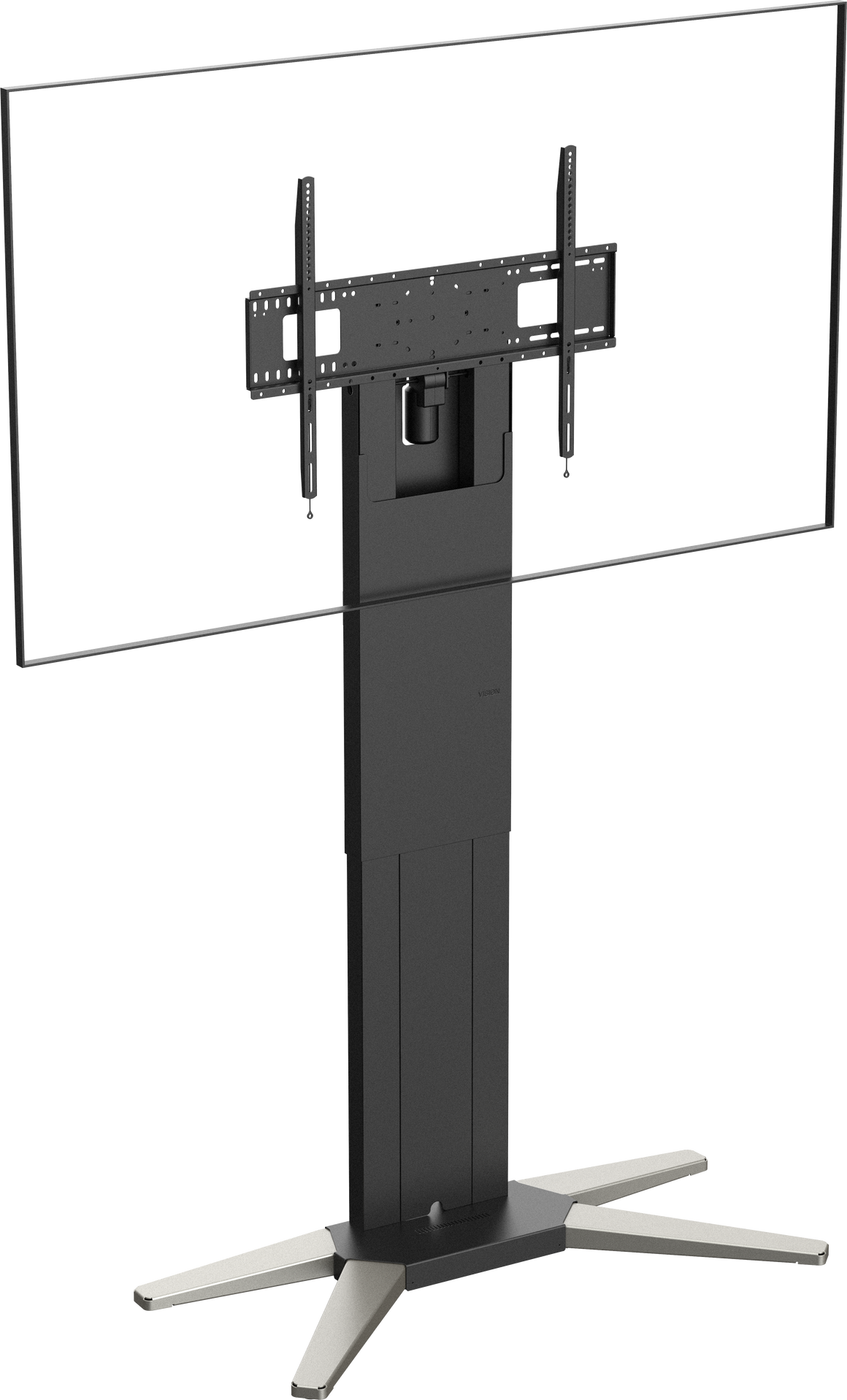

- Immobile Free-Standing: Sometimes users need a non-portable free-standing solution, so simply remove the wheels and fit the adjustable feet. The feet are low profile to reduce trip hazards.
- Glass Walls: Do you have a meeting room with a non-structural or glass wall?

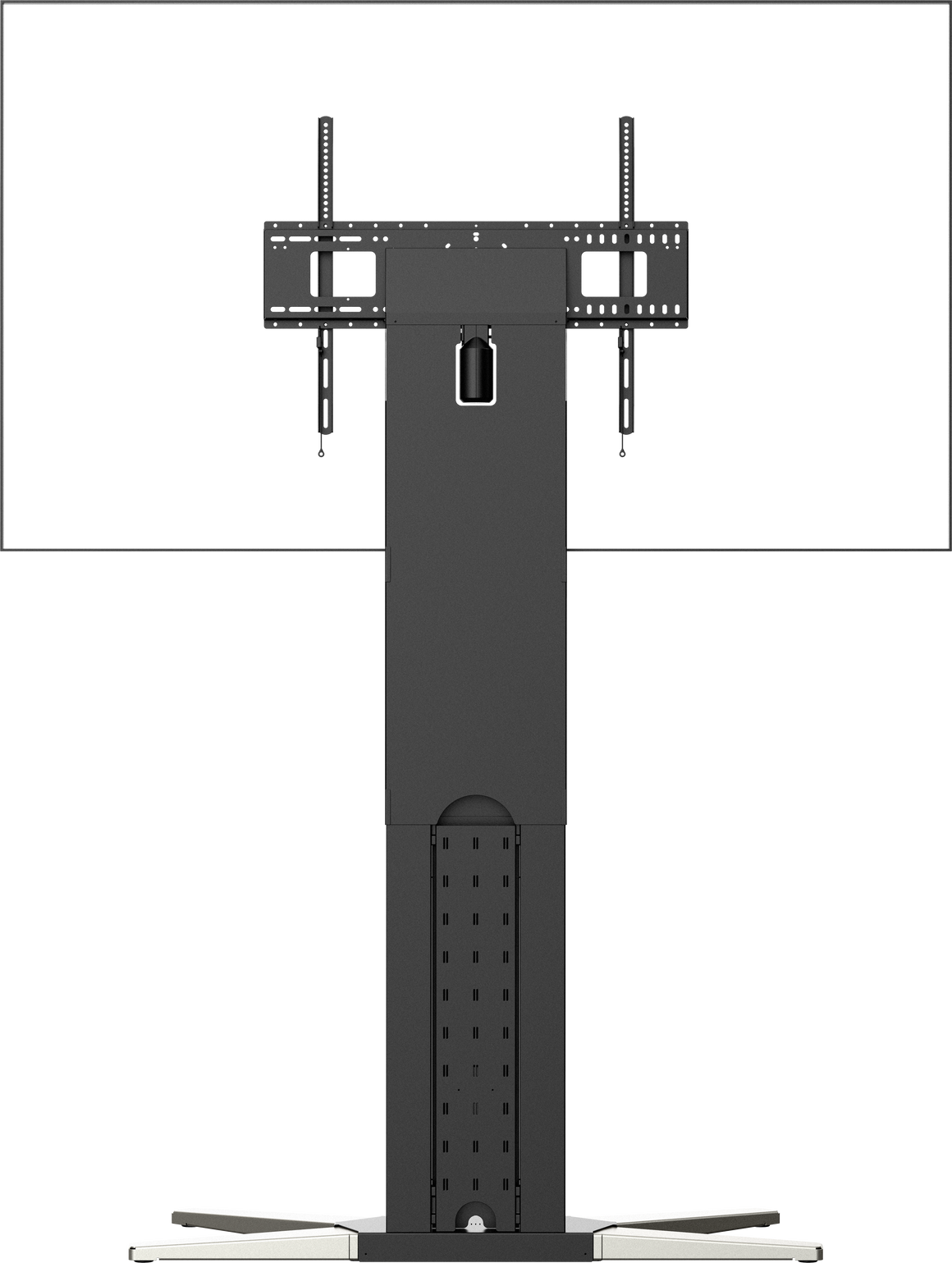

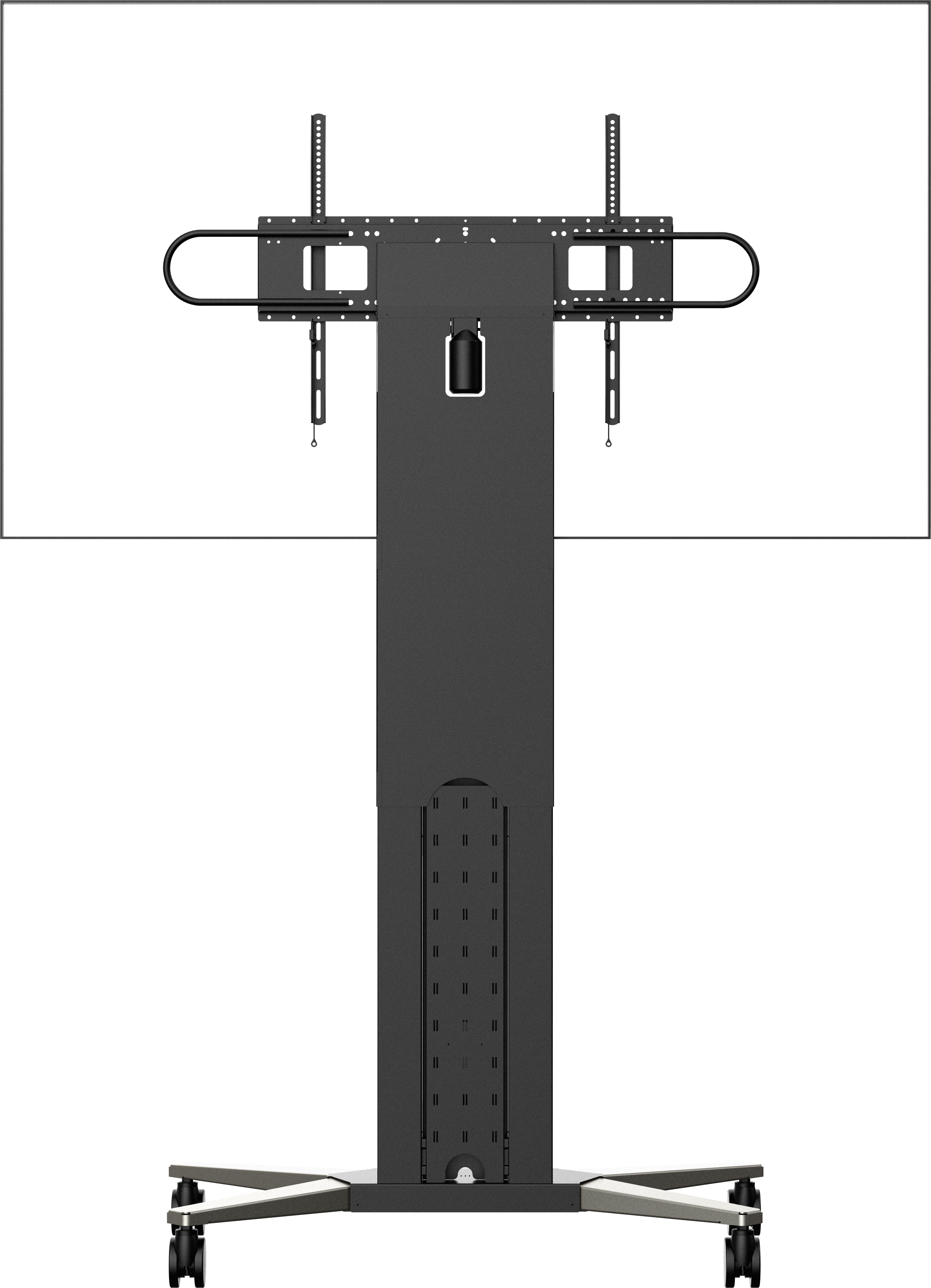

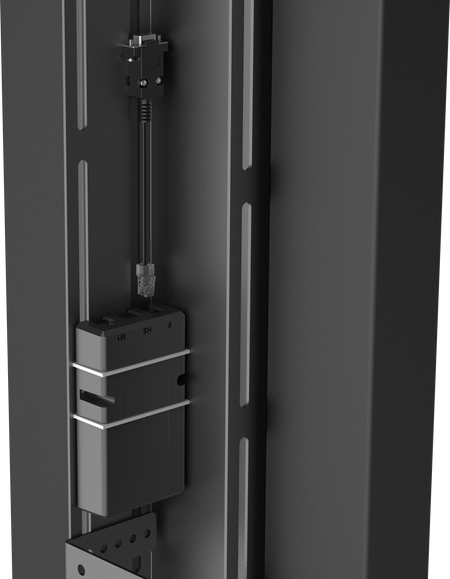

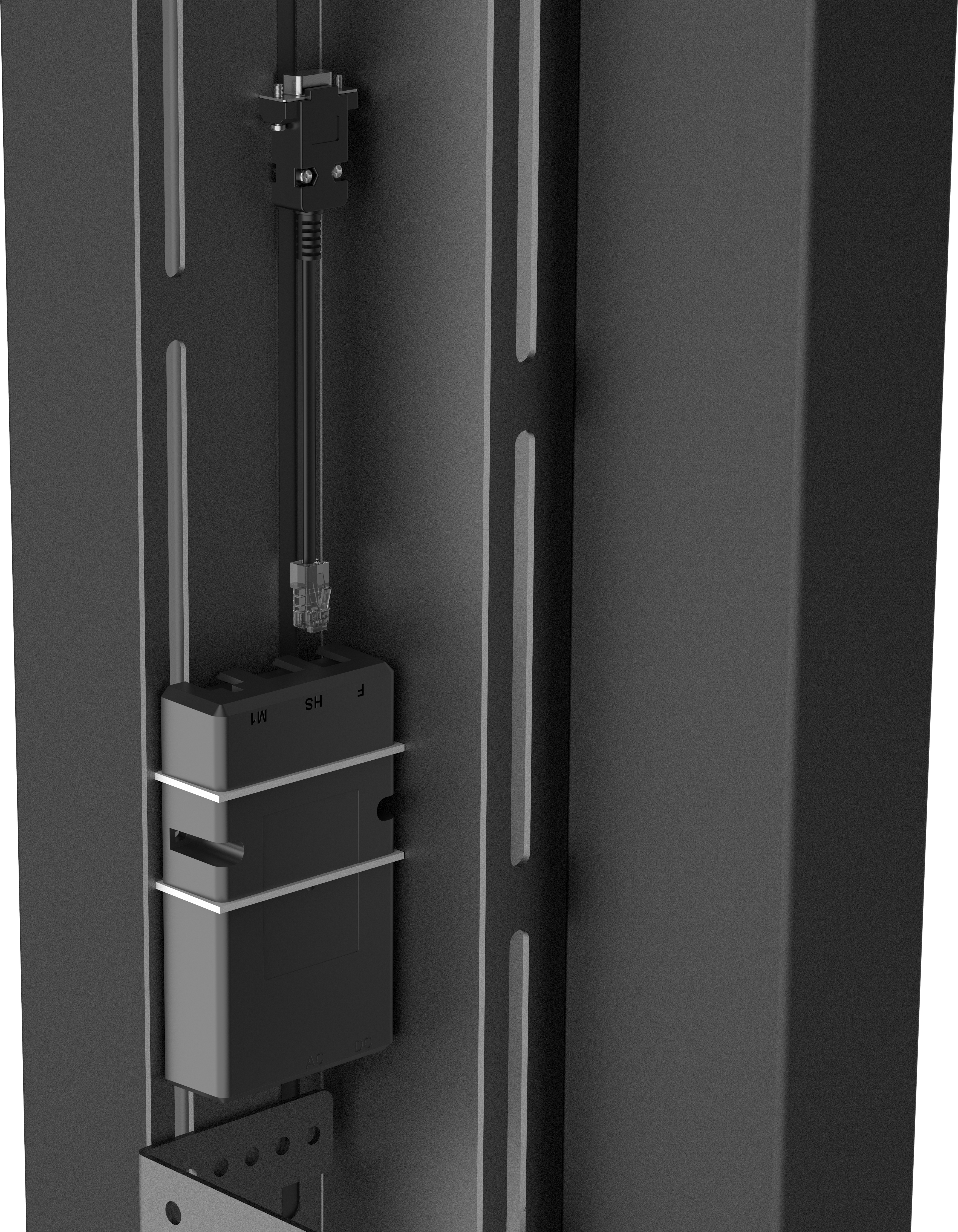

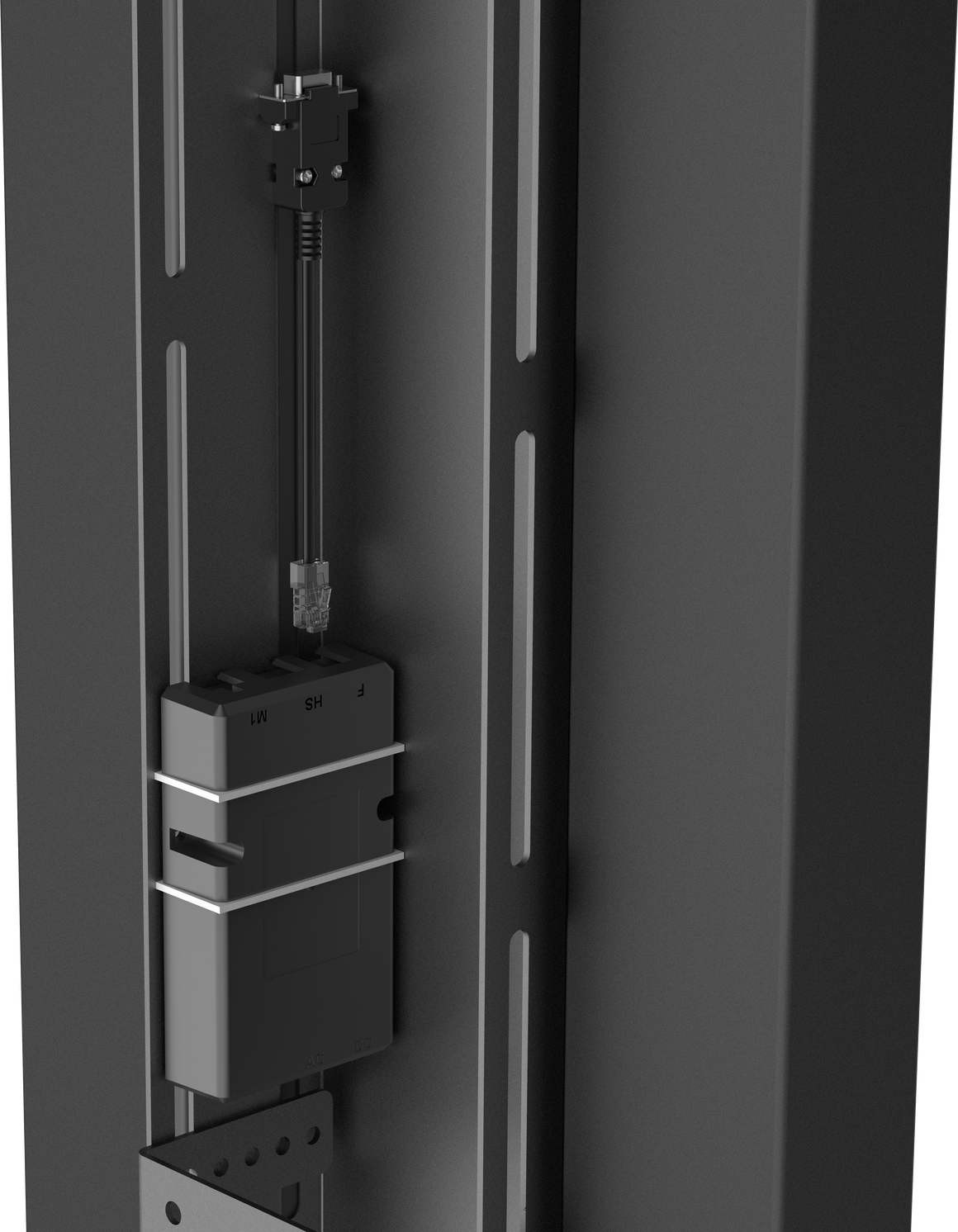

- Hide Mess: The front cover is removable, facilitating cable routing. And you can conceal source devices or power distribution boards inside the column.

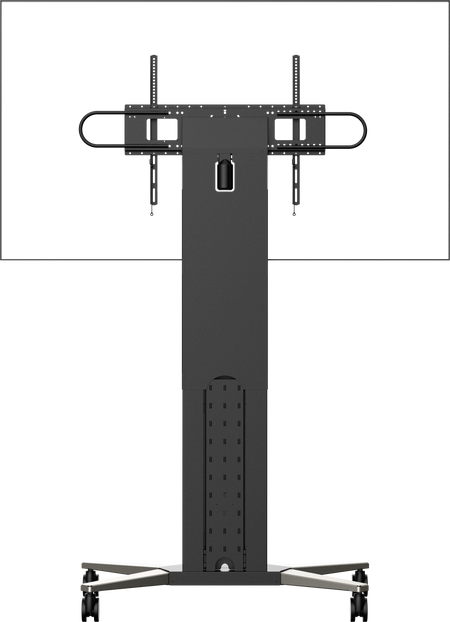

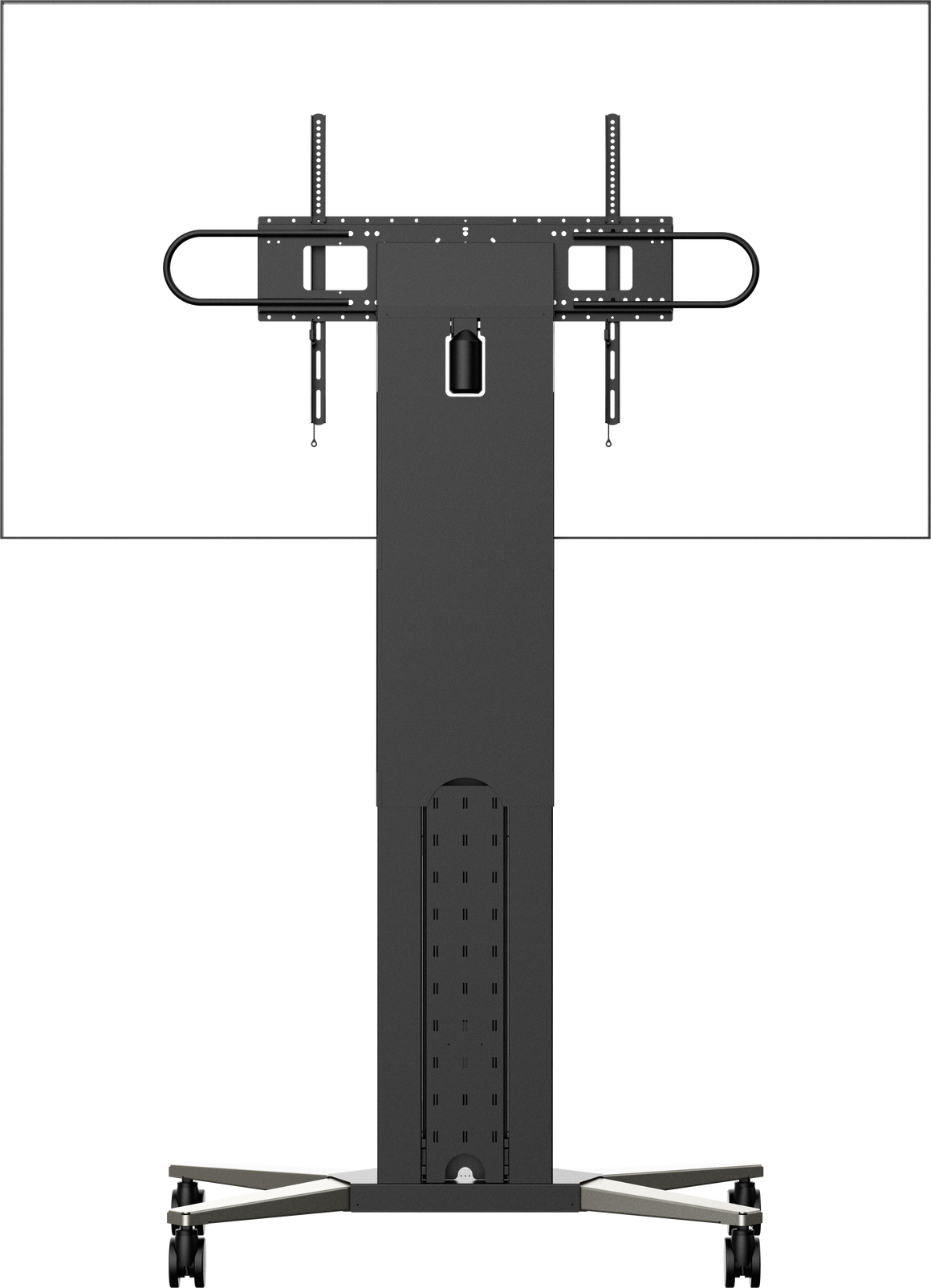

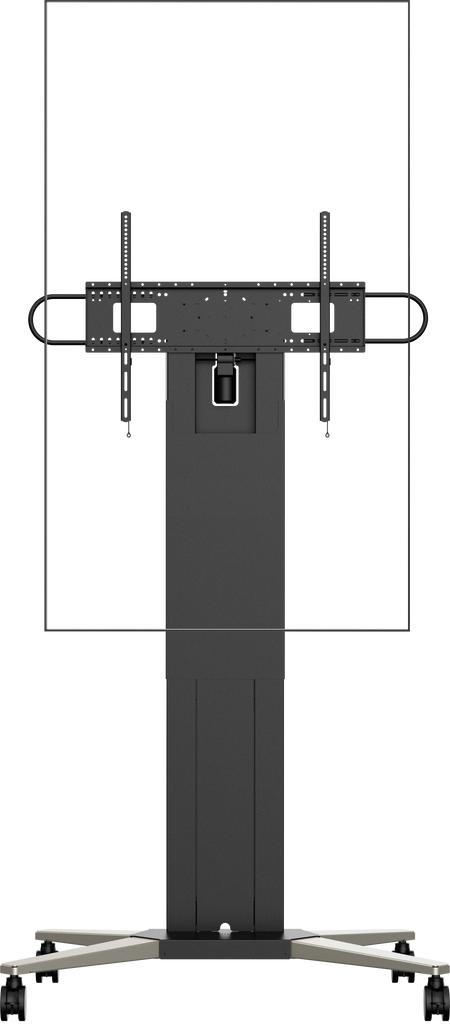

- VESA 800 x 600: This stand includes Vision’s heavy-duty 800×600 wall mount, which fits most large-format flat panels from 47-100″ subject to VESA pattern and weight limit.
- 800 mm / 31.5" Motorised Height Adjustment: Motorized height adjustment allows for easy alteration of the display's height to accommodate different audience preferences and needs.
- Compatible with Surface Hub: Spacers are included to work with the 85" Microsoft Surface Hub.
Specifications

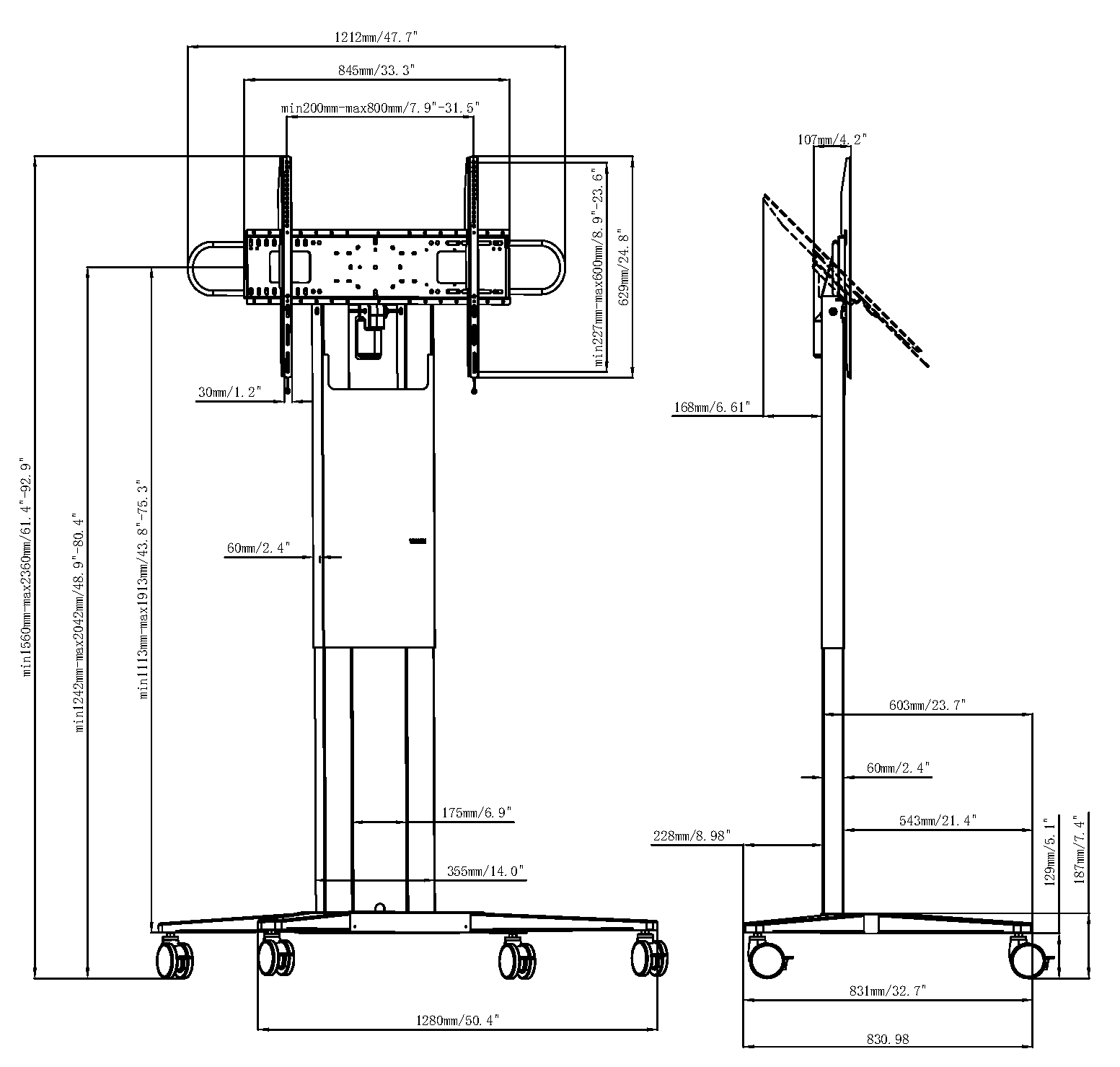

| Product Dimensions | See CAD |
| Packaged Dimensions | 1112 x 422 x 376 mm/ 43.78″ x 16.61″ x 14.8″ Note: comprises two cartons strapped together |
| Product Weight | 62 kg / 136.69 lb |
| Packaged Weight | 63 kg / 138.89 lb |
| Safe Working Load | 110 kg / 242lbs |
| Construction Material | Steel |
| Colour | Powercoated Matt Black |
| Vesa Sizes | 800 x 600 mm 800 x 500 mm 800 x 400 mm 600 × 600 mm 600 x 500 mm 600 × 400 mm 500 x 500 mm 500 x 400 mm 400 x 600 mm 400 × 400 mm 400 x 300 mm 400 × 200 mm 300 × 400 mm 300 × 300 mm By adding additional brackets: 200 x 200 (VFM-W2X2TV2) 100 x 100 (VFM-W1X1TV2) |
| Motor Type | Linear-drive |
| Movement Speed | 16 mm / 0.6" per second |
| Height Adjustment Range | 800 mm / 31.5″ |
| Power Supply | 110-230V Integrated Power Supply |
| Compliances | RoHS, WEEE, FCC, CE/EMC, CE/LVD, RCM/DOC, RCM/POC Certification not held but complies with ISO 22881:2004 BS EN 12527:1999 BS EN 12531:1999 |
| Country of origin | China |
What's in the Box
- 1 x EU Figure-8 C7 Power cable 2.5 m (8 ft) long
- 1 x UK Figure-8 C7 Power cable 2.5 m (8 ft) long
- 1 x AU Figure-8 C7 Power cable 2.5 m (8 ft) long
- 1 x US Figure-8 C7 Power cable 2.5 m (8 ft) long (removed after Sep 23)

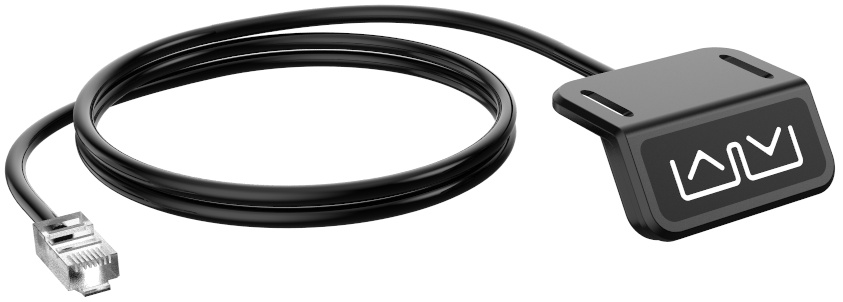

- 1 x Remote Control with cable 1.5 m (5 ft) long
- 4 x M5 16 mm screw
- 4 x M6 16 mm screw
- 4 x M6 25 mm screw
- 4 x M8 30 mm screw
- 4 x M8 50 mm screw
- 4 x 15 mm thick nylon spacers (for 2S 85" Microsoft Surface Hub)
- 4 x 20 mm thick nylon spacers (for 2S 85" Microsoft Surface Hub)
Warranty
The Vision Motorised Flat Panel Trolley is backed by Lifetime return-to-base UK Only: 5 years onsite, 1 engineer provided so requires assistance, providing cover for professional and commercial deployments.
Application Examples
| Meeting Rooms | Vision Motorised Flat Panel Trolley supports meeting and presentation spaces where a dependable professional AV mounting product is required. |
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
