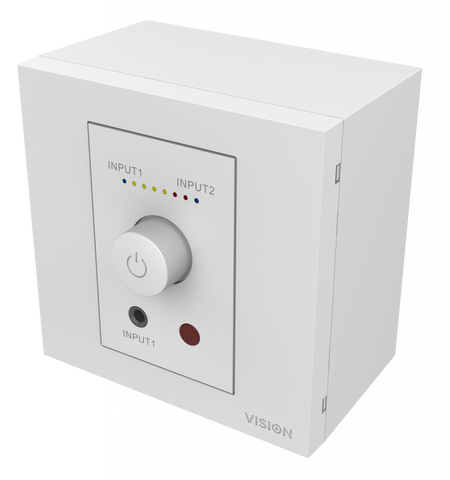

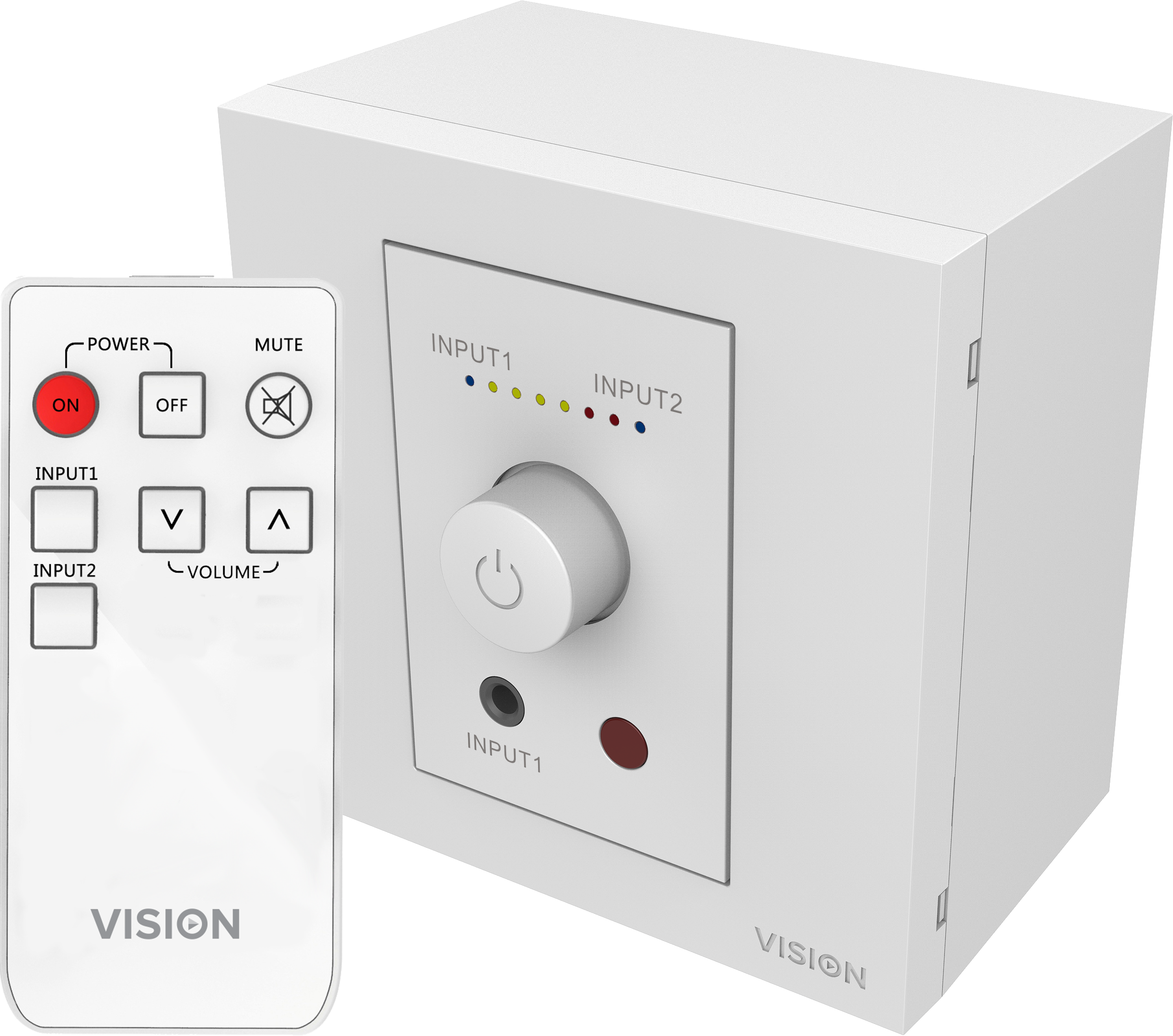

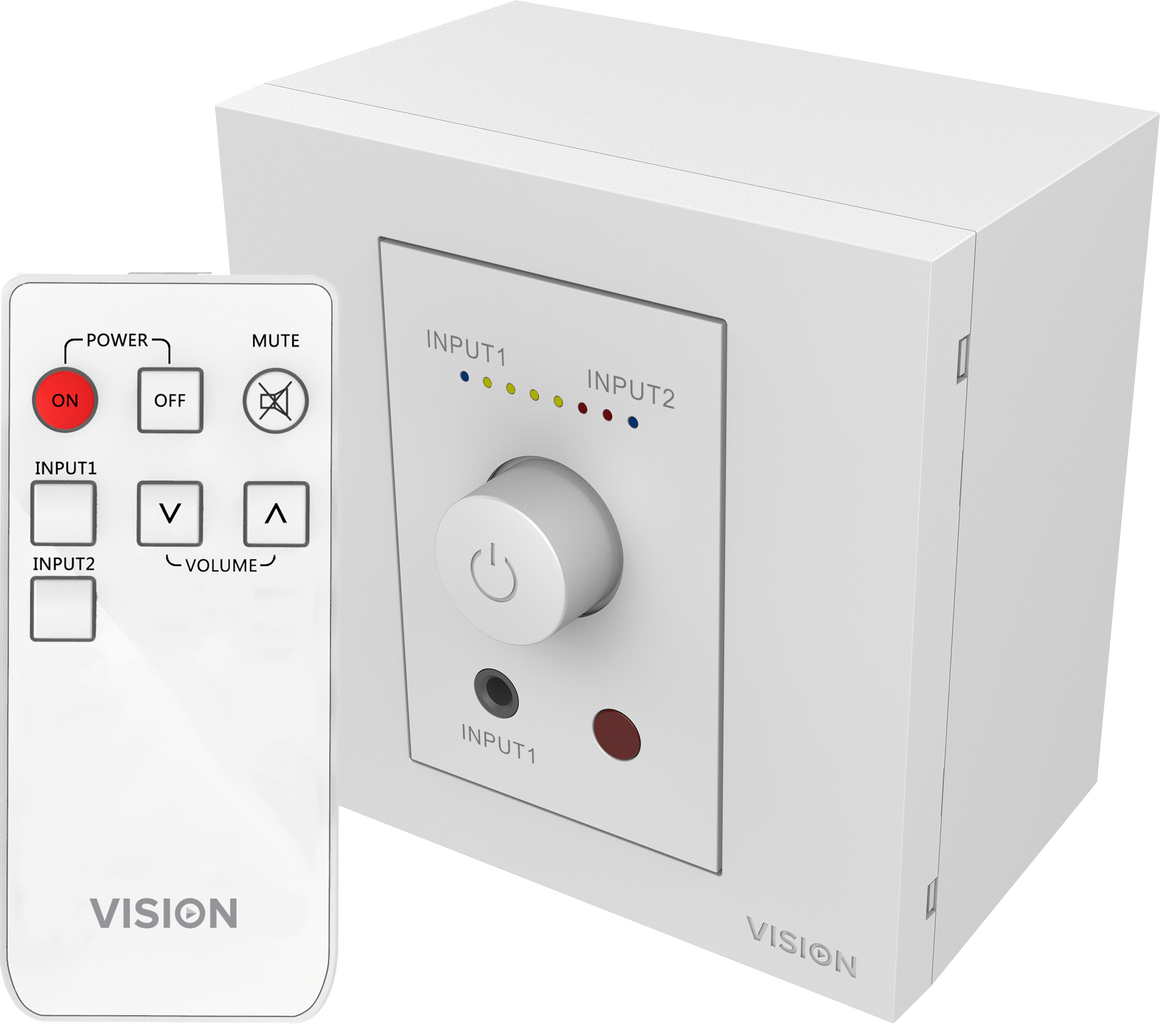

Vision TC3 50w Amplifier

The Vision TC3 50w Amplifier by using latest low-impedance digital amplifier chip technology the new Techconnect Amp module outputs a massive 2 x 25 watts RMS (at 8 ohms) but fits into the space of a double-space Techconnect module. Suited to meeting spaces, museums, and presentation suites.

Key Features

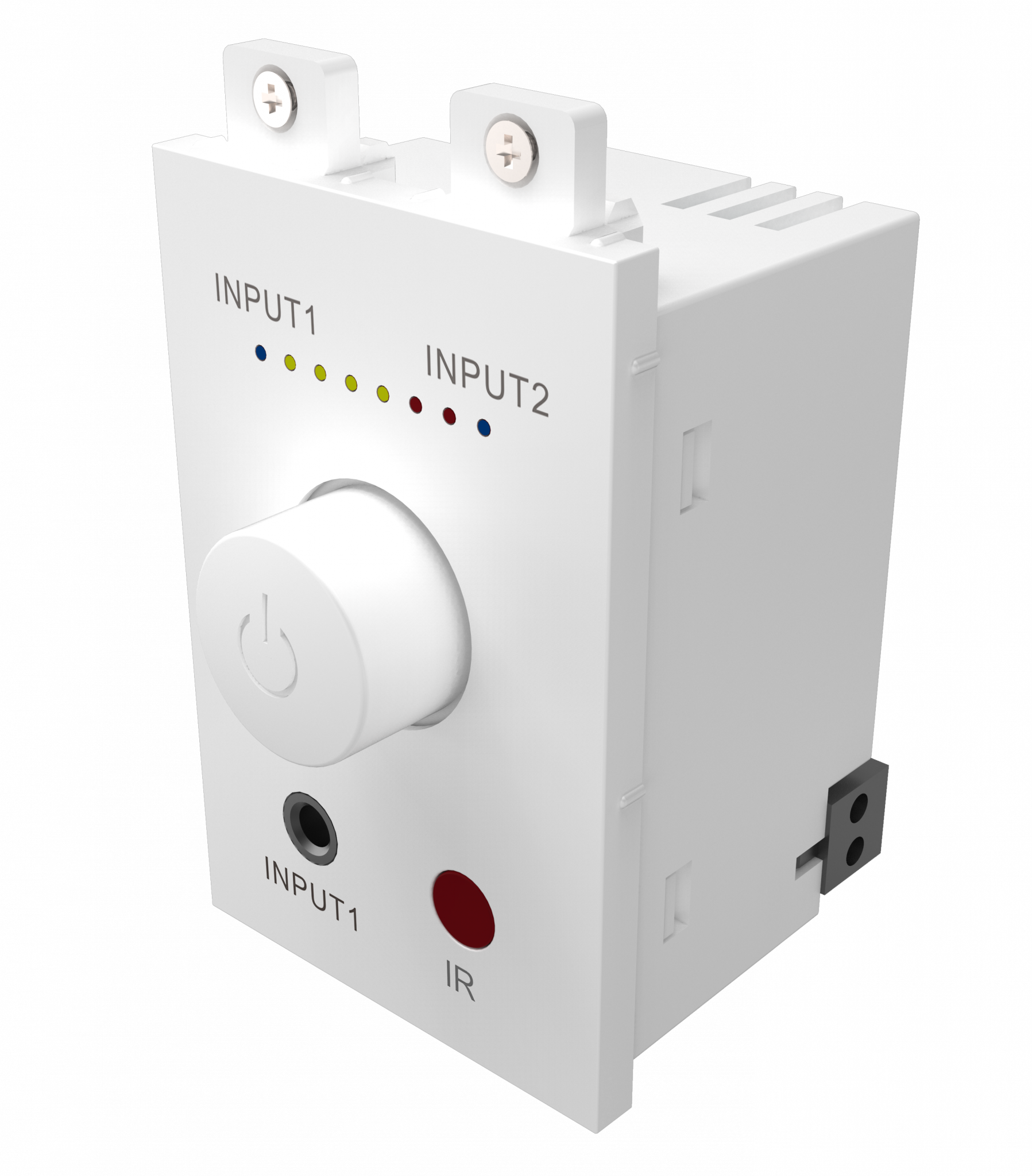

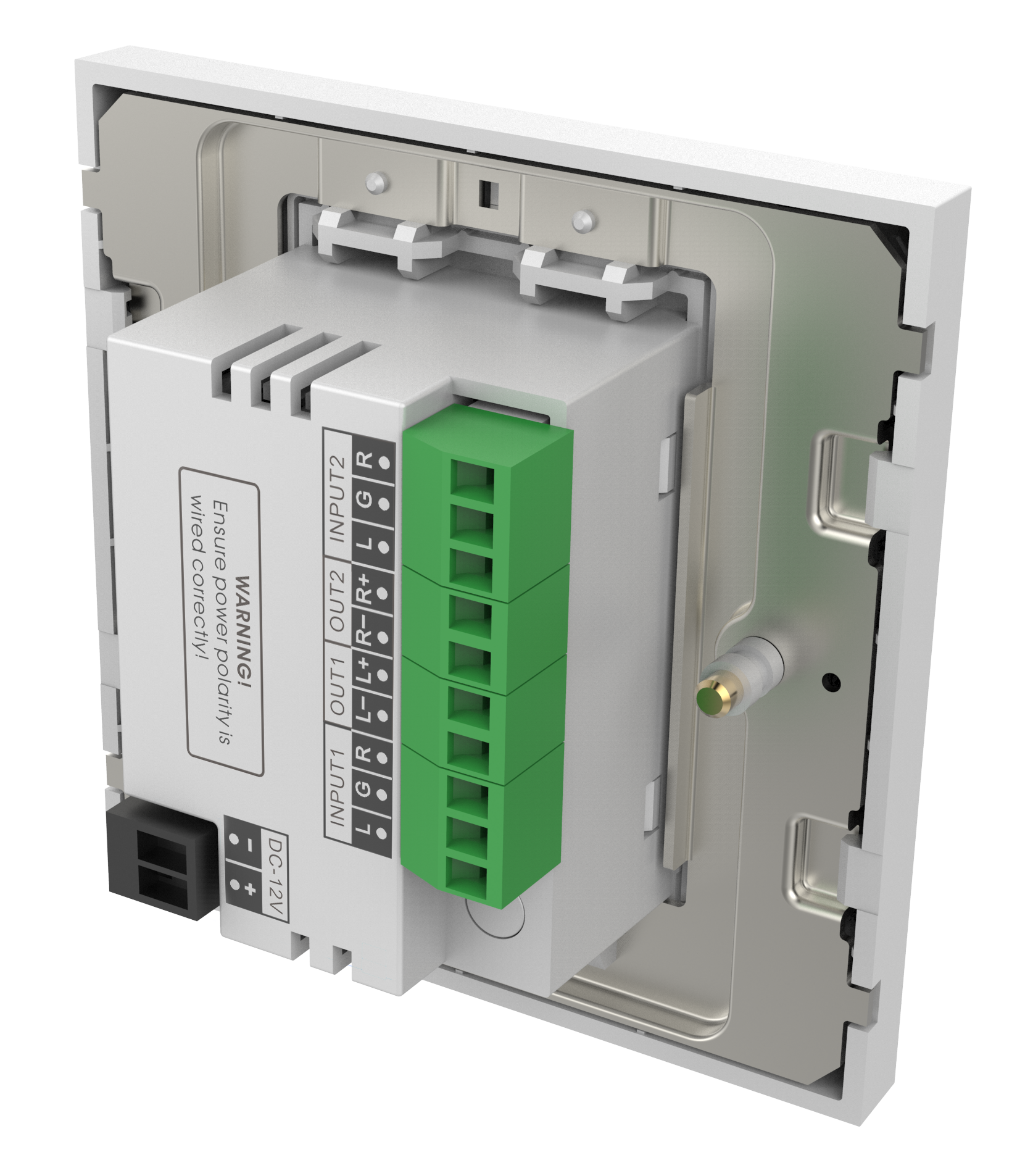

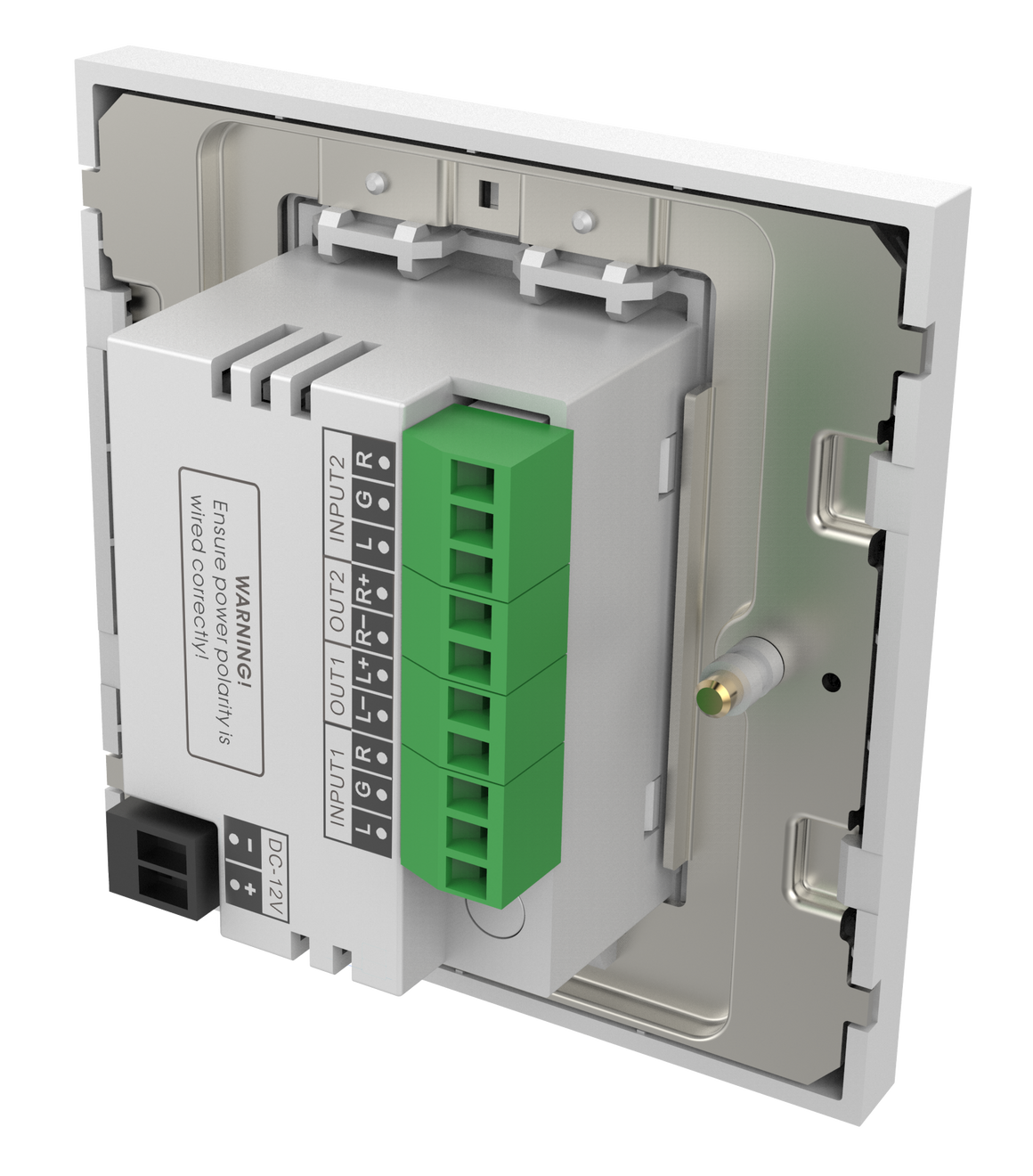

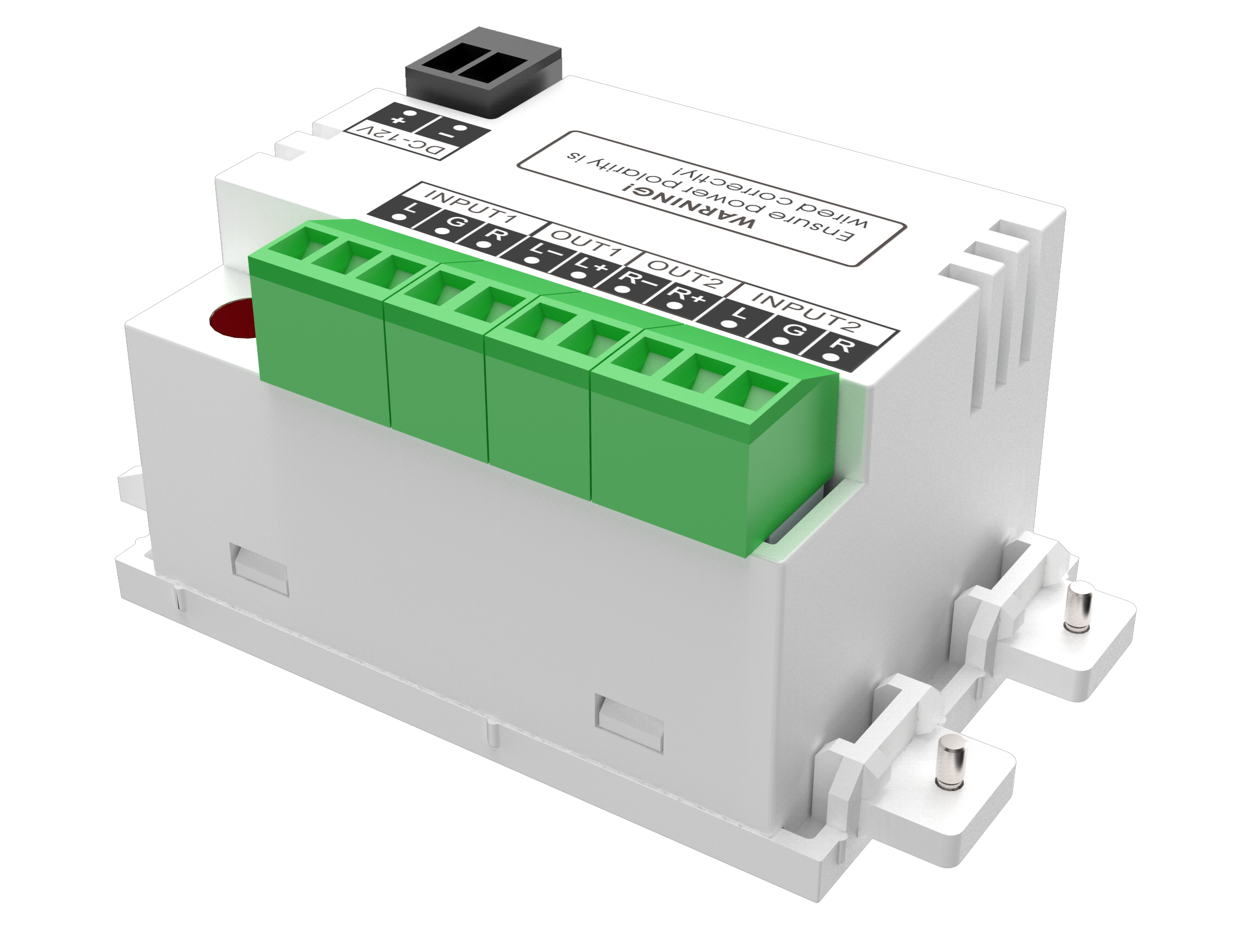

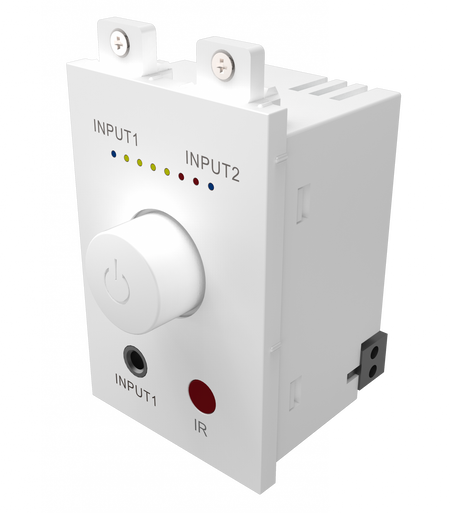

• Front Panel Input: Two Inputs are wired into the rear with removable phoenix connectors, but Input 1 is also duplicated on the front panel with a minijack socket for convenience. This “half-normalled” input disconnects the rear terminal while in use.
• D-Class Amplifier: Digital amplifiers use no power unless they are amplifying program, so even on at full volume; unless it is receiving input it is effectively off. Digital amplifiers also have the advantage of running cold so a bulky heatsink is not necessary

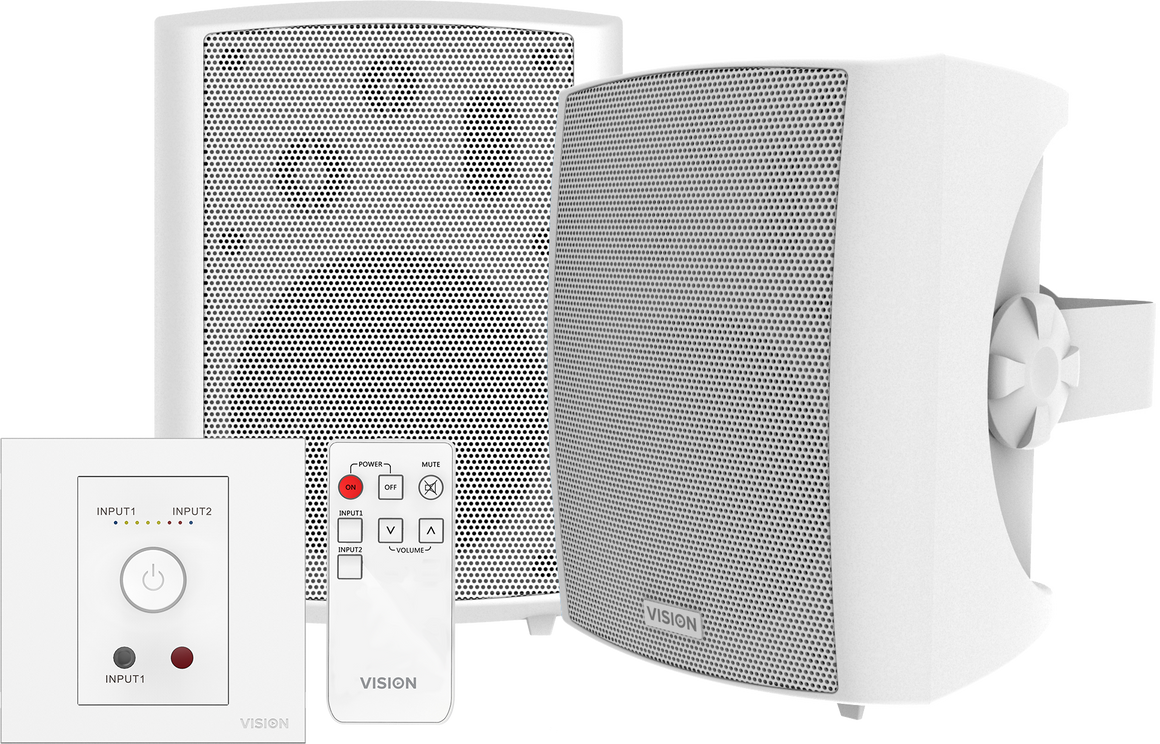

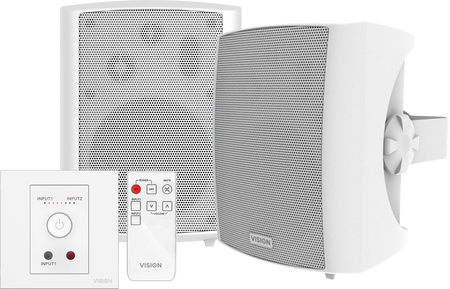

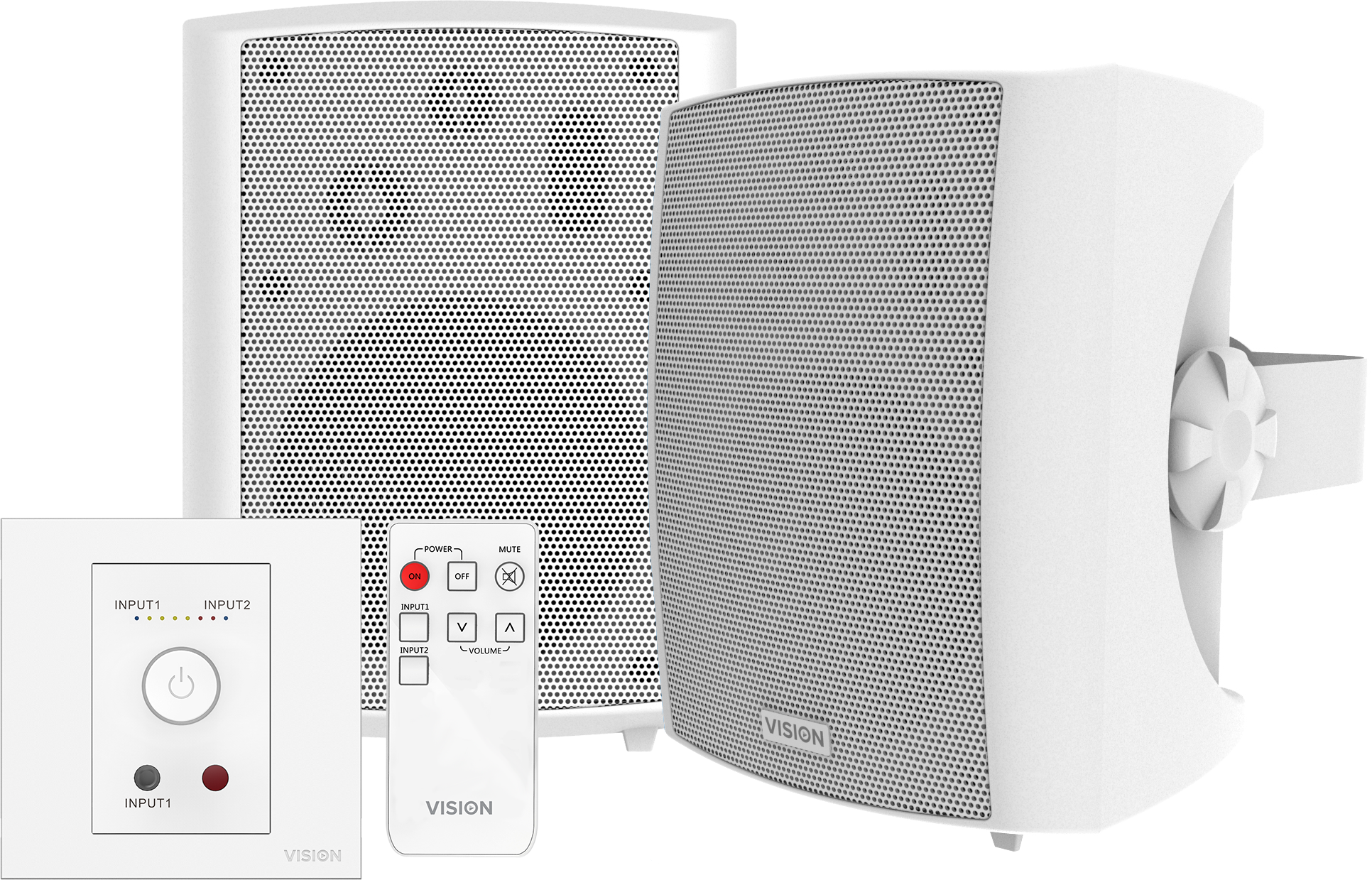

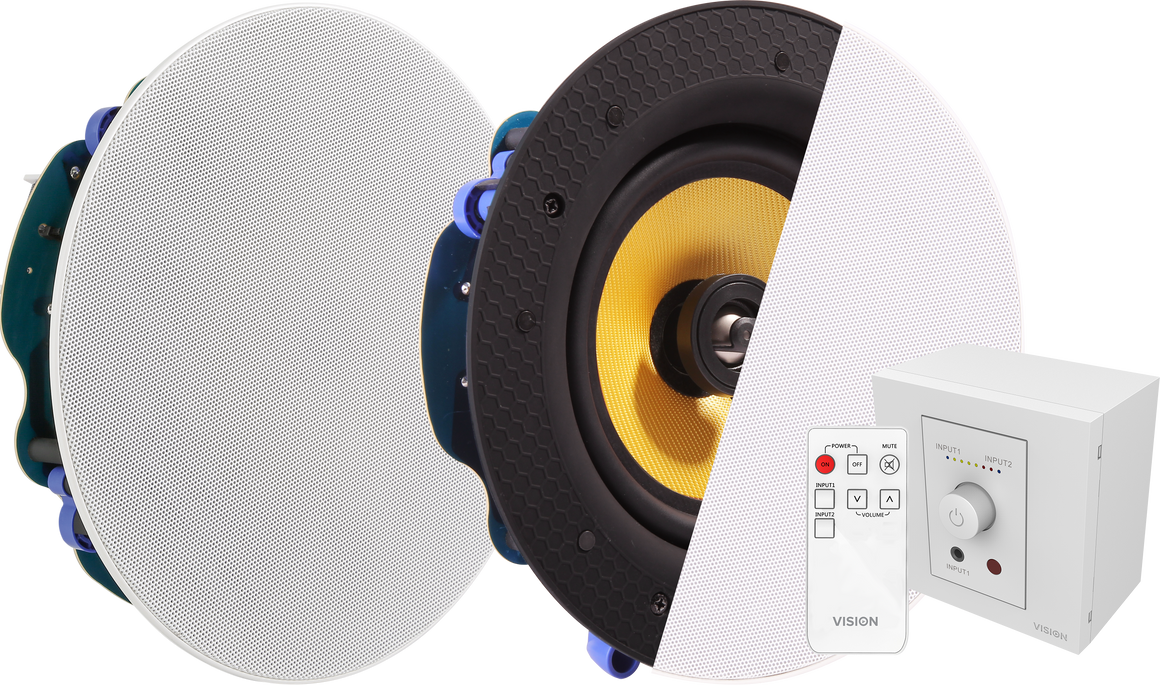

• Power Four Speakers: Don’t let size deceive you: the Techconnect Amp can drive into a 4 ohm load allowing you to power up to four 8 ohm speakers (or two 4 ohm speakers).
• Preset Memory: By default when power is activated the Techconnect Amp turns on and resumes the most recent settings. For hospitality applications it can be set to return to a preset input and level whenever it is powered on – for example in hotel guest rooms.

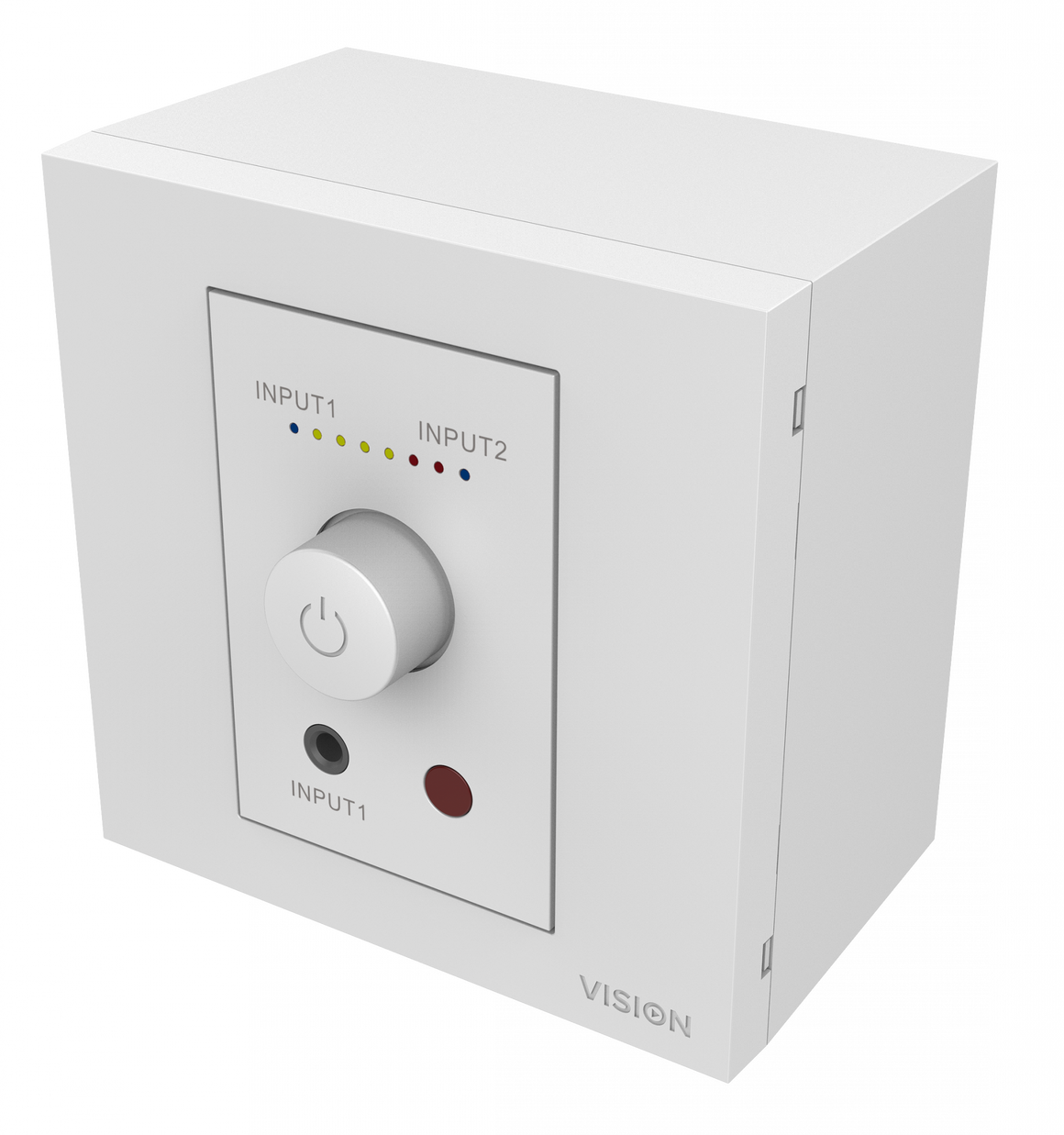

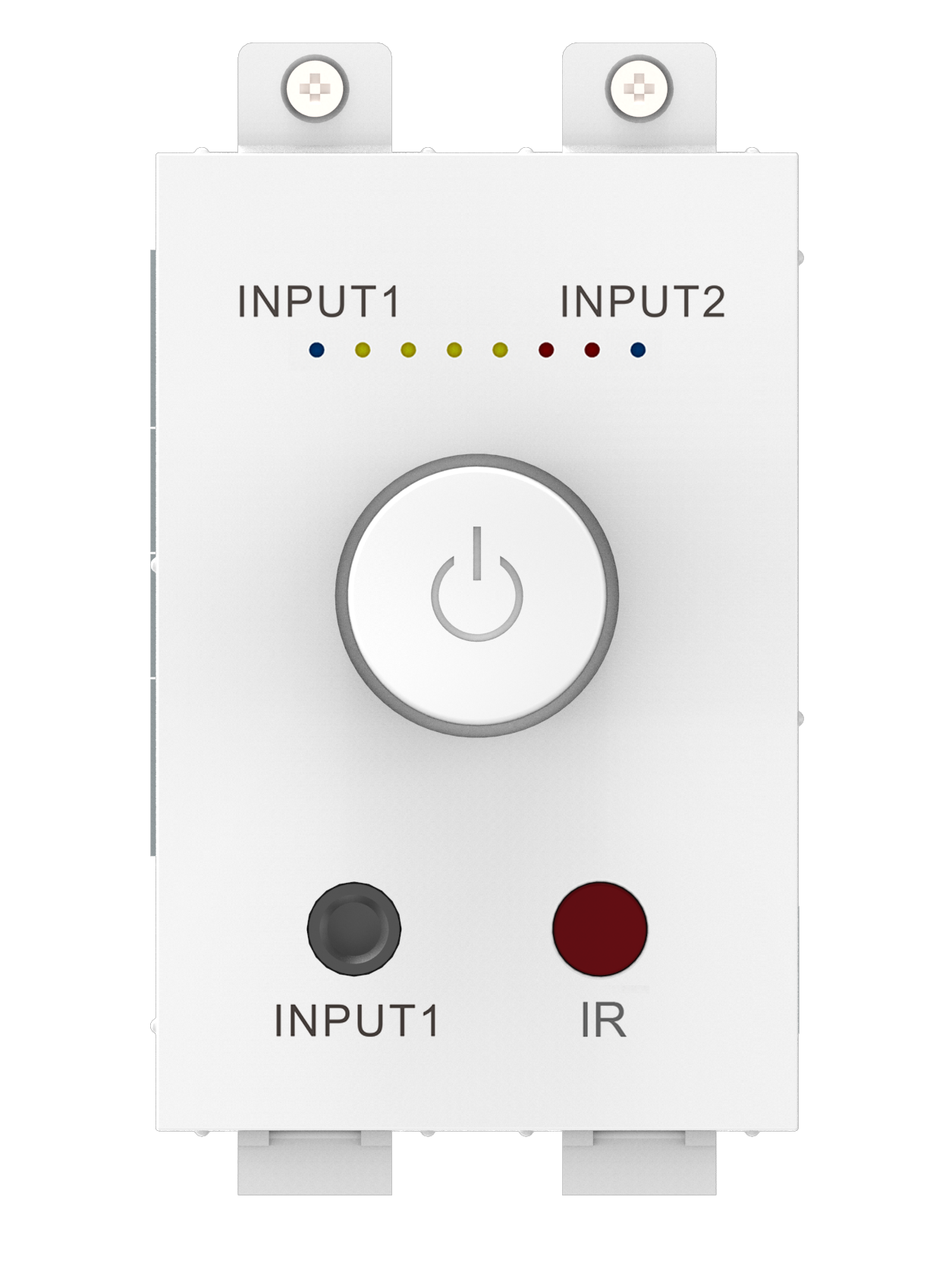

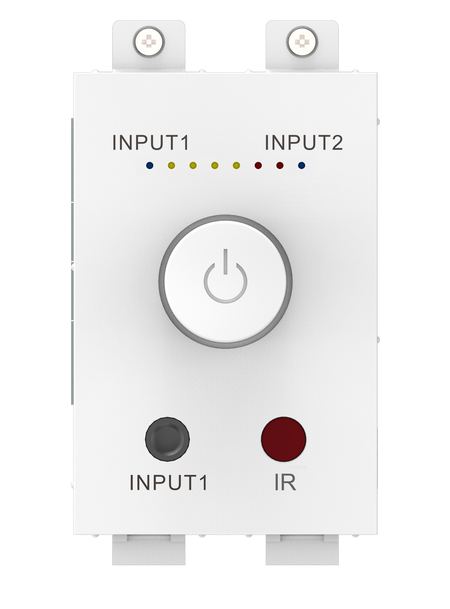

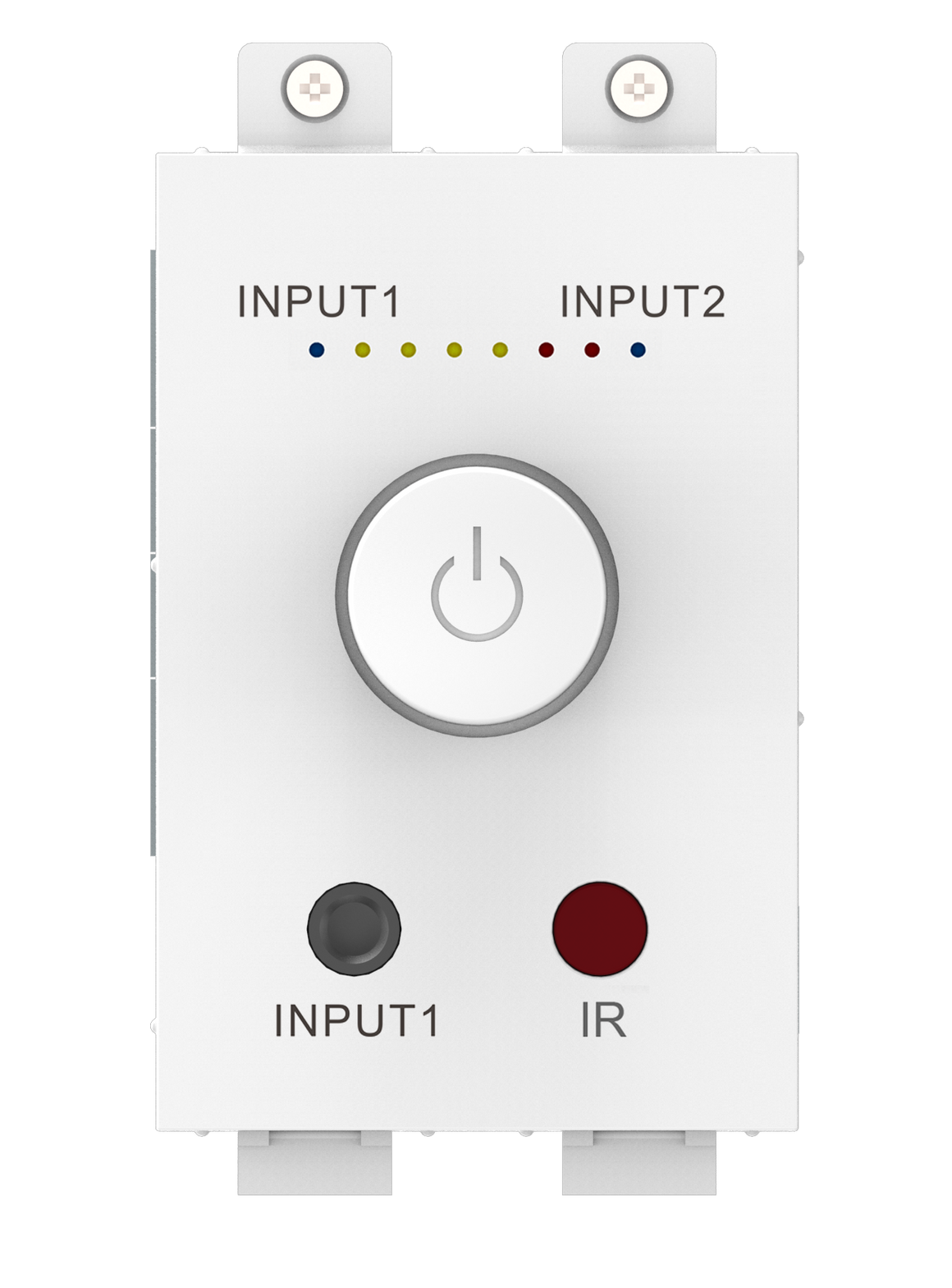

• Tactile Dial: A simple clear control interface makes the product easy to use long press on the dial to power on and off. Short press to change input.

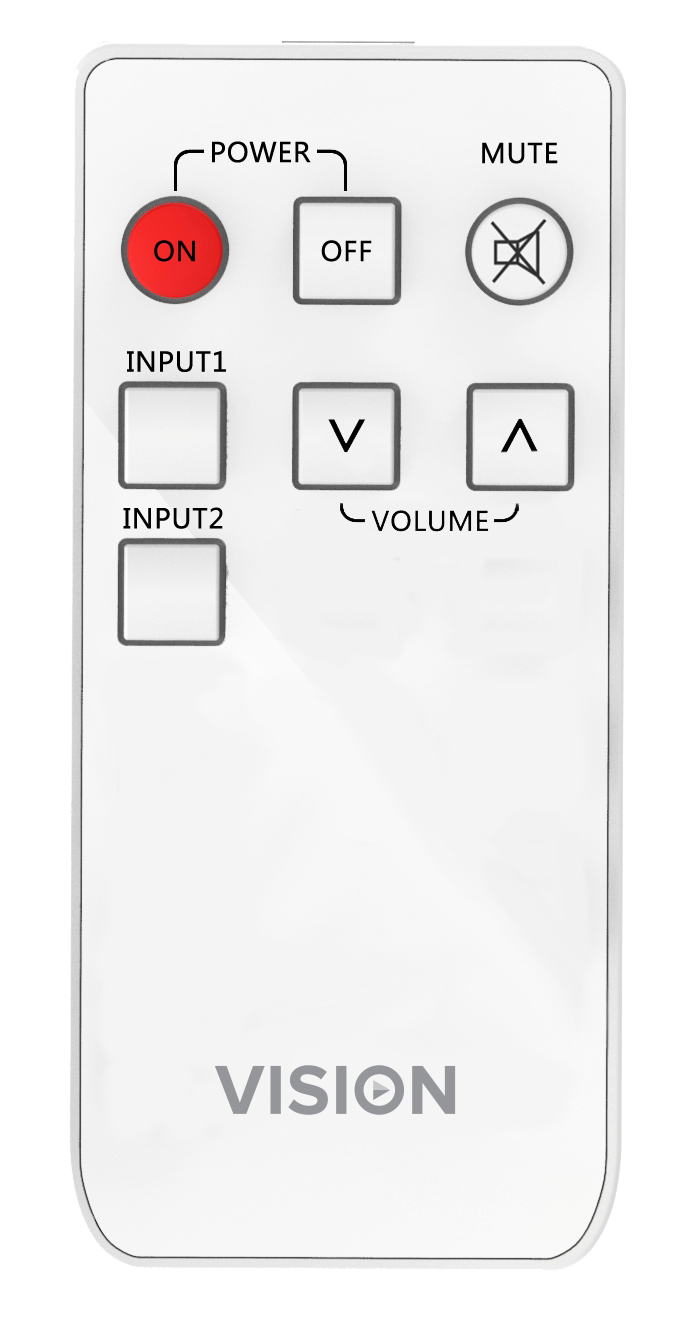

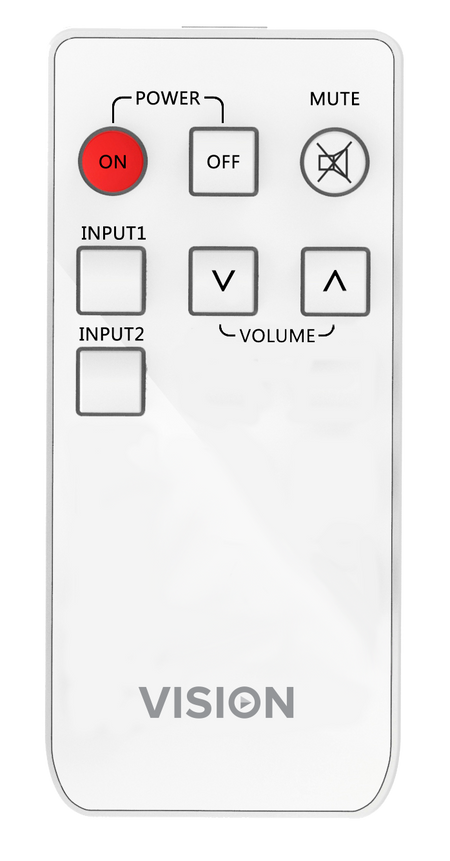

• Remote Control: A remote control is included and IR receivers are positioned on the front and rear for integration with a control system such as the Techconnect Control.

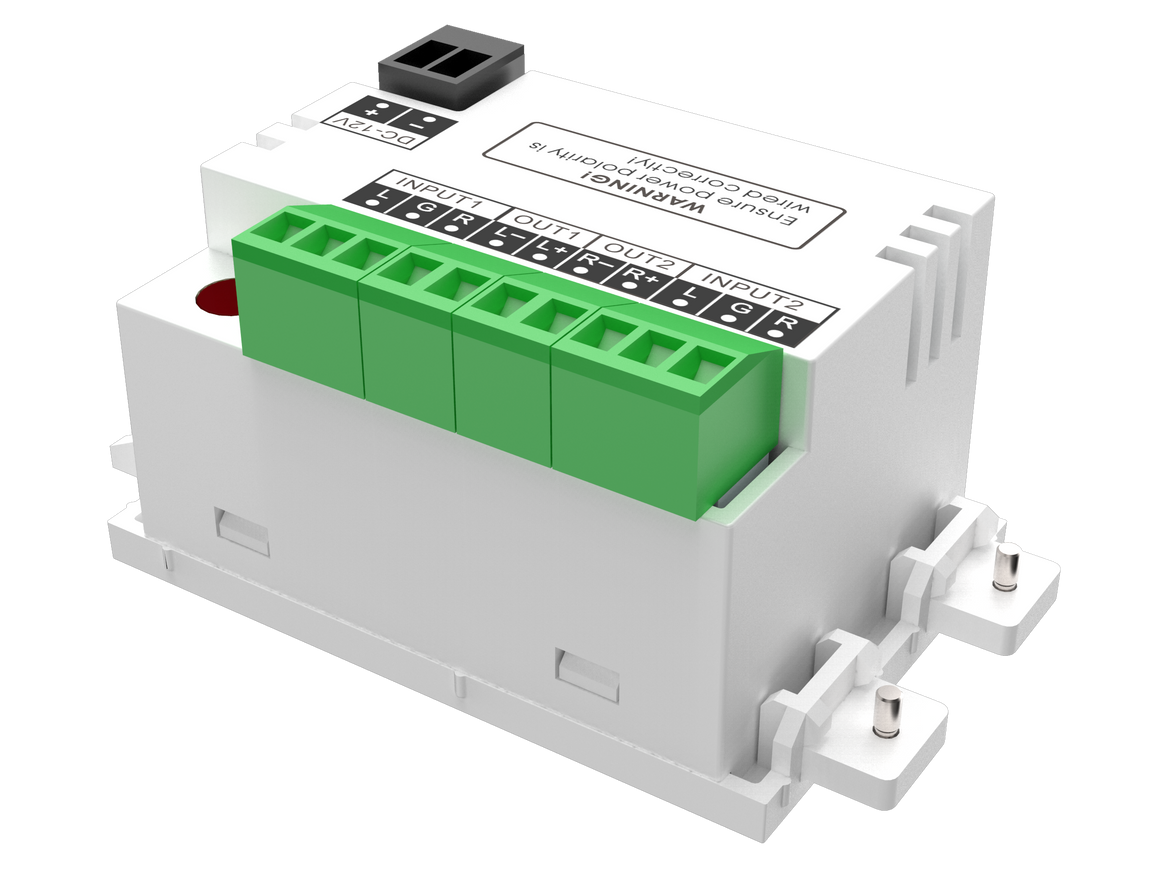

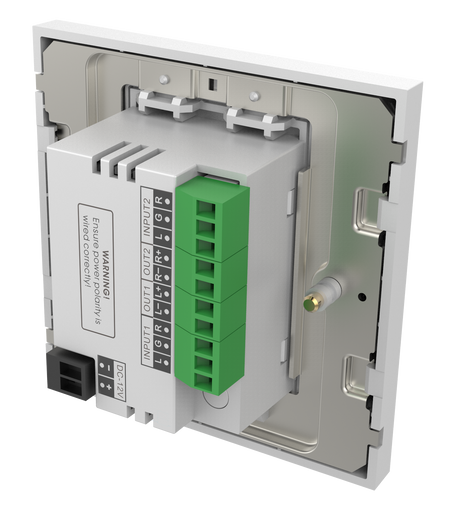

• Easy to Install and Uninstall: A robust module that is easy to install or remove and disconnect from the front. Removable phoenix connectors allow non-technical end users to uninstall it very easily if required.
• Cables Included: Speaker cable is included plus short input cables are included for connection to the rear of adjacent input modules on the Techconnect.
• Secure: Ideal when you don’t have furniture to sit an amplifier on, and because it is mounted to the wall it is much less obvious as a target for theft.
• Close at Hand: Can be positioned anywhere in the room making it perfect for training rooms, boardrooms, and classrooms.

Specifications

What's in the Box

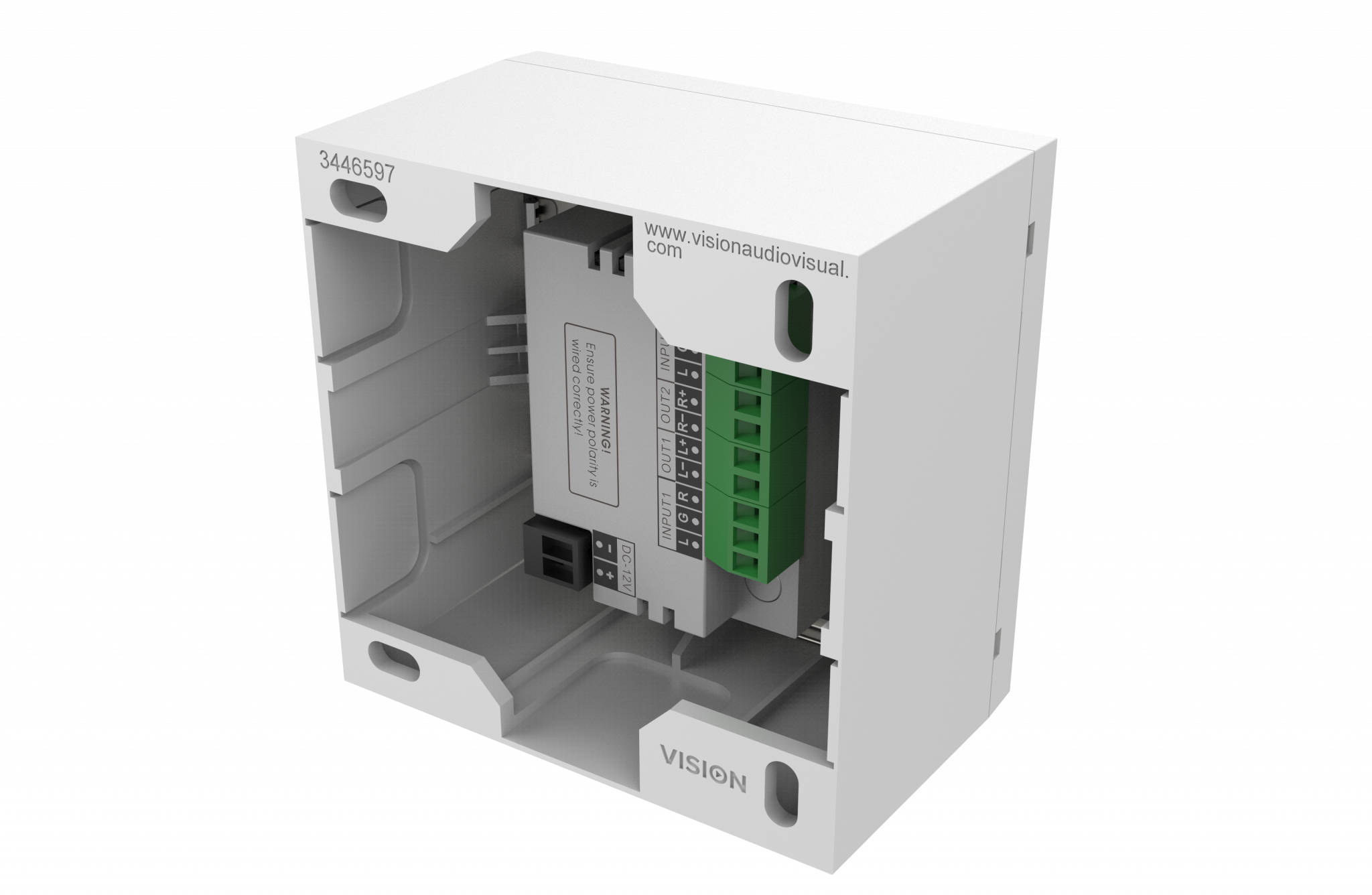

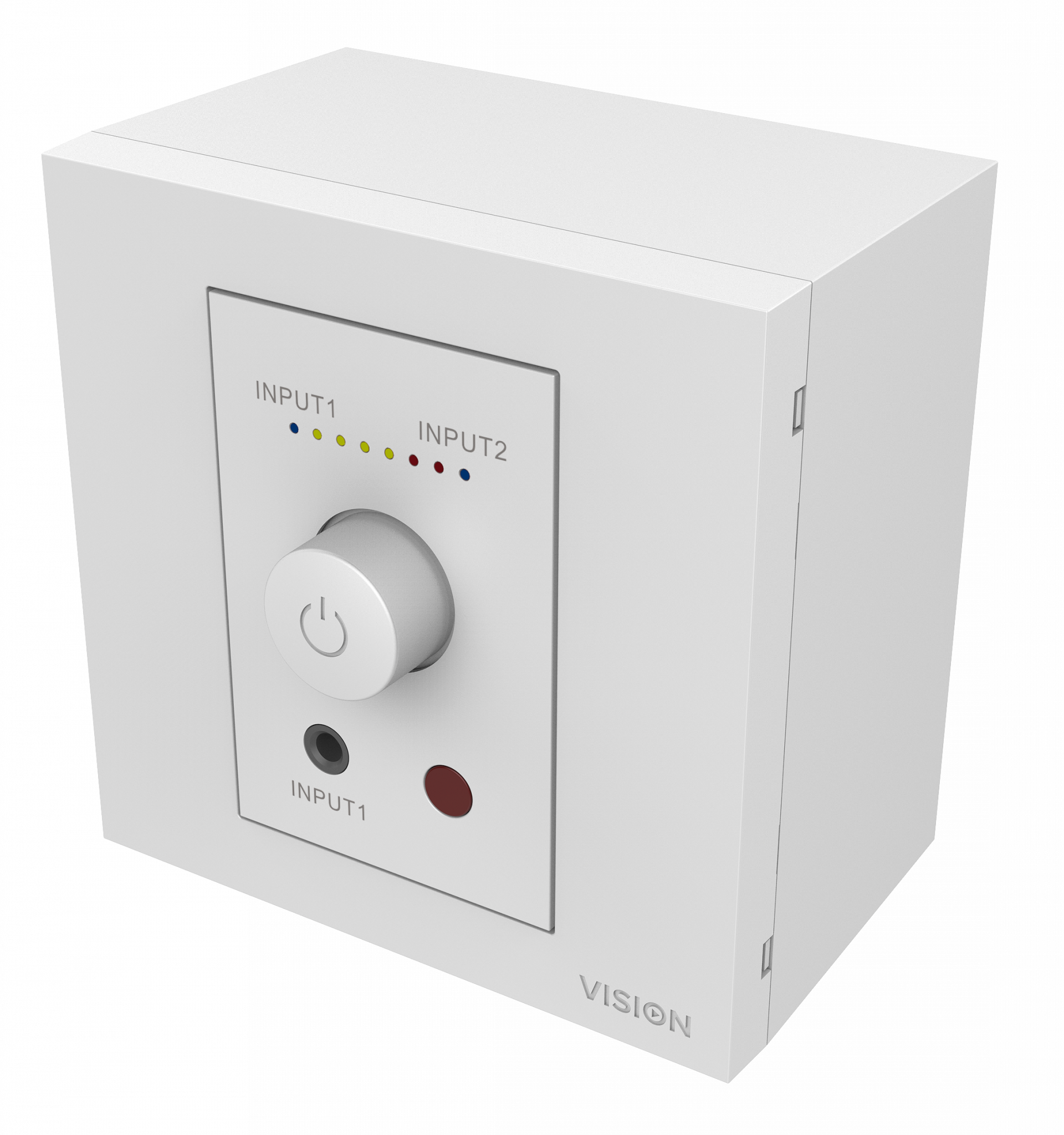

• 1 x Single-gang Backbox
• 1 x Single-gang Surround
• 2 x 150mm input cables
• 2 x Unshielded Speaker cable 5m long
• 1 x Remote Control with batteries

Warranty

The Vision TC3 50w Amplifier is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.

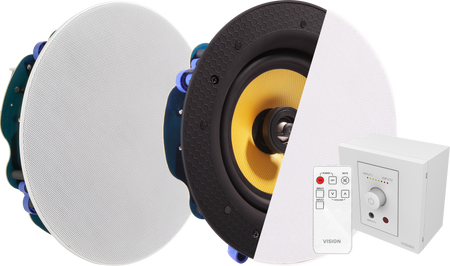

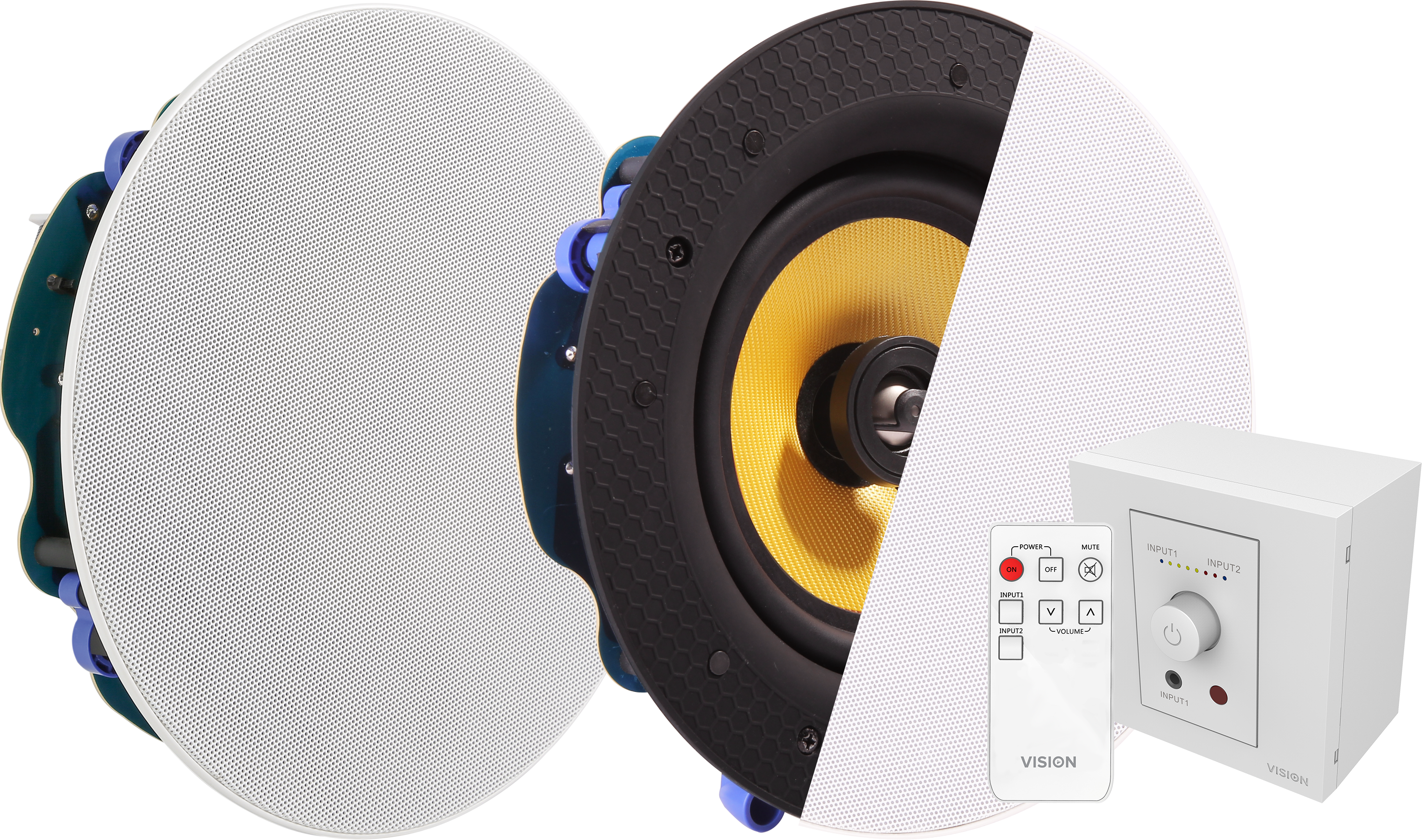

Application Examples
