Vision TC3 HDMI Active Booster Module
TC3 HDMI Active Booster Module
In stock
Regular price
£56.99
Secure Checkout
Warranty Protection
Hassle-Free Returns

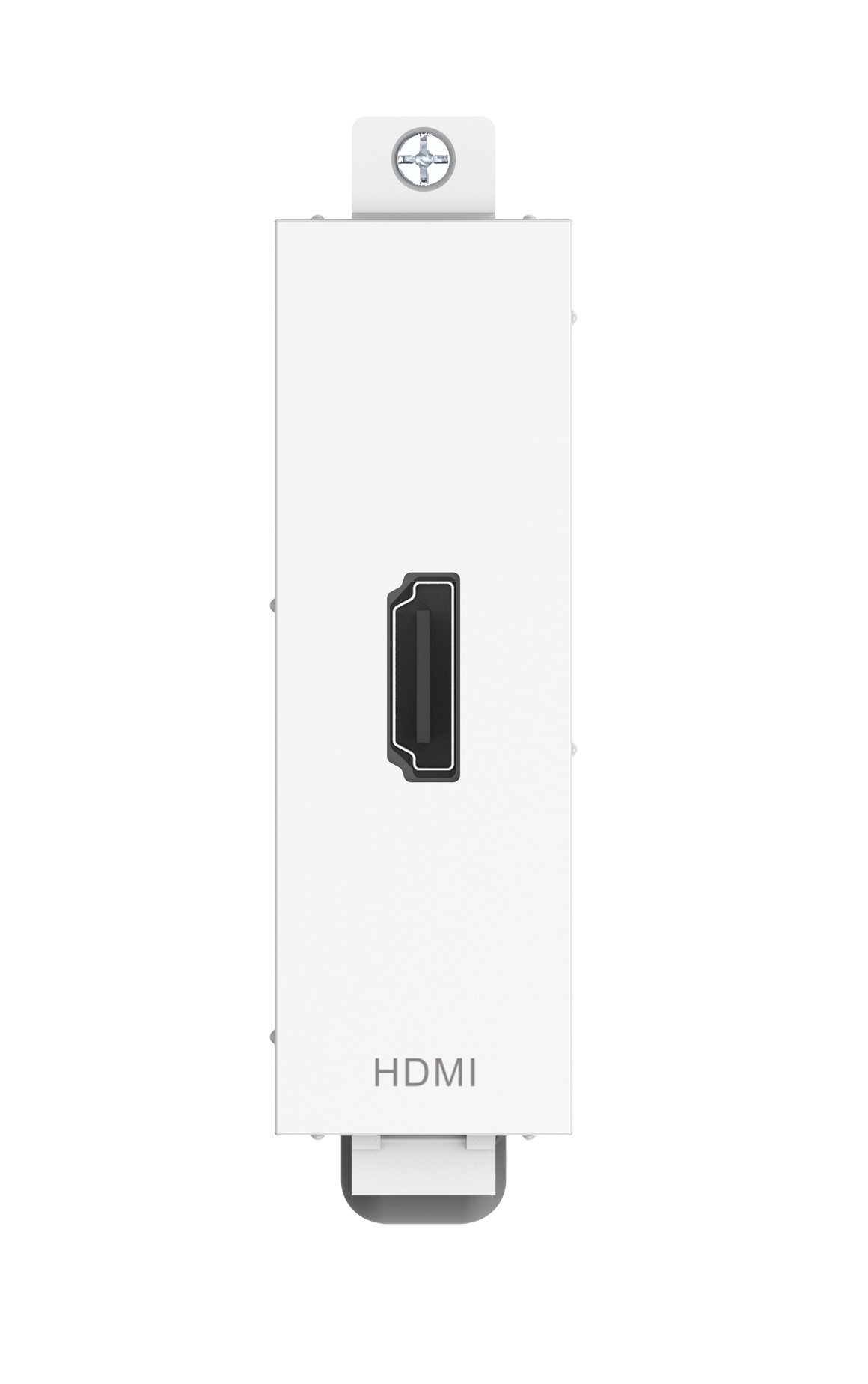

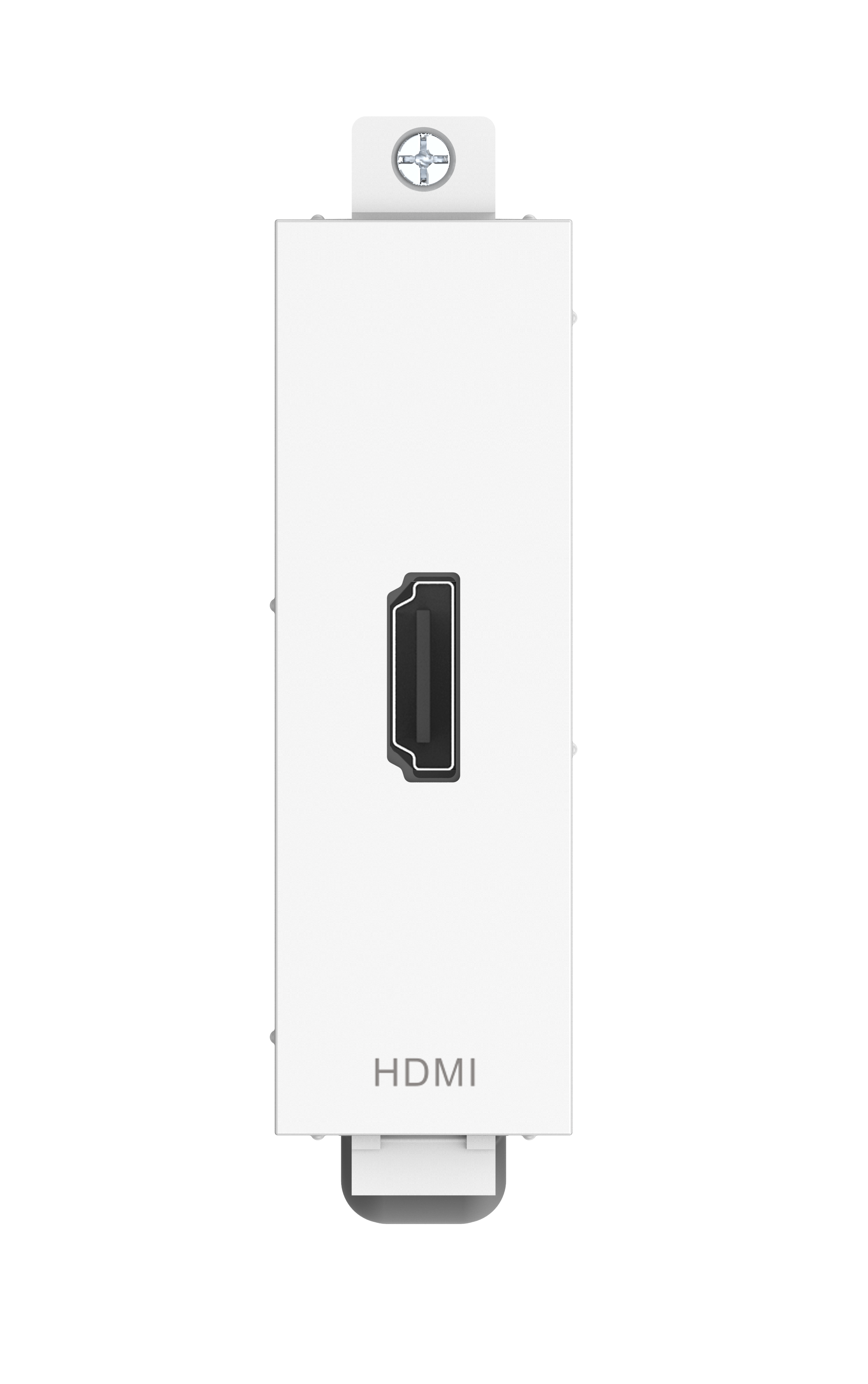

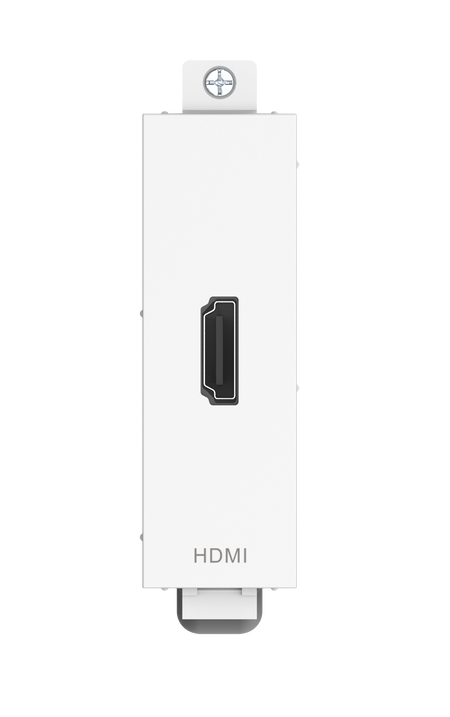

The Vision TC3 HDMI Active Booster Module this module is part of Vision's Techconnect connectivity faceplate family. This module has an active booster circuit, which uses the power carried on the HDMI cable to power the circuit.
Key Features
- Fixes to Surround: Techconnect modules fix into a surround, which in turn fixes to a backbox, mudring (for hollow walls), or a table faceplate.
- Future-proof: If you break a module or need to change it in the future, just replace that part - not the entire faceplate.
- Flexible: Get to site and the client changes what they want on their AV faceplate? No problem.
- Strong: Techconnect parts are robust for the rigours of every day use. They include strengthening ribs and reinforcing where required.
- Proven: For over 15 years Techconnect has improved and developed into one of the most popular AV faceplates in the world.
- Video Resolution Support: HDMI module v2.1 (8K @ 60 Hz)

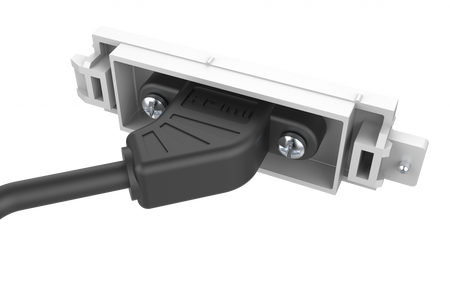

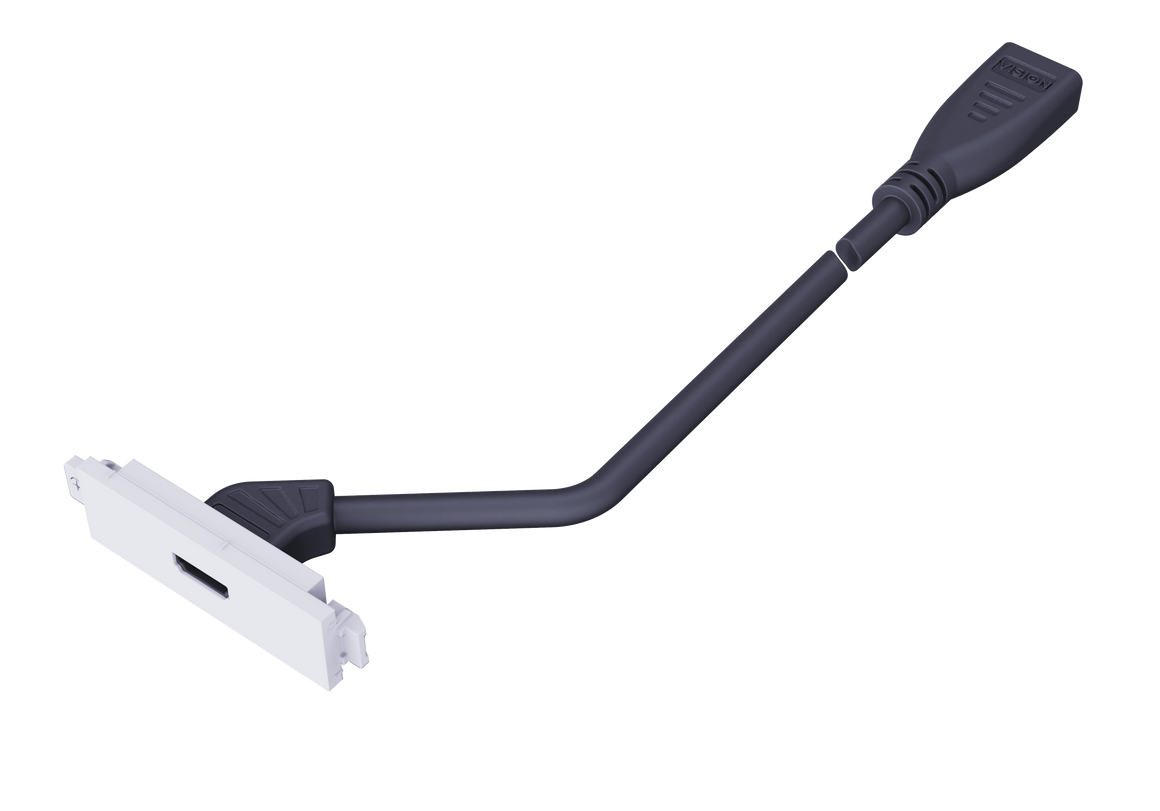

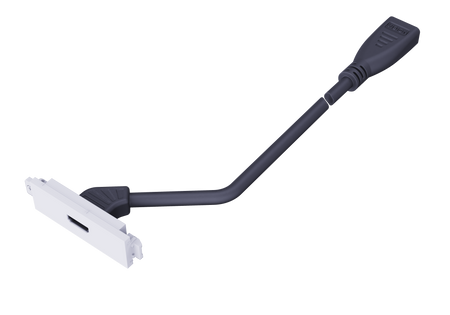

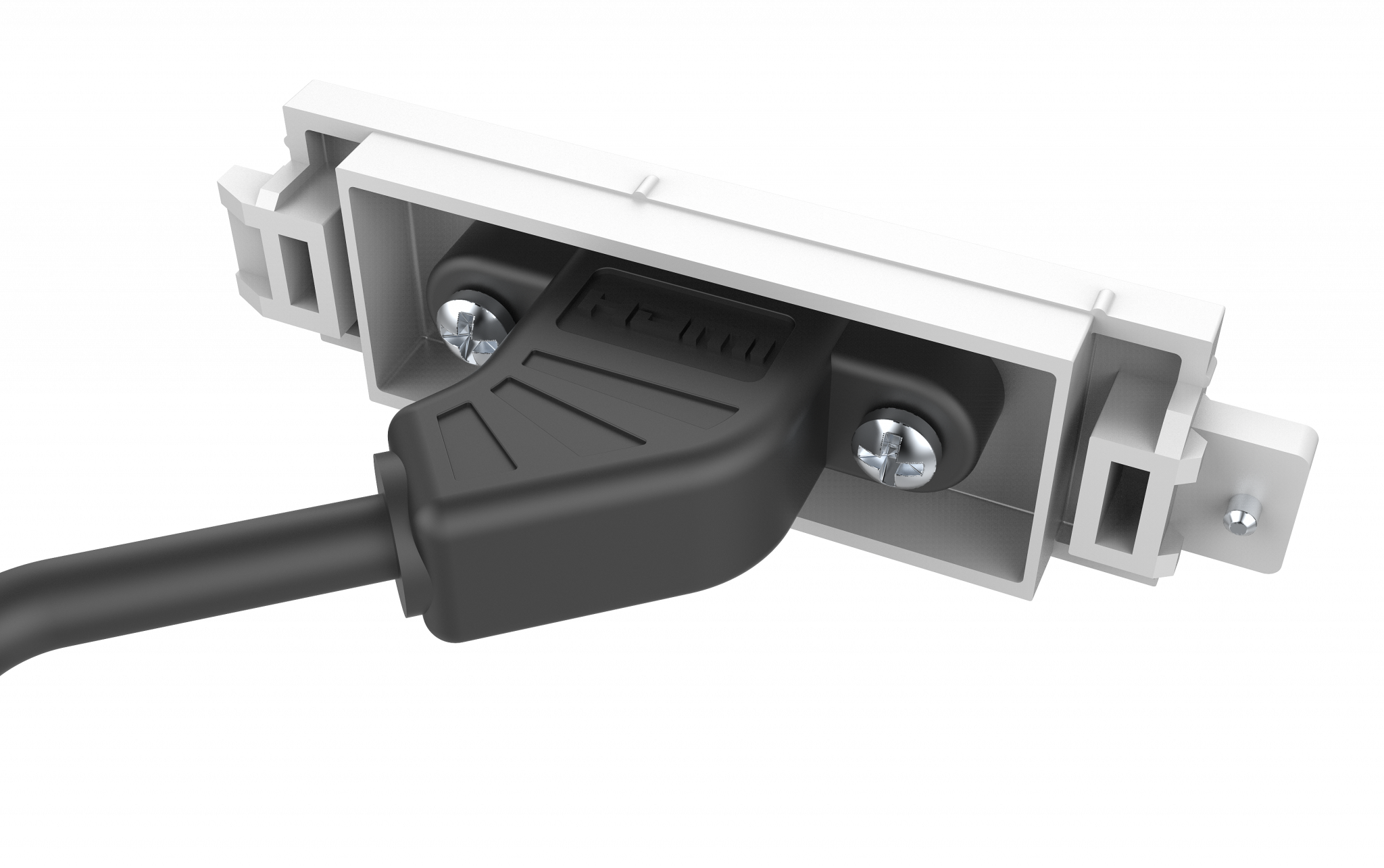

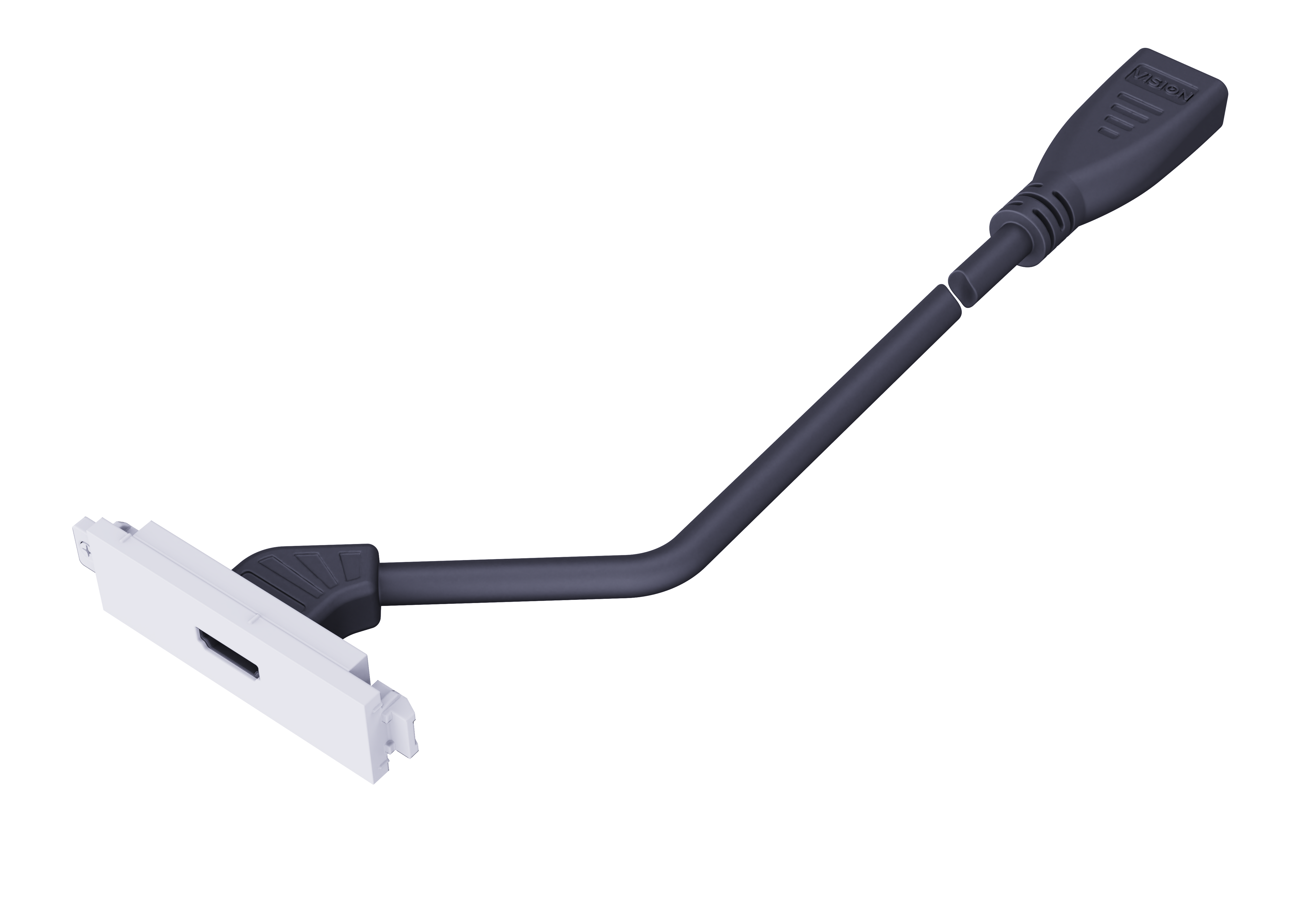

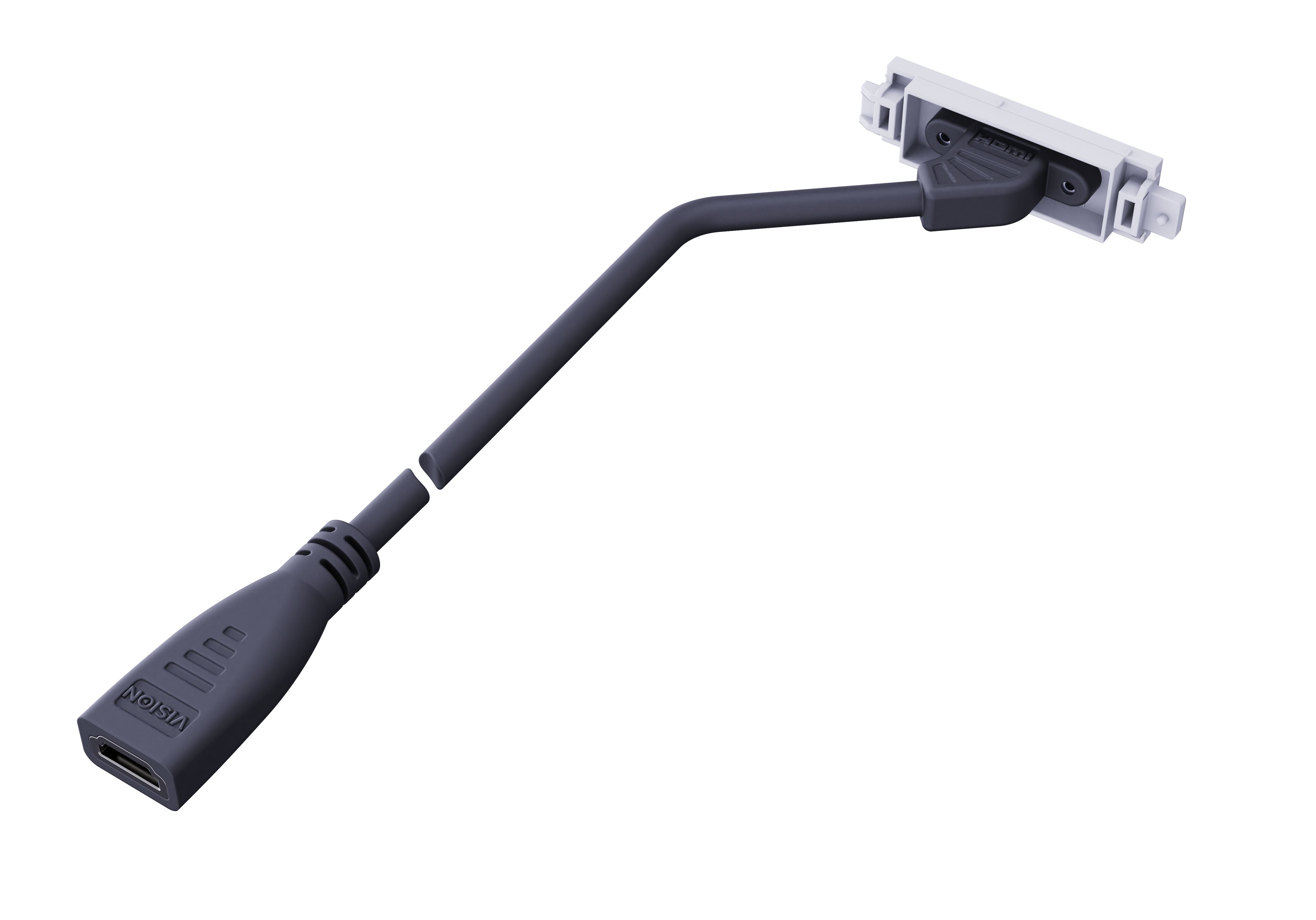

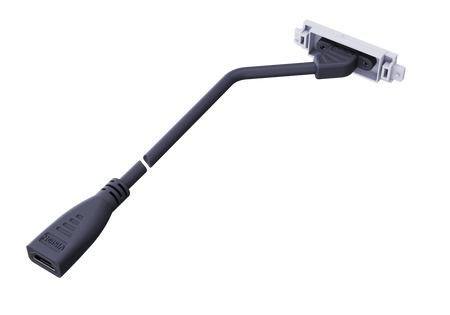

- HDMI Connectivity: Includes short cable at rear with female HDMI connector
- Booster inline: Booster inline
- Thicker copper to solve problem installations: Thicker copper to solve problem installations
- Material: PC
Specifications

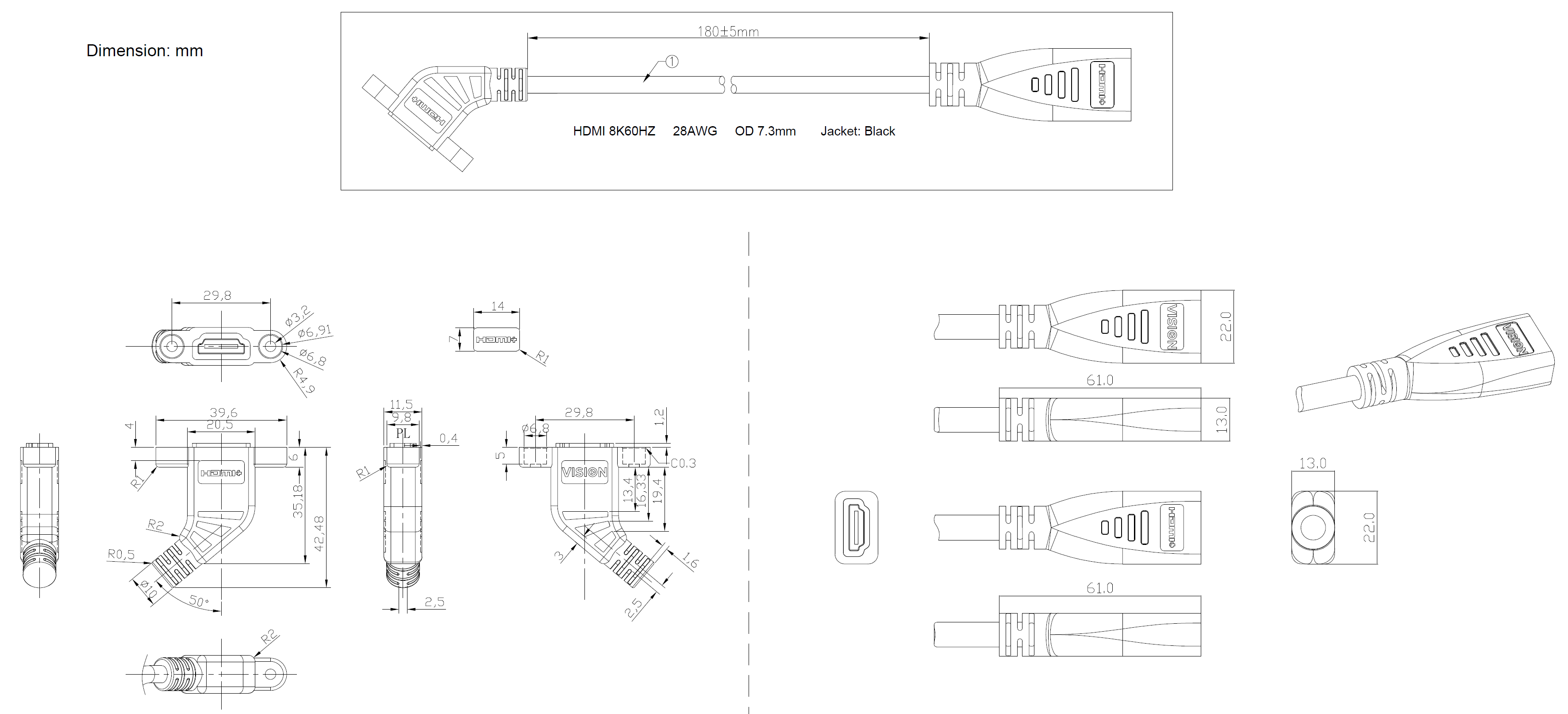

| Product Dimensions | 64 x 21 x 250 mm / 2.5" x 0.83" x 9.8" |
| Packaged Weight | 55 g (0.1 lb) |
| Packaged Dimensions | 120 x 200 mm / 4.72" x 7.87" |
| Material | PC |
| Outer Diameter | 7.3 mm |
| Color | White |
| Conductor Thickness | AWG 28 |
| Tail Length | 200mm (7.87") |
| 8K @ 60 Hz | Input cable can be up to 3 m / 10' Output cable can be up to 15 m / 49' long, but the refresh rate may need to be adjusted to 4K @ 30 Hz for cables longer than 5 m / 16' (depending on source and display) |
| Hdmi Standard | v2.1 |
| Data Transfer Rate | 48 Gbit/s |
| Connectors | Gold plated |
| Audio Return Channel | Yes |
| Shielding | Double Shielded |
| Compliances | RoHS, WEEE, CE |
| Country of origin | China |
Warranty
The Vision TC3 HDMI Active Booster Module is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| AV Signal and Room Integration | Fits into installed AV systems where source devices, displays, and room interfaces need structured connectivity. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
