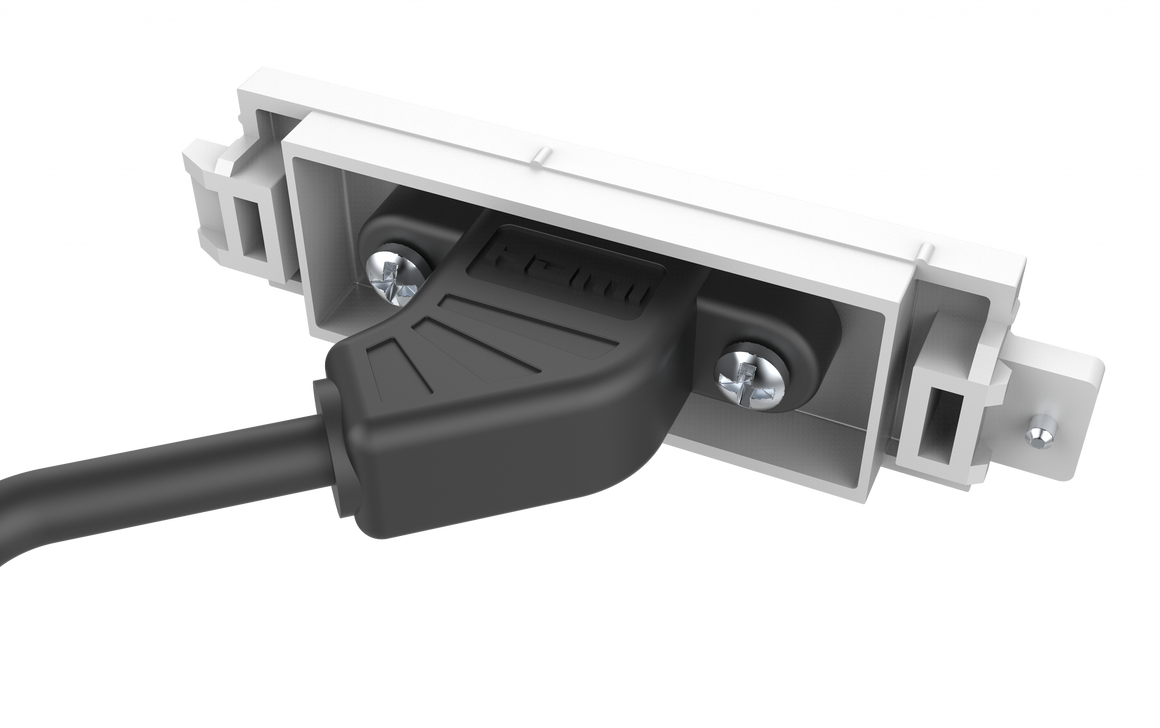

Vision TC3 HDMI Module
TC3 HDMI Module
In stock
Regular price
£12.39
Secure Checkout
Warranty Protection
Hassle-Free Returns

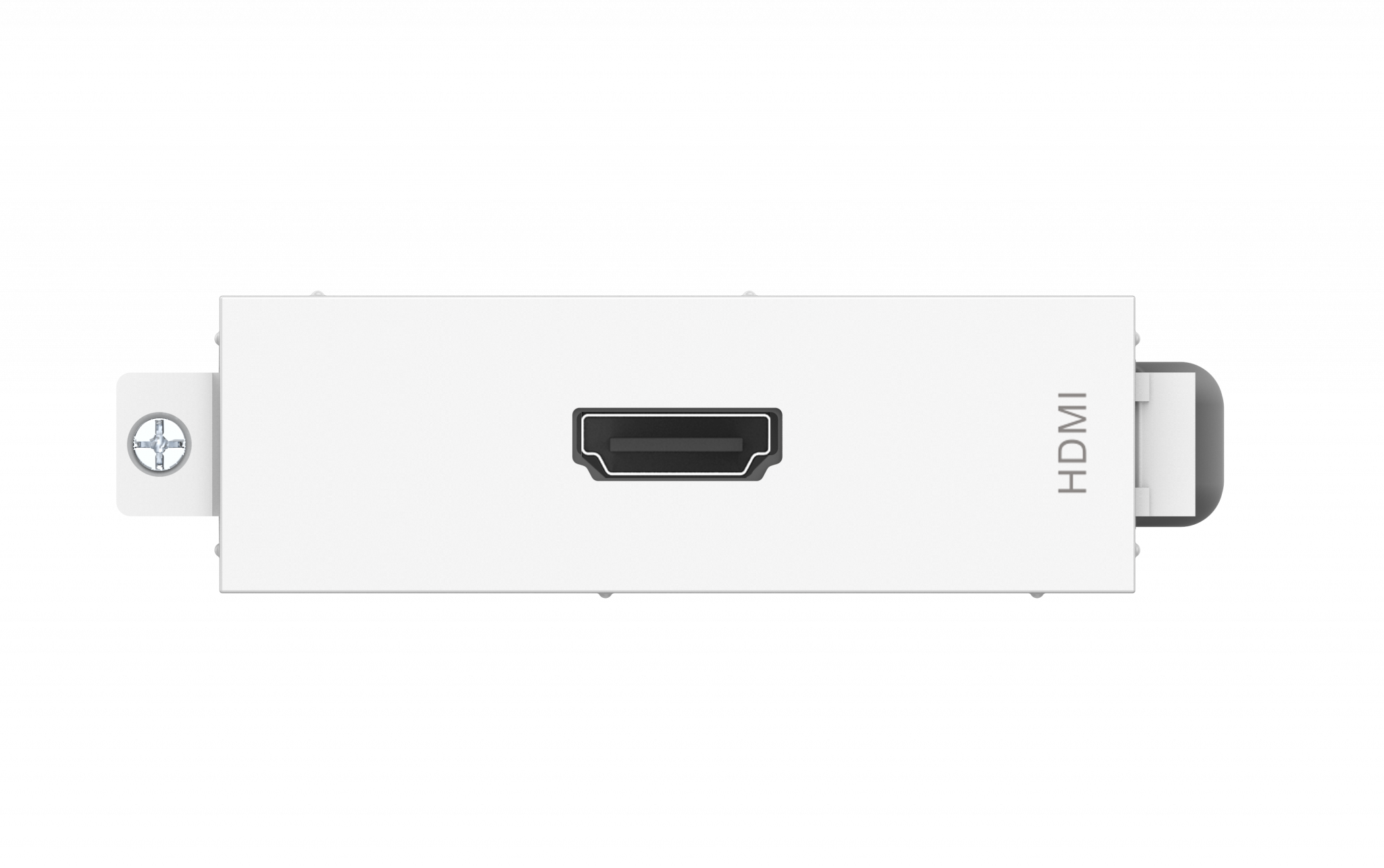

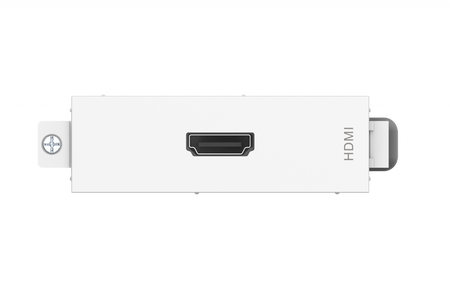

The Vision TC3 HDMI Module this module is part of Vision's Techconnect connectivity faceplate family.
Key Features
- Fixes to Surround: Techconnect modules fix into a surround, which in turn fixes to a backbox, mudring (for hollow walls), or a table faceplate.
- Future-proof: If you break a module or need to change it in the future, just replace that part - not the entire faceplate.
- Flexible: Get to site and the client changes what they want on their AV faceplate? No problem.
- Strong: Techconnect parts are robust for the rigours of every day use. They include strengthening ribs and reinforcing where required.
- Proven: For over 15 years Techconnect has improved and developed into one of the most popular AV faceplates in the world.
- Video Resolution Support: HDMI module v2.1 (8K @ 60 Hz)

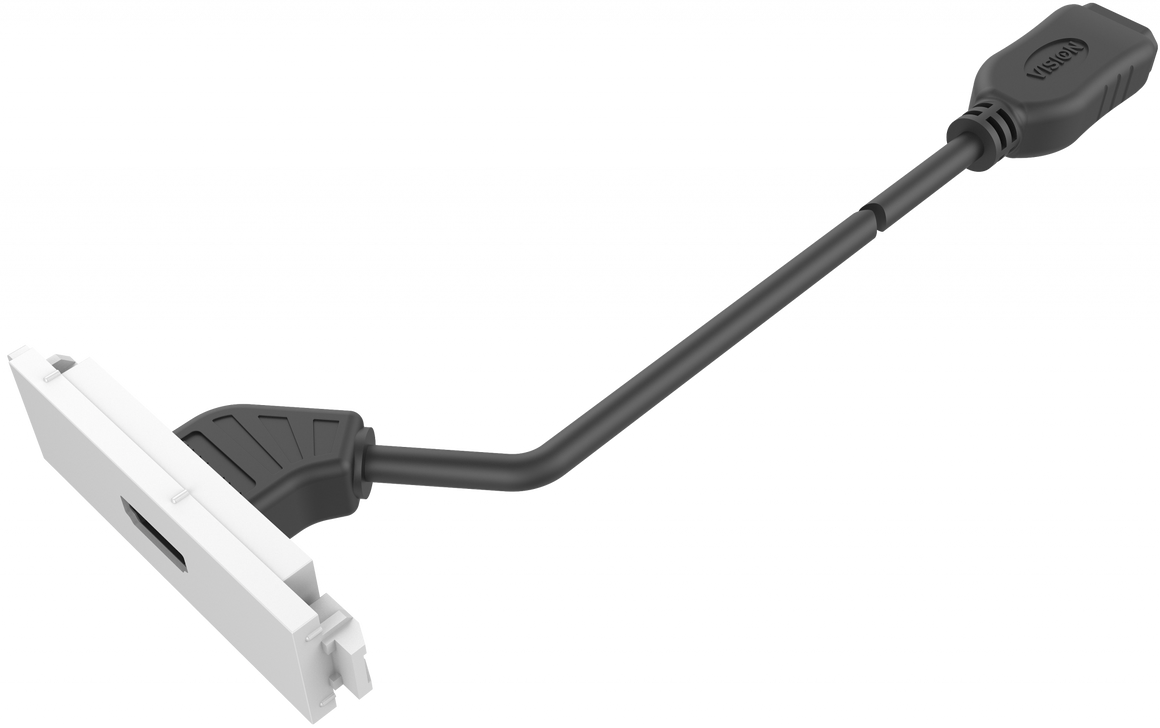

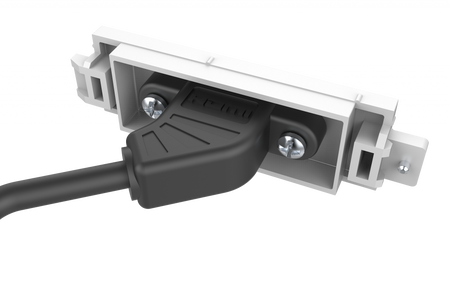

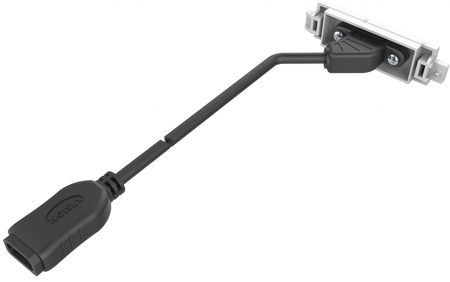

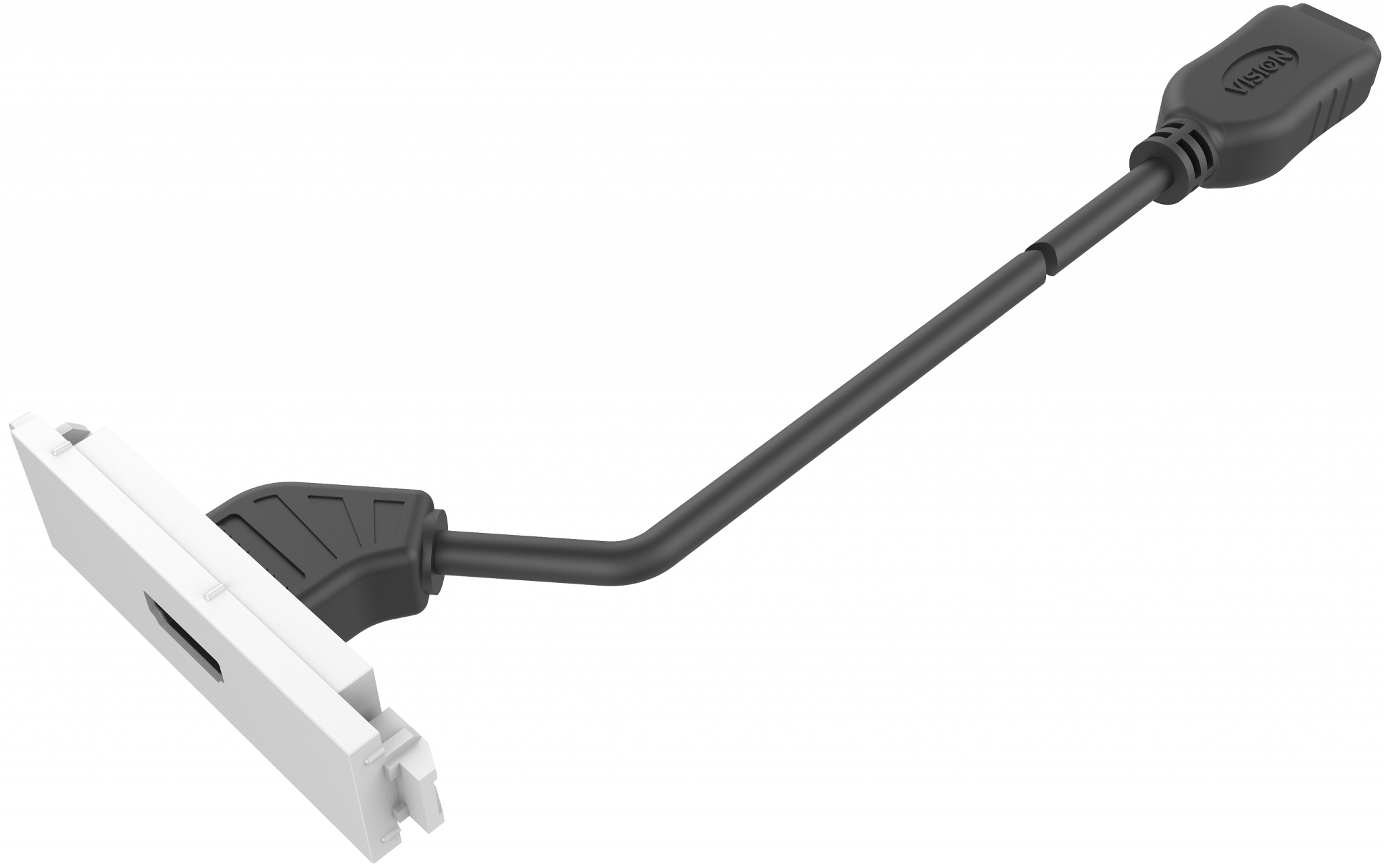

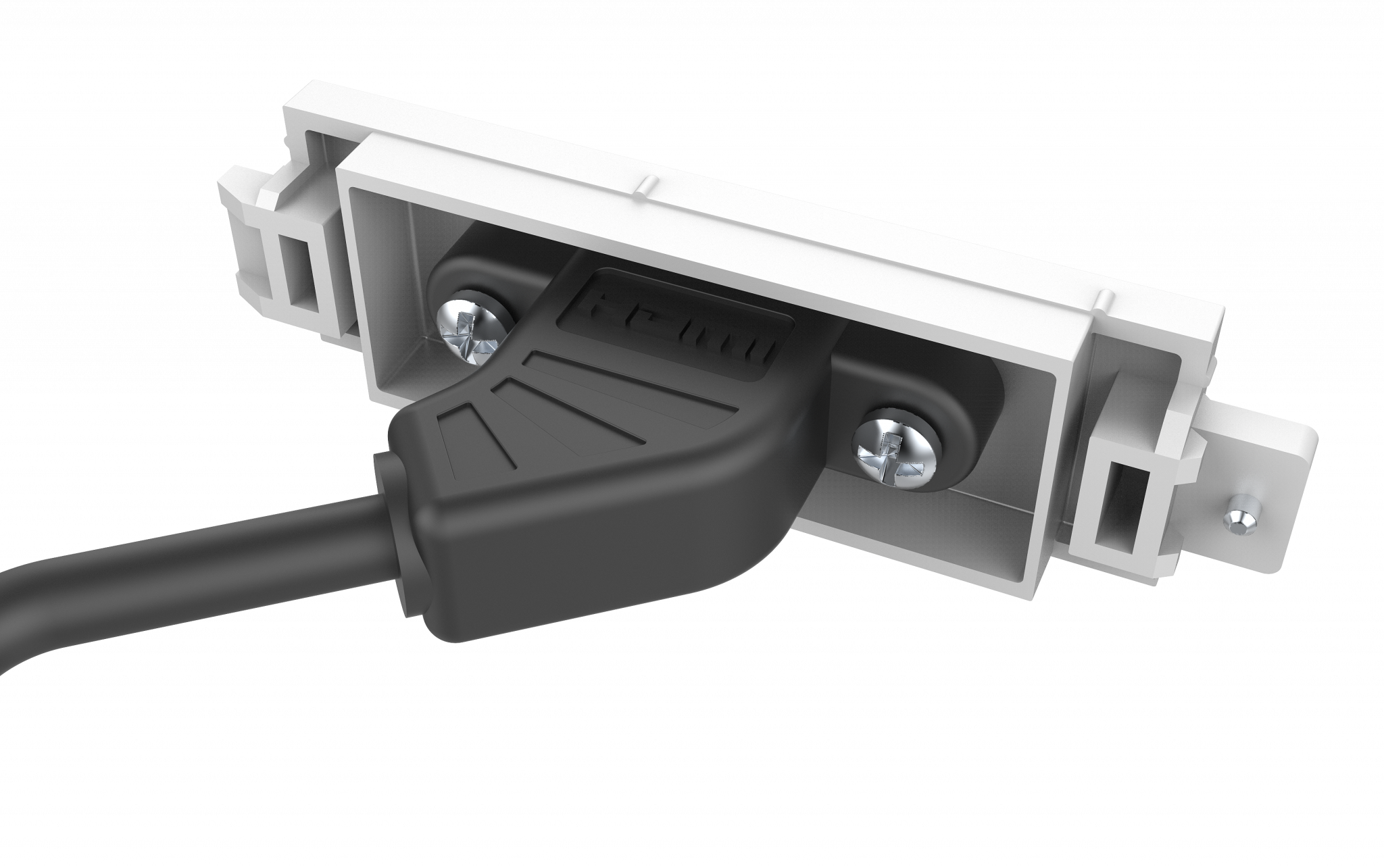

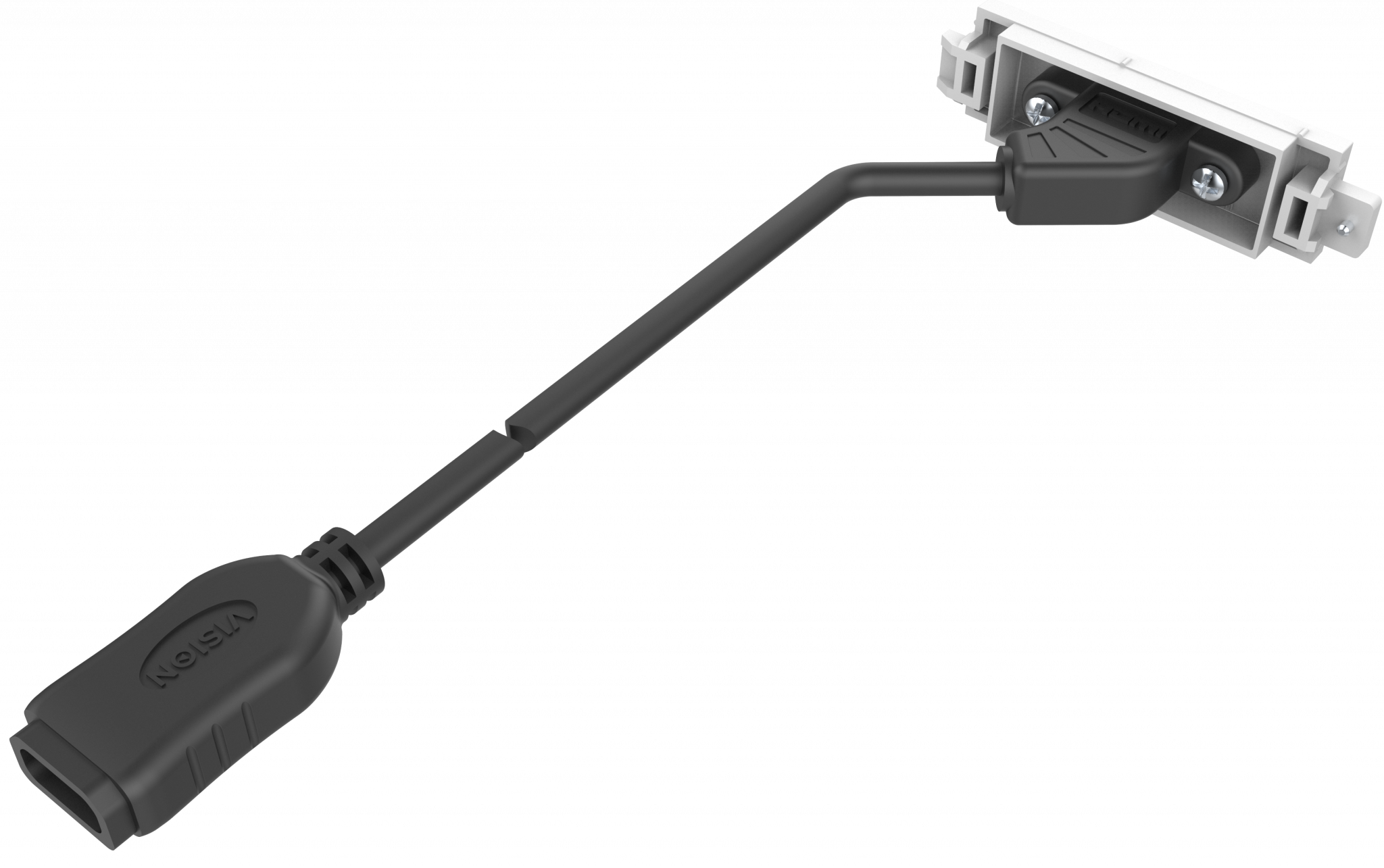

- HDMI Connectivity: Includes short cable at rear with female HDMI connector
- Carries digital audio and video over one cable: Carries digital audio and video over one cable
- Occupies 1 module space: Occupies 1 module space
- Colour: White
Specifications
| Color | White |
| Material | PC |

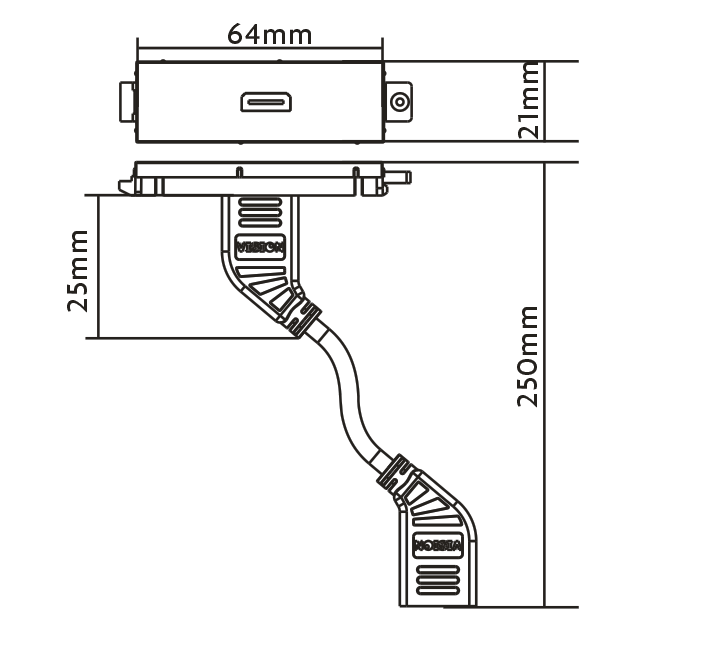

| Product Dimensions | 64 x 21 x 250 mm / 2.5" x 0.83" x 9.8" |
| Packaged Weight | 50 g (0.1 lb) |
| Packaged Dimensions | 120 x 200 mm / 4.72" x 7.87" |
| Conductor Thickness | AWG 28 |
| Tail Length | 200mm (7.87") |
| 8K @ 60 Hz | Input cable can be up to 3 m / 10' Output cable can be up to 15 m / 49' long, but the refresh rate may need to be adjusted to 4K @ 30 Hz for cables longer than 5 m / 16' (depending on source and display) |
| Outer Diameter | 7.3 mm |
| Hdmi Standard | v2.1 |
| Data Transfer Rate | 48 Gbit/s |
| Connectors | Gold plated |
| Shielding | Double Shielded |
| Audio Return Channel | Yes |
| Compliances | RoHS, WEEE, CE |
| Country of origin | China |
Warranty
The Vision TC3 HDMI Module is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| AV Signal and Room Integration | Fits into installed AV systems where source devices, displays, and room interfaces need structured connectivity. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
