Vision TC3 VGA and Audio Module (phoenix on rear)
TC3 VGA and Audio Module (phoenix on rear)
In stock
Regular price
£9.51
Secure Checkout
Warranty Protection
Hassle-Free Returns

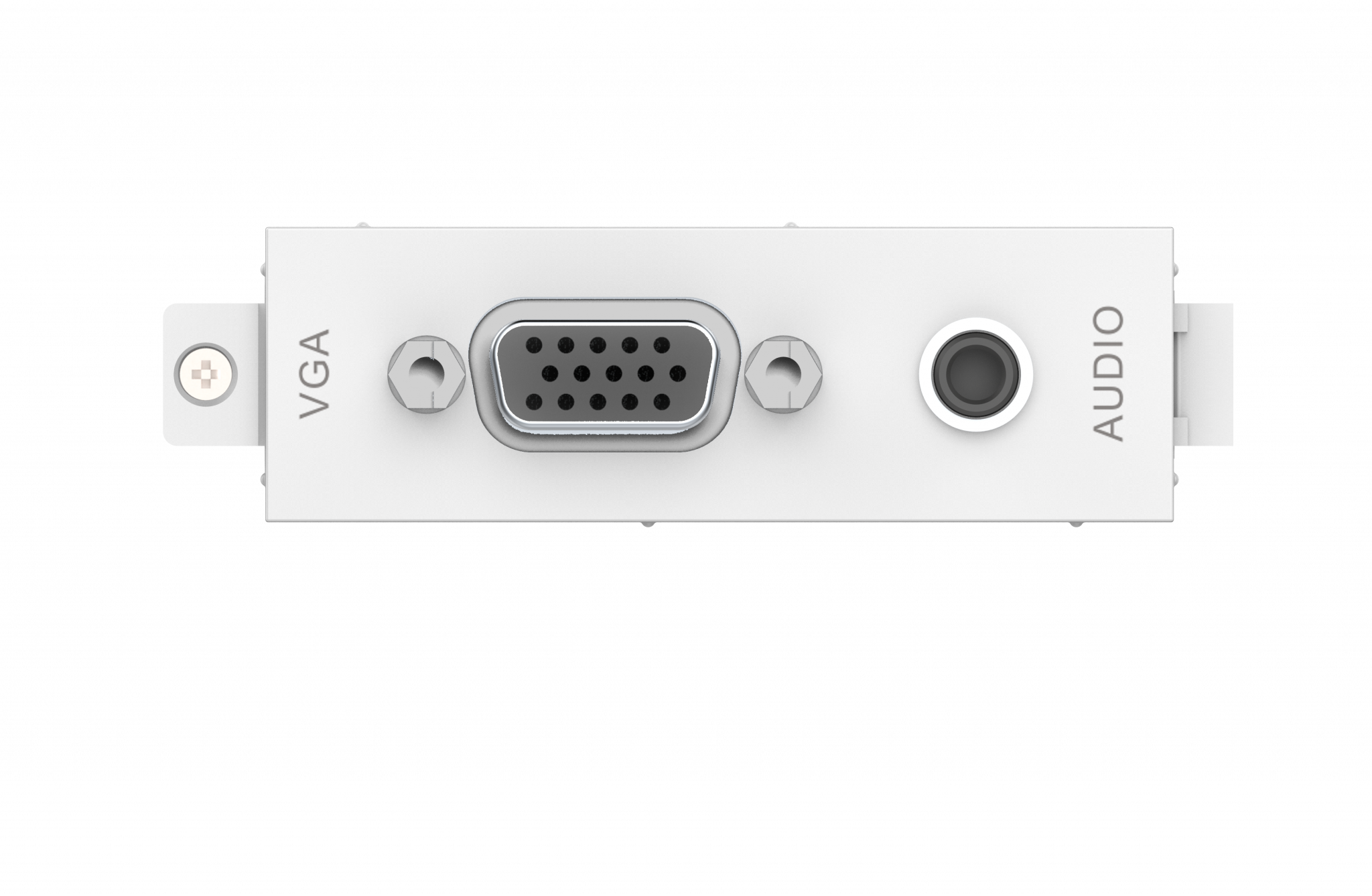

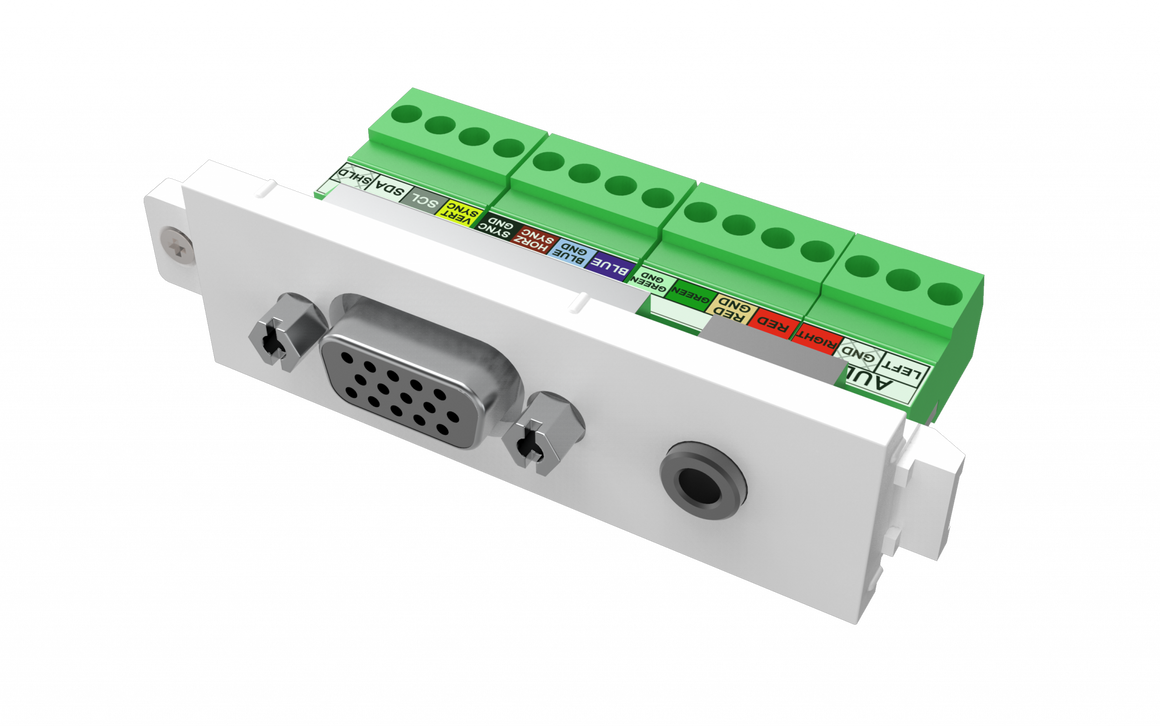

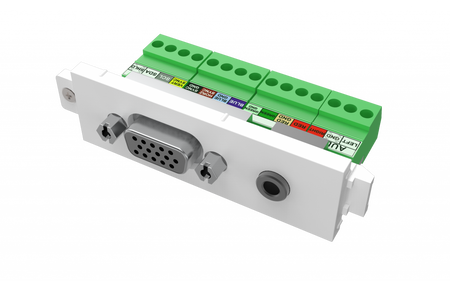

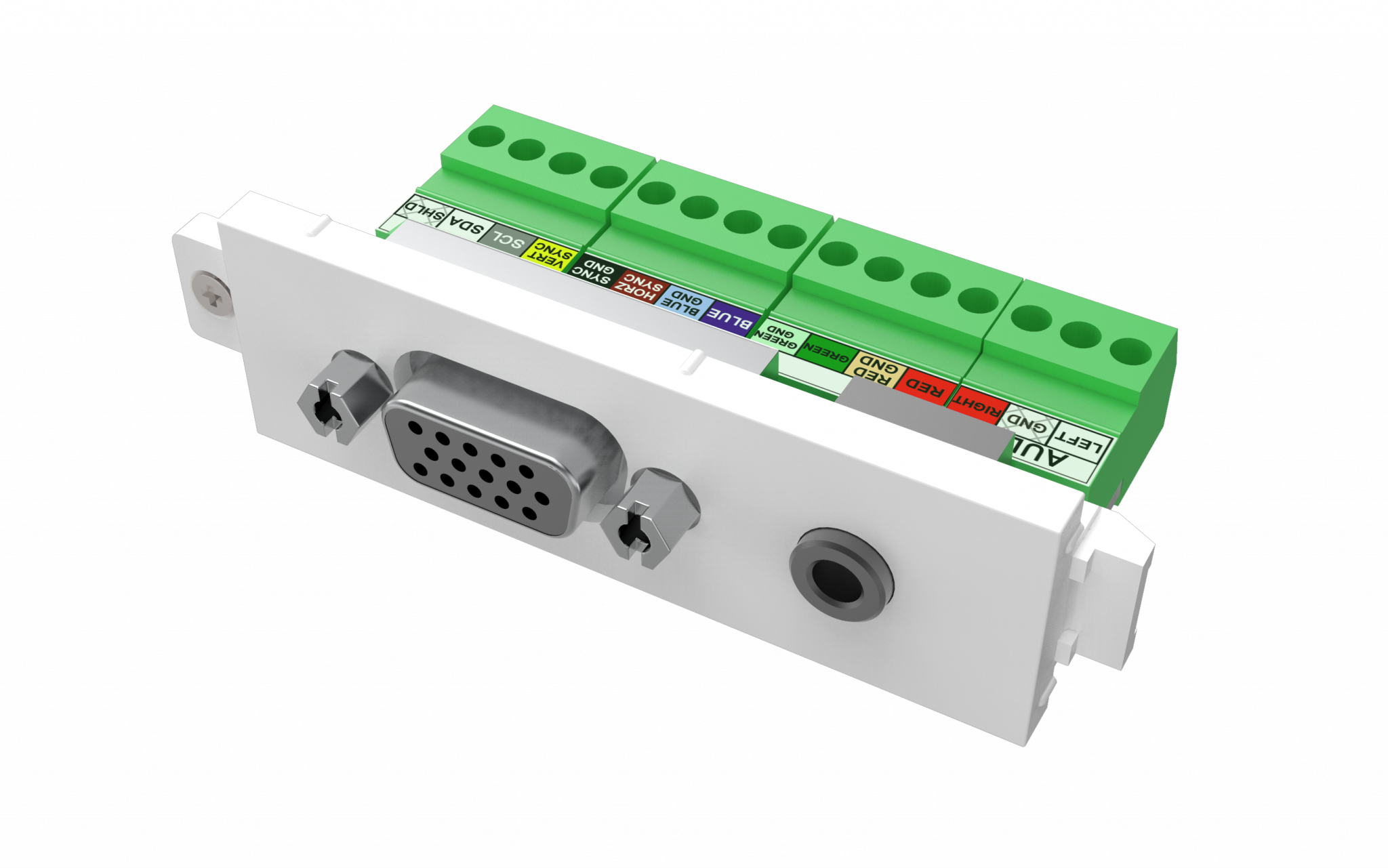

The Vision TC3 VGA and Audio Module (phoenix on rear) this module is part of Vision's Techconnect connectivity faceplate family.
Key Features
- Fixes to Surround: Techconnect modules fix into a surround, which in turn fixes to a backbox, mudring (for hollow walls), or a table faceplate.
- Future-proof: If you break a module or need to change it in the future, just replace that part - not the entire faceplate.
- Flexible: Get to site and the client changes what they want on their AV faceplate? No problem.
- Outputs: Female 15-pin D-sub connector for PC output
- With a 3.5mm Minijack socket for stereo audio: With a 3.5mm Minijack socket for stereo audio

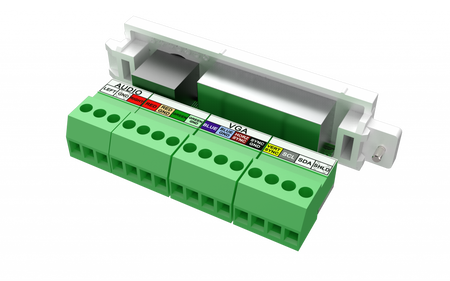

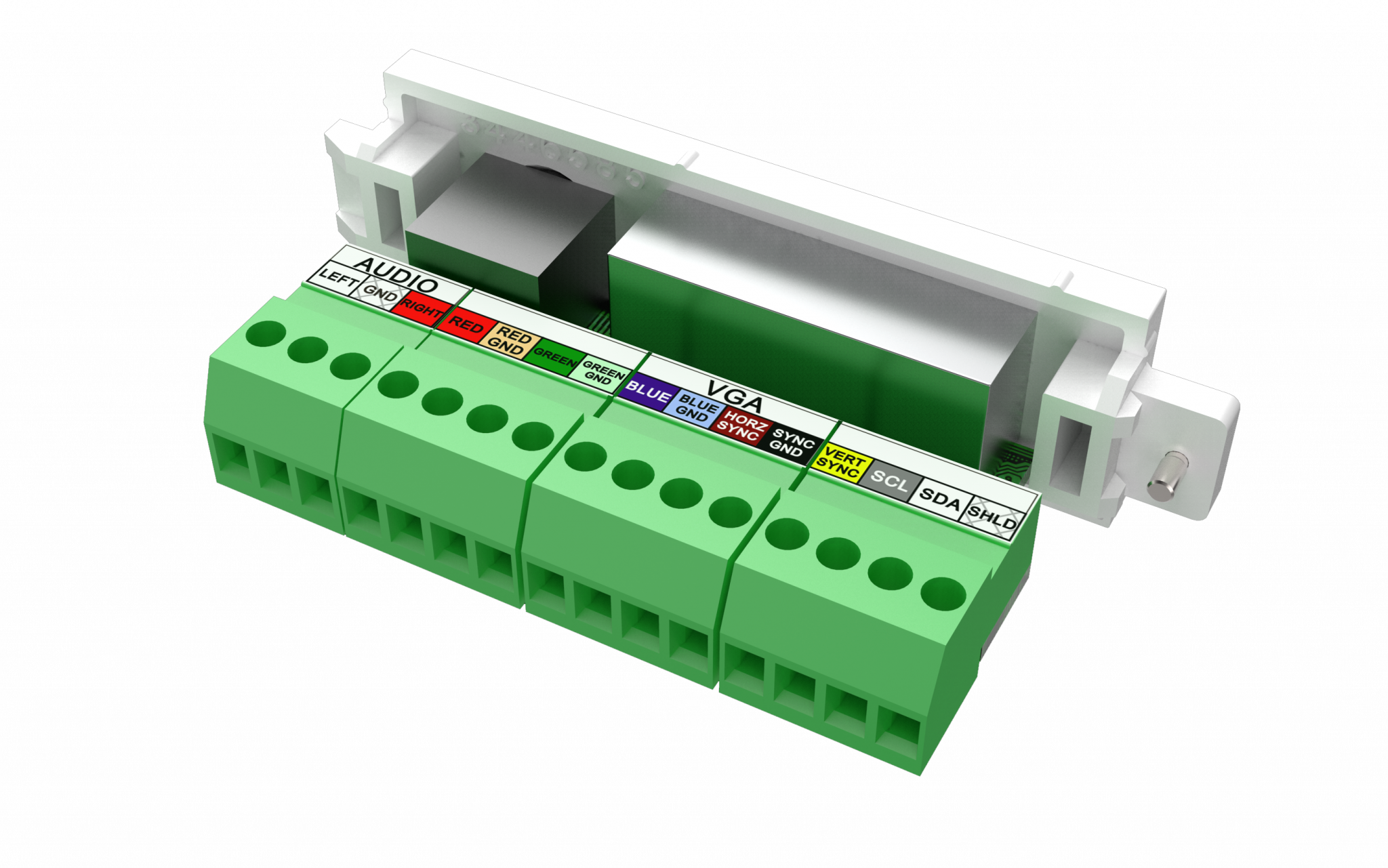

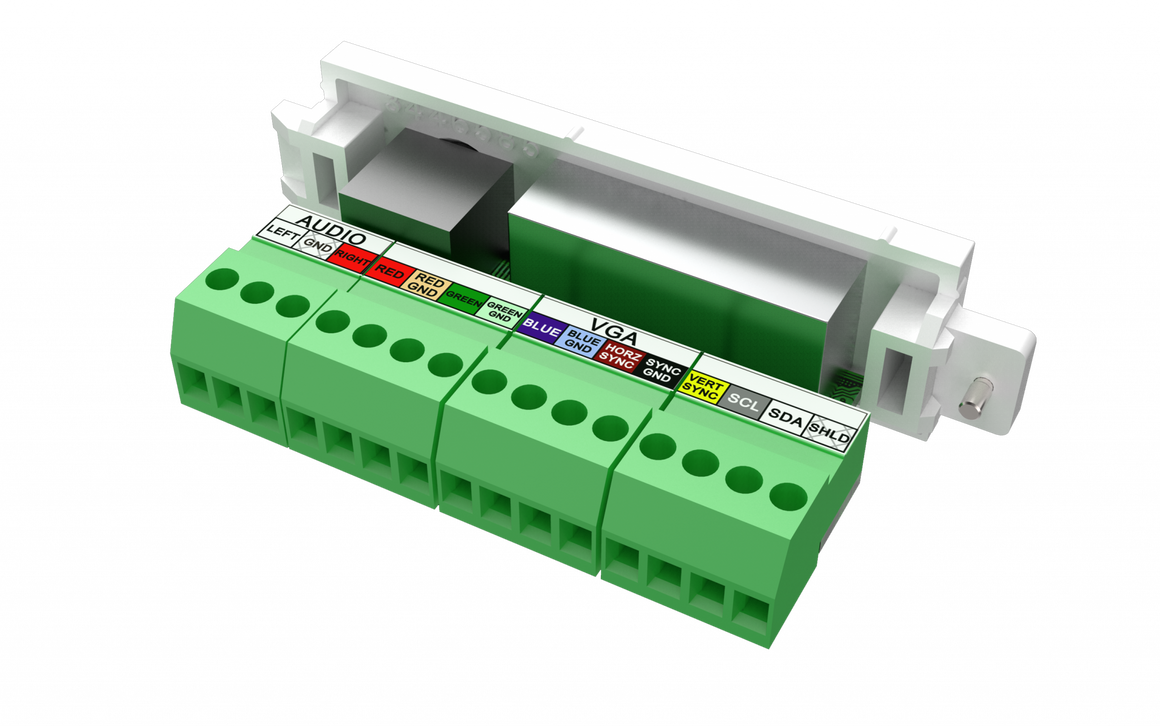

- Phoenix connector at rear: Phoenix connector at rear
- Not labeled: Not labeled
- Occupies 1 module space: Occupies 1 module space
- Colour: White
- Material: PC
Specifications
| Color | White |
| Material | PC |

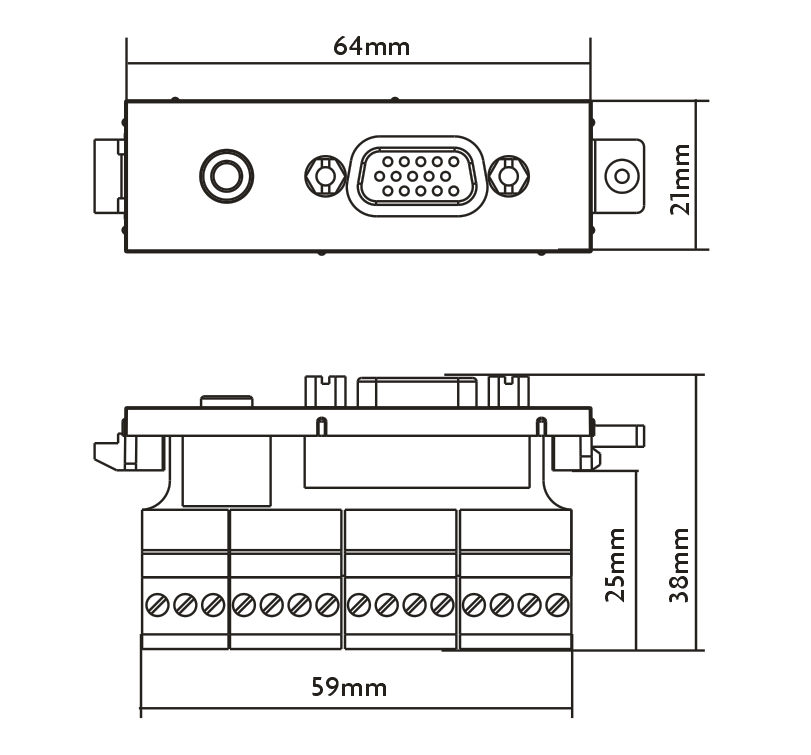

| Product Dimensions | 64 x 21 x 38 mm / 2.5" x 0.83" x 1.5" (height x width x depth) |
| Packaged Weight | 38 g |
| Packaged Dimensions | 90 x 150 mm /3.5" x 5.9" |
| Country of origin | China |
Application Examples
| AV Signal and Room Integration | Fits into installed AV systems where source devices, displays, and room interfaces need structured connectivity. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
