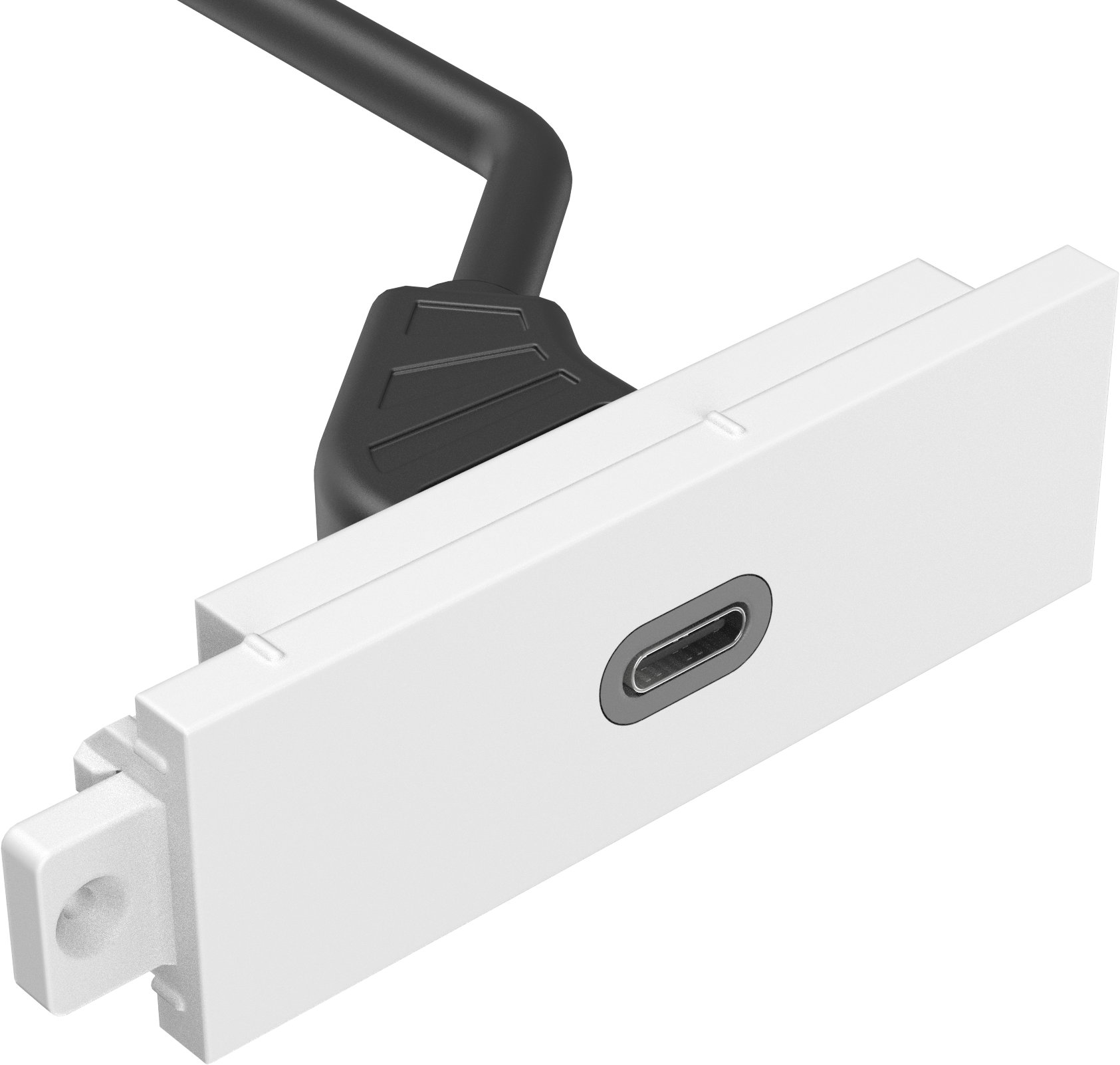

Vision Techconnect USB-C module
Techconnect USB-C module
In stock
Regular price
£66.57
Secure Checkout
Warranty Protection
Hassle-Free Returns

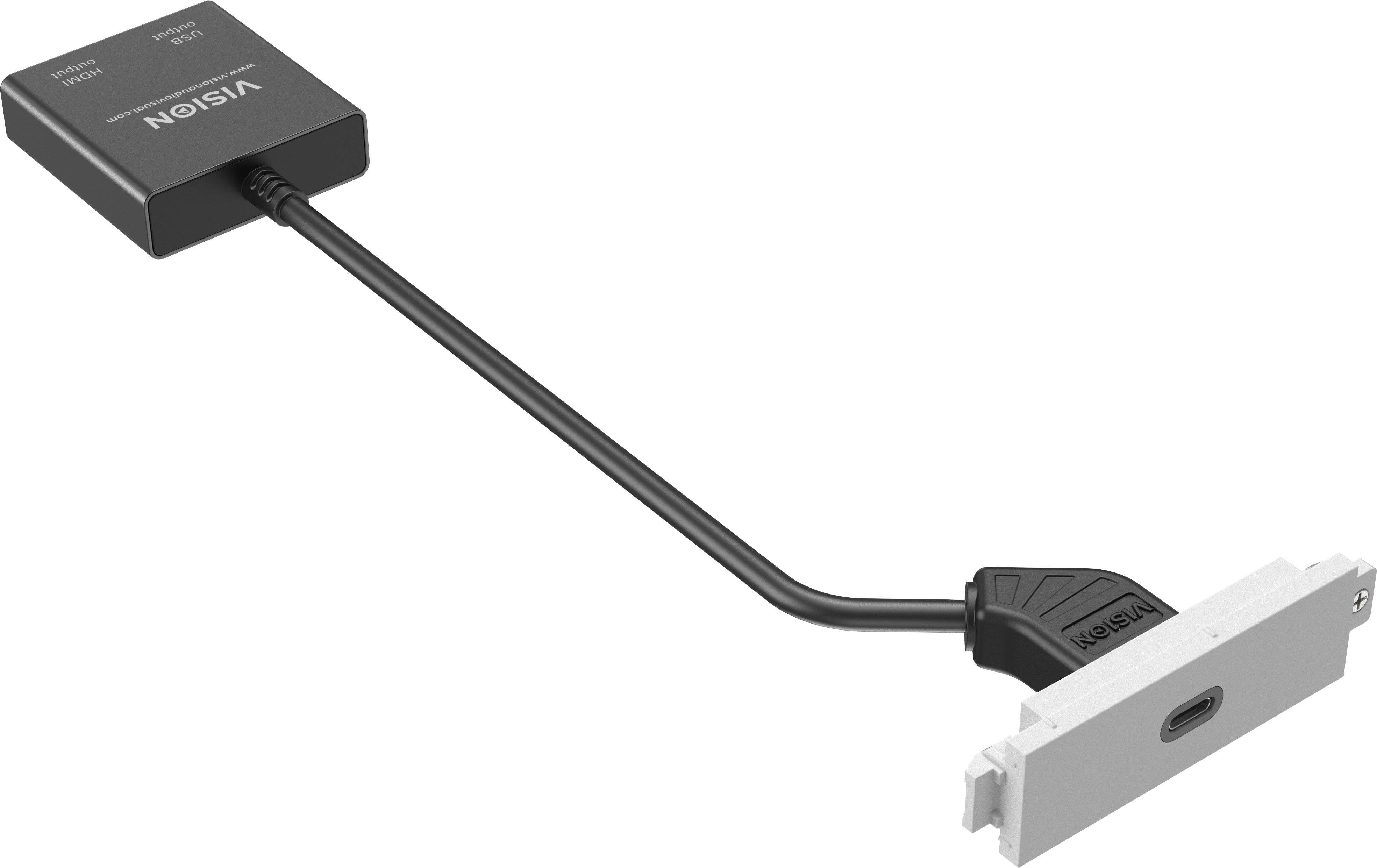

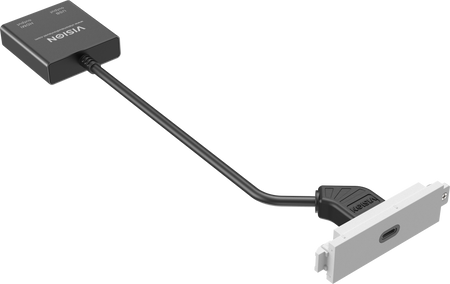

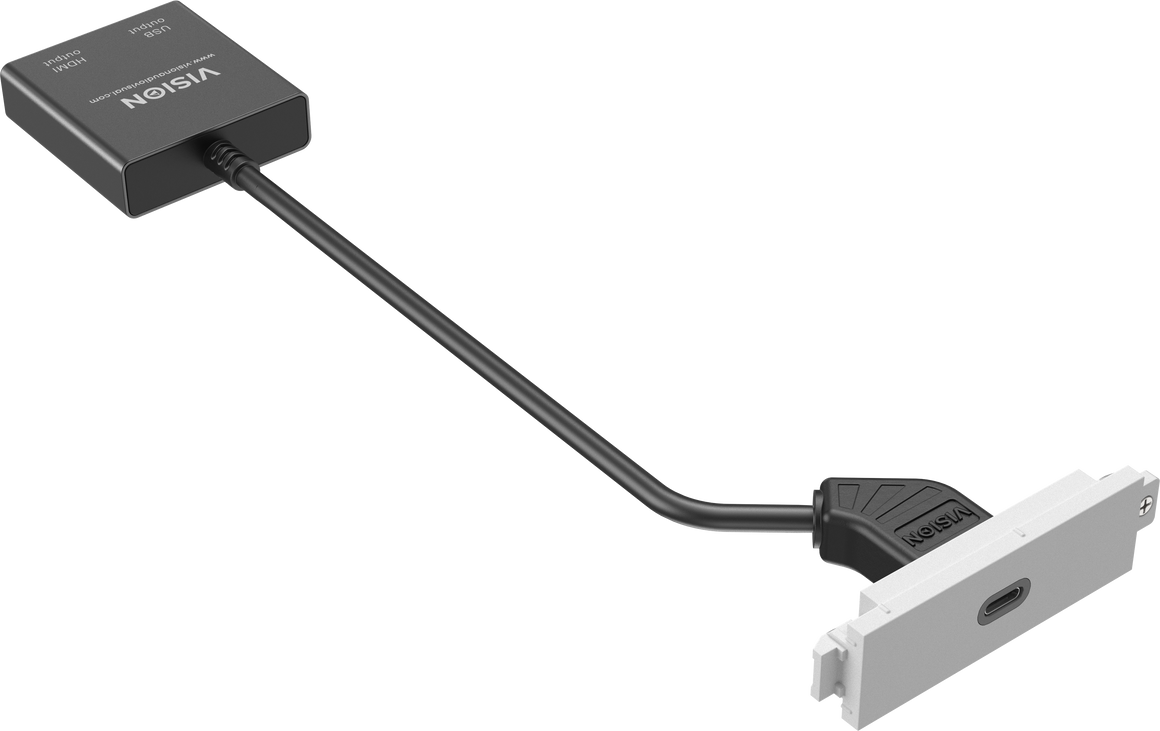

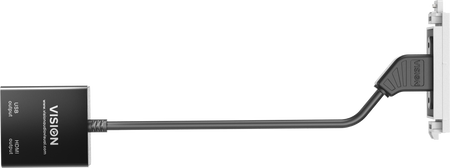

The Vision Techconnect USB-C module this module is part of Vision's Techconnect connectivity faceplate family. It allows technology users to use just one USB-C cable to connect their laptop to the AV faceplate.
Key Features

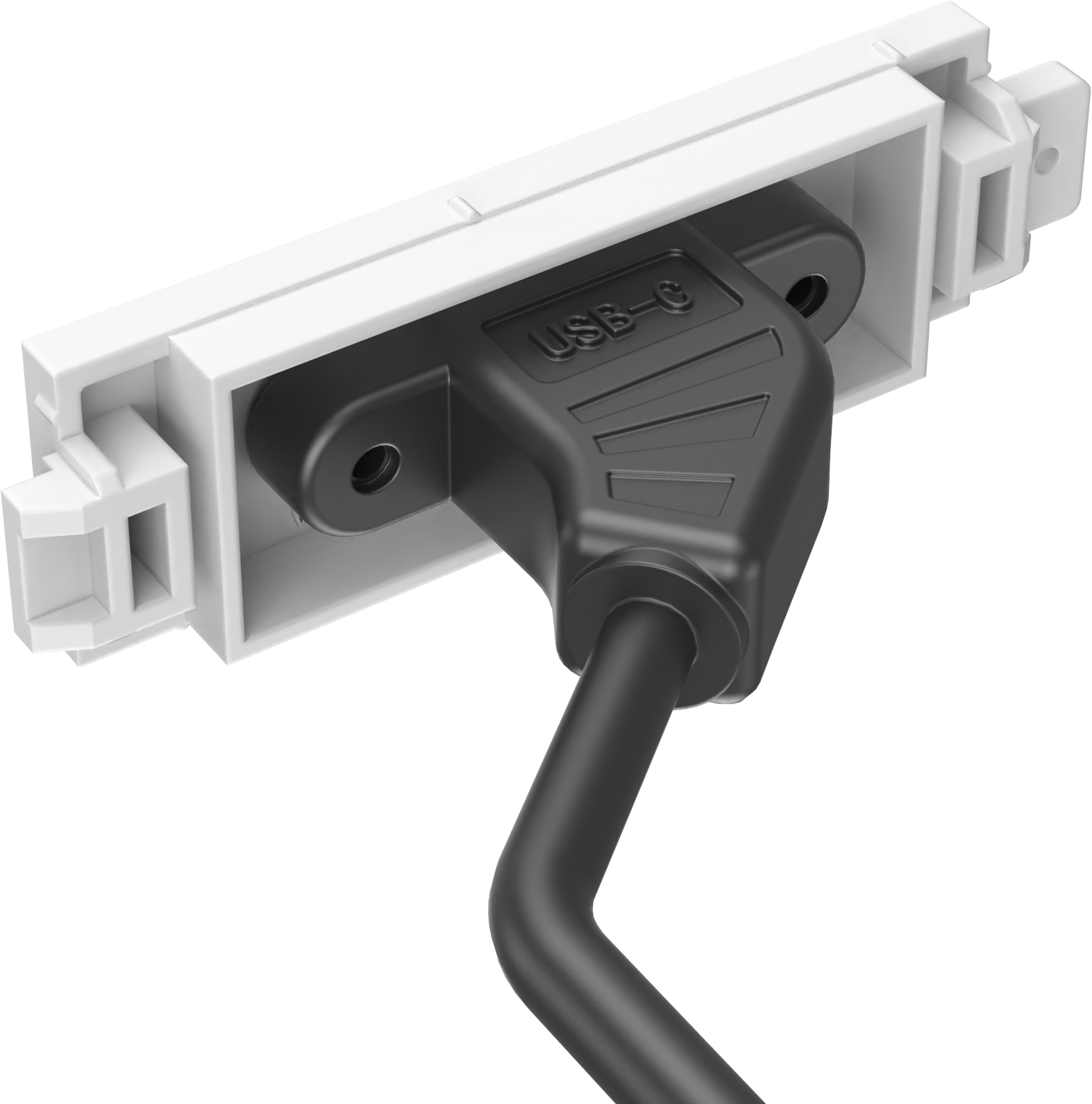

- Fixes to Surround: Techconnect modules fix into a surround, which in turn fixes to a backbox, mudring (for hollow walls), or a table faceplate.
- Future-proof: If you break a module or need to change it in the future, just replace that part - not the entire faceplate.
- Flexible: Get to site and the client changes what they want on their AV faceplate? No problem.
- Video Resolution Support: Future-proof the installation by using high resolution components. It supports 4K at the full 60Hz with input and output cables no longer than 3m (10ft) dependent on quality of cables. For longer cable runs 30 Hz is supported.
- Proven: For over 15 years Techconnect has improved and developed into one of the most popular AV faceplates in the world.

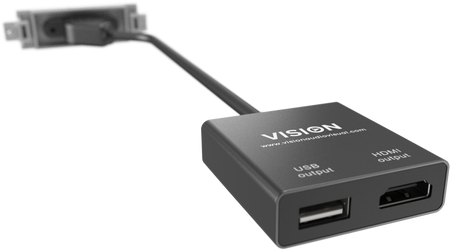

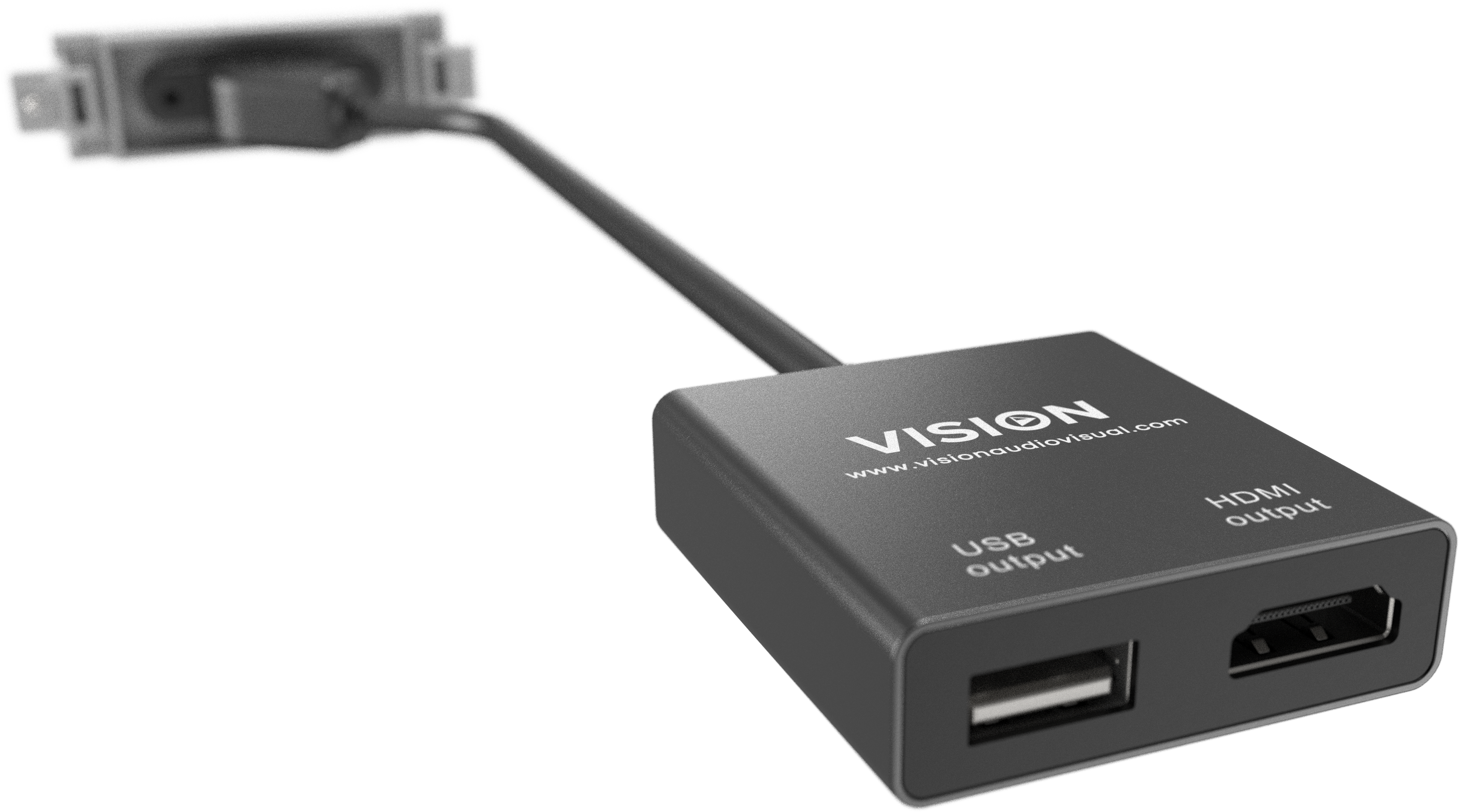

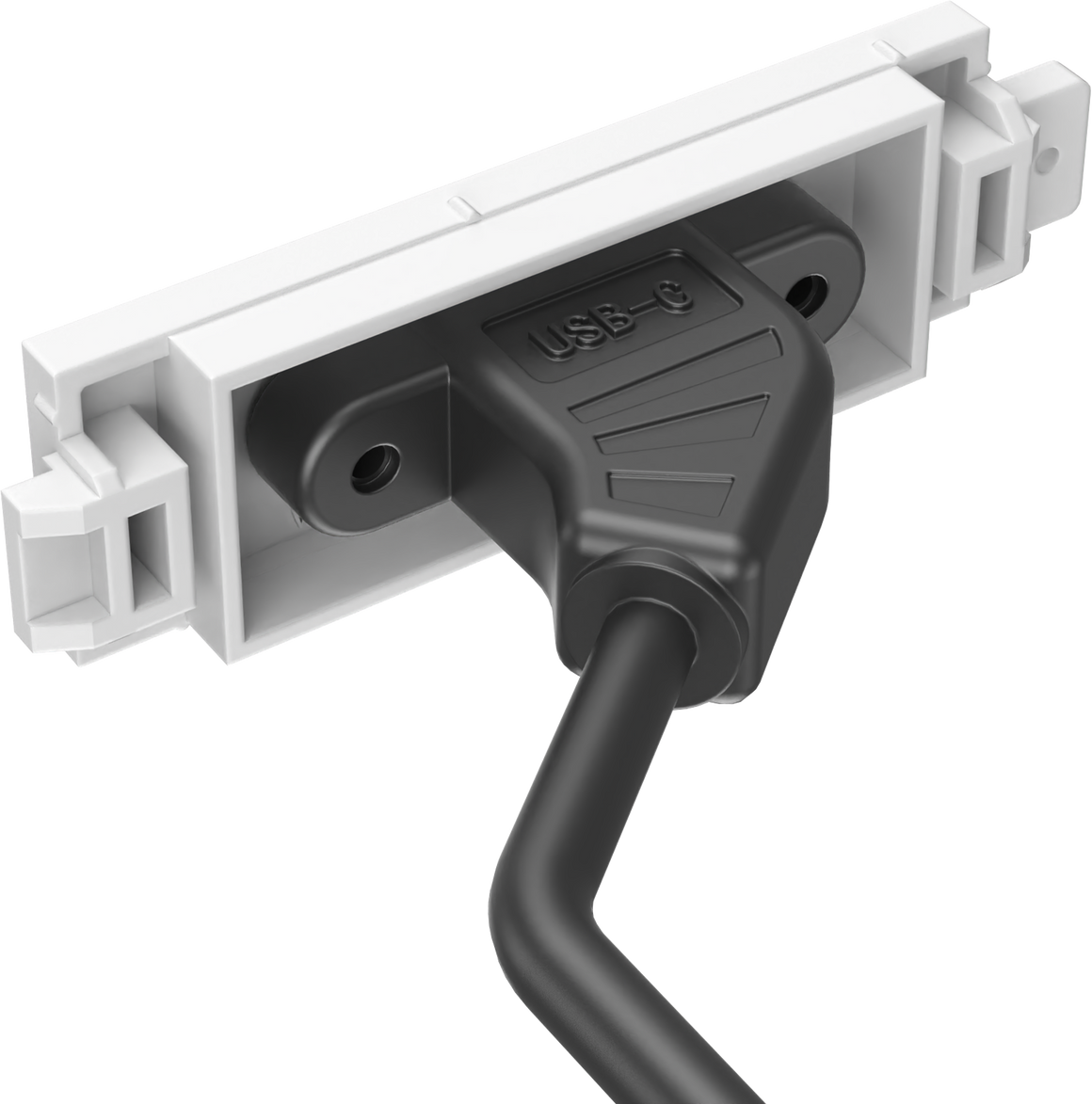

- USB Connectivity: The USB 3.0 interface on the rear is designed and tested to work with all interactive displays and projectors.

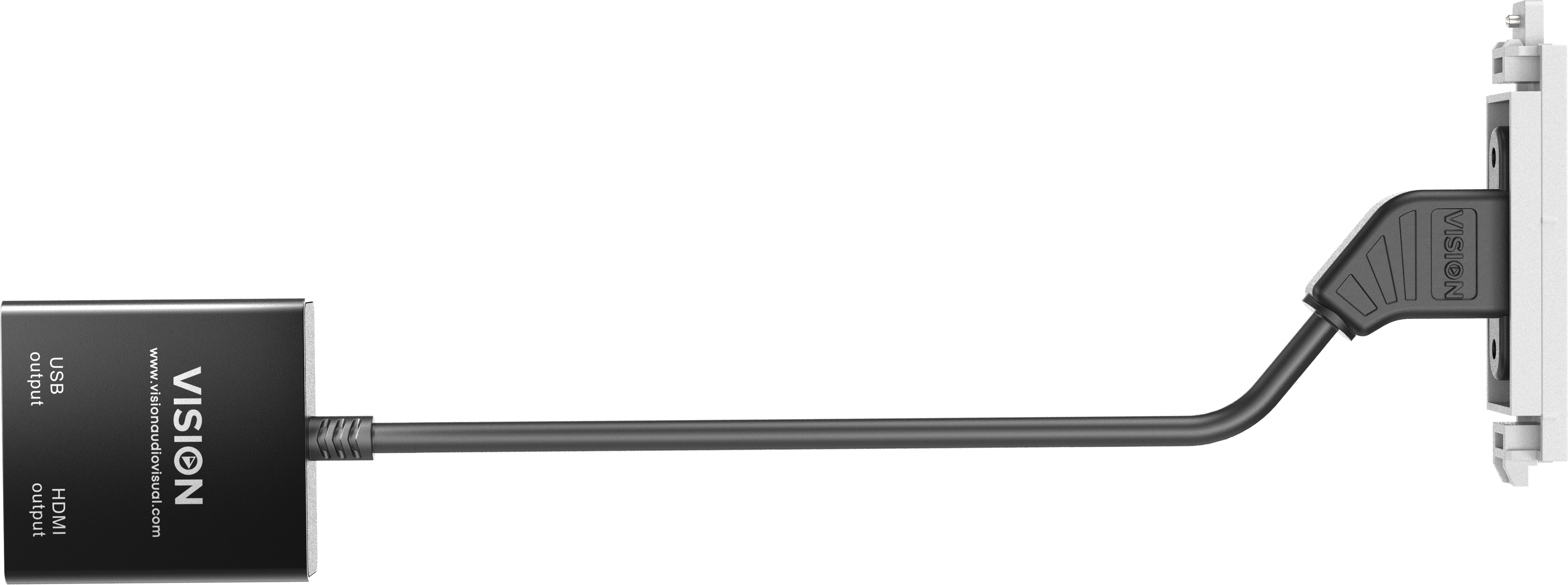

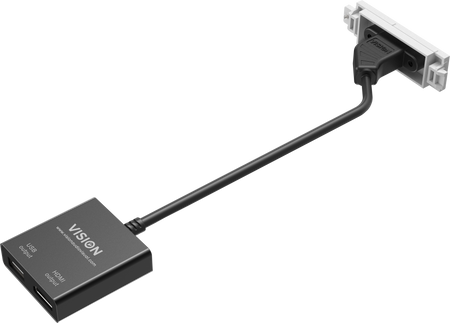

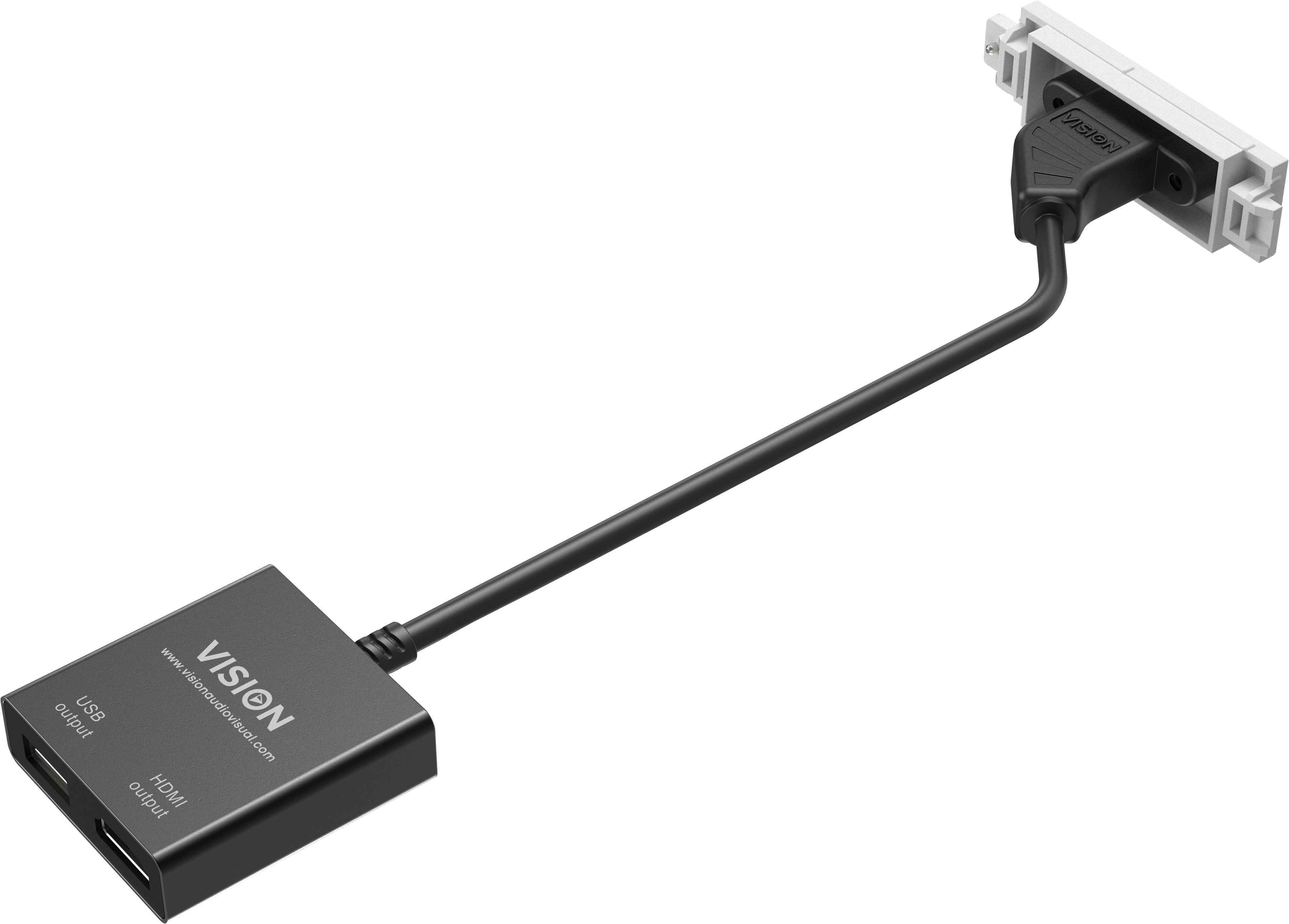

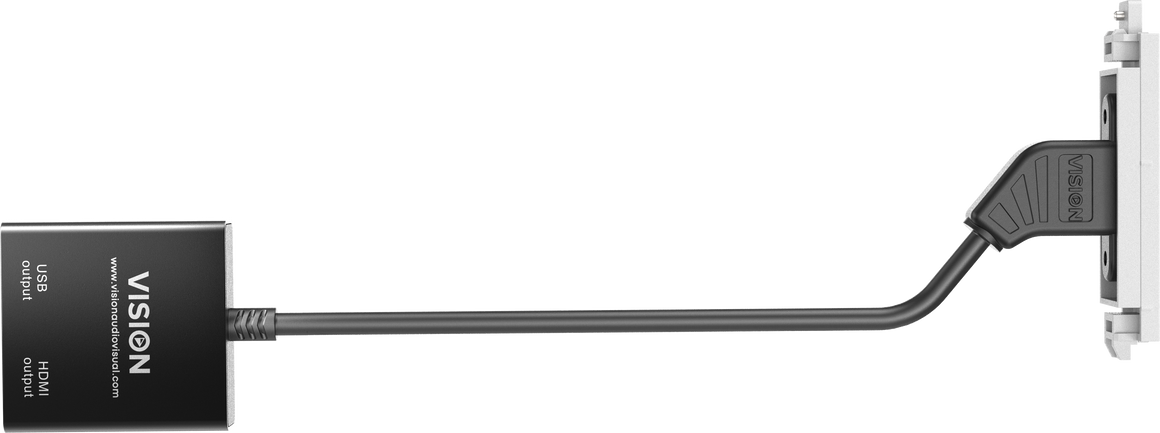

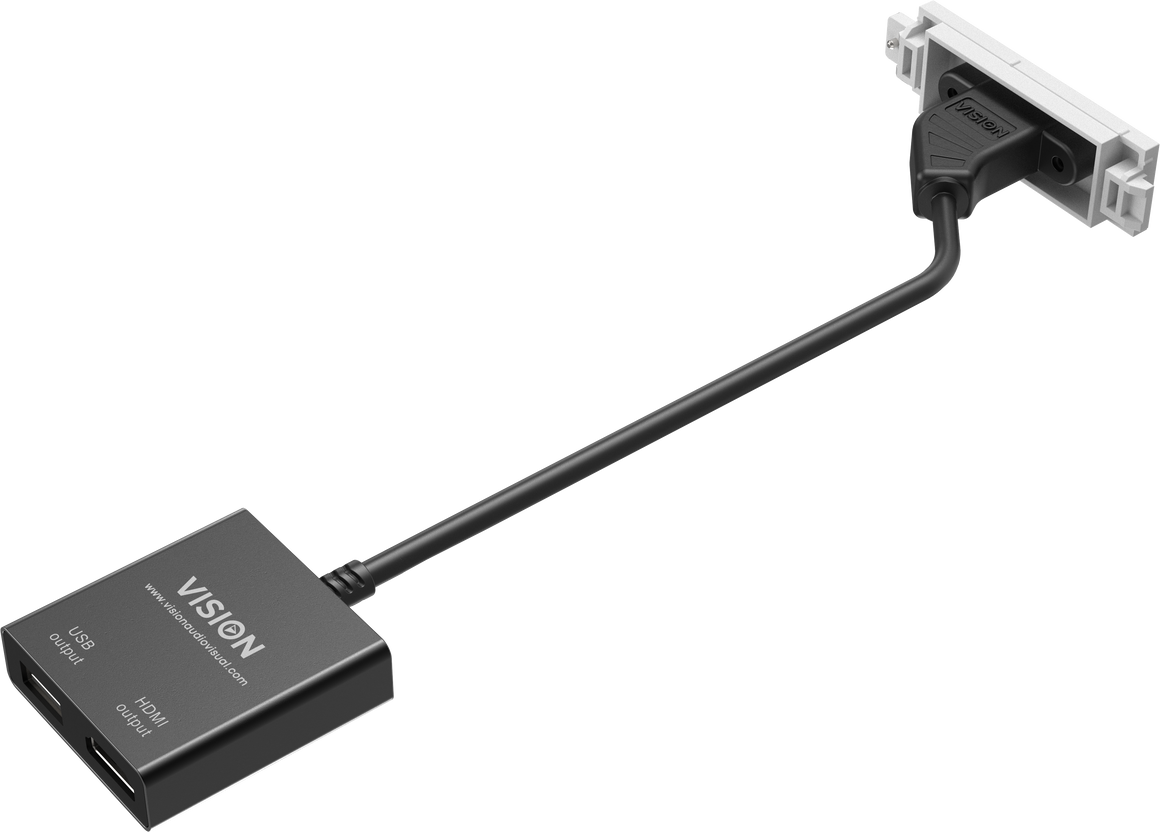

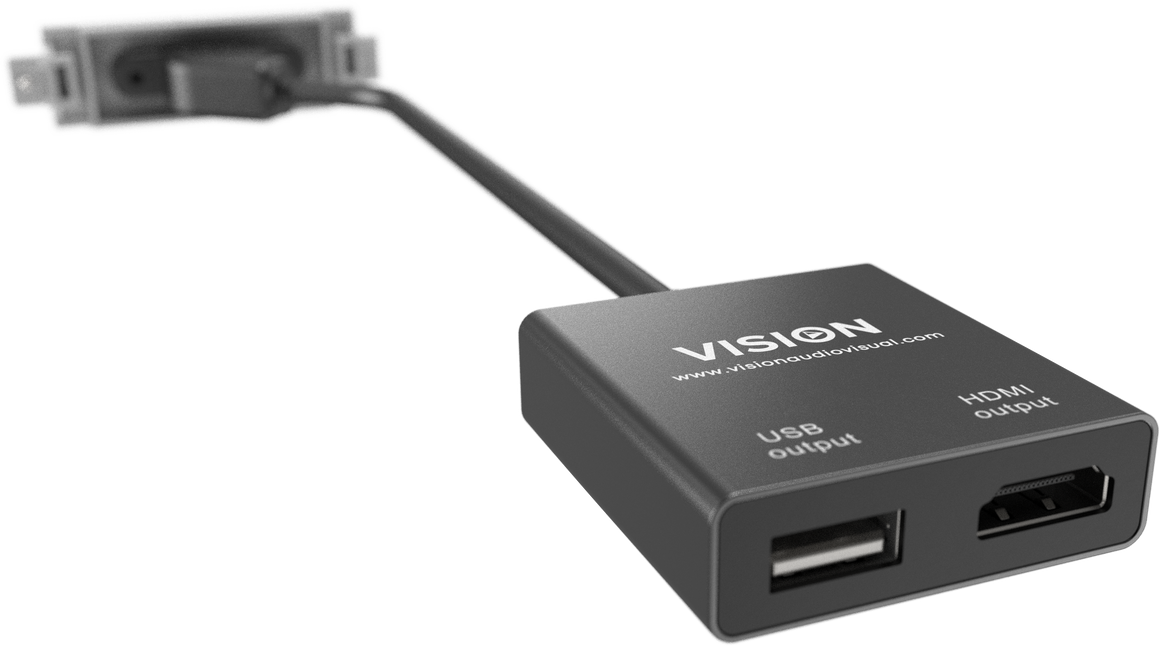

- HDMI Connectivity: USB-C supports both video and USB, but it doesn't work reliably over long cables, so this module takes that USB-C signal and splits out the USB and HDMI.

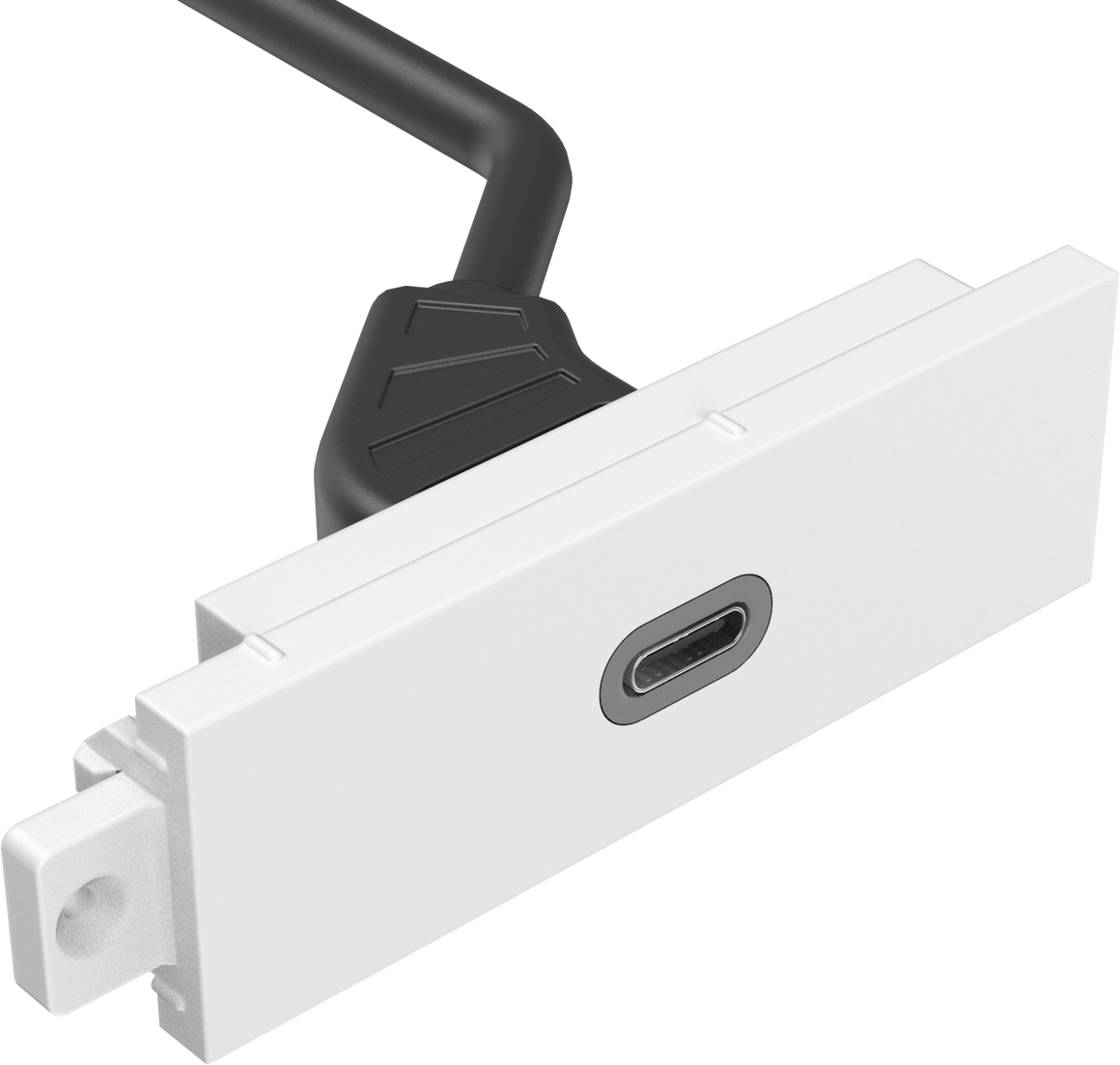

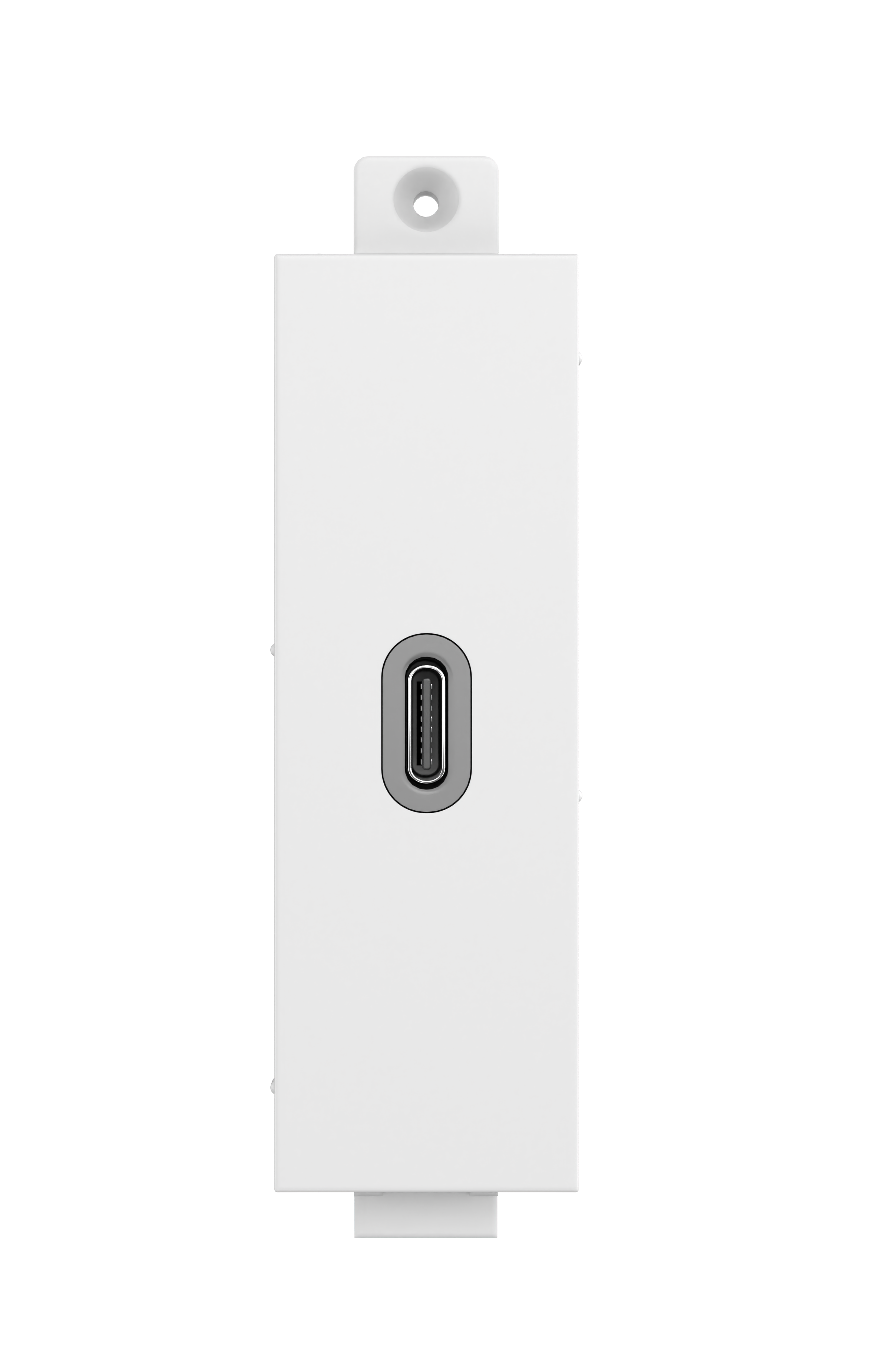

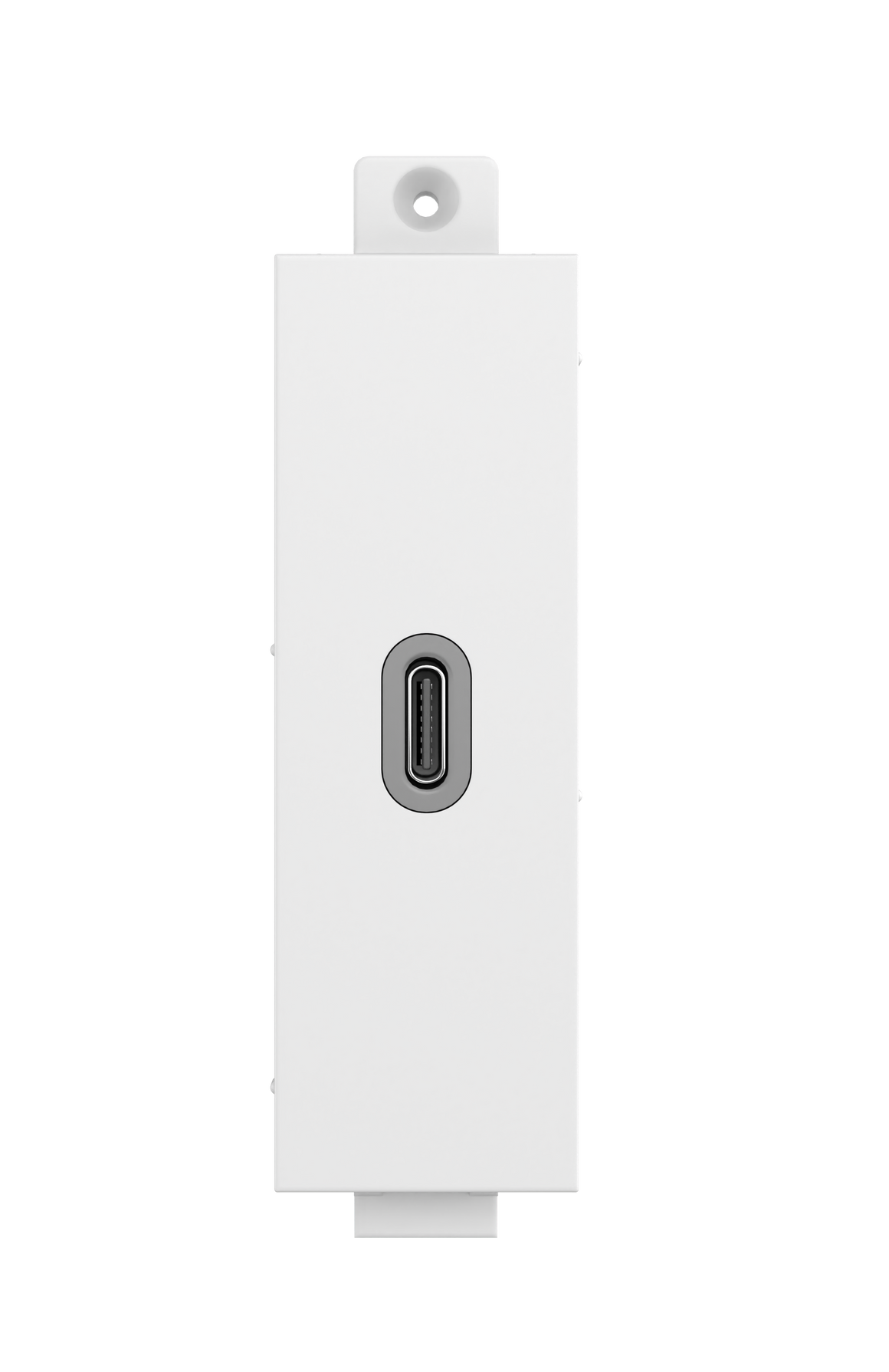

- "C" type socket on the front: "C" type socket on the front
- Colour: White
- Material: PC
Specifications
| Color | White |
| Material | PC |

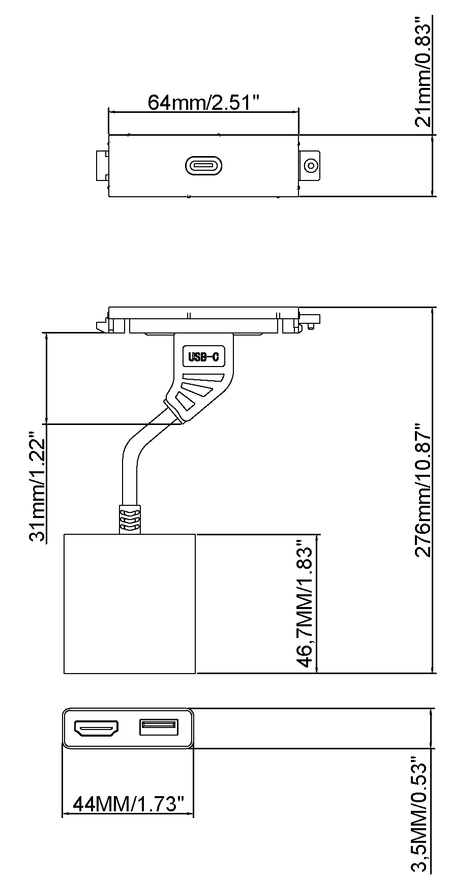

| Product Dimensions | Module: 64 x 21 mm / 2.5" x 0.8" Socket Enclosure: 49 x 44 x 14 mm / 1.9" x 1.7" x 0.6" |
| Packaged Weight | 56 g (0.1 lb) |
| Packaged Dimensions | 120 x 200 mm / 4.7" x 7.9" |
| Conductor Thickness | AWG 26 |
| Tail Length | 200mm (7.9") |
| Resolution | Supports 4K @ 60Hz |
| Country of origin | China |
Application Examples
| AV Signal and Room Integration | Fits into installed AV systems where source devices, displays, and room interfaces need structured connectivity. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
