Vision Techconnect USB-C module
Techconnect USB-C module
In stock
Regular price
£24.38
Secure Checkout
Warranty Protection
Hassle-Free Returns

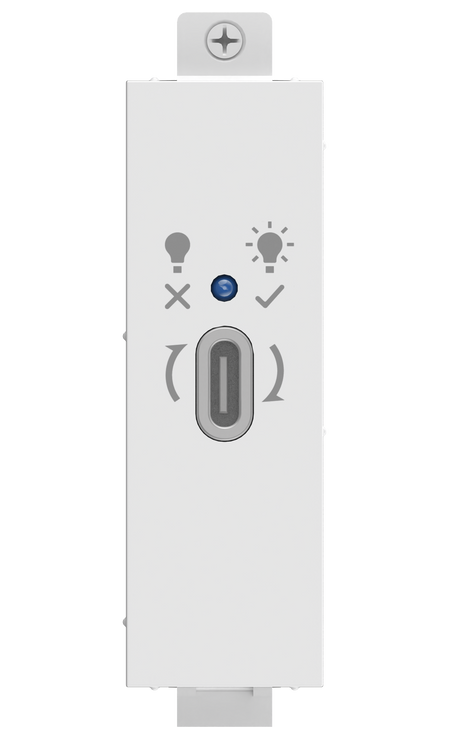

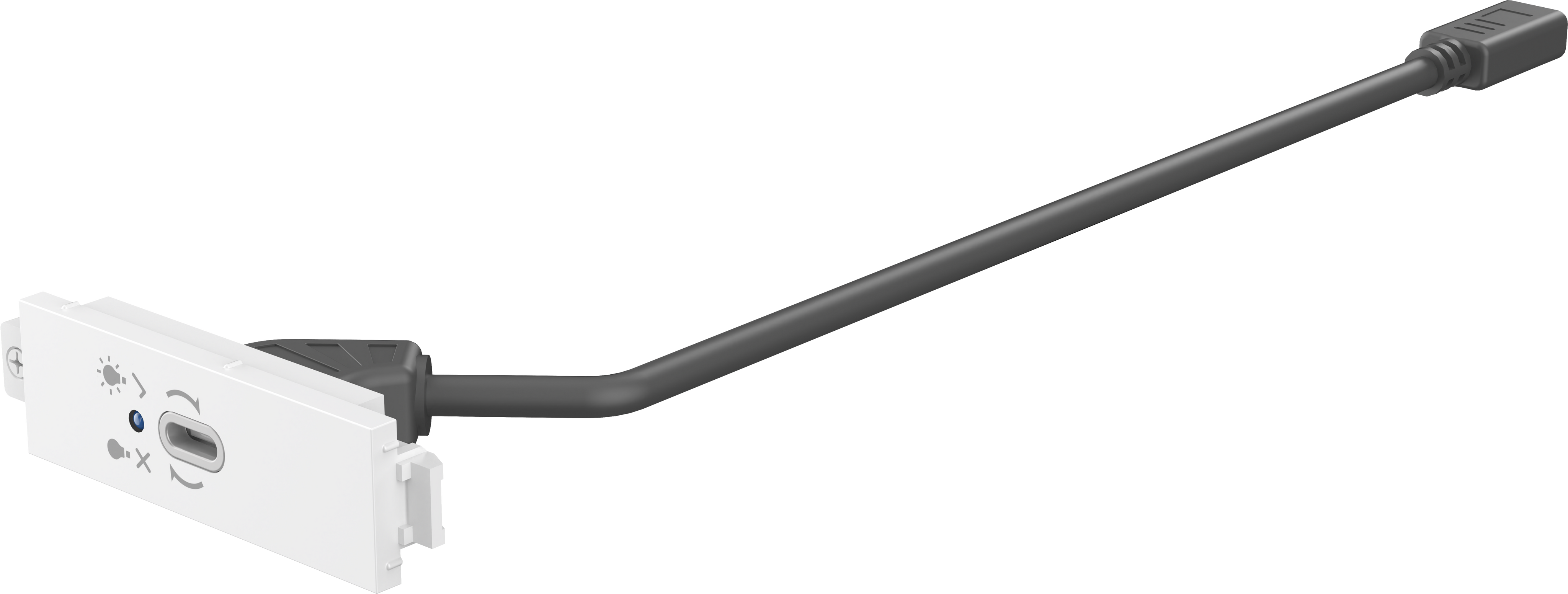

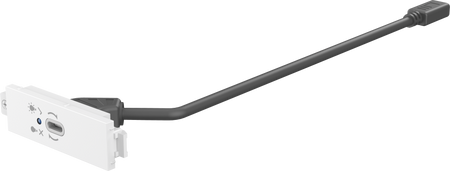

The Vision Techconnect USB-C module this module is part of Vision's Techconnect connectivity faceplate family. It allows technology users to use just one USB-C cable to connect their laptop to the AV faceplate.
Key Features

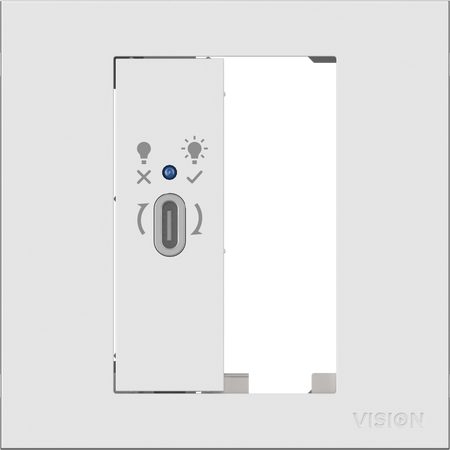

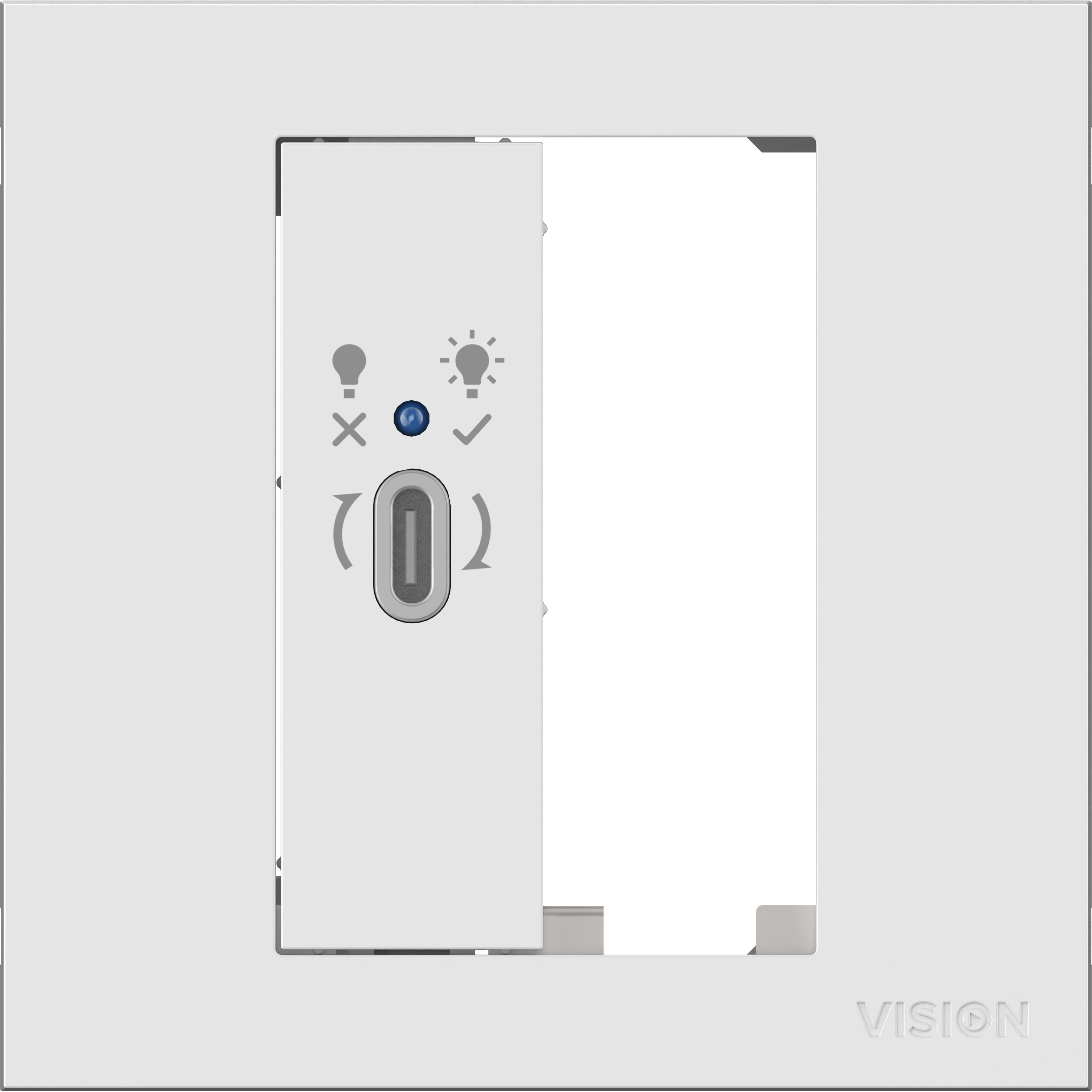

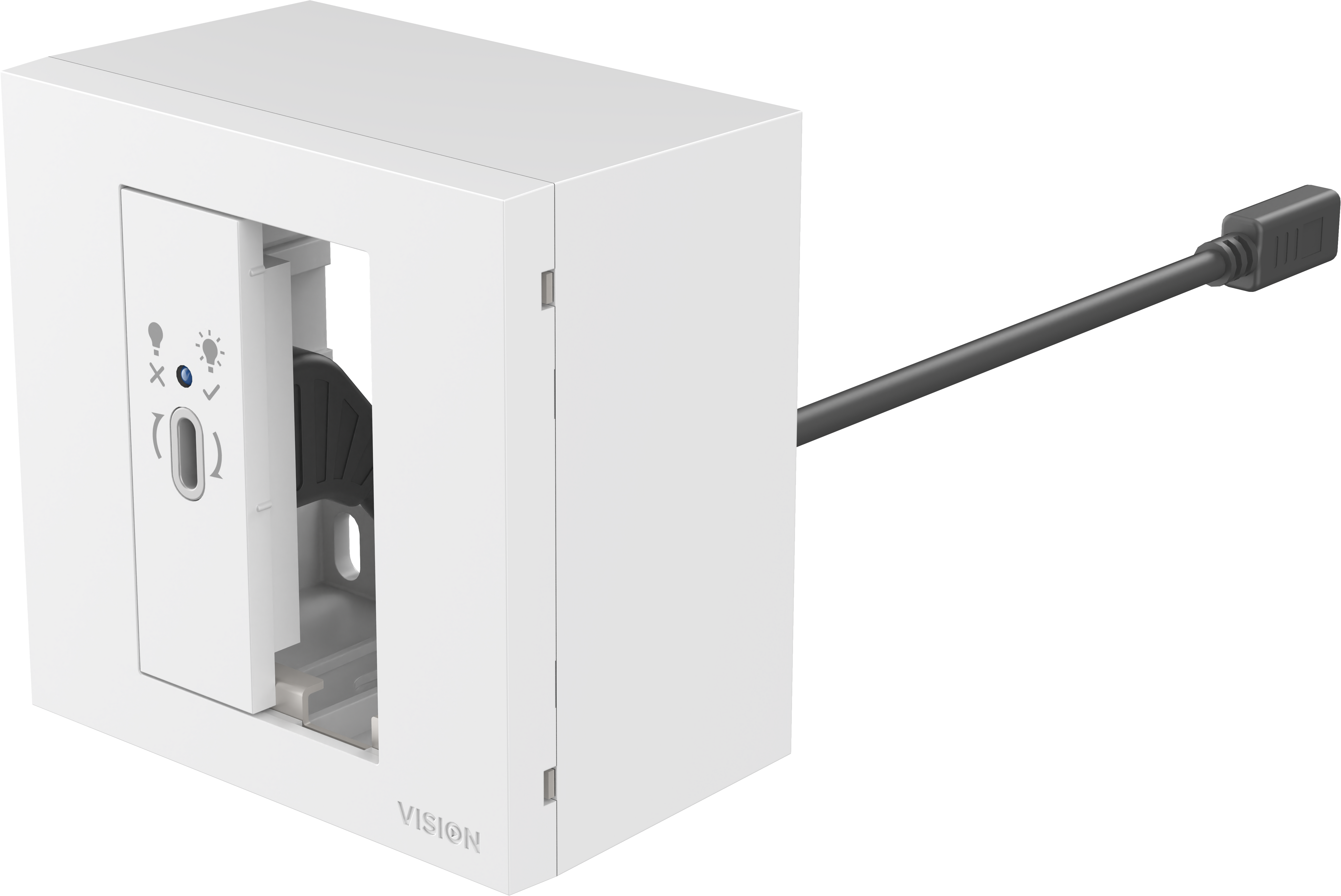

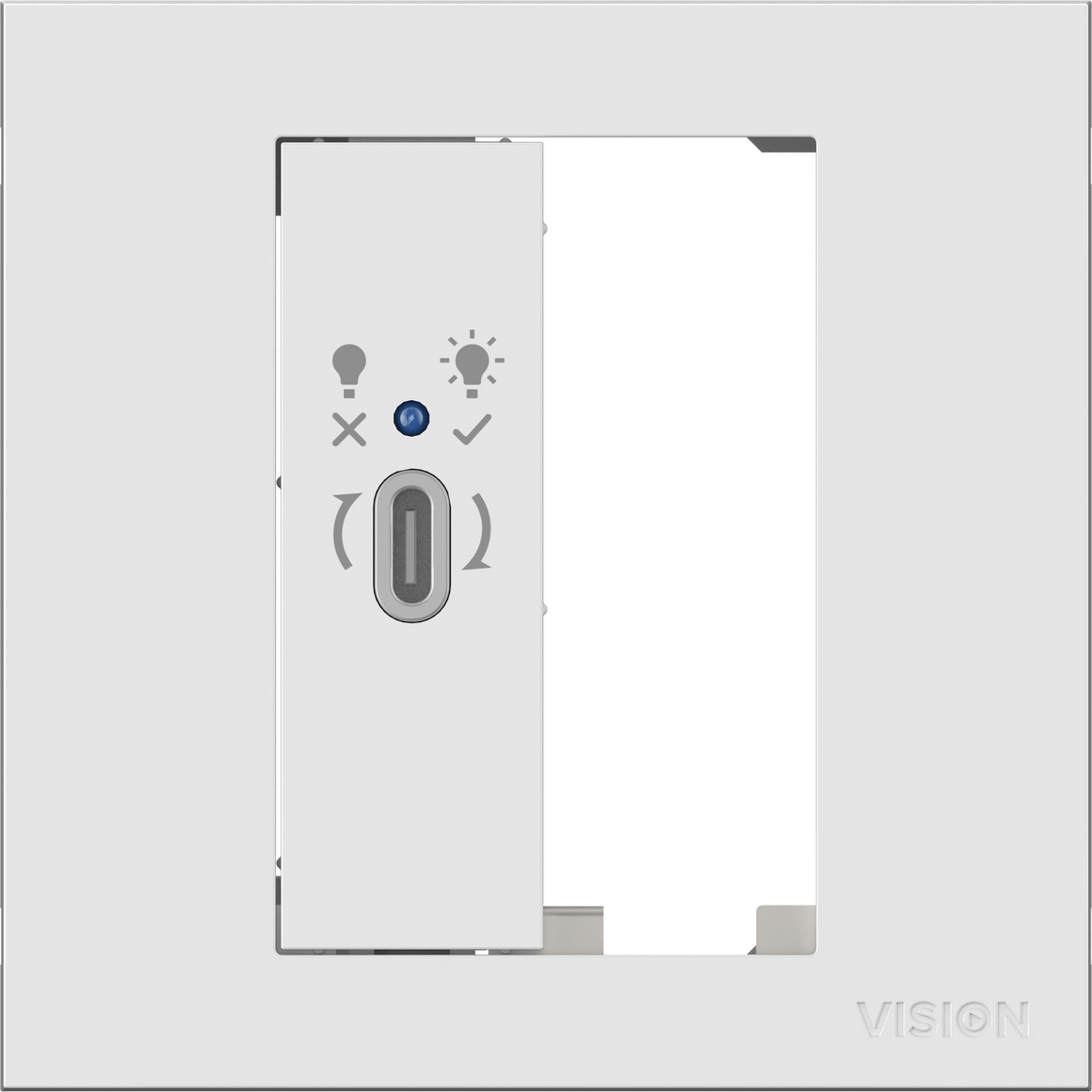

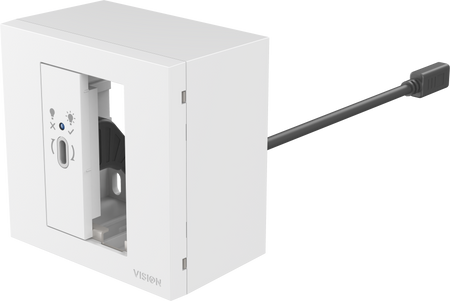

- Fixes to Surround: Techconnect modules fix into a surround, which in turn fixes to a backbox, mudring (for hollow walls), or a table faceplate.
- Future-proof: If you break a module or need to change it in the future, just replace that part - not the entire faceplate.
- Flexible: Get to site and the client changes what they want on their AV faceplate? No problem.
- Video Resolution Support: Future-proof the installation by using high resolution components. It supports 4K at 30Hz with input and output cables dependent on quality of cables.
- Proven: For over 15 years Techconnect has improved and developed into one of the most popular AV faceplates in the world.
- Usb 3.2: The USB 3.2 interface on the rear is designed and tested to work with all interactive displays and projectors.

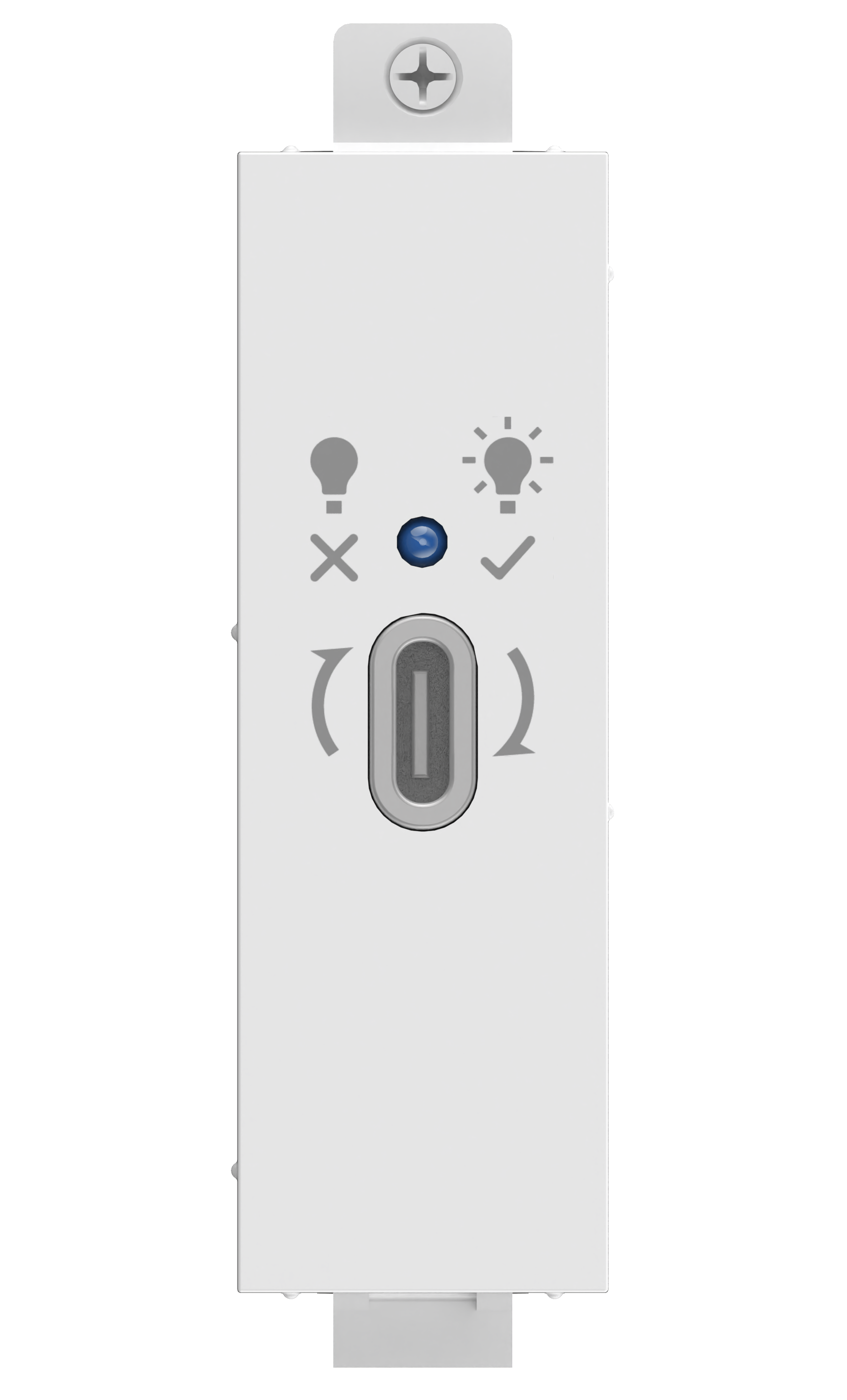

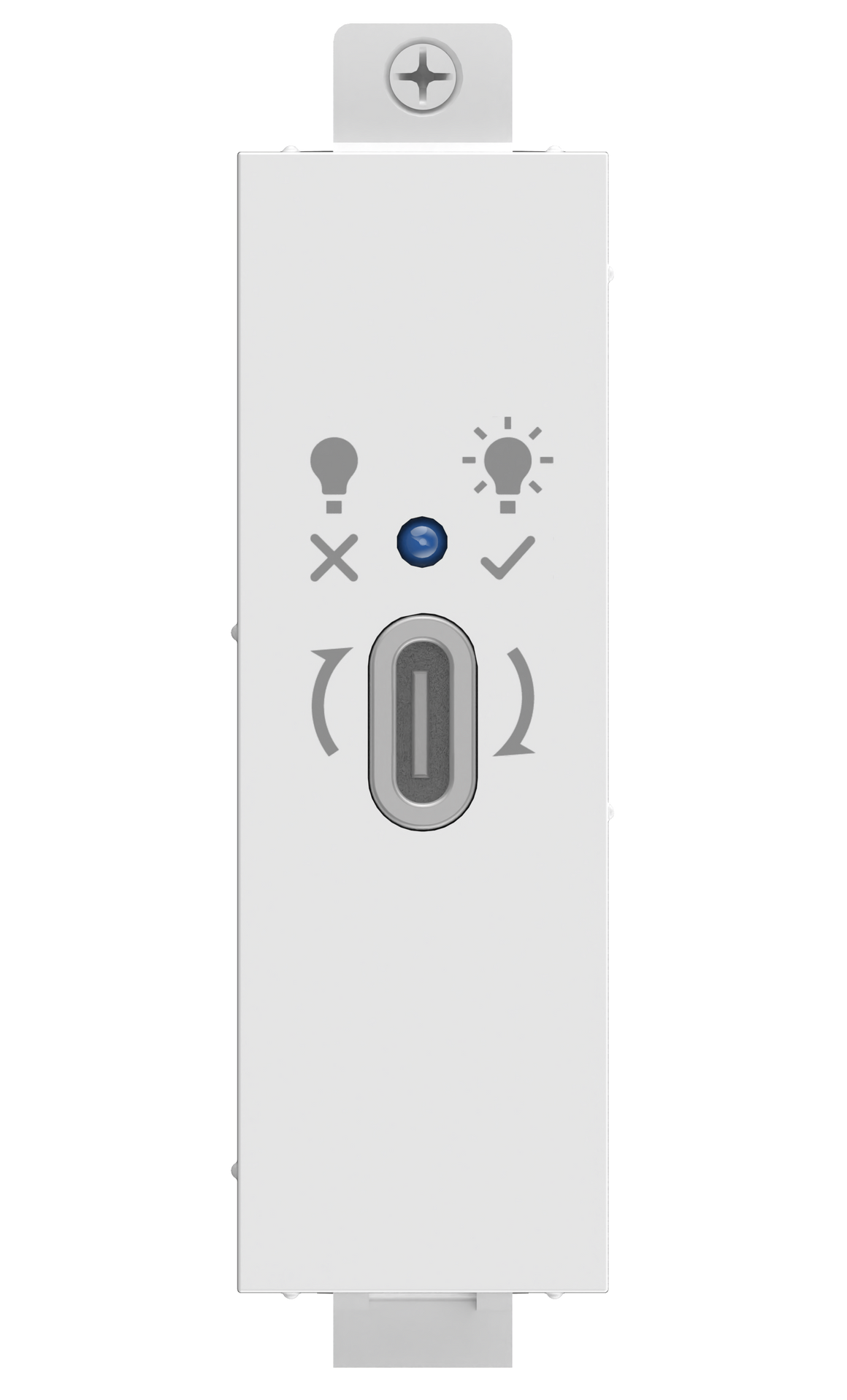

- Test LED: The cable that connects to the front of the module is designed to fit in only one direction—it's not reversible. To ensure you've plugged it in correctly, a light indicator is provided.
- "C" type socket on the front and rear: "C" type socket on the front and rear
- Colour: White
- Material: PC
Specifications
| Color | White |
| Material | PC |

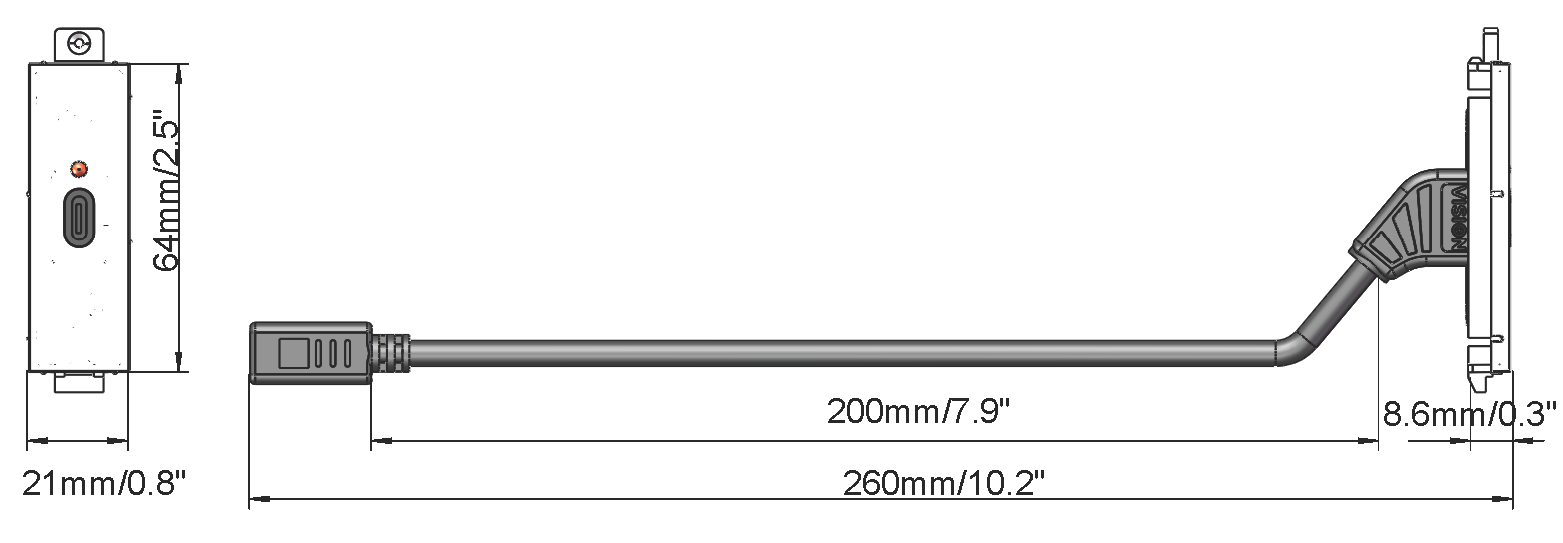

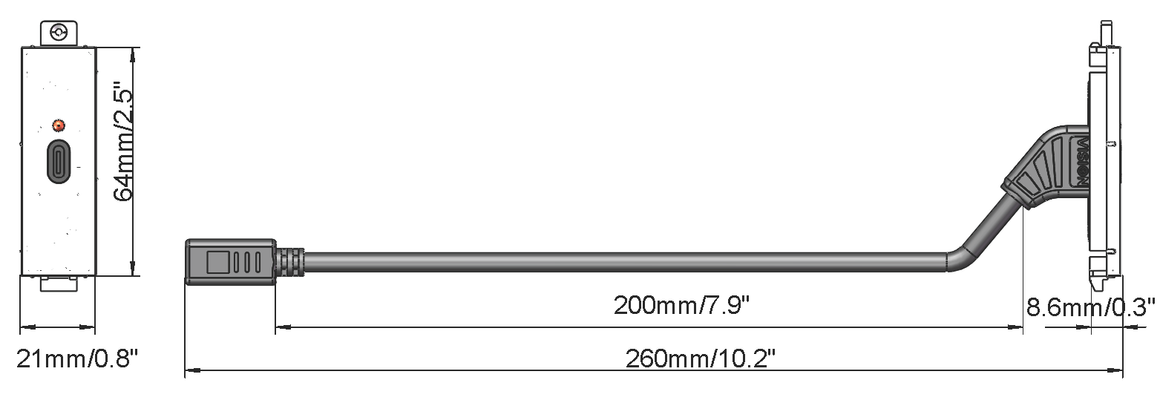

| Product Dimensions | Module: 64 x 21 mm / 2.5" x 0.8" Socket Enclosure: 49 x 44 x 14 mm / 1.9" x 1.7" x 0.6" |
| Packaged Weight | 0.1 kg (0.2 lb) |
| Packaged Dimensions | 120 x 200 mm / 4.7" x 7.9" |
| Resolution | Supports 4K @ 30Hz |
| Charging | PD100 |
| Compliances | RoHS, WEEE, CE, UKCA |
| Country of origin | China |
Warranty
The Vision Techconnect USB-C module is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| AV Signal and Room Integration | Fits into installed AV systems where source devices, displays, and room interfaces need structured connectivity. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
