Vision Telescopic Projector Ceiling Mount
Telescopic Projector Ceiling Mount
In stock
Regular price
£80.35
Secure Checkout
Warranty Protection
Hassle-Free Returns

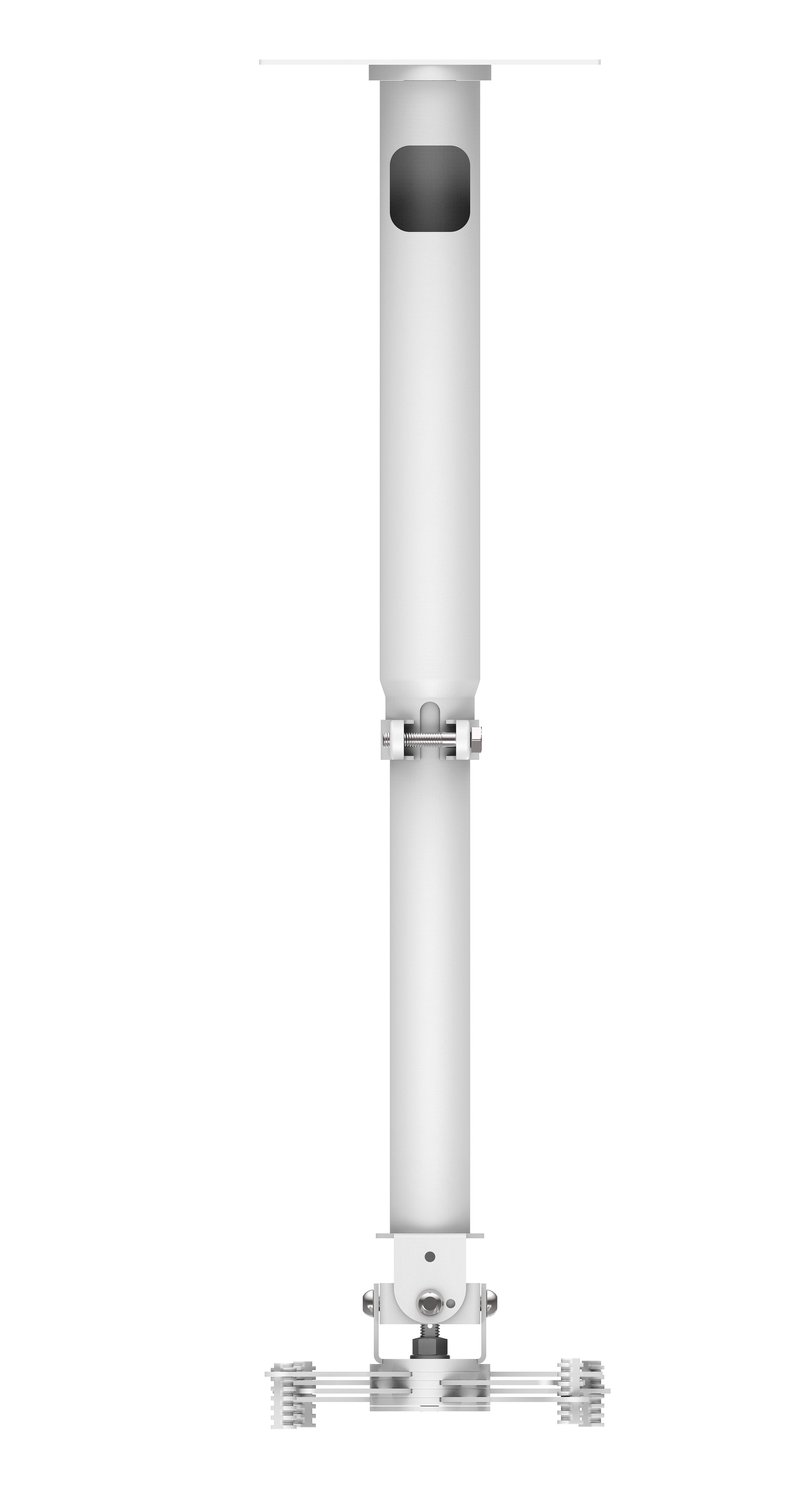

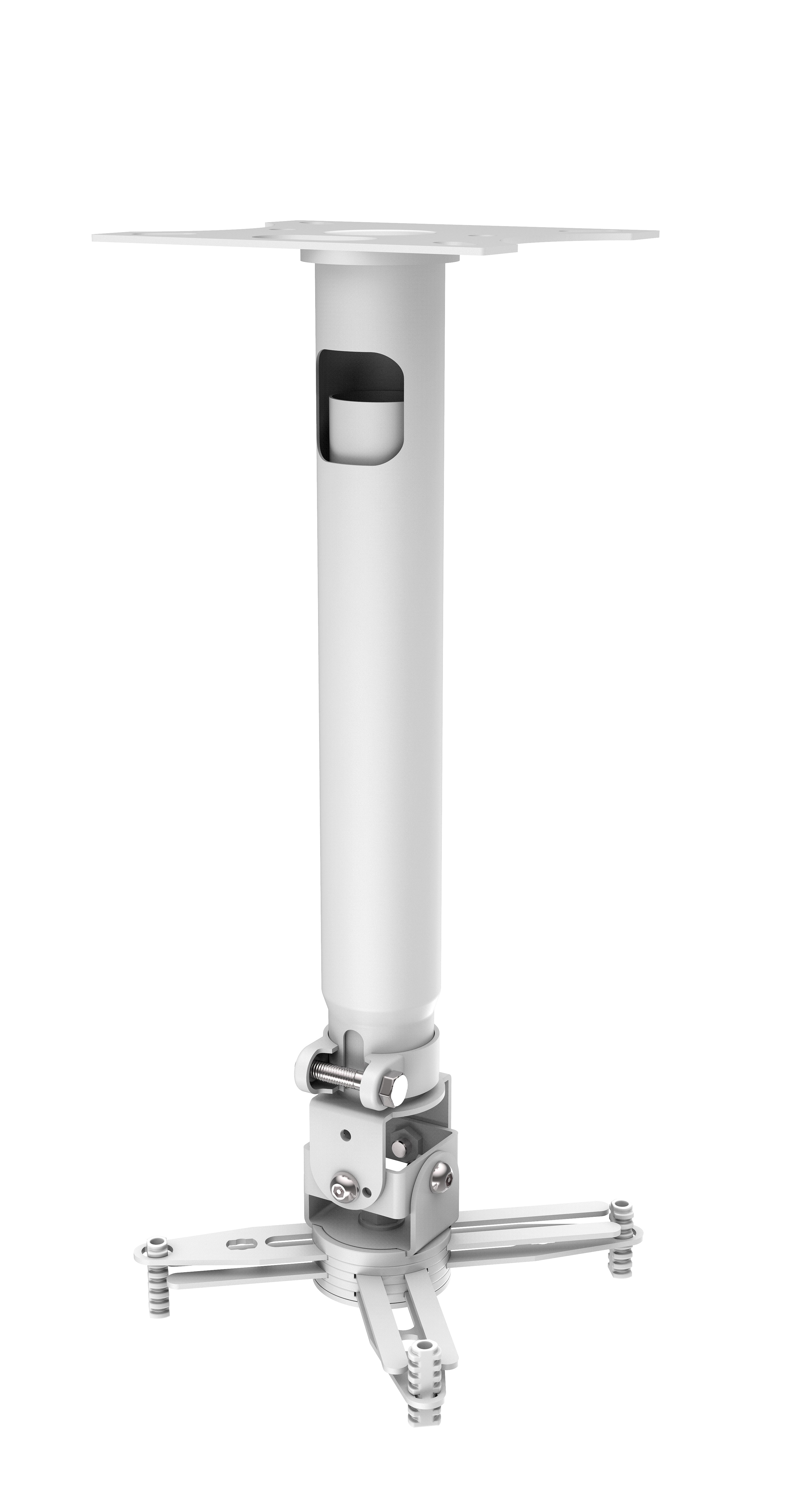

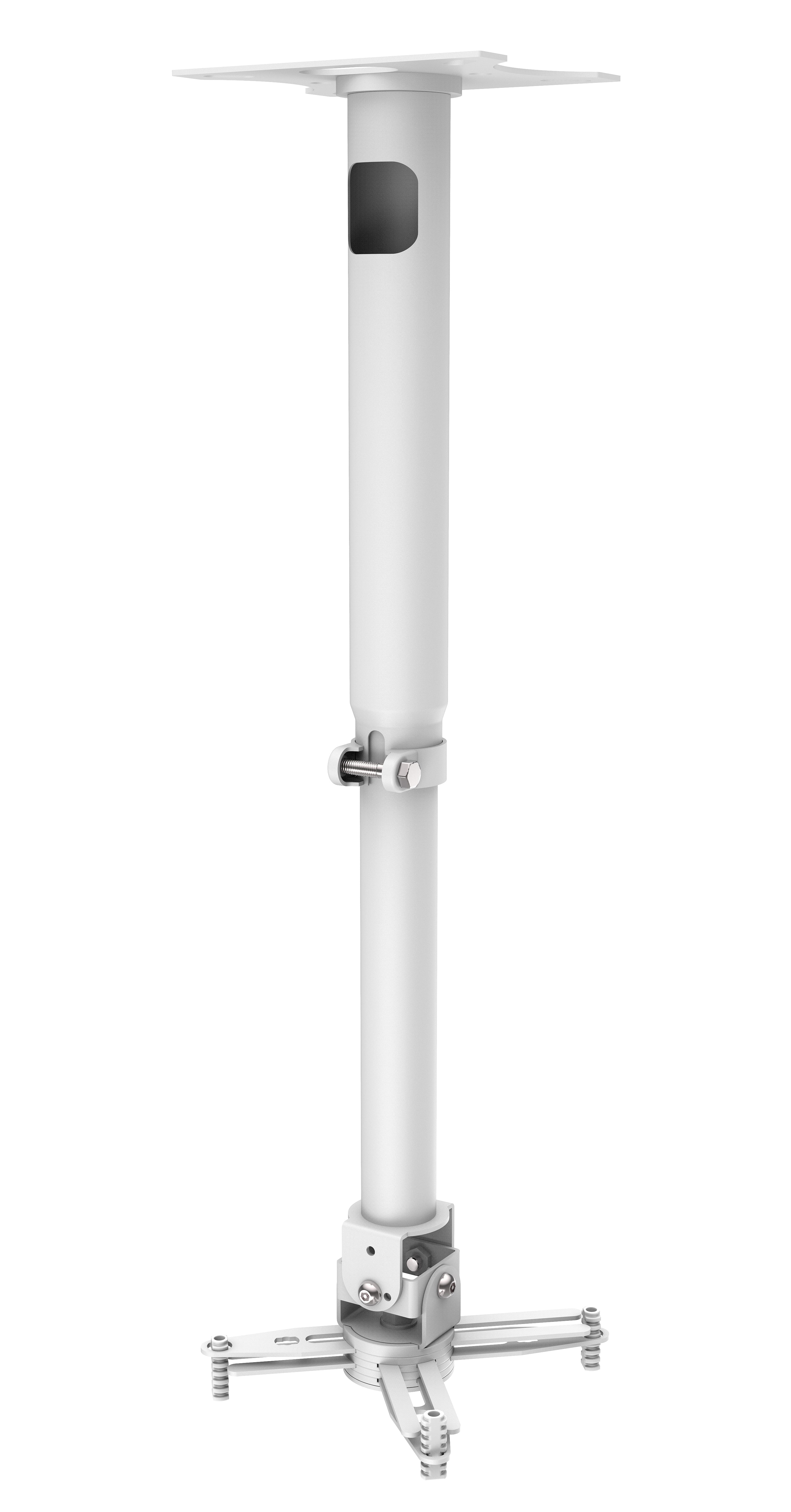

The Vision Telescopic Projector Ceiling Mount the TM-TELE Techmount is a projector ceiling bracket for anchoring any data projector safely to a ceiling. The telescopic design allows fast deployment and adjustment without the need cut and drill the pole.
Key Features
- One-Man Installation: Thoughtful design detail include a length adjustment clamp system which requires only one hand.
- Sloping Ceilings: A tilting mechanism is included which tilts to a full 90 degrees, allowing you to use the bracket as a boom if need be.
- Safety Approved: A back-up fall-arrest tether is included which secures the projector to your bracket, and the pole has a mechanical stop so that the two parts of the pole cannot be separated.
- Easy fit: Projectors have threaded inserts in the bottom for attachment – but not all use the same diameter screws so Vision includes a selection to suit most projectors.
- Cable Management: Vision’s clever system leaves cable access clear – even for big VGA connectors.
- Tools Included: A spanner and pin-hex key are included. Vision also includes a hex-key bit for a power drill to speed up installation.
- Secure: Quick-release mechanisms make life easier for thieves, so the TM-TELE is secure and features security bolts.

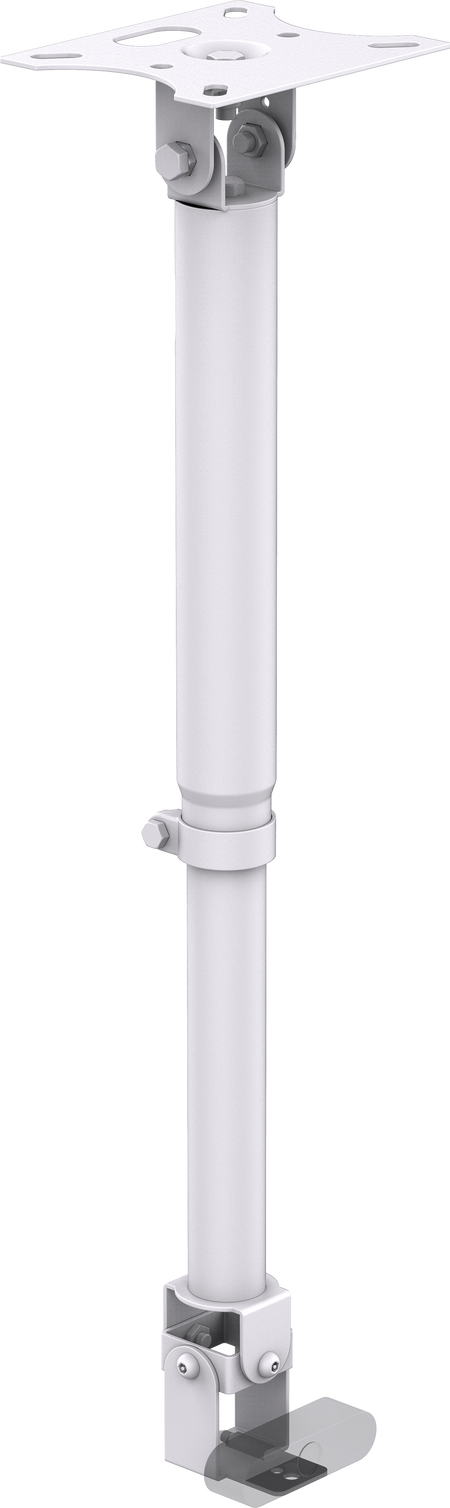

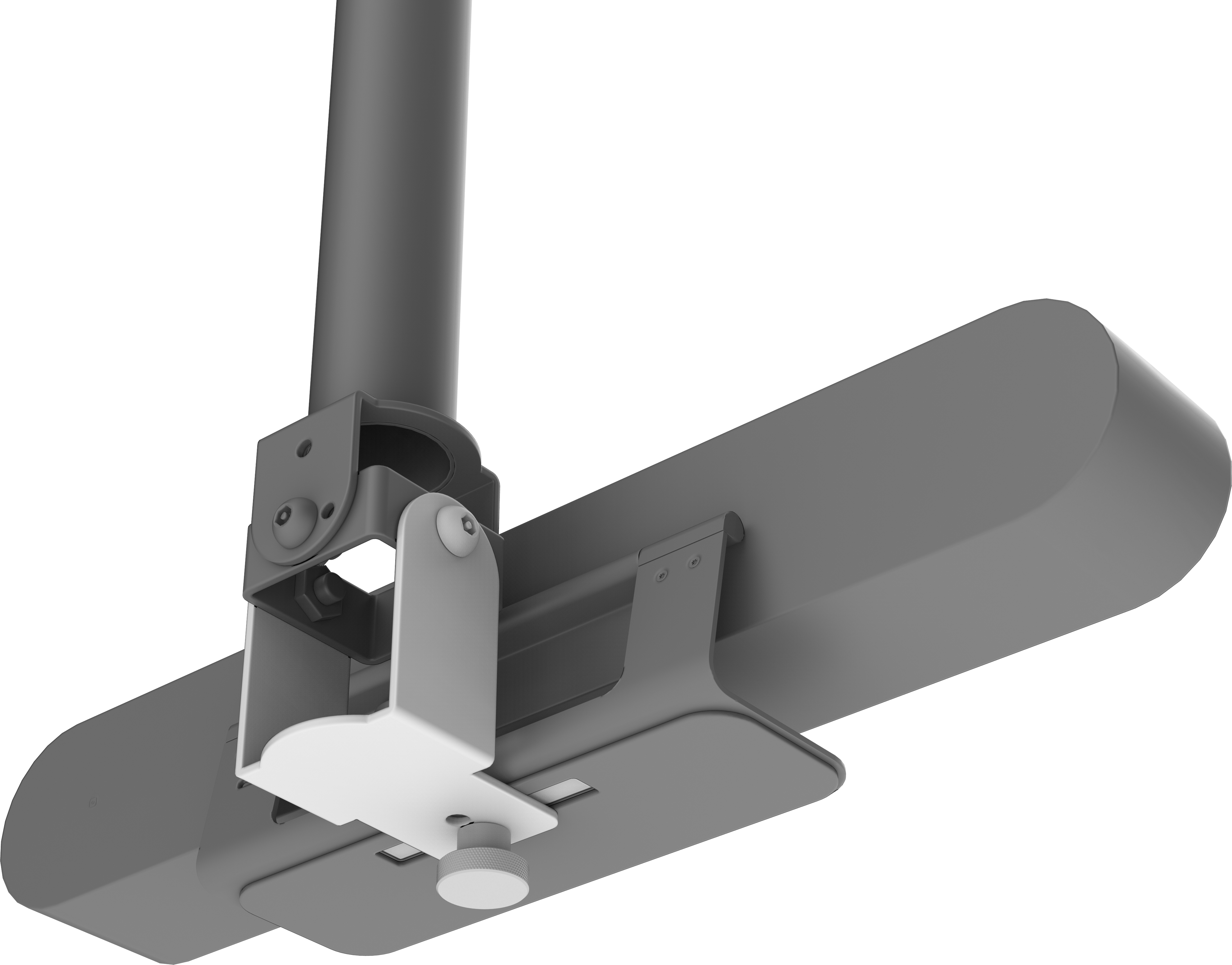

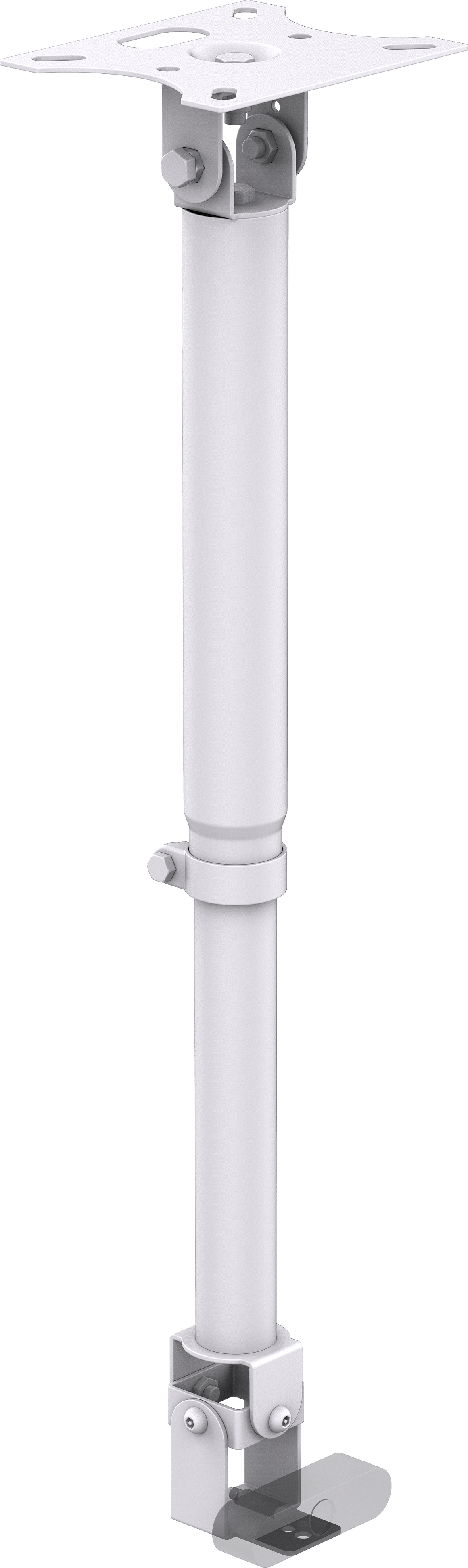

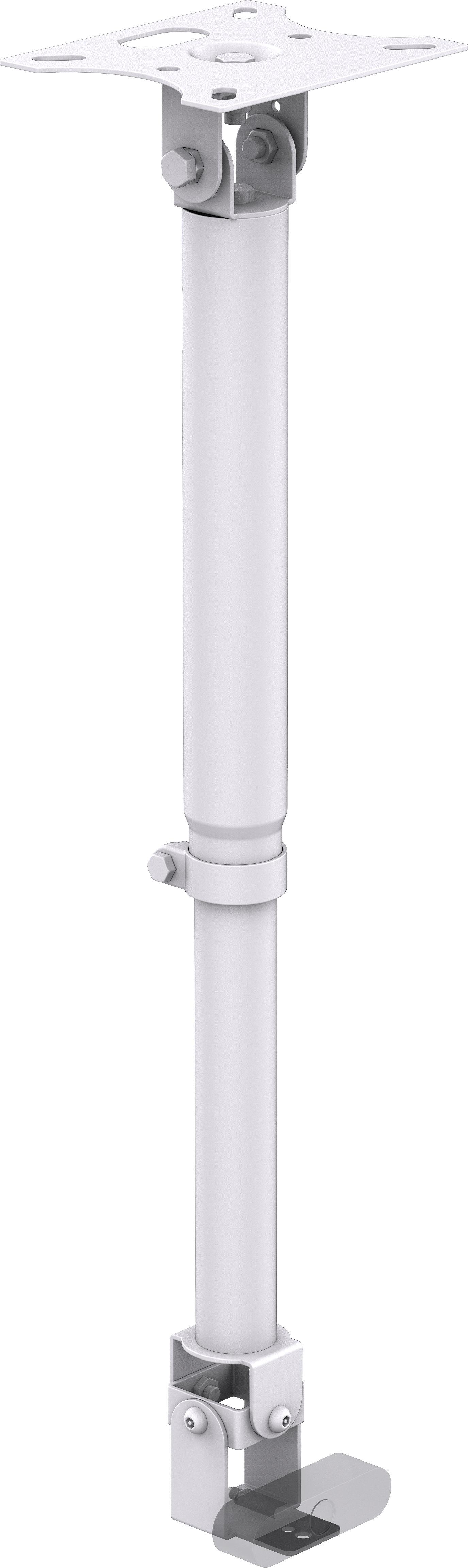

- Webcam Adaptor Included: This mount now includes a universal webcam bracket for mounting a USB camera safely to a ceiling.
- Flush-Mount Option: The pole can be removed for “flush-mounting” the camera as close to the ceiling as possible.

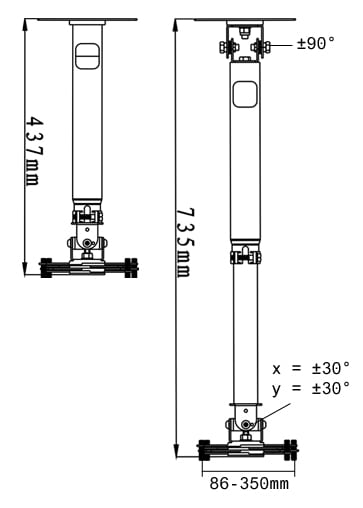

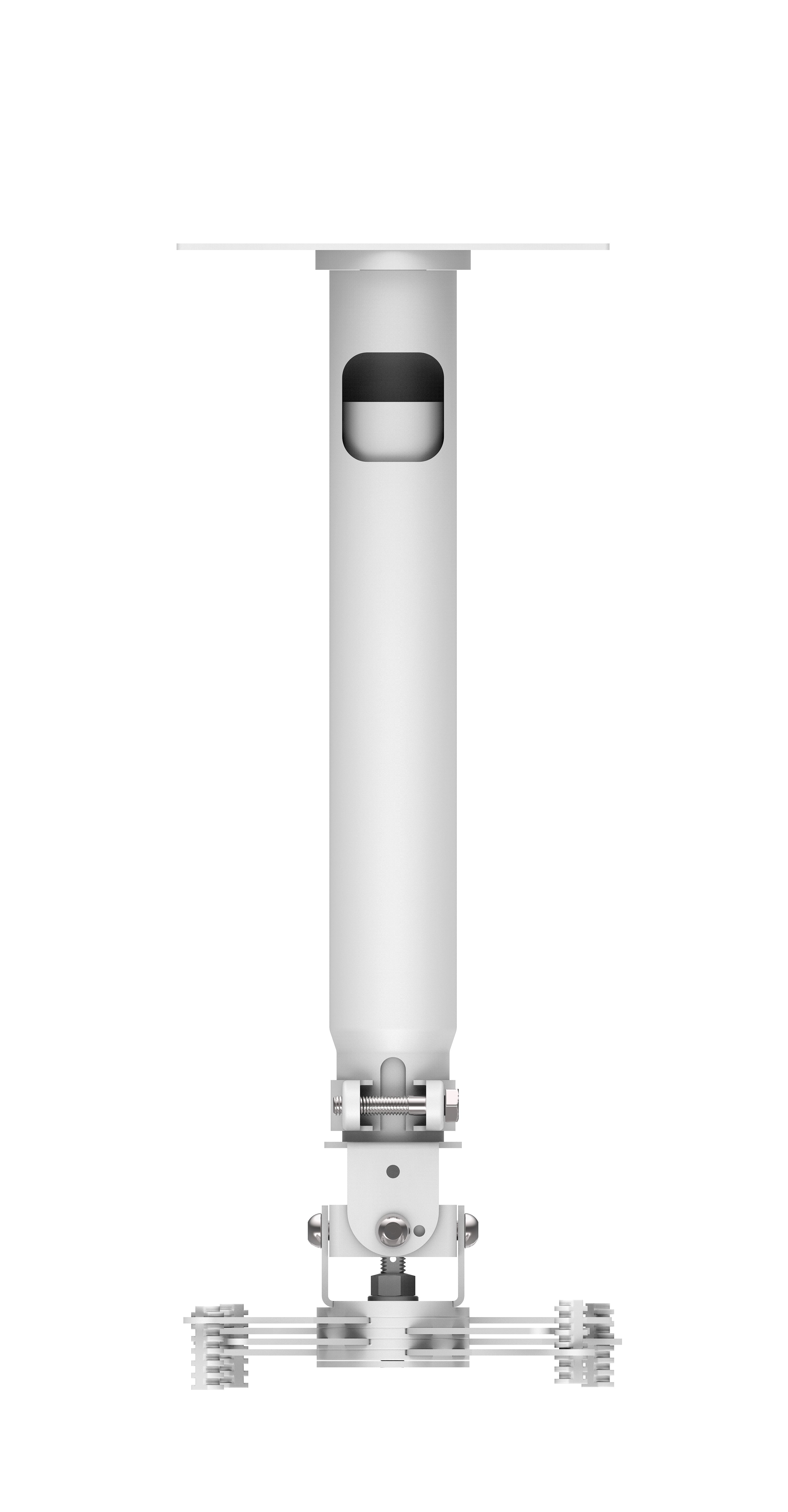

- Telescopic: The overall length is between 440-735 mm (17.3″ – 28.9″). Note: the length of this bracket cannot be extended.
Specifications
| Box Dimensions | 395 x 155 x 85 mm / 15.6″ x 6.1″ x 3.3″ |
| Packaged Weight | 3 kg / 6.6 lbs |
| Safe Working Load | 10kg / 22.05 lbs |
| Colour | Satin White |
| Compliances | RoHS |
| Product Weight | 2.7 kg / 6.0 lb |
| Country of origin | China |
What's in the Box
- 1 x H50 Pin-Hex key
- 1 x H50 power drill hex bit
- 1 x 17mm (0.7″) Spanner
- 4 x M3 40mm (1.57″) screws
- 4 x M4 40mm (1.57″) screws
- 4 x M5 40mm (1.57″) screws
- 4 x M6 40mm (1.57″) screws
- 4 x M2.5 40mm (1.57″) pan slot
- 1 x Safety Tether
- 1 x Ceiling Trim Disc
- 1 x Webcam adaptor
Warranty
The Vision Telescopic Projector Ceiling Mount is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
