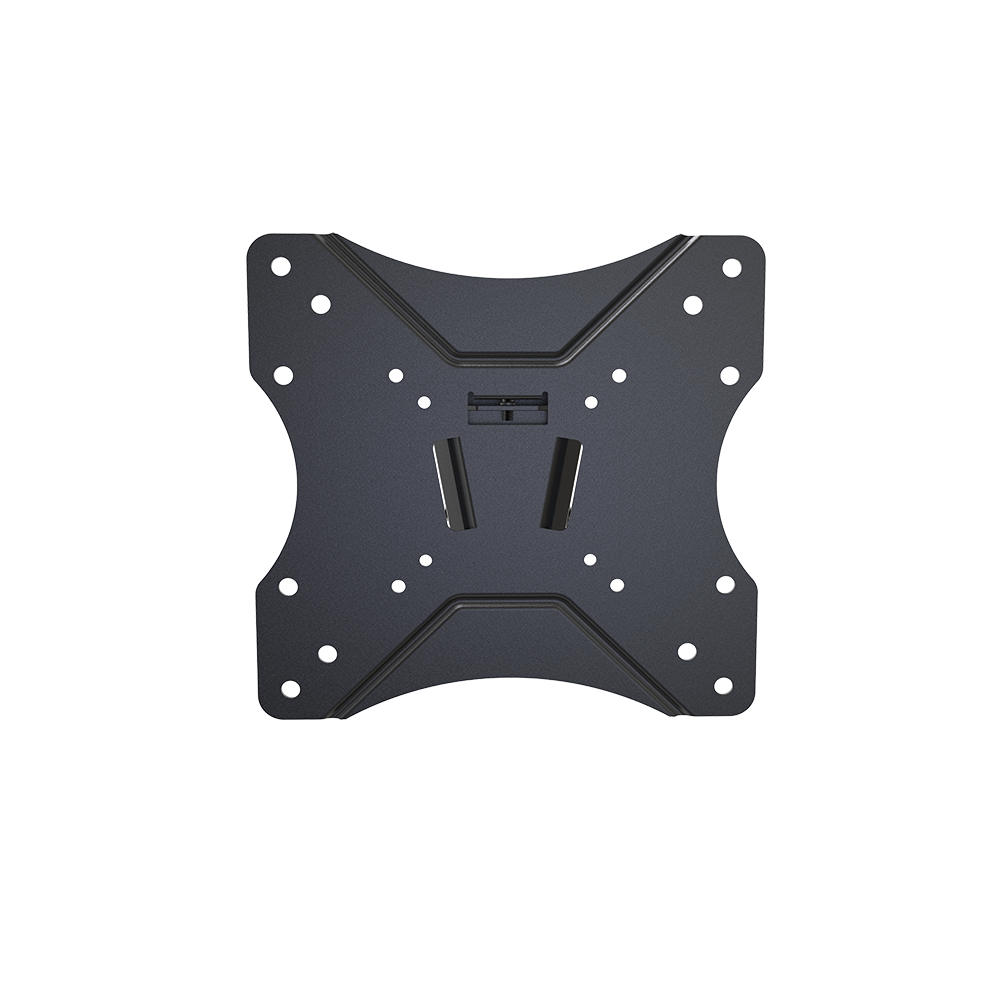

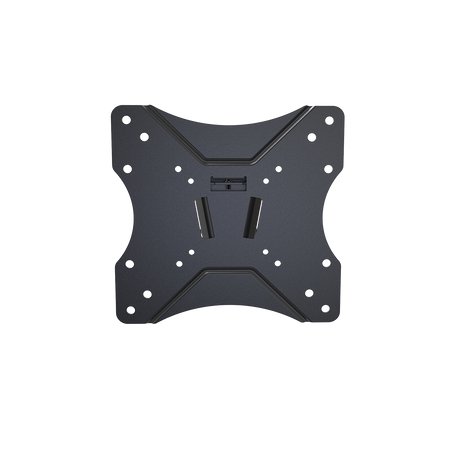

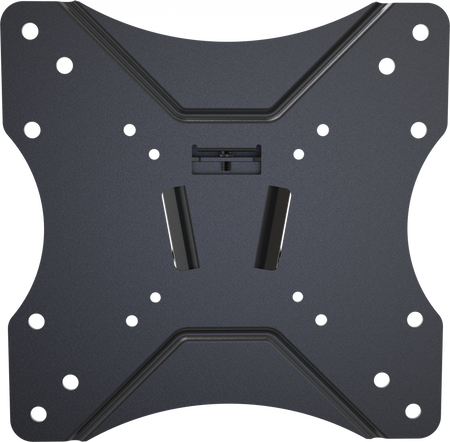

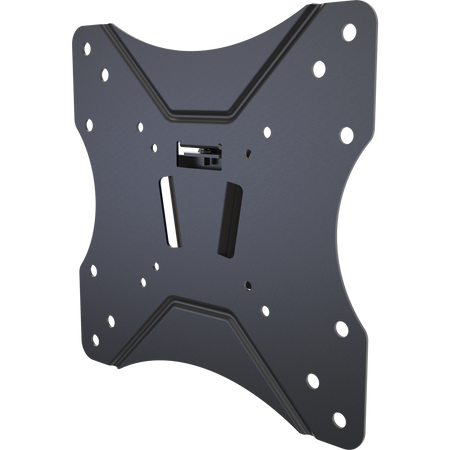

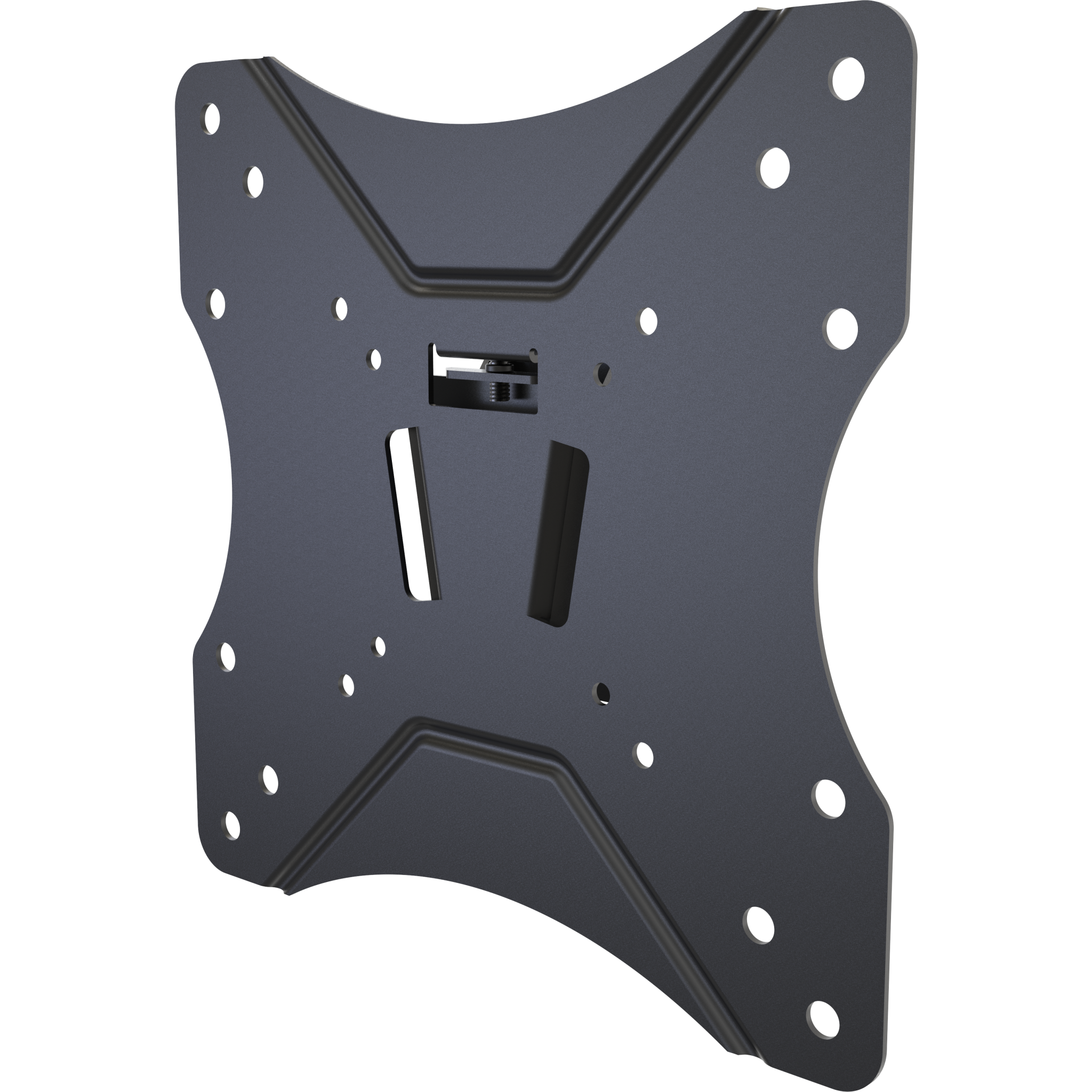

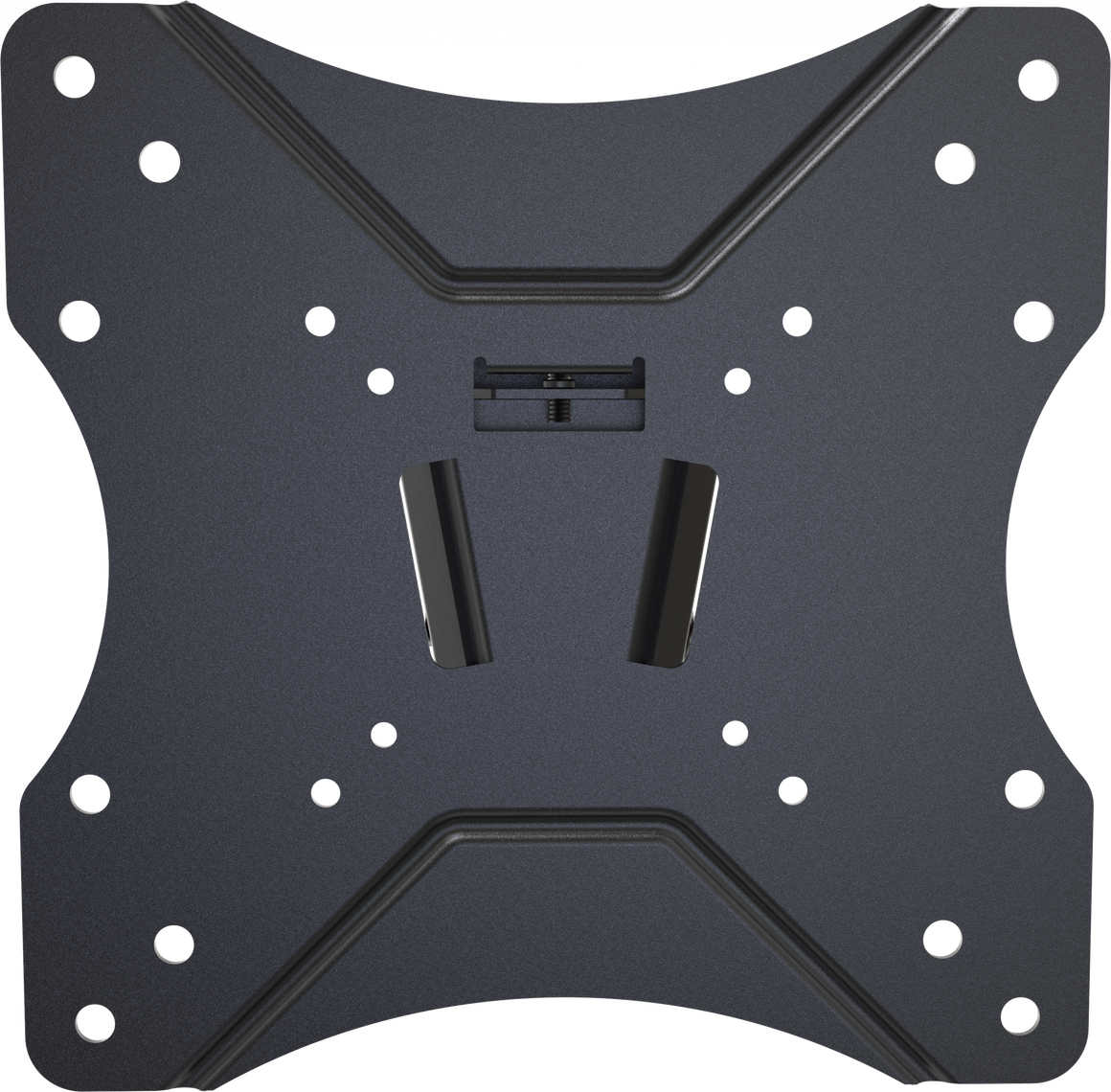

Vision Tilting Flat-Panel Wall Mount 200×200
Tilting Flat-Panel Wall Mount 200×200
In stock
Regular price
£22.15
Secure Checkout
Warranty Protection
Hassle-Free Returns

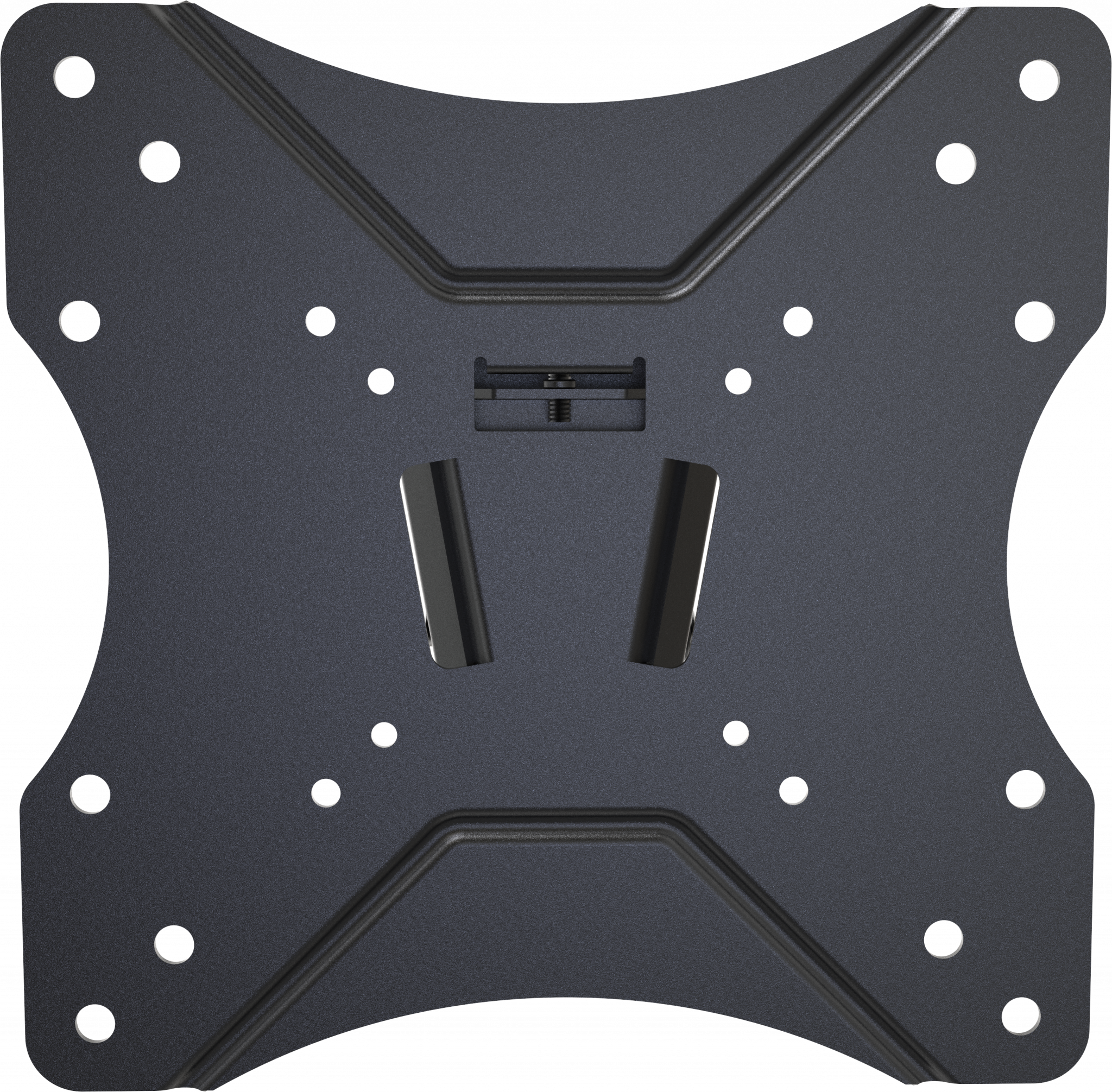

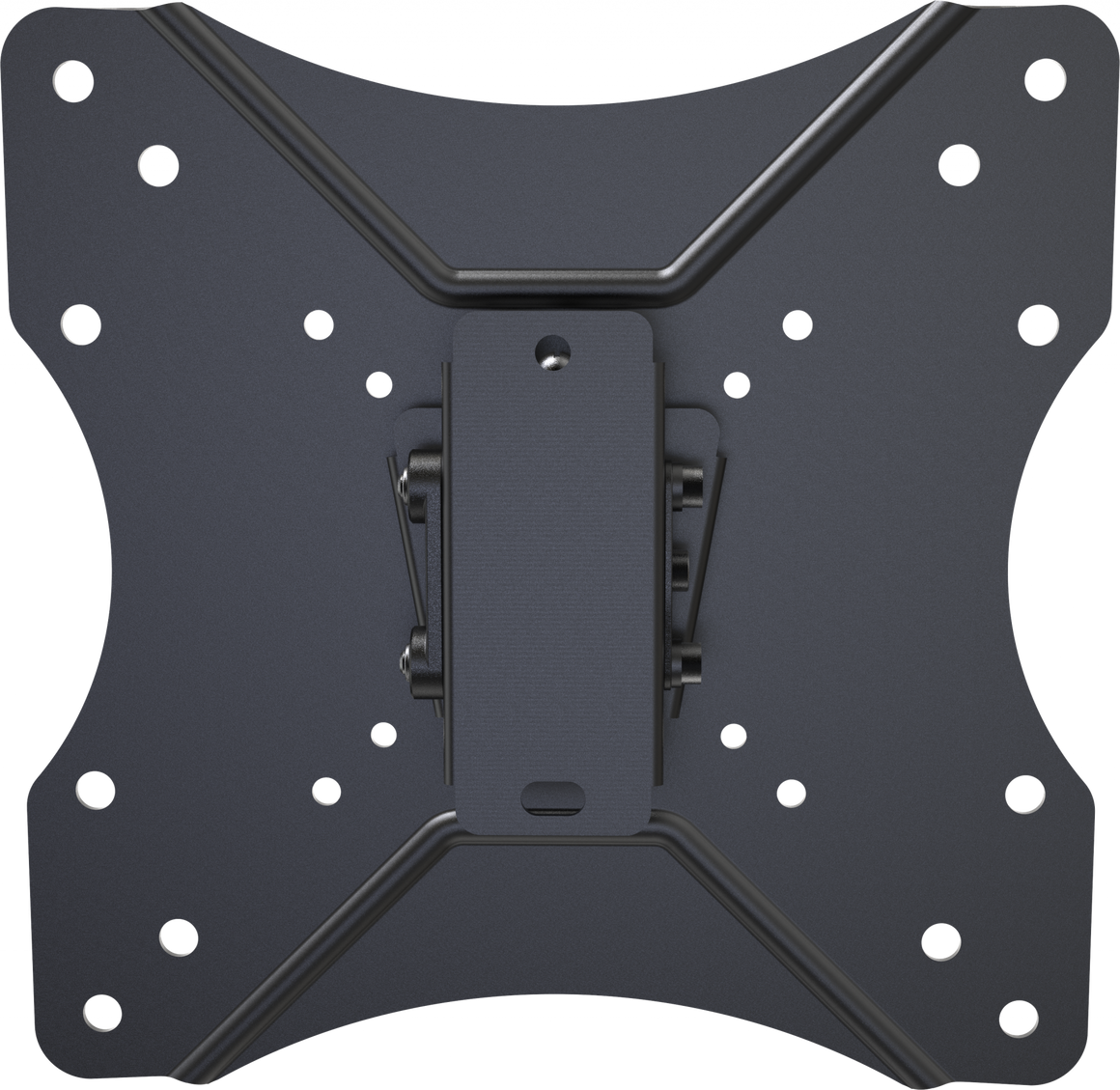

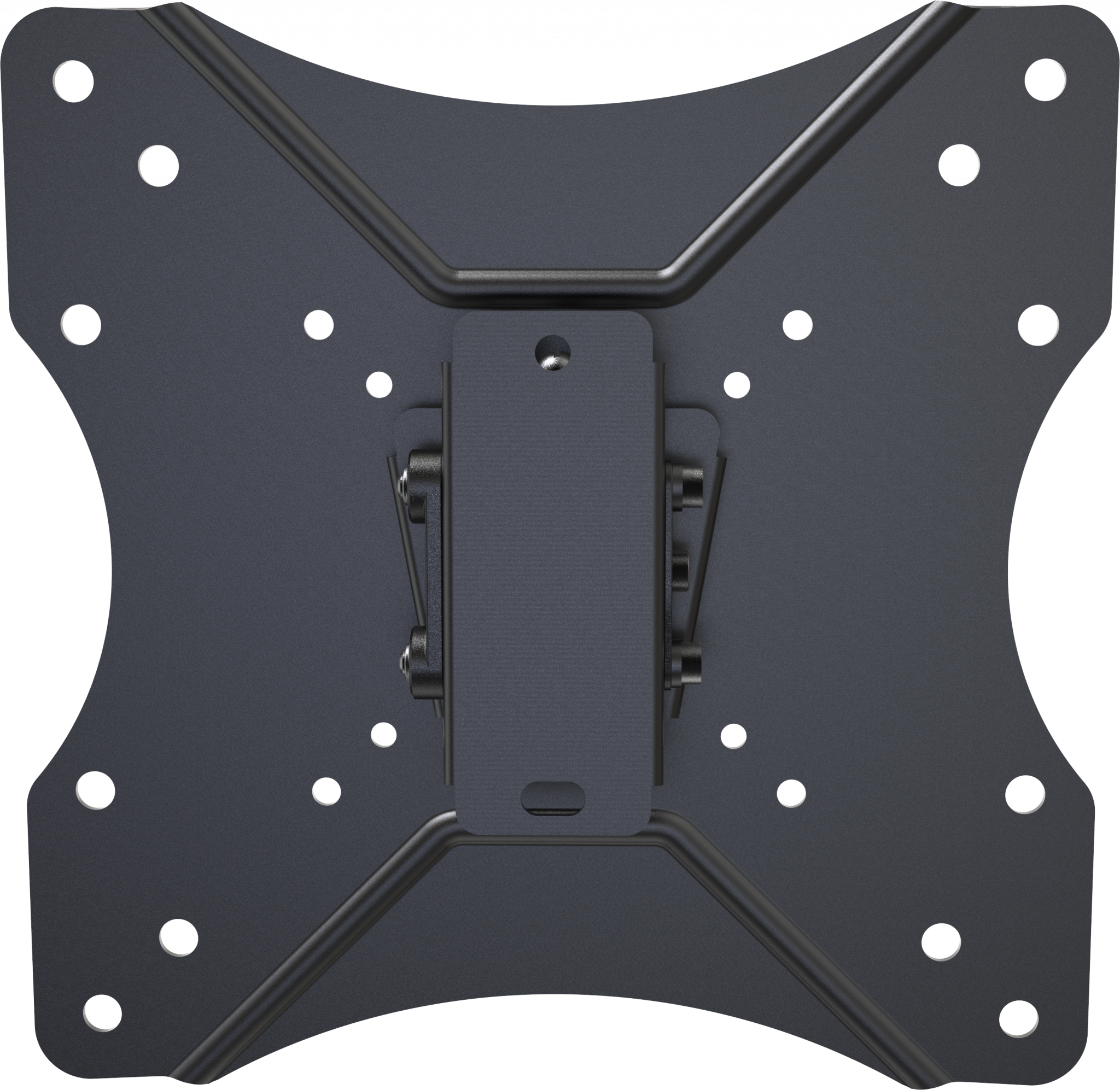

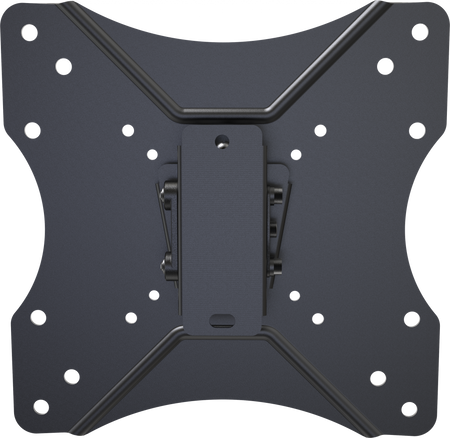

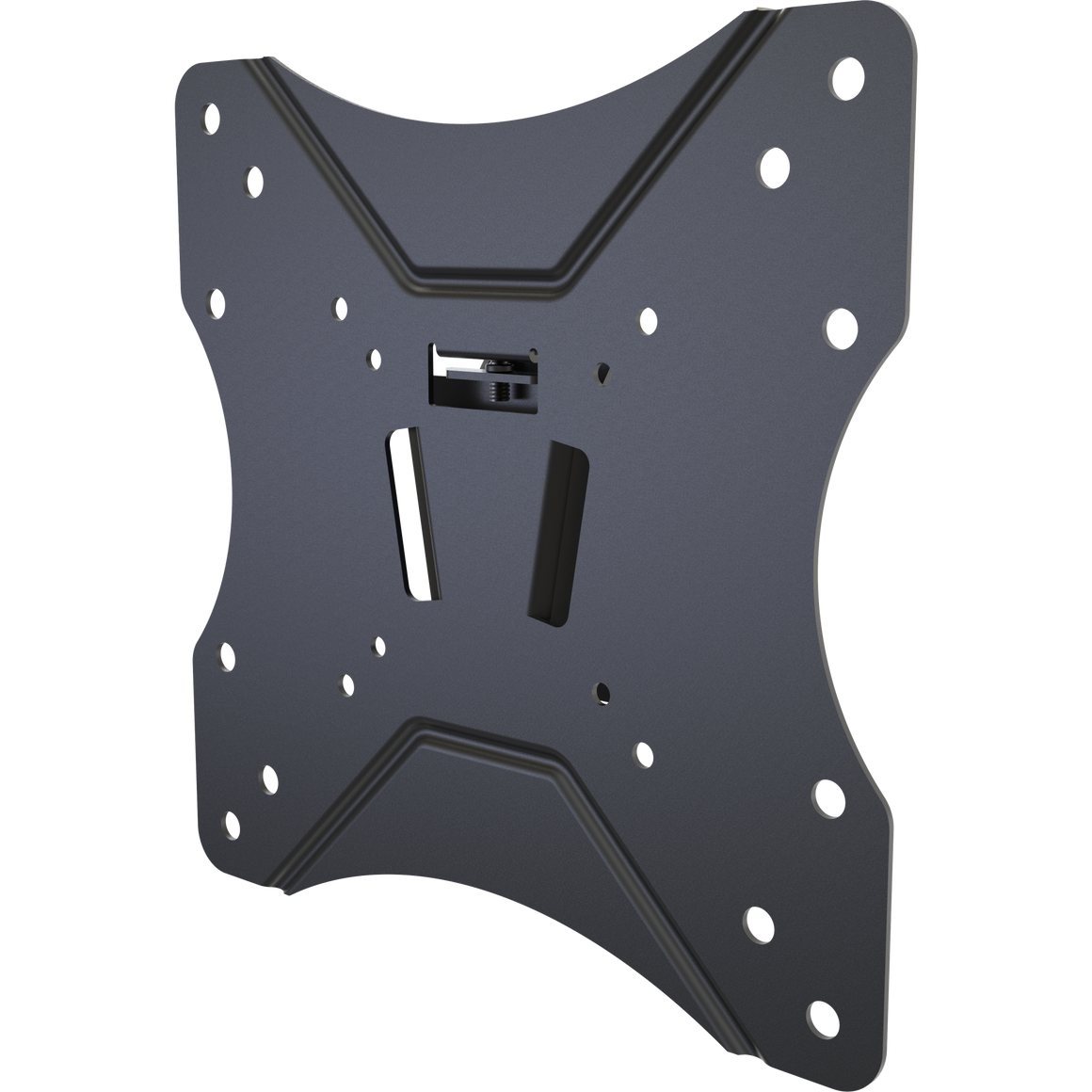

The Vision Tilting Flat-Panel Wall Mount 200×200 this Flat-Panel Mount (VFM) is quick and simple to install. It fits any display which uses a standard VESA mounting configuration up to VESA 200 x 200 mm.
Key Features

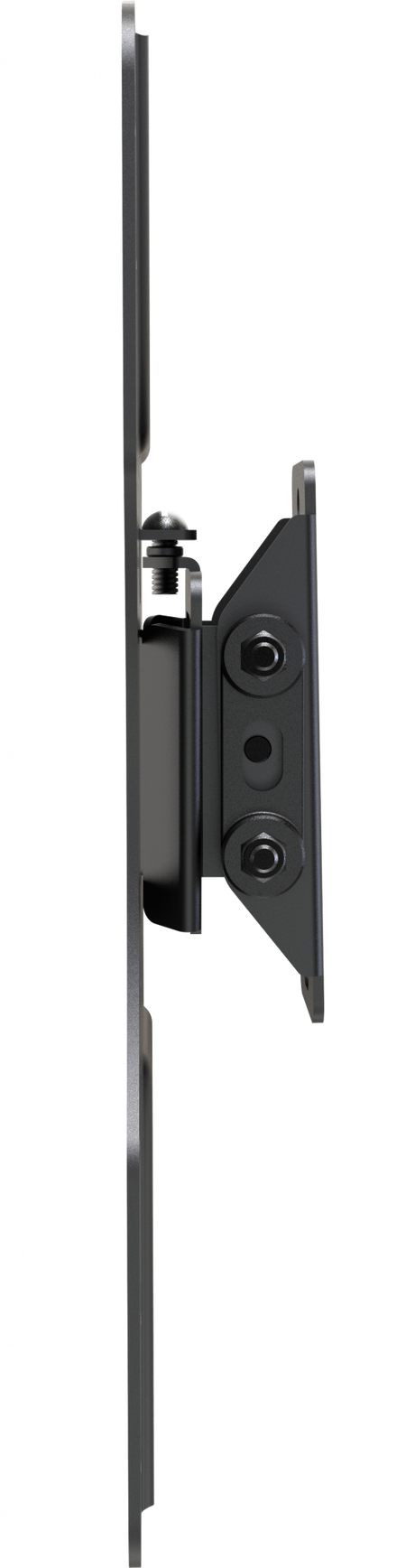

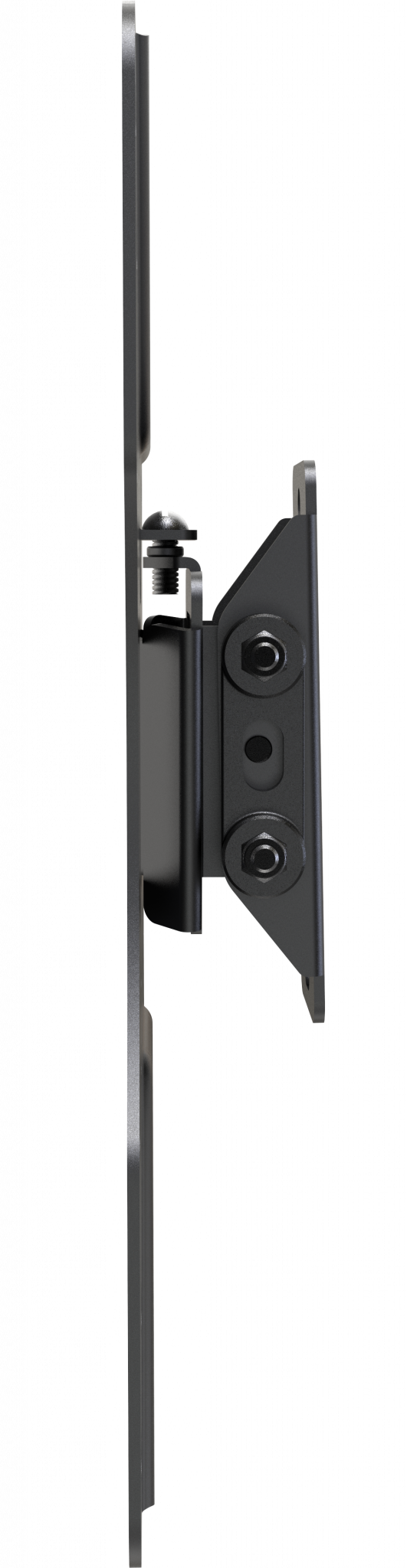

- Tilt: 15° of tilt adjustment for applications where the display is fixed up high.
- SWL 25 kg (55 lb): Most desktop monitors are very lightweight, but interactive displays and kiosk touch-panels are much heavier. This product can easily support most monitors from 30″ to 55″ subject to VESA pattern and weight limit.
- Thumbscrews: The screws included to fix the display are thumbscrews for fast tool-free assembly.
- Secure: Once in place a locking screw is fitted to avoid theft.
- Portrait: Mount the display portrait-style or landscape style as required.

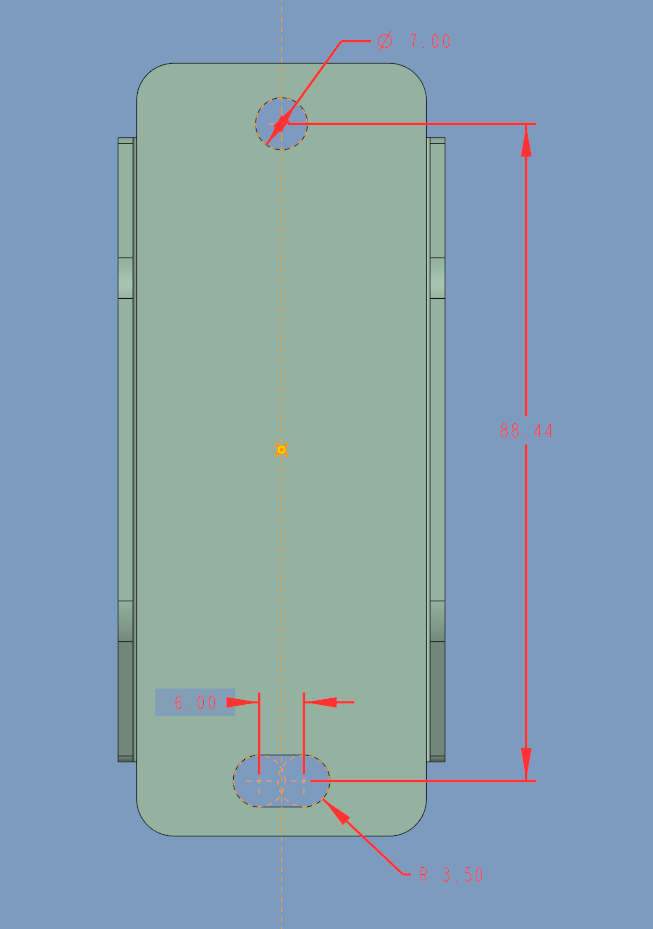

- Simple Installation: A proven 2-part design allows fast fixing, with slotted holes on the wall part allowing leveling adjustment after fixing.
- Display Fixing Screws: Vision include more screw sizes than other manufacturers to ensure you get that display on the wall as quickly as possible every time.
- VESA Wall Mount for displays and TVs: VESA Wall Mount for displays and TVs
- For display size 30" - 55″: For display size 30" - 55″
- Locking anti-theft screw: Locking anti-theft screw
Specifications

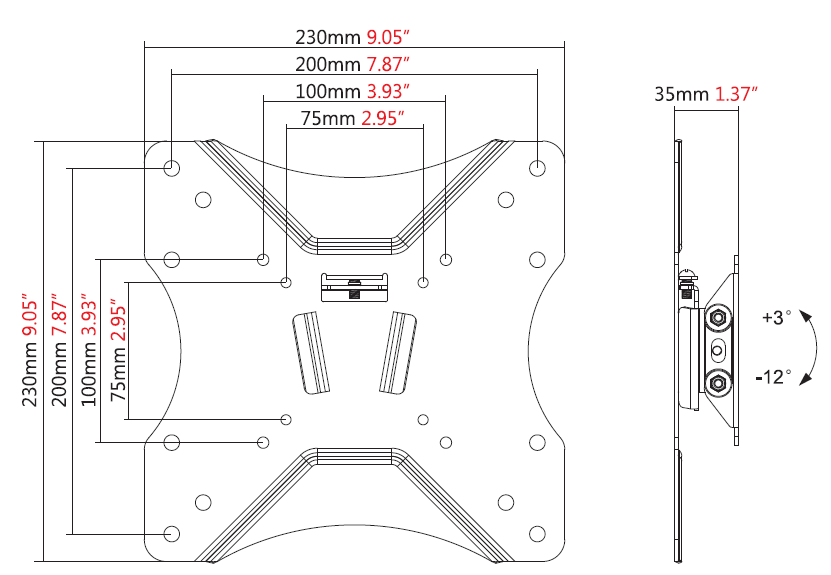

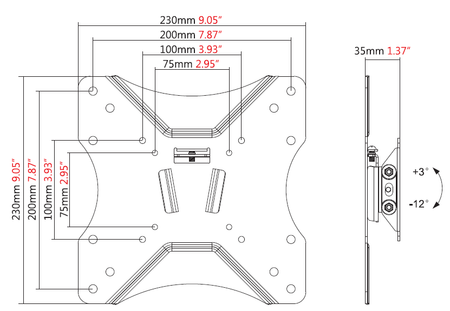

| Product Dimensions | 230 x 230 x 35 mm / 9.1″ x 9.1″ x 1.4″ (height x width x depth) |
| Packaged Dimensions | 239 x 239 x 45 mm / 9.4″ x 9.4″ x 1.8″ |
| Product Weight | 0.83 kg (1.8 lbs) |
| Packaged Weight | 1.12 kg (2.47 lbs) |
| Safe Working Load | 25 kg (55 lbs) |
| Contruction Material | Steel |
| Colour | REACH |
| Vesa Sizes | 200 × 200 mm 200 x 100 mm 100 × 100 mm 75 x 75 mm |
| Compliances | RoHS |
| Country of origin | China |
What's in the Box
- 4 x M4 25 mm (1″) screw
- 4 x M5 12 mm (0.5″) screw
- 4 x M5 25 mm (1″) screw
- 4 x M6 12 mm (0.5″) screw
- 4 x M6 25 mm (1″) screw
- 4 x M8 16 mm (0.6″) screw
- 4 x M8 25 mm (1″) screw
Warranty
The Vision Tilting Flat-Panel Wall Mount 200×200 is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
