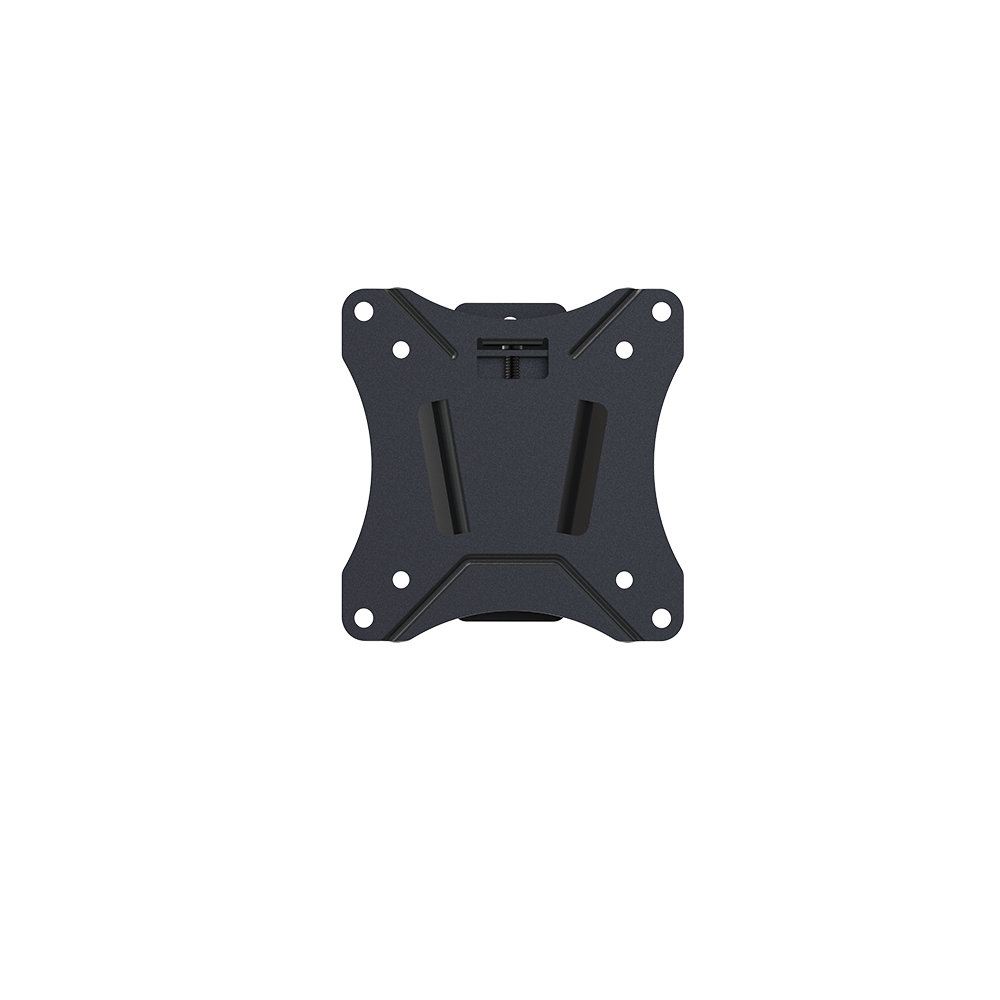

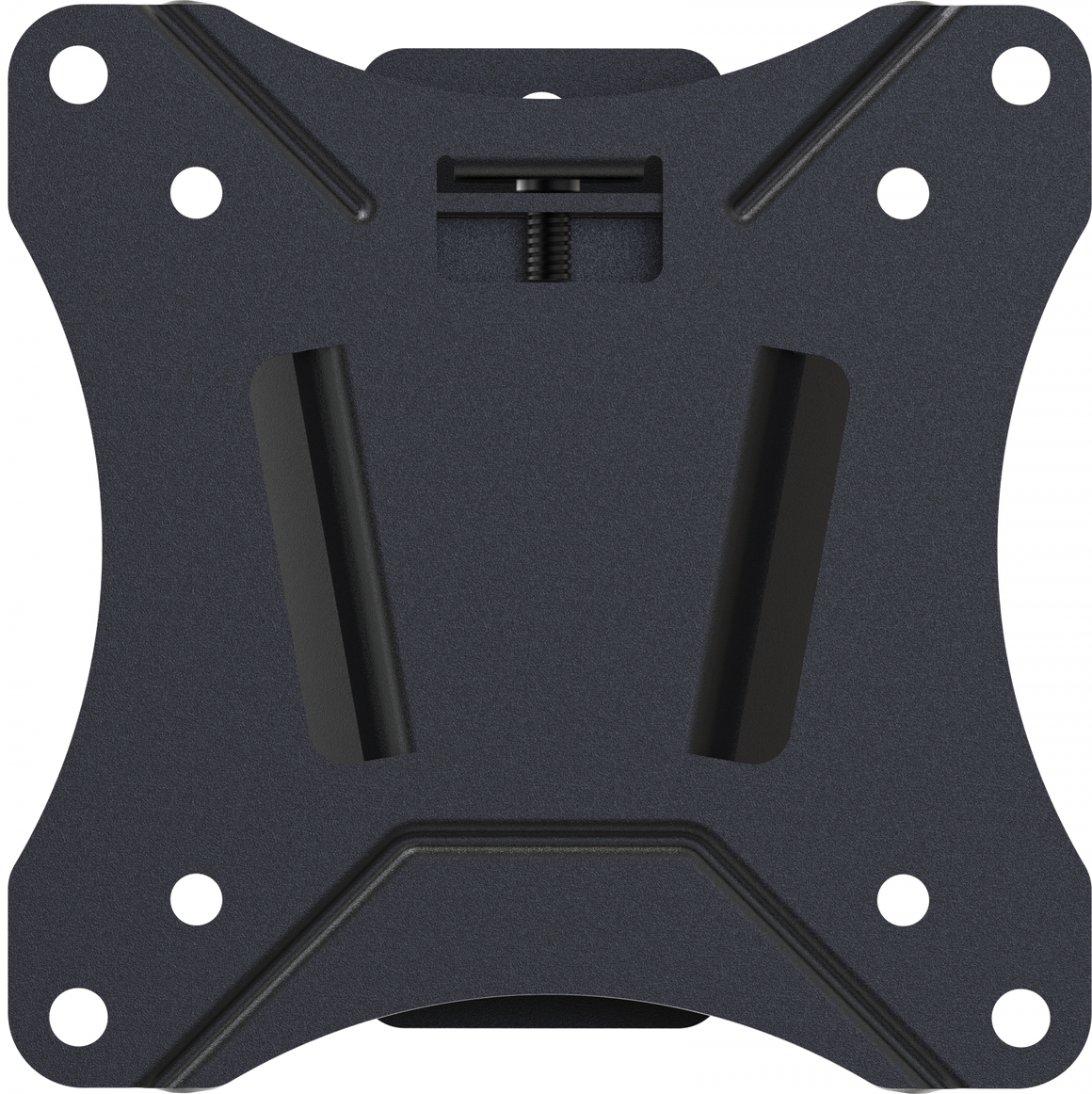

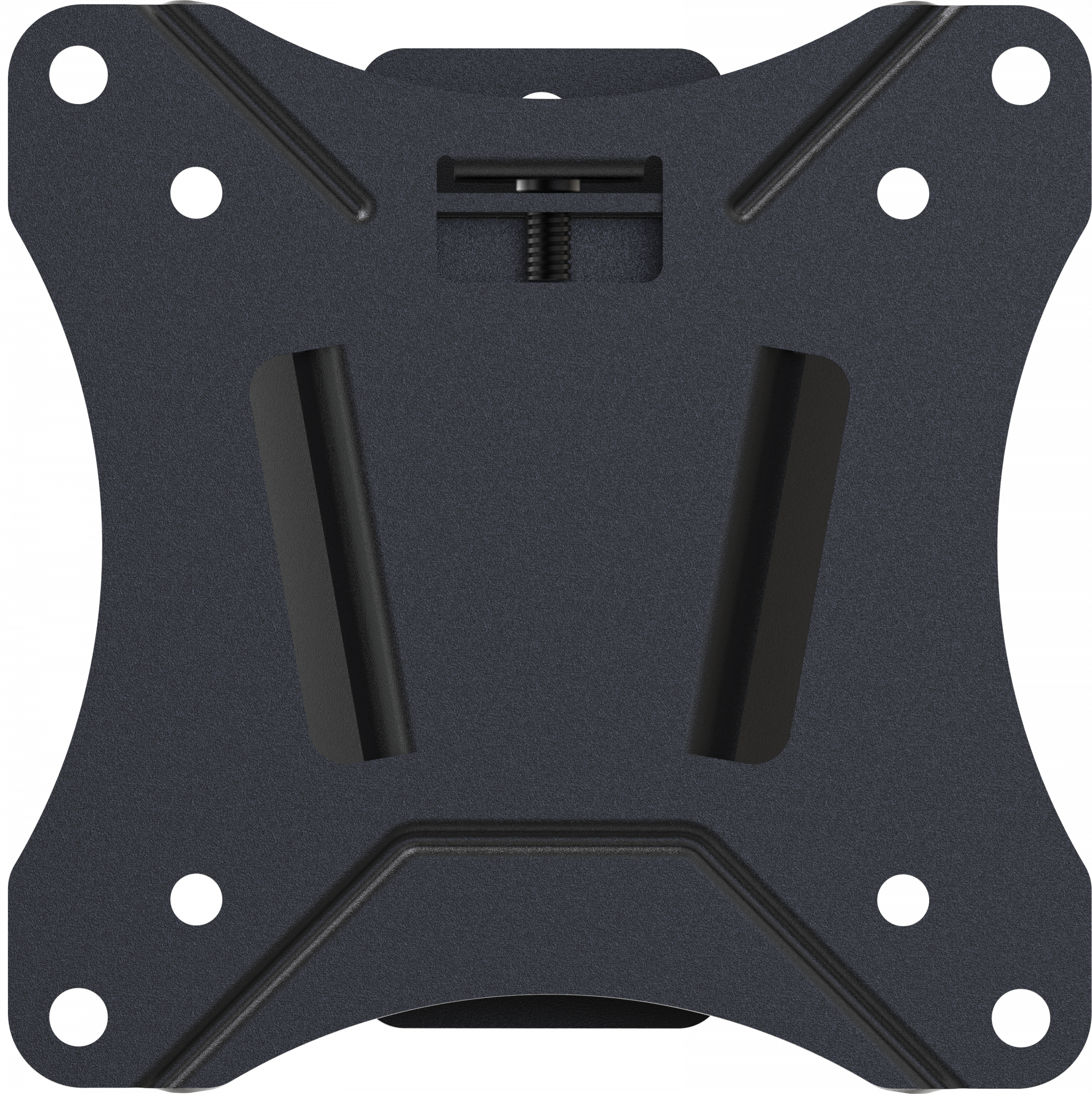

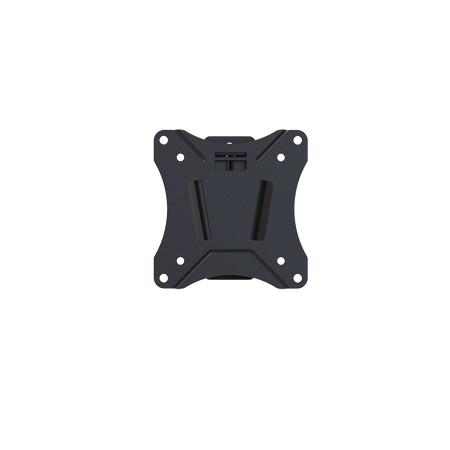

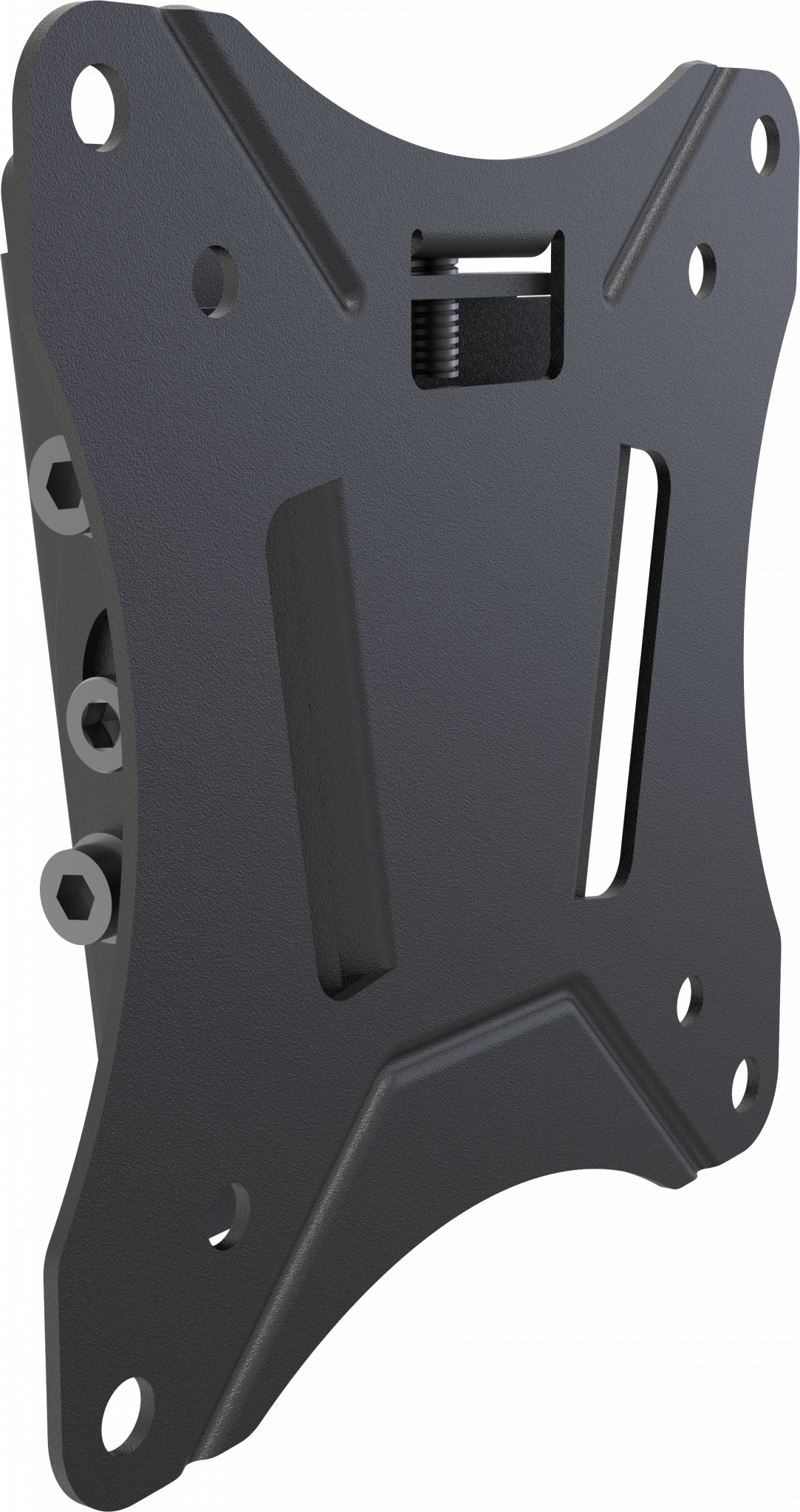

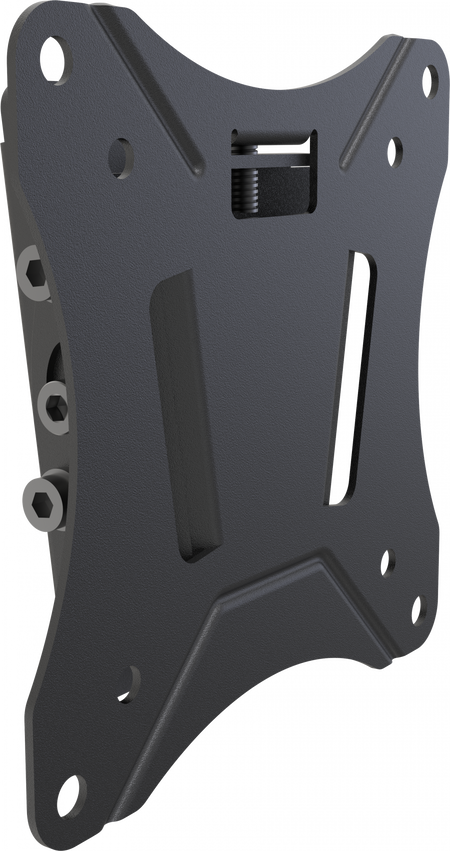

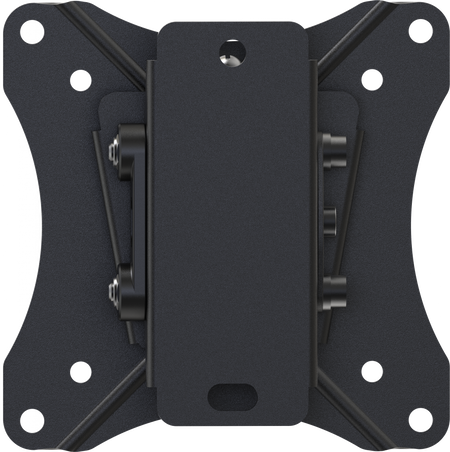

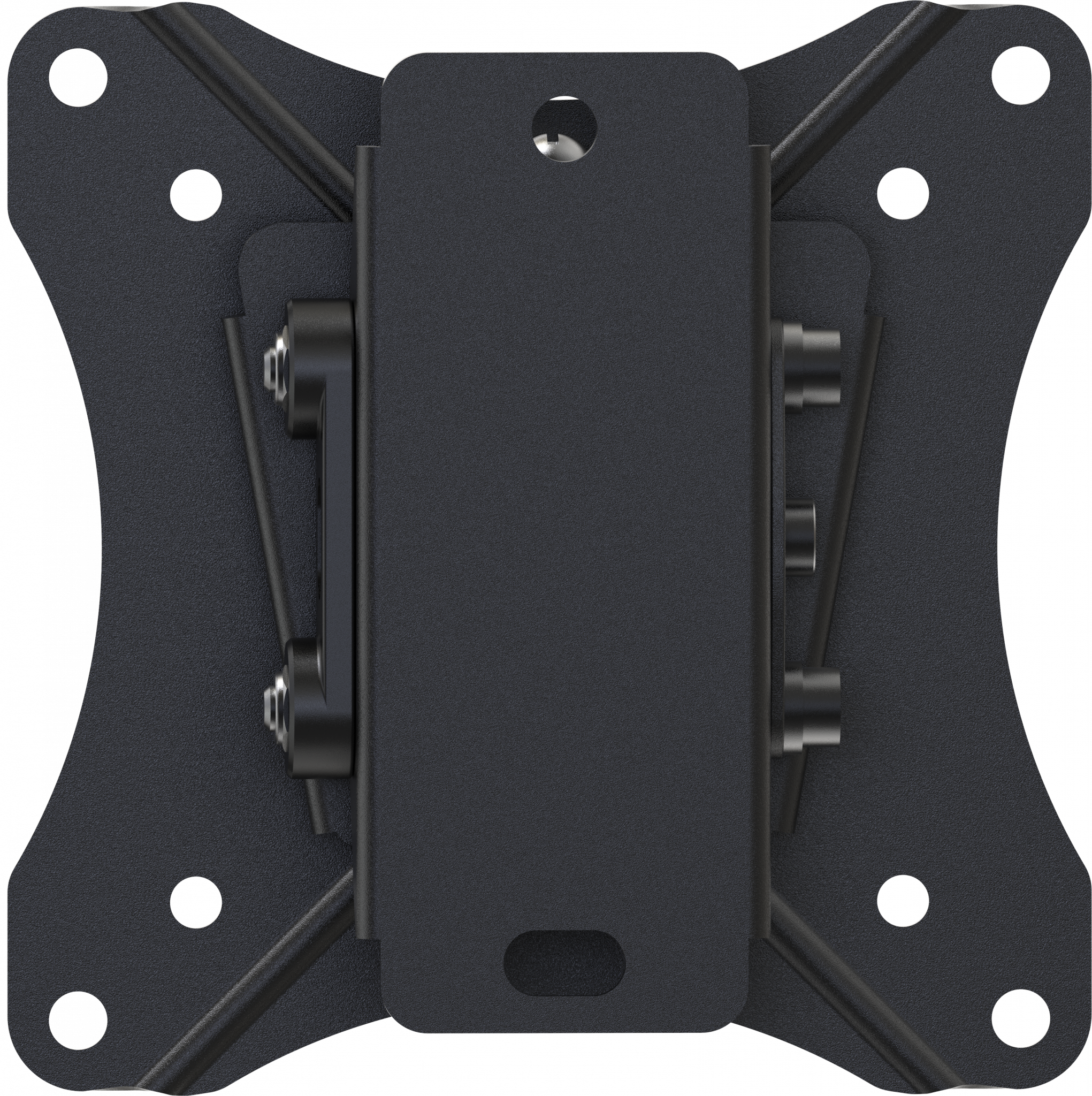

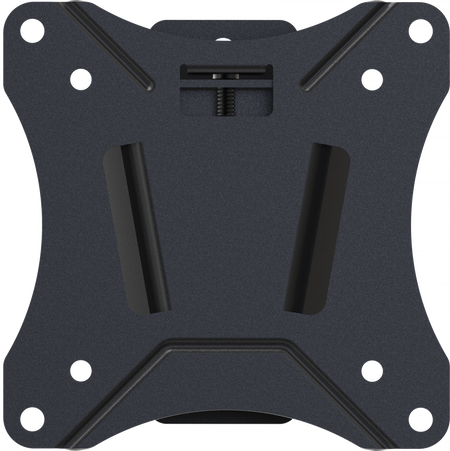

Vision Tilting Monitor Wall Mount 100×100
Tilting Monitor Wall Mount 100×100
In stock
Regular price
£13.11
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Vision Tilting Monitor Wall Mount 100×100 this Vision Flat-Panel Mount (VFM) mount is quick and easy to install. It fits any flat-panel LCD screen which uses the common VESA 100 x 100 mm apart.
Key Features

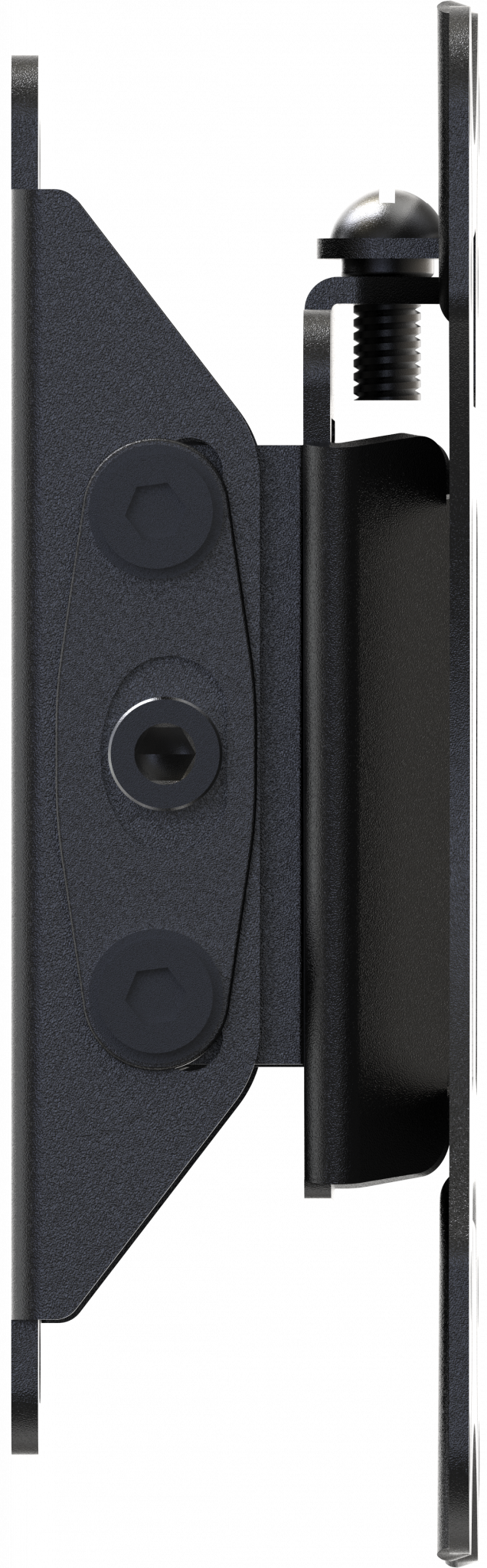

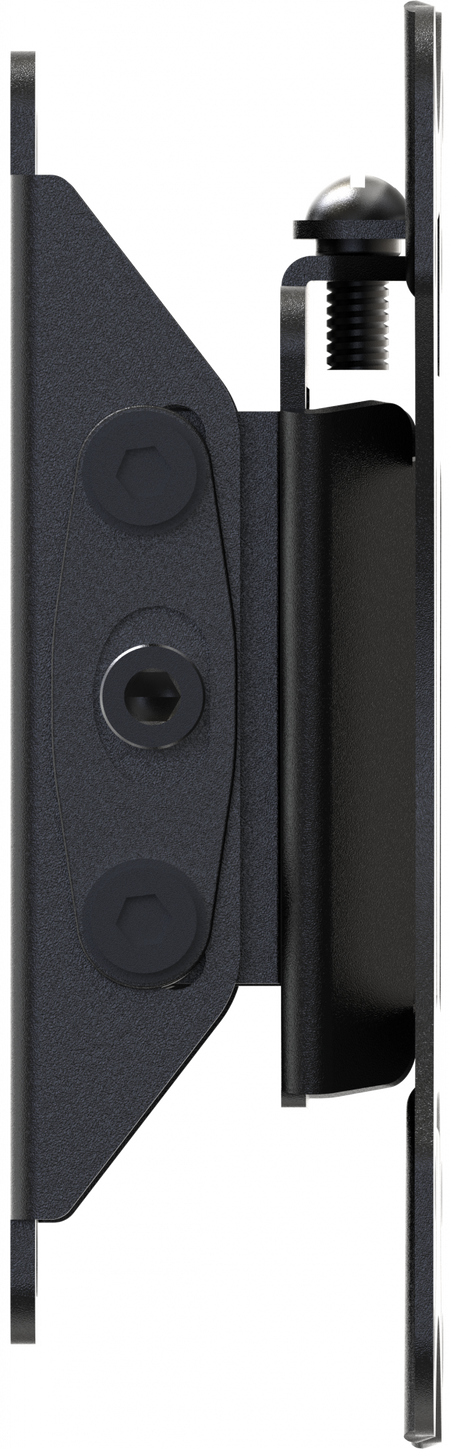

- Tilt: 15° of tilt adjustment for applications where the display is fixed up high.
- SWL 25 kg(55lb): Most desktop monitors are lightweight, but interactive displays and kiosk touch-panels are much heavier. This mount can easily support most monitors from 10″ to 34″.
- Thumbscrews: The screws included to fix the display are thumbscrews for fast tool-free assembly.
- Secure: Once in place a locking screw is fitted to avoid theft.
- Portrait: Mount the display portrait-style or landscape style as required.

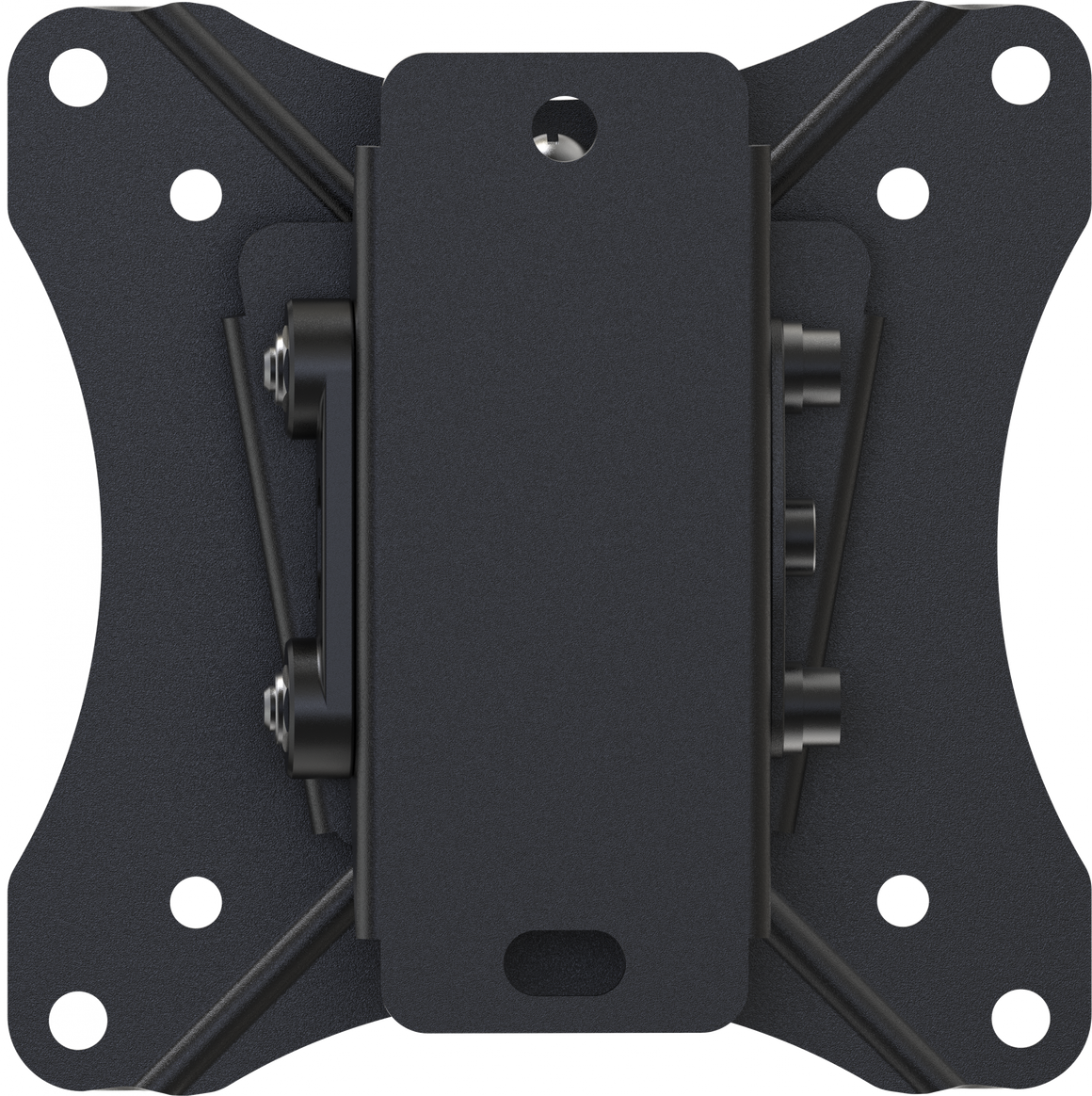

- Simple Installation: A proven 2-part design allows fast fixing, with slotted holes on the wall part allowing leveling adjustment after fixing.
- Display Fixing Screws: Vision include more screw sizes than other manufacturers to ensure you get that display on the wall as quickly as possible every time.
- VESA Wall Mount for LCD Monitors: VESA Wall Mount for LCD Monitors
- Fits displays: Fits displays with 75 x 75 and 100 x 100mm mounting holes
- For 10-34″ Displays: For 10-34″ Displays
Specifications

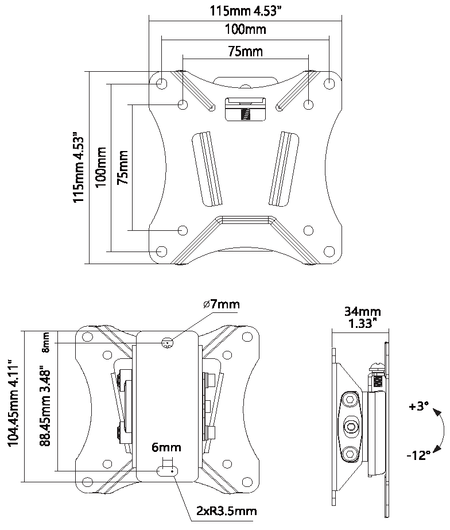

| Product Dimensions | 115 x 115 x 34 mm / 4.5″ x 4.5″ x 1.3″ (height x width x depth) |
| Packaged Dimensions | 120 x 120 x 42 mm / 4.7″ x 4.7″ x 1.7″ |
| Product Weight | 0.31 kg (0.7 lbs) |
| Packaged Weight | 0.42 kg (0.9 lbs) |
| Safe Working Load | 25 kg (55 lbs) |
| Contruction Material | Steel |
| Colour | Black |
| Vesa Sizes | 100 × 100 mm 75 x 75 mm |
| Compliances | RoHS, REACH |
| Country of origin | China |
What's in the Box
- 4 x M4 25 mm (1″) screw
- 4 x M5 12 mm (0.5″) screw
- 4 x M5 25 mm (1″) screw
Warranty
The Vision Tilting Monitor Wall Mount 100×100 is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
