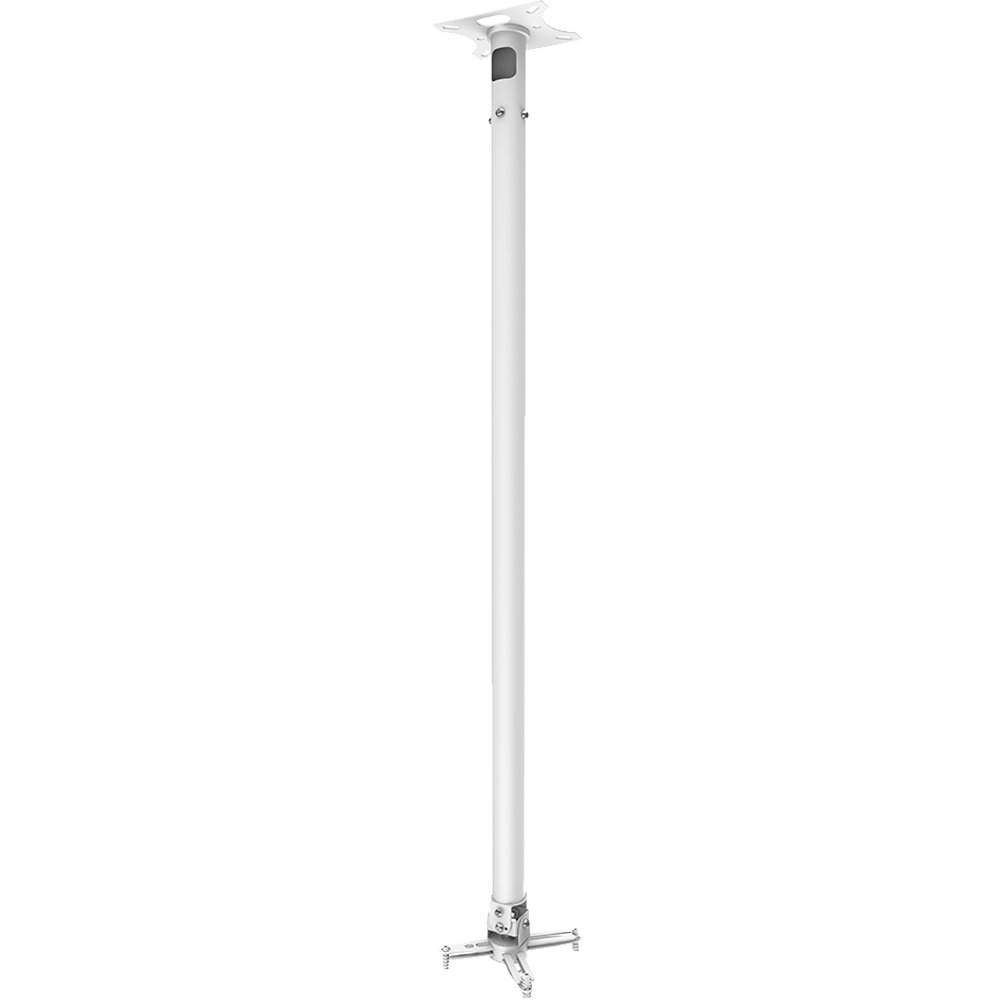

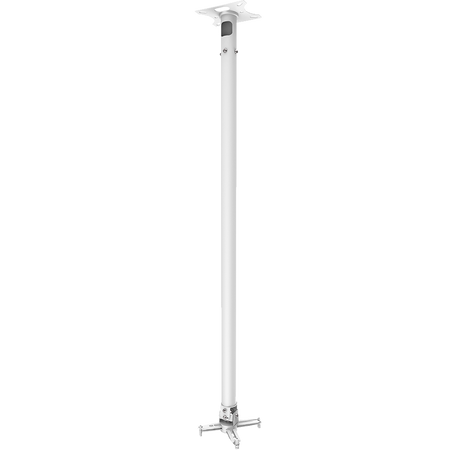

Vision Universal Projector Ceiling Mount

The Vision Universal Projector Ceiling Mount the Techmount is a universal projector ceiling bracket designed to secure 99% of data projectors safety and sturdily to ceilings. It has built in flexibility allowing quick assembly in a number of different configurations, including “flush-mount” where the projector is as close to the ceiling as possible.

Key Features

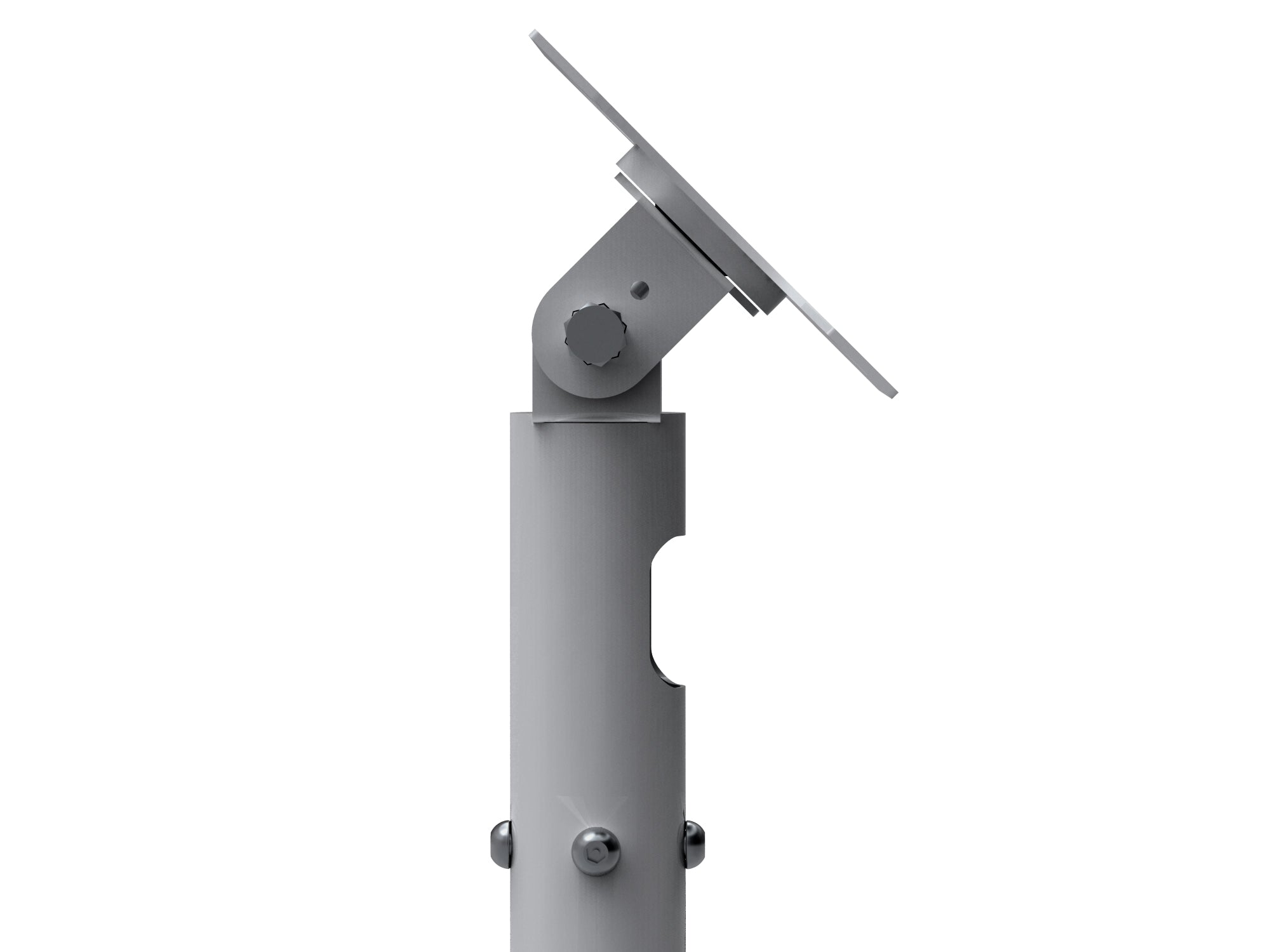

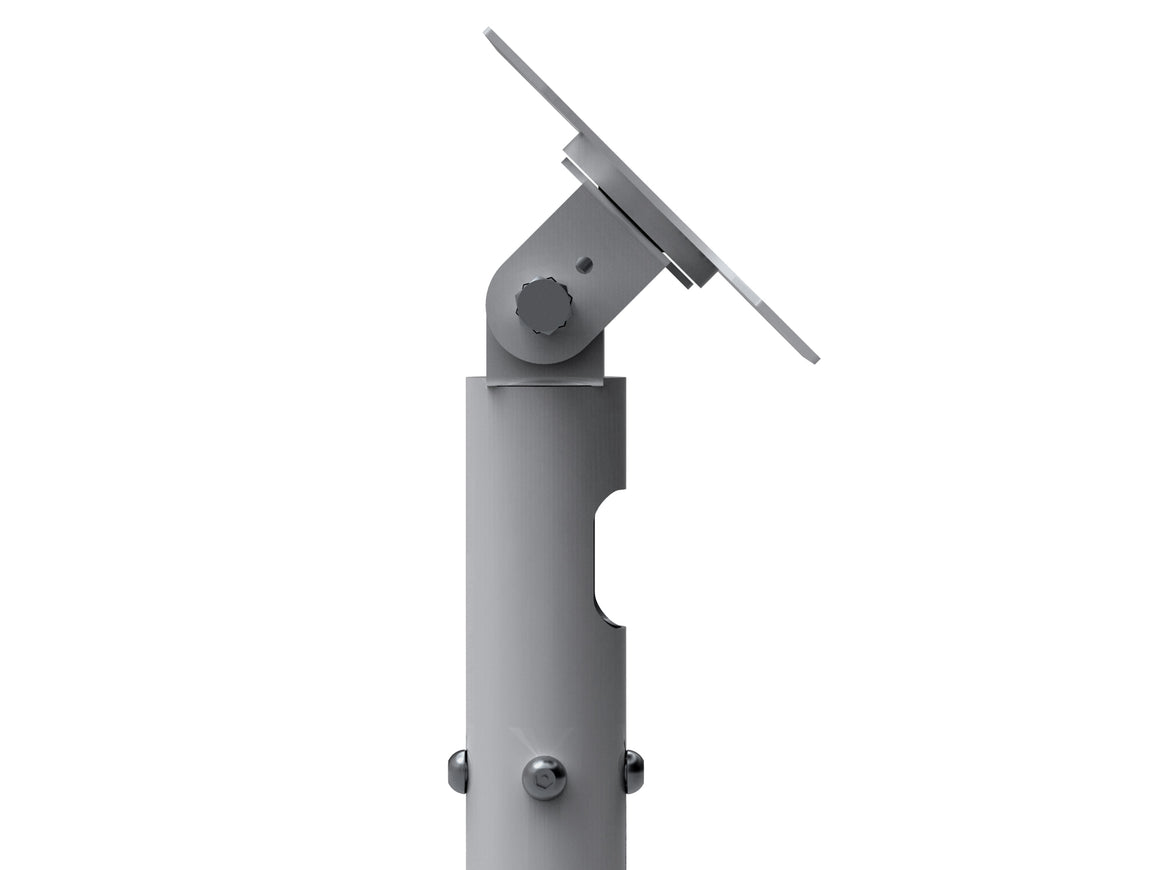

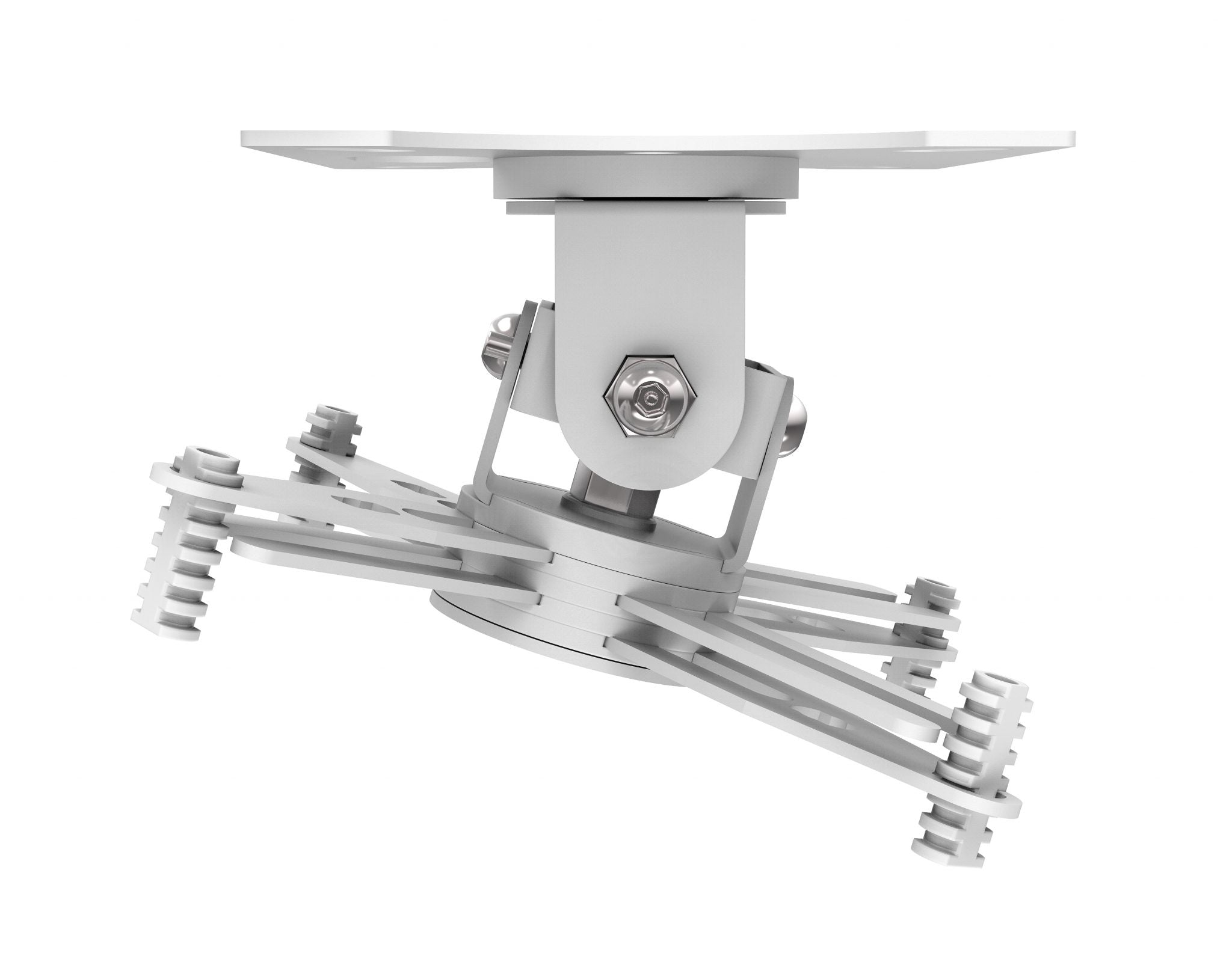

• Sloping Ceilings?: A tilting mechanism is included which tilts to a full 90 degrees, allowing you to use the bracket as a boom if need be.
• Safety Approved: In line with best-practise a safety fall-arrest tether is included which secures the projector to your bracket.

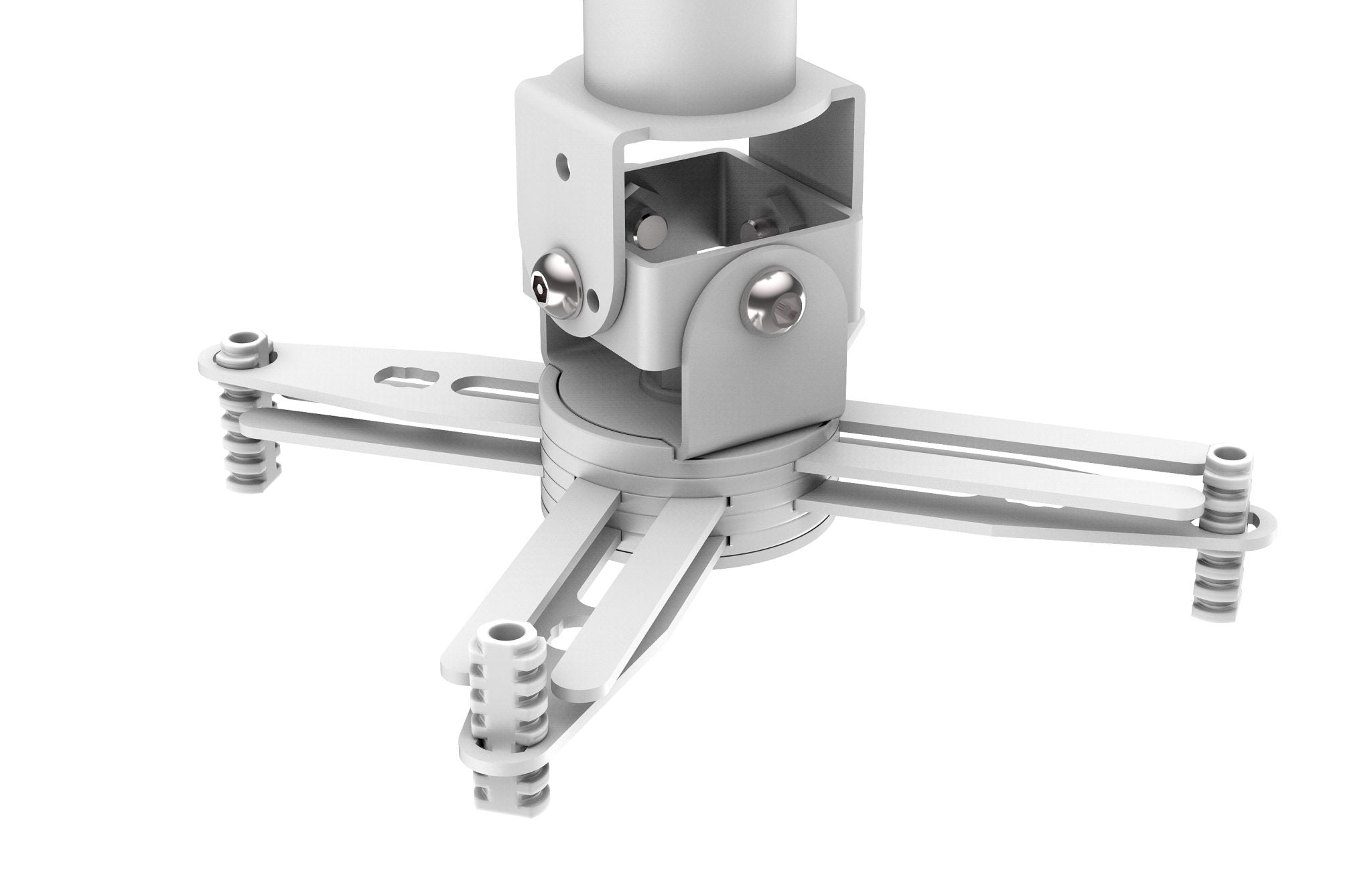

• Easy fit: Fitting the bracket to the projector is simple; most projectors have threaded inserts in the bottom for attachment.
• Obstruction-free Cable Management: Rather than having a bolt that runs through the pipe and blocks cable access, we use our unique quad-bolt ‘chute-through’ system which leaves cable access clear – even for a big VGA connector.
• Tools Included: A spanner and pin-hex key are included.
• Secure: Quick-release mechanisms make life easier for thieves, so the TM-1200 is secure and features security bolts.

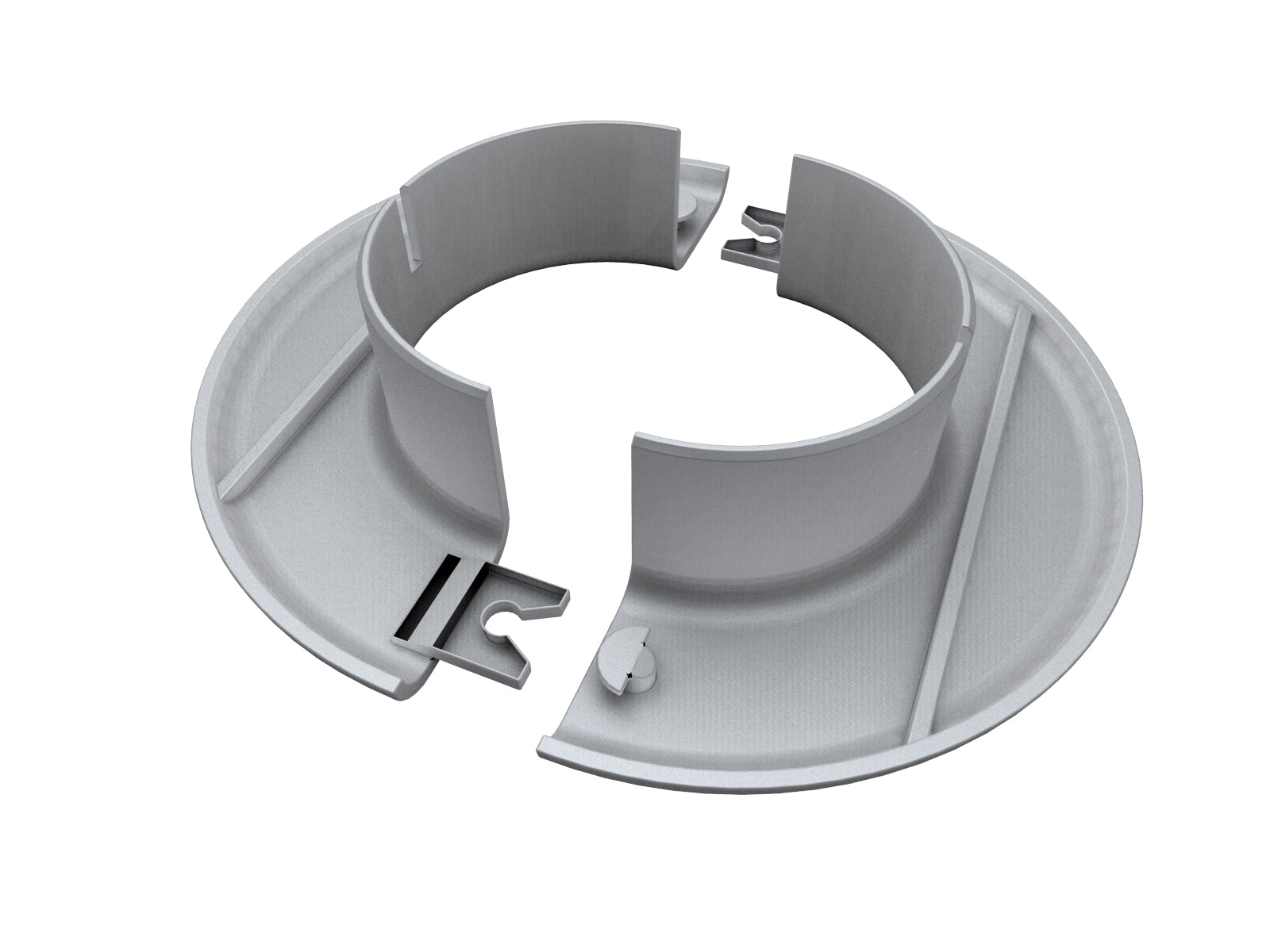

• Finish the job properly!: Enhance aesthetics with the retrofittable trim disk which is fitted in false-ceiling environments to properly finish the installation.

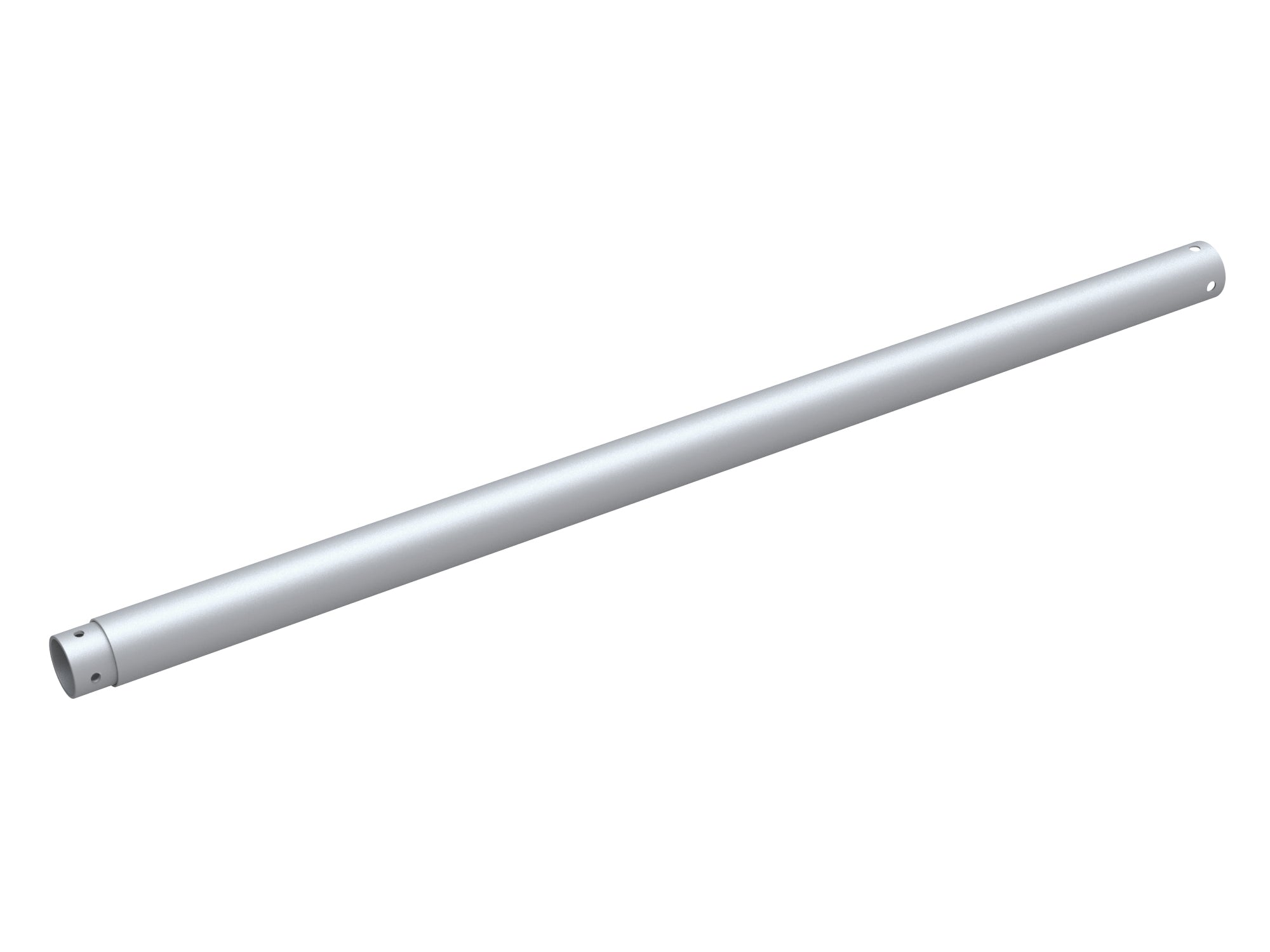

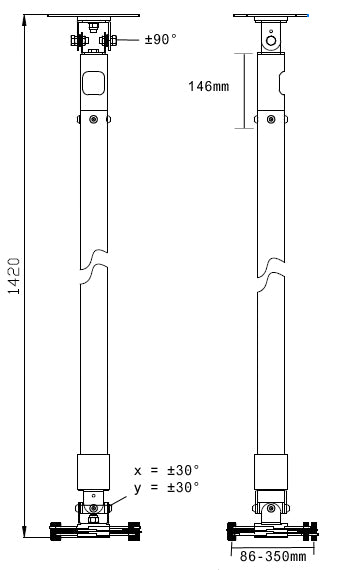

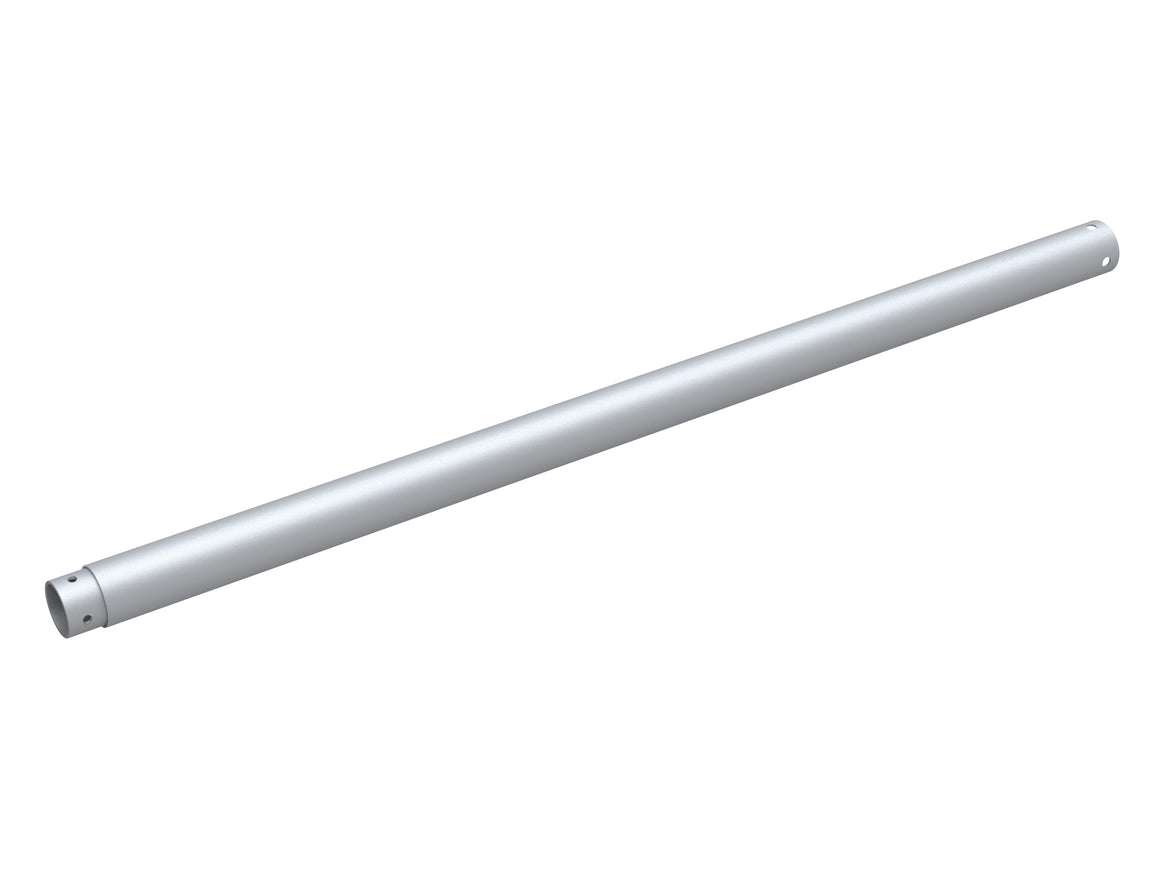

• Projector ceiling mount: Projector ceiling mount with 1.1m pole cut to length onsite (overall length 1420mm / 55.9″)
• All parts included e.g drilling jig,: All parts included e.g drilling jig, cathedral ceiling mechanism, trim disc etc.
• Cables can be routed after assembly: Cables can be routed after assembly

Specifications

What's in the Box

• 1 x H50 Pin-Hex key
• 1 x H50 power drill hex bit
• 1 x 17mm (0.7″) Spanner
• 4 x M3 40mm (1.57″) screws
• 4 x M4 40mm (1.57″) screws
• 4 x M5 40mm (1.57″) screws
• 4 x M6 40mm (1.57″) screws
• 4 x M2.5 40mm (1.57″) pan slot for Optoma and Acer

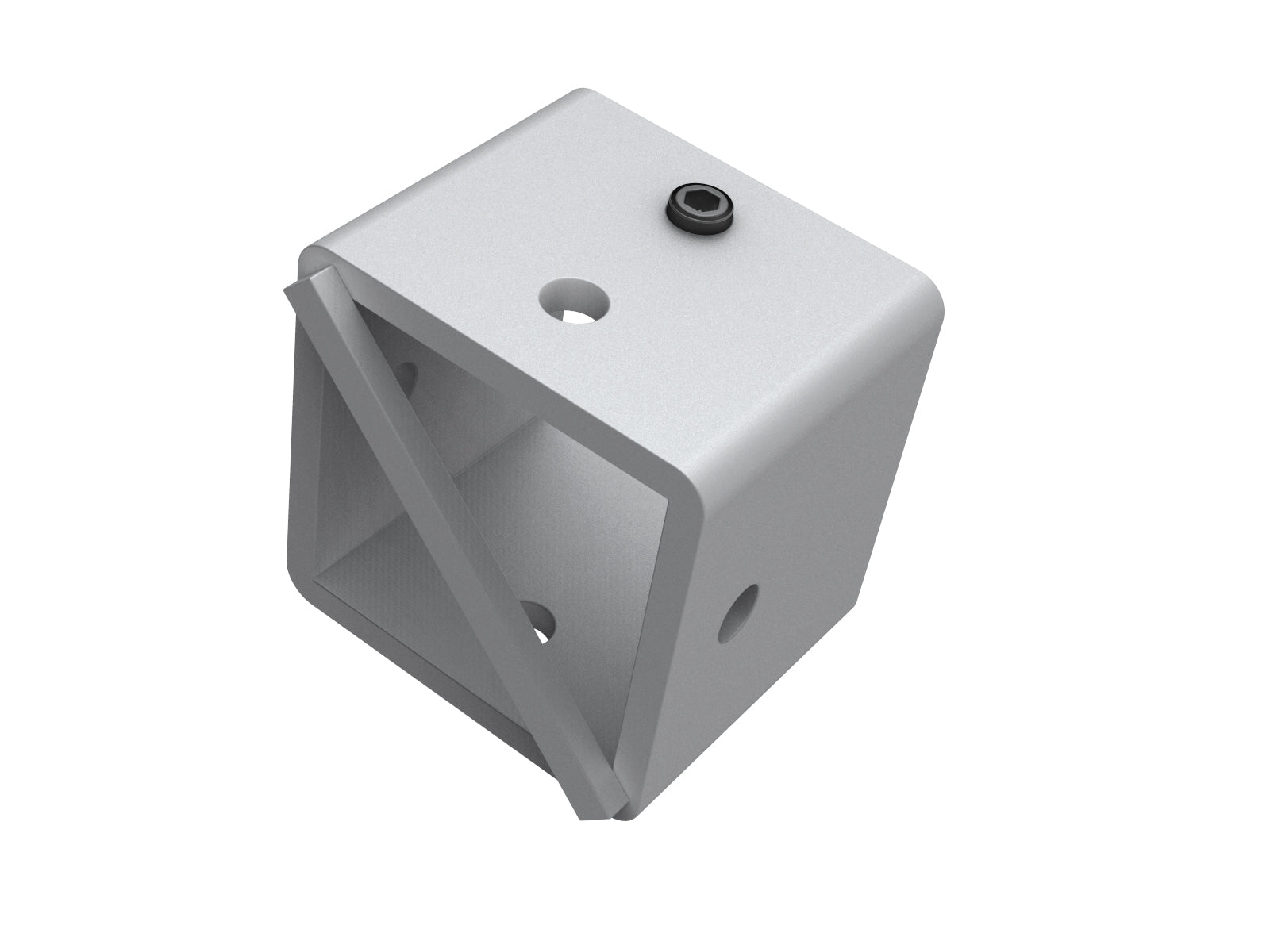

• 1 x Drilling Jig
• 1 x Safety Tether
• 1 x Ceiling Trim Disc

Warranty

The Vision Universal Projector Ceiling Mount is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
