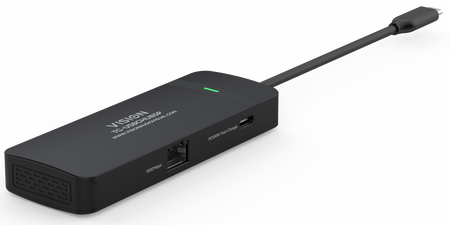

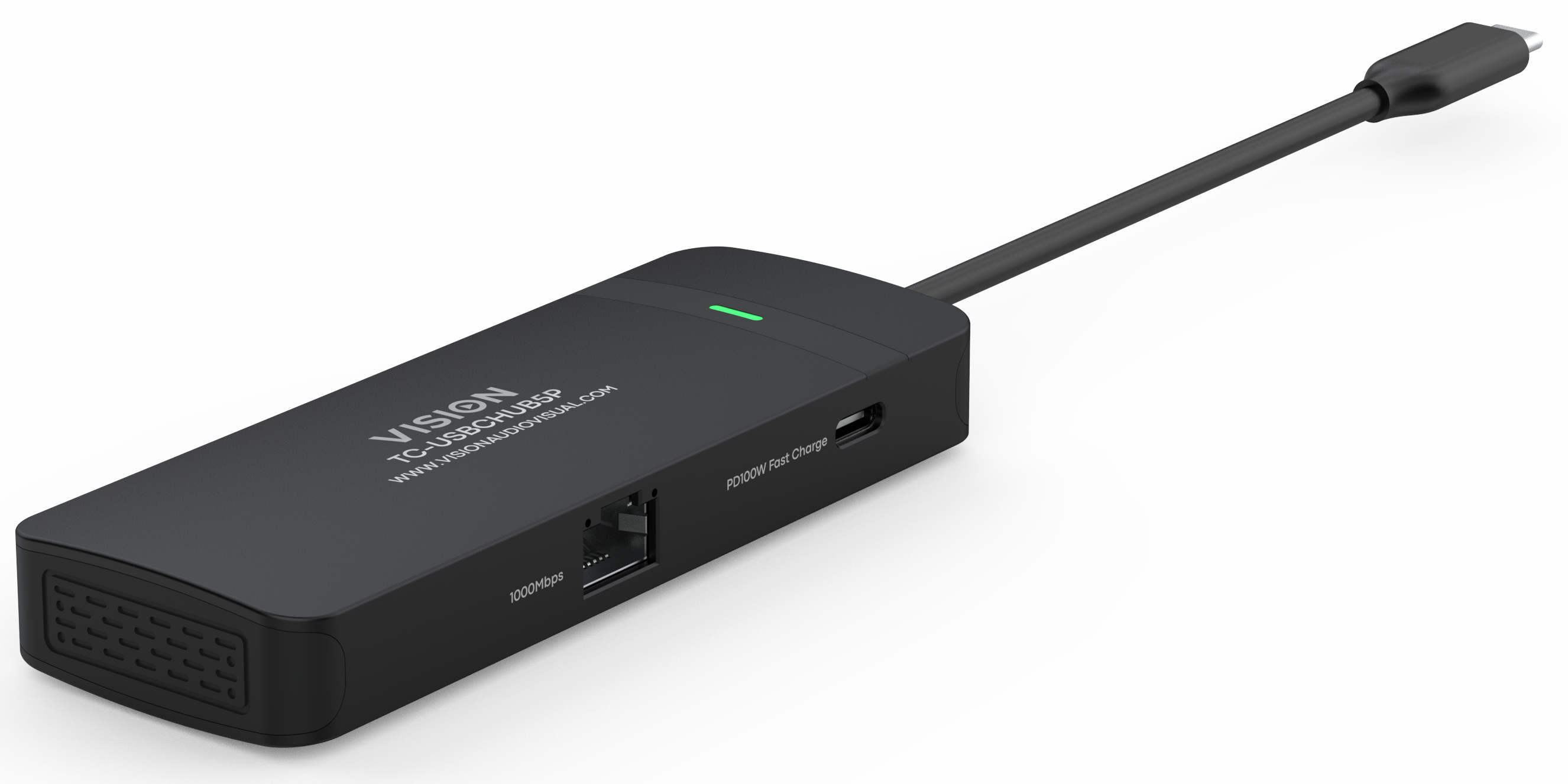

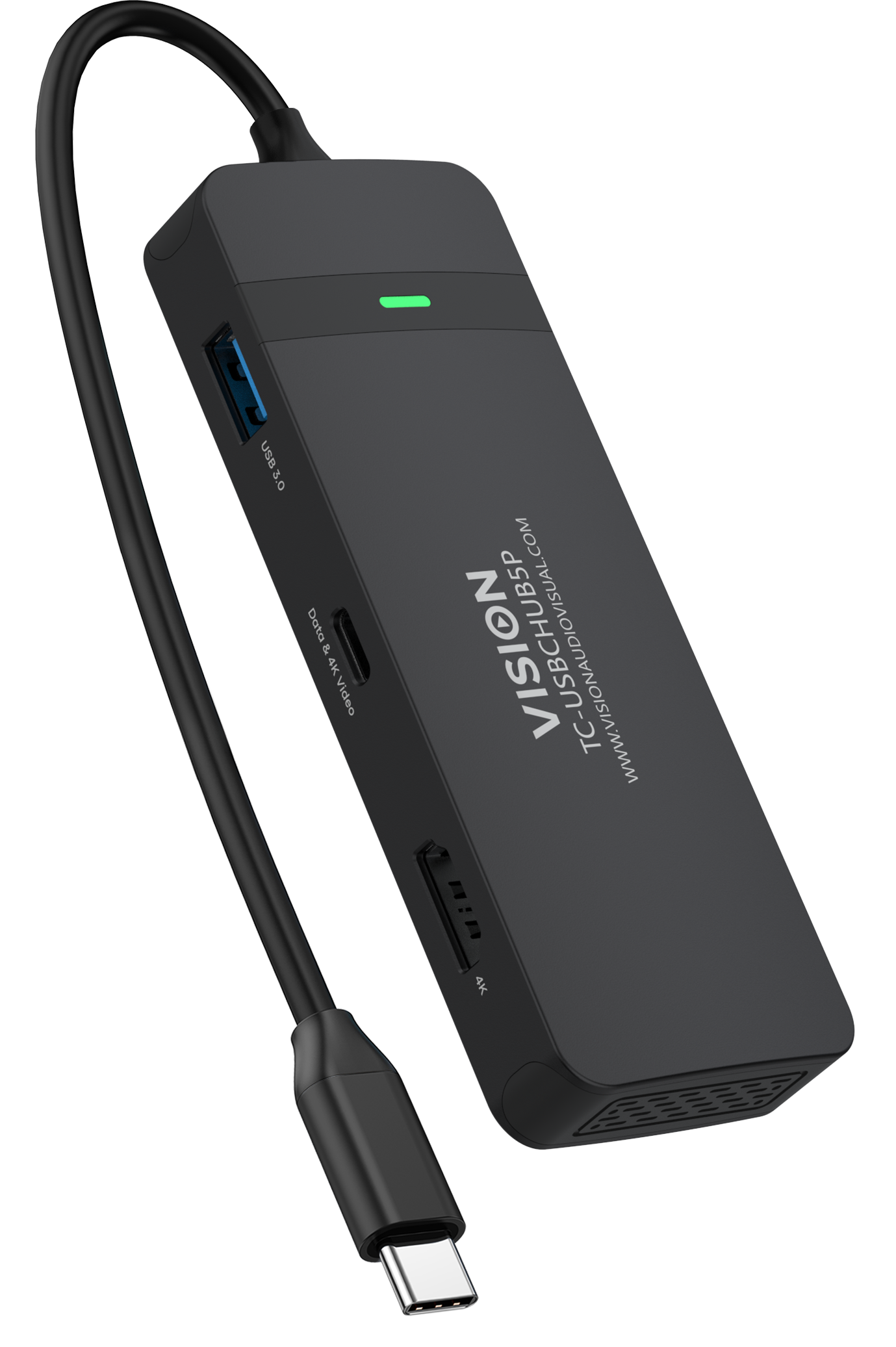

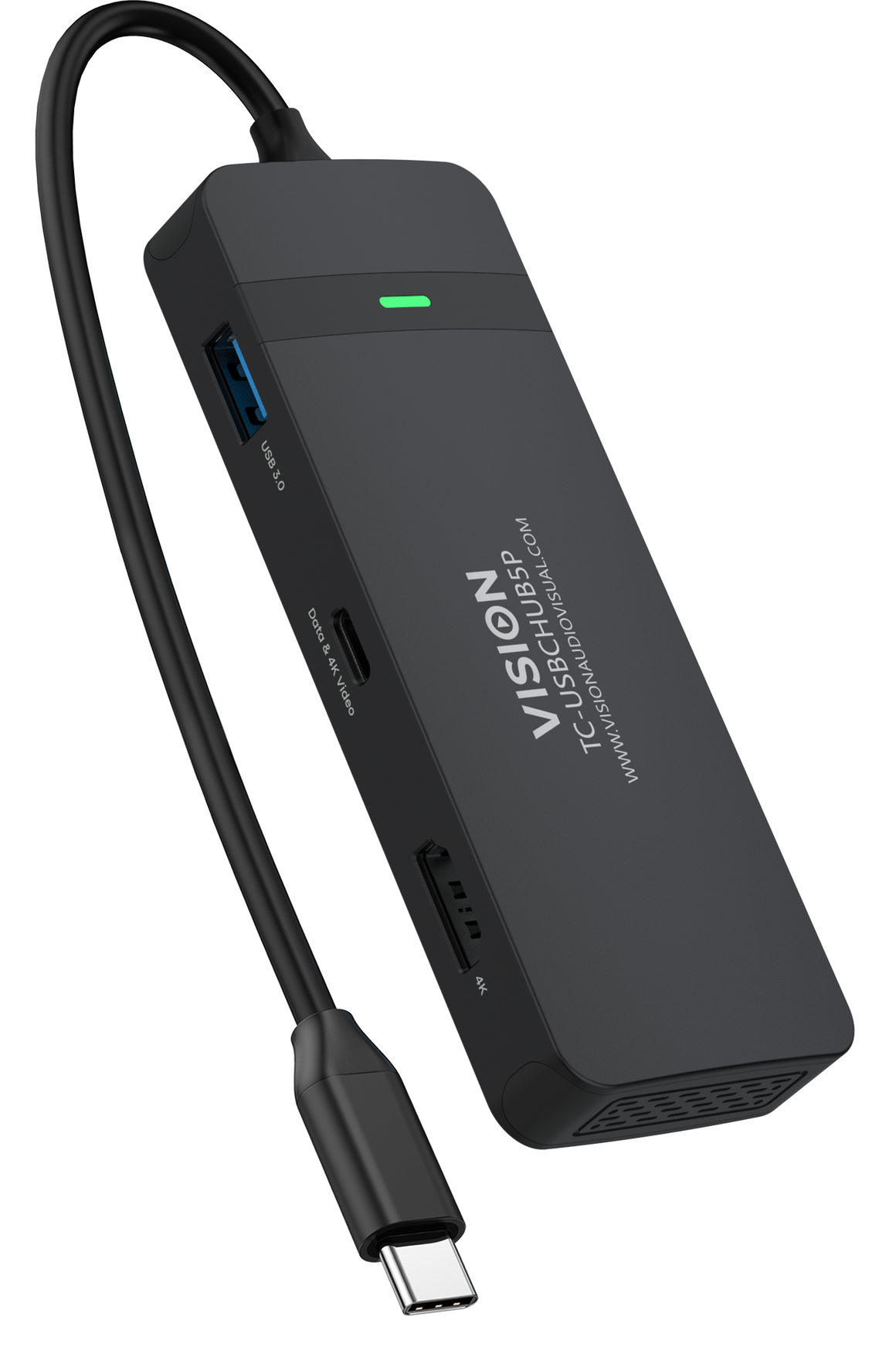

Vision USB-C Multiport Hub
USB-C Multiport Hub
In stock
Regular price
£59.65
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Vision USB-C Multiport Hub address the port limitations of modern laptops with this 5-in-1 multiport KVM adapter, enabling 4K60Hz HDMI video, USB-A, Gigabit Ethernet, and 100W Power Delivery Pass-Through, all via a single USB-C connection. If you rely on a single USB-C port, this compact travel docking station provides all the connectivity you need.
Key Features
- USB Connectivity: This USB-C mini dock has a 30 cm (12") cable, offering generous reach and removing connector strain - especially good for laptops placed on stands that raise them up.
- Enterprise Deployment: This multiport adapter is the preferred choice for professional IT integrators. It is rigorously tested to ensure enterprise-grade reliability and cross-platform compatibility, and it is built to support large-scale deployments.
- Video Resolution Support: 1 x HDMI 4K at 60 Hz
- Network Connectivity: 1 x RJ45 Ethernet 1000 Mbps
- Power Delivery: 1 x USB-C with 100W Power Delivery Pass-Through
- Colour: Black
- High-Speed Data Transfer: 30 cm cable with male USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
- Environmental: Operating Temperature 0 ℃ to +70℃ Storage Temperature -10 ℃ to +55℃ Humidity 5% to 90 % RH (no condensation)
- Chipset: TBC
- Compatibility: macOS - all from High Sierra (10.13) on Windows - all from 8 on Chrome OS iPadOS Android
Specifications

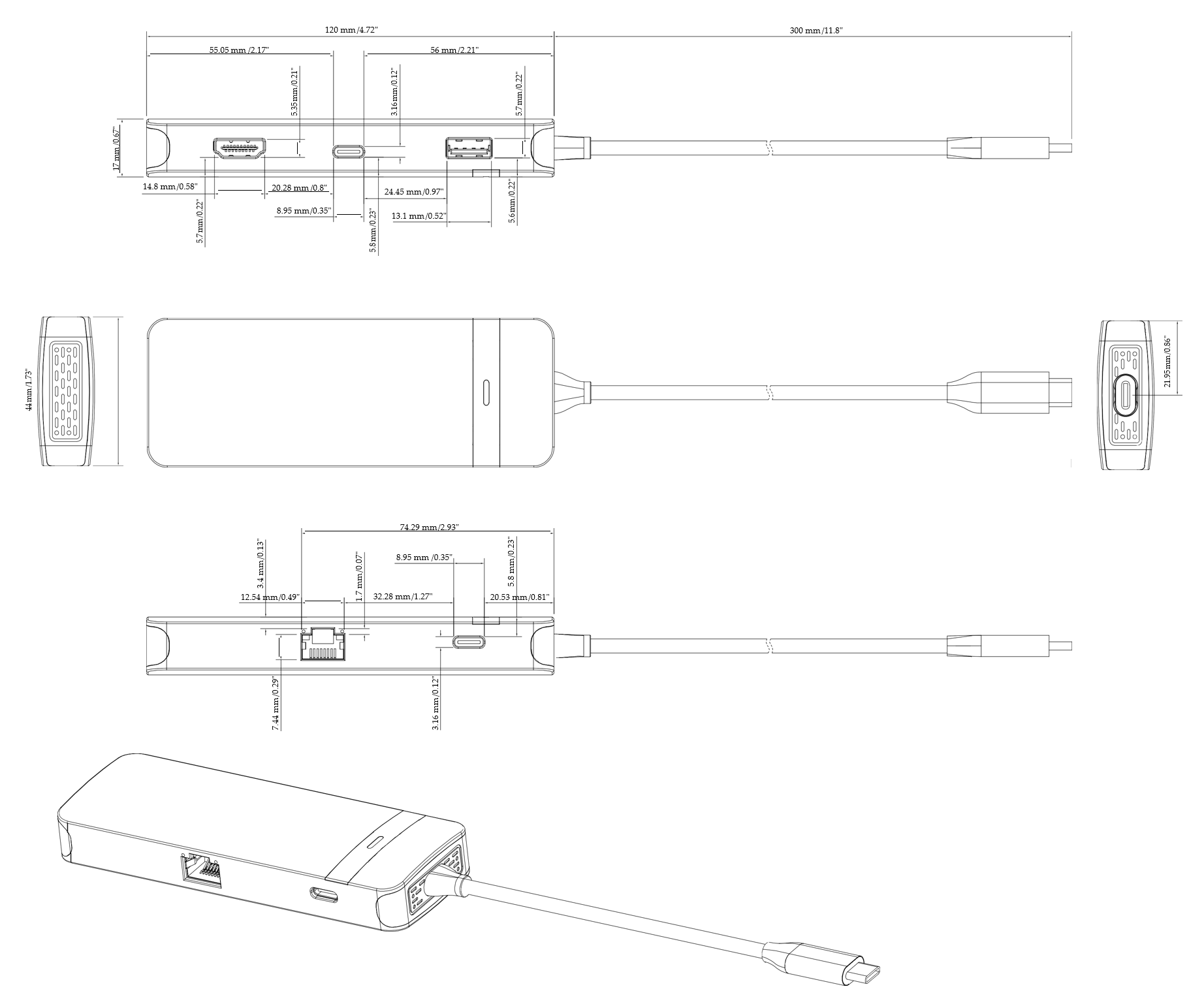

| Enclosure Dimensions | 121 x 44 x 18 mm (4.7″ x 1.7” x 0.7″) |
| Product Weight | 85 g (0.2 lb) |
| Packaged Weight | 0.1 kg (0.2 lb) |
| Packaged Dimensions | 170 x 80 x 24 mm (6.7" x 3.1" x 0.9") |
| Colour | Black |
| Compliance | RoHS, CE, EMC, LVD, RCM, RCM_SDOC, IC, FCC |
| Input | 30 cm cable with male USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) |
| Ports | 1 x HDMI (4k at 60 Hz) 1 x USB 3.2 Type-A (Gen 1, 5Gbps) 1 x USB Type-C PD100 Fast Charge Power Delivery 100w - for power only 1 x USB Type-C Data and Video (4k at 60 Hz) 5 Gbps 1 x RJ45 Gigabit Ethernet 1000Mbps Note: the laptop's port must support "DP alt mode" to support video over USB-C |
| Environmental | Operating Temperature 0 ℃ to +70℃ Storage Temperature -10 ℃ to +55℃ Humidity 5% to 90 % RH (no condensation) |
| Hardware | Displays Supported: 1 Fast-Charge USB-C Port: Yes Interface: USB 3.2 Gen 1 USB Pass-Through: Yes Bus Type: USB-C Ports: 5 |
| Chipset | TBC |
| Compatibility | macOS - all from High Sierra (10.13) on Windows - all from 8 on Chrome OS iPadOS Android |
| Power | Power Source: Bus Powered Host USB-C Power Delivery: 100W Output Voltage: 5 DC Power Consumption: 12W |
| Country of origin | China |
Warranty
The Vision USB-C Multiport Hub is backed by Limited Lifetime, providing cover for professional and commercial deployments.
Application Examples
| Structured AV Cabling | Useful for Techconnect and installed cabling projects where consistent cable specification and presentation are important. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
