Vision Video Wall Mount VESA 600x400
Video Wall Mount VESA 600x400
In stock
Regular price
£201.51
Secure Checkout
Warranty Protection
Hassle-Free Returns

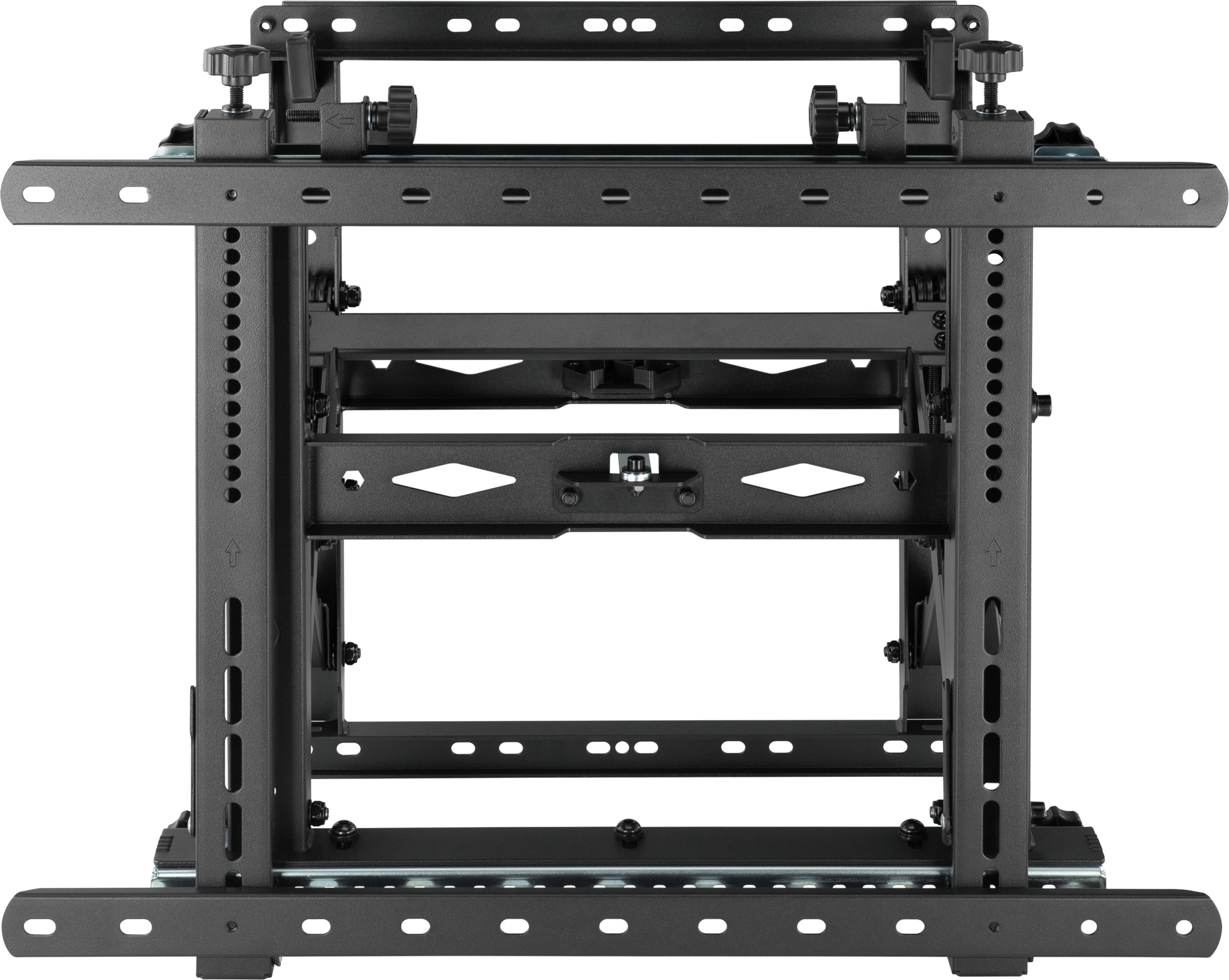

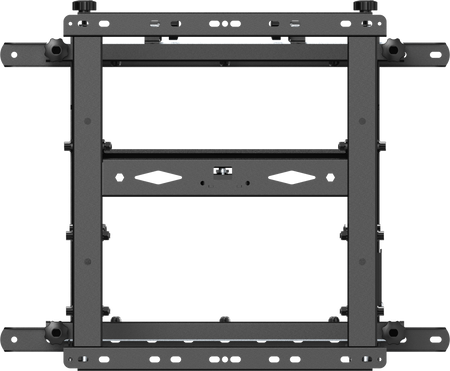

The Vision Video Wall Mount VESA 600x400 aligning displays on a video wall is painstaking, so every detail has been thought about on this mount to ensure it is as fast as possible to install, and as easy as possible to adjust with precision. This is a full service video wall mount with tool-free micro adjustment and easy access to the rear of the display for serviceability.
Key Features
- Landscape or Portrait: This mount supports displays in either portrait or landscape. In portrait format the display must be more than 650 mm wide and must be VESA 400 x 400 mm or less.
- Minimal Tools: Wherever possible Vision uses thumbscrews which dramatically speed up installation and help with faster adjustment. The adjustment dials on this product can be turned easily by hand.
- Display Fixing Screws: Vision include more screw sizes than other manufacturers to ensure you get that display on the wall as quickly as possible every time.

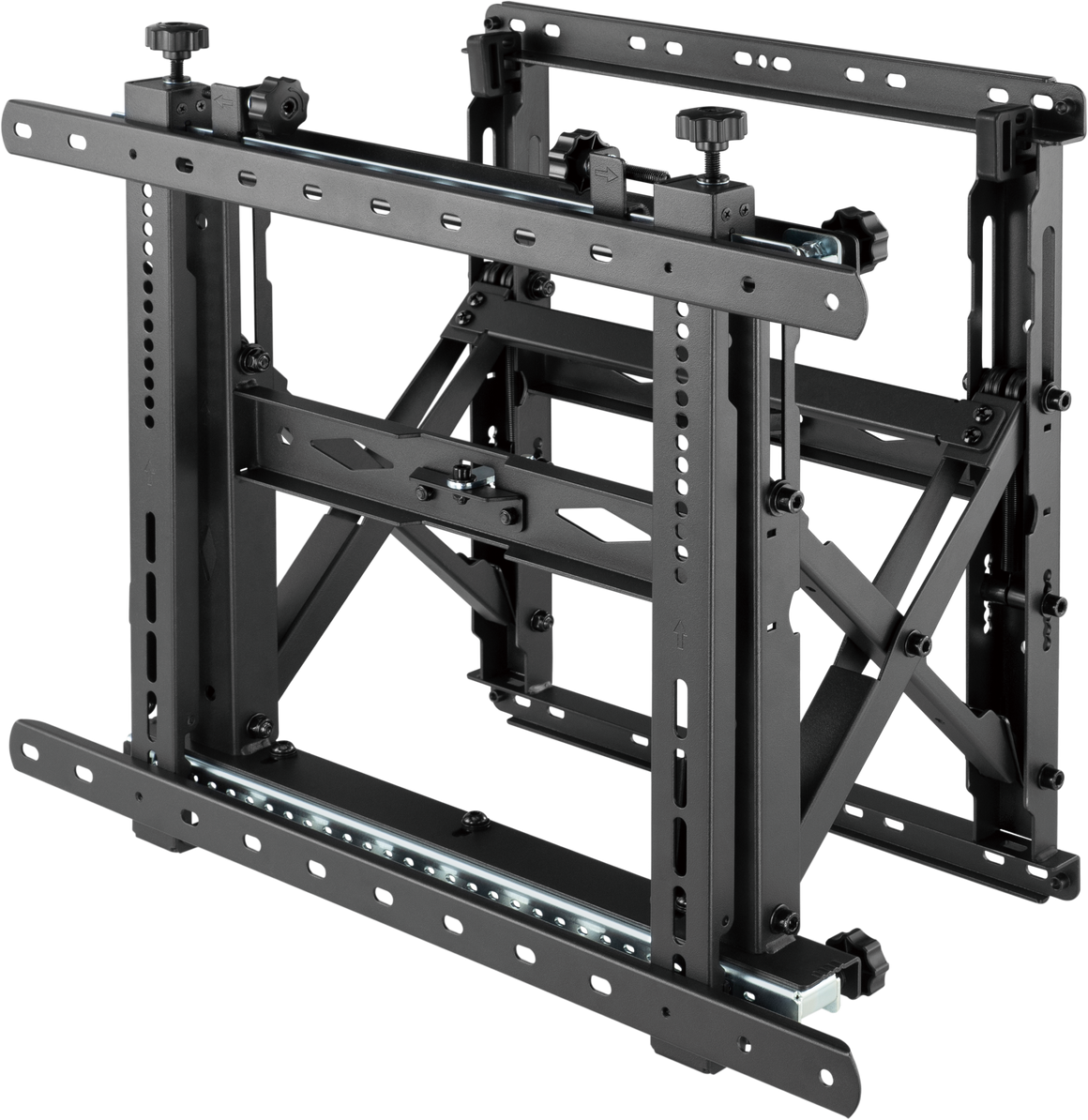

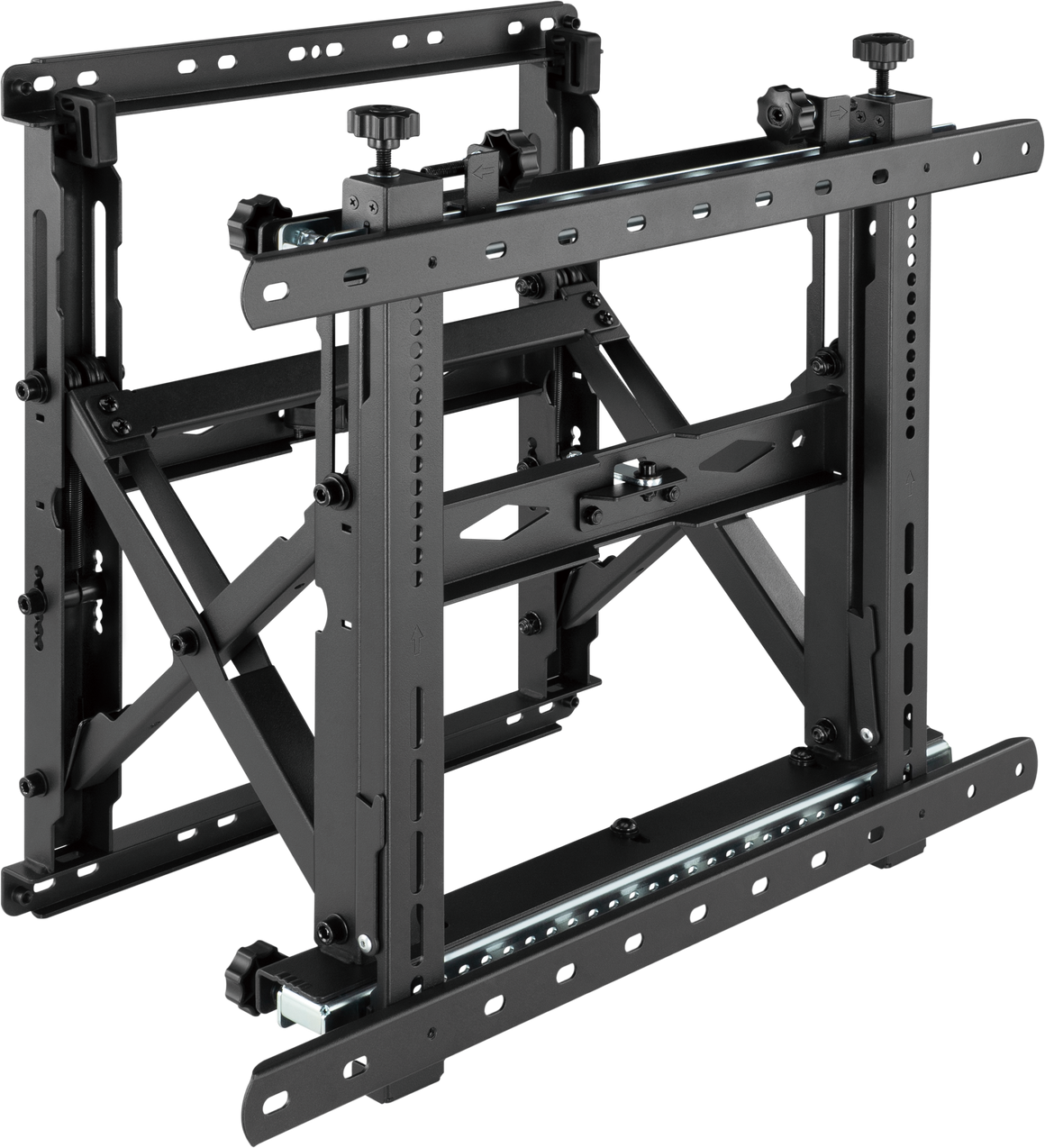

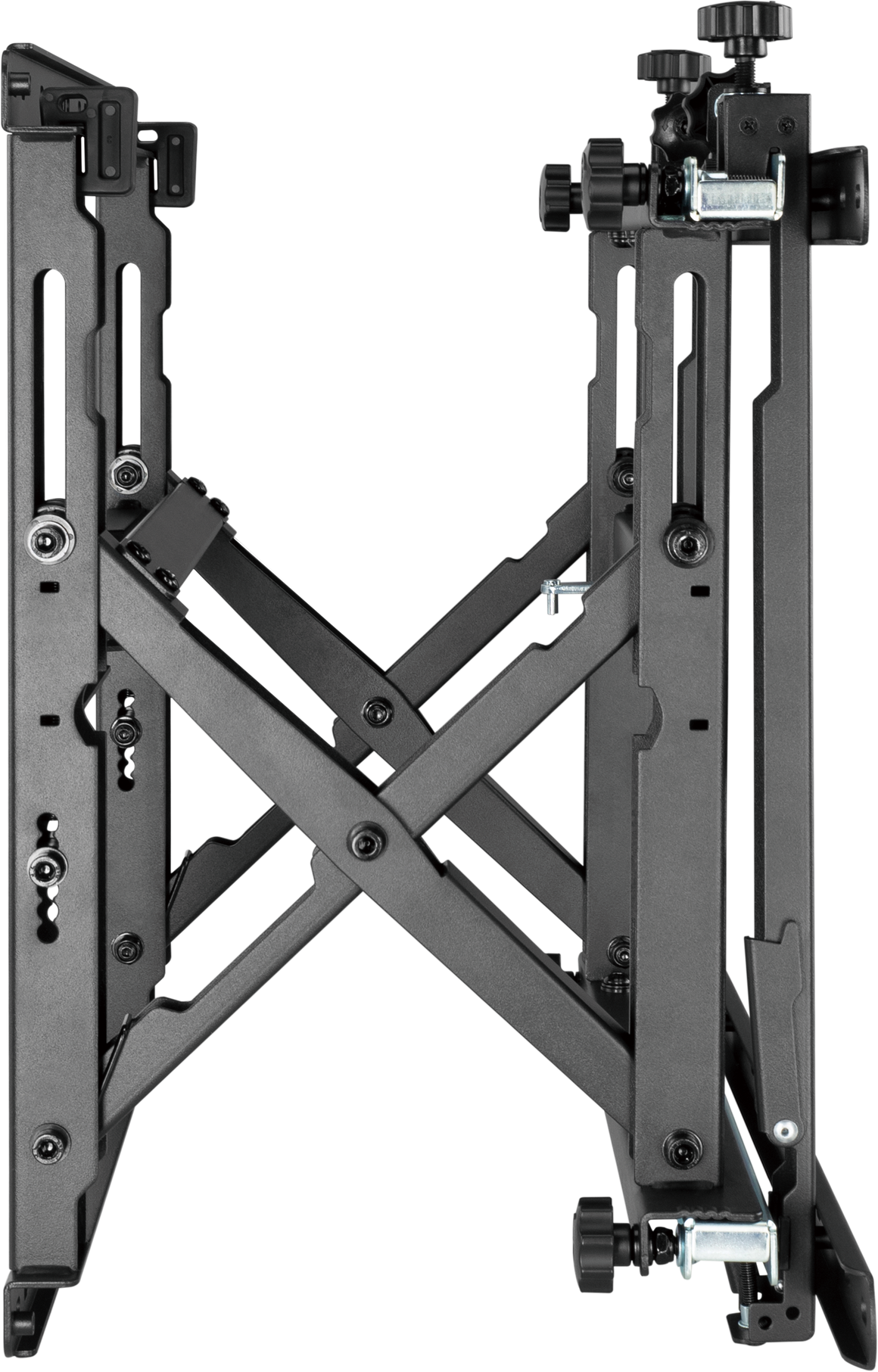

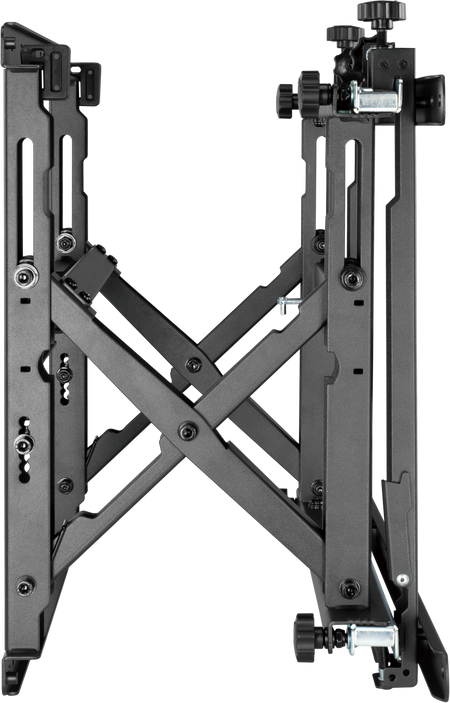

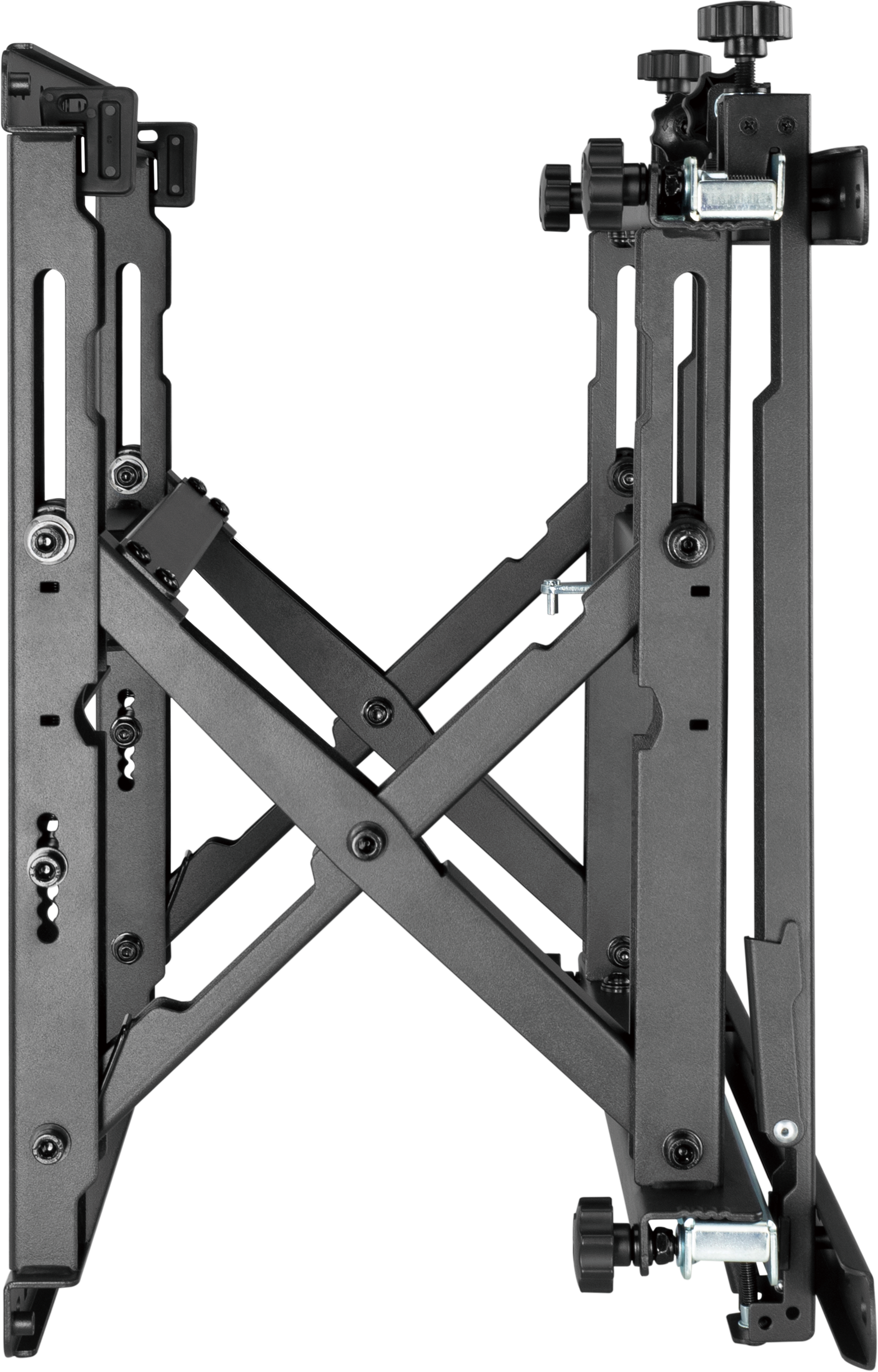

- Pop-out Quick-Release: A light push on the display releases the scissor pop-out mechanism, pushing the display out towards you. Plastic tongues are included which are put into place once you are done to avoid accidental pop-outs.

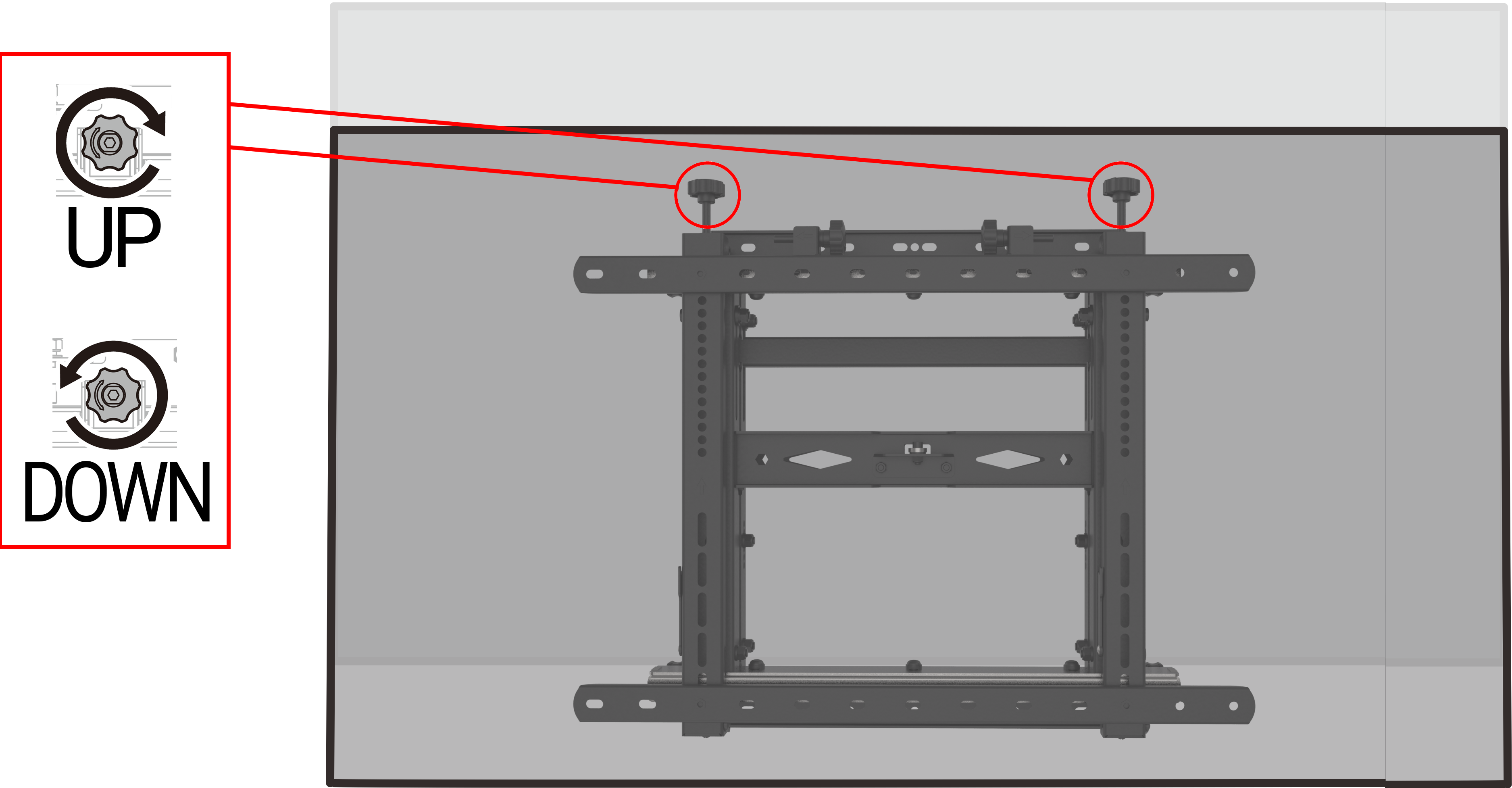

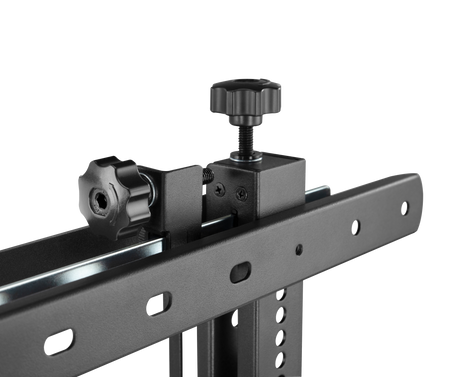

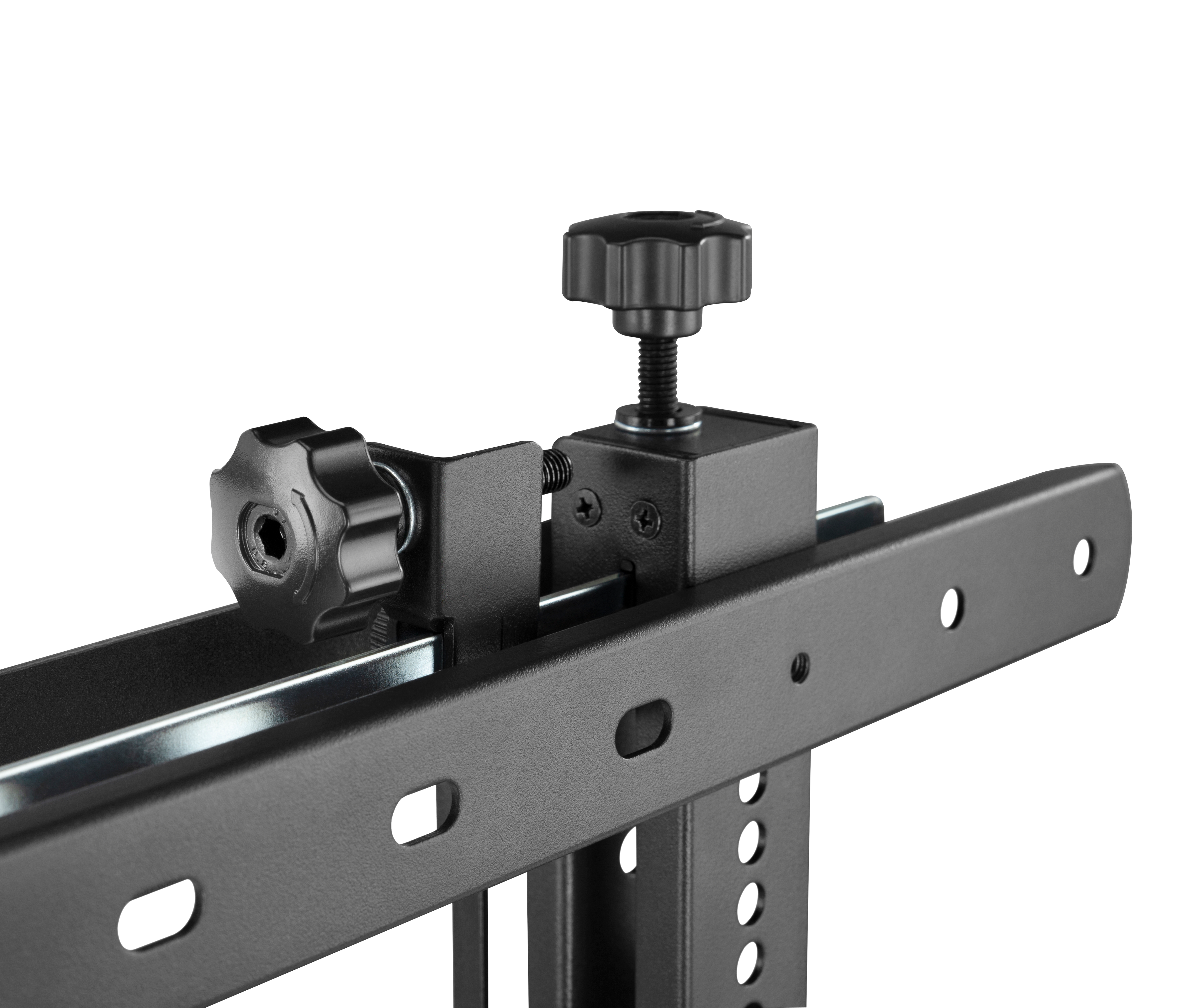

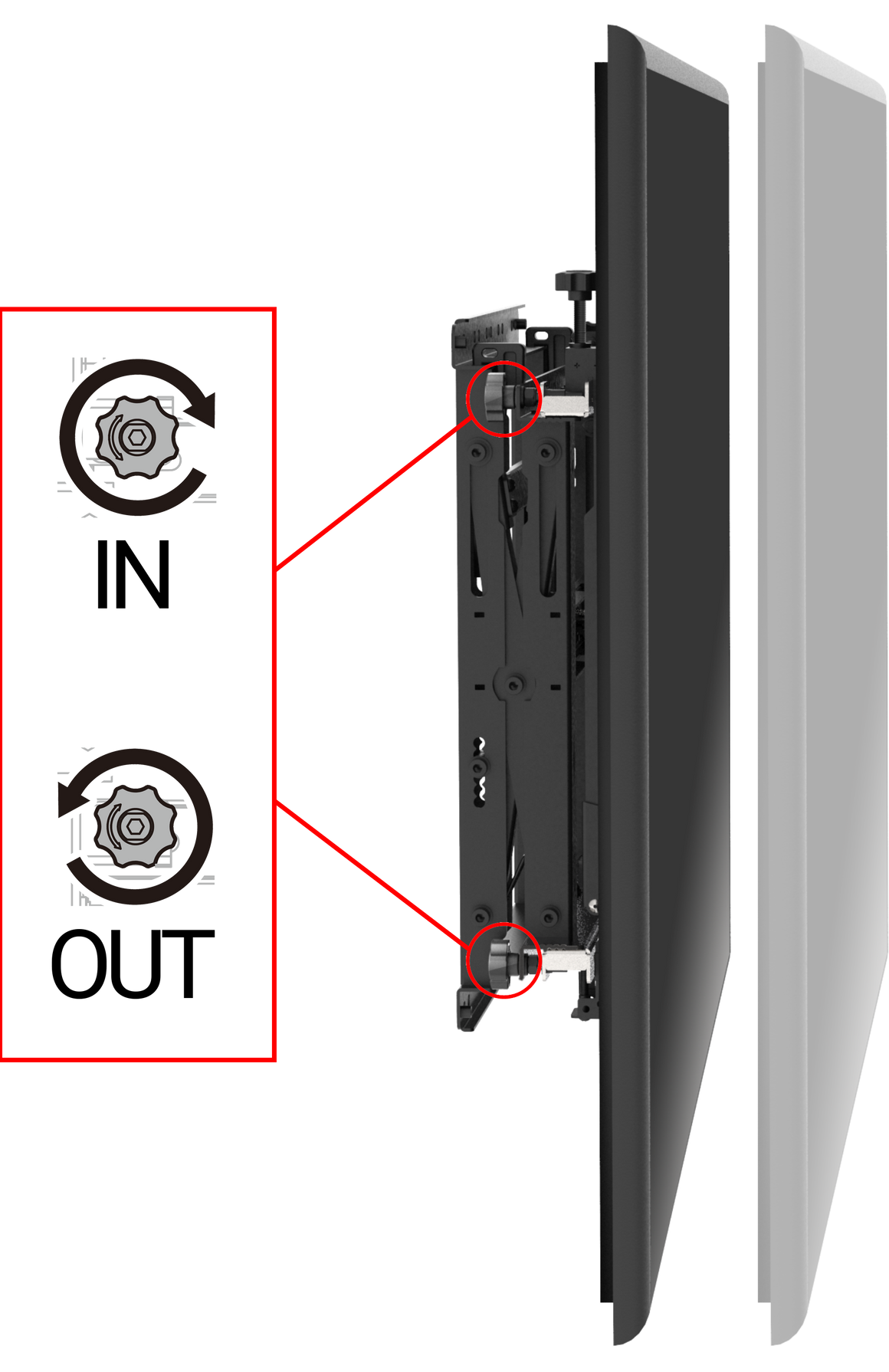

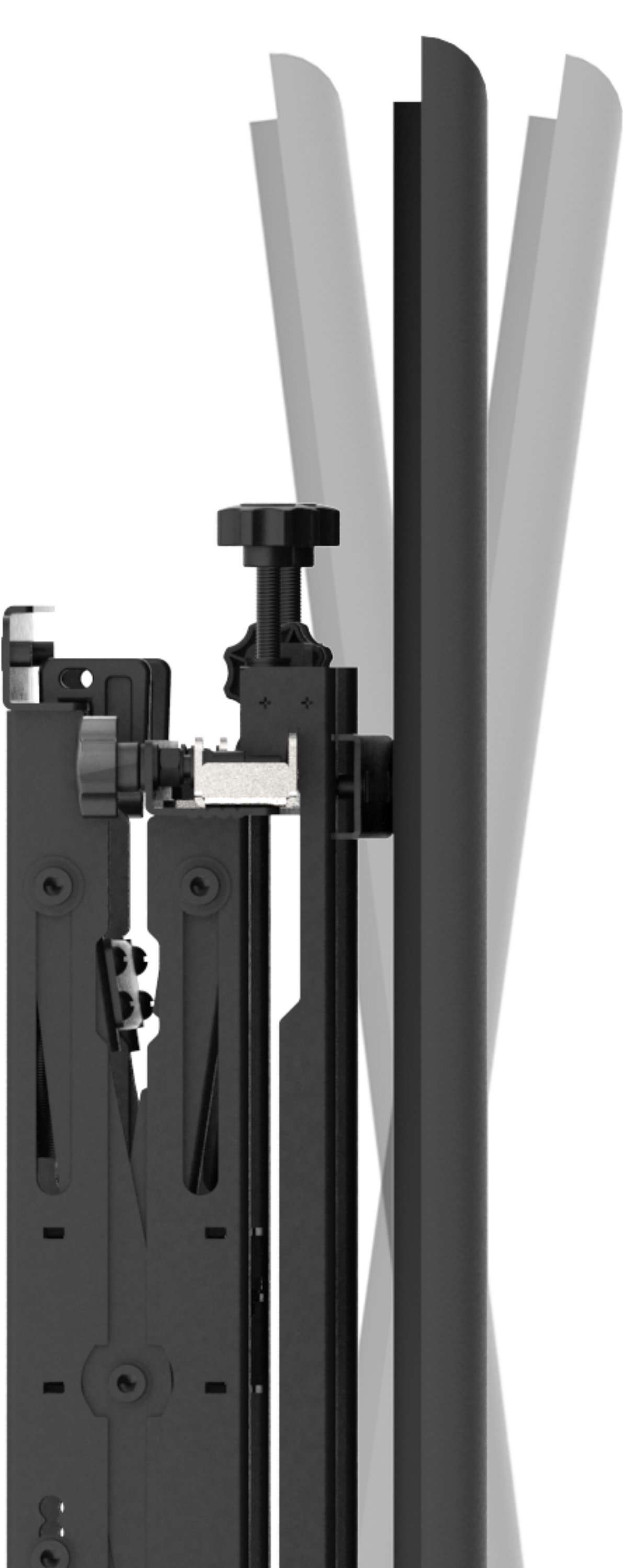

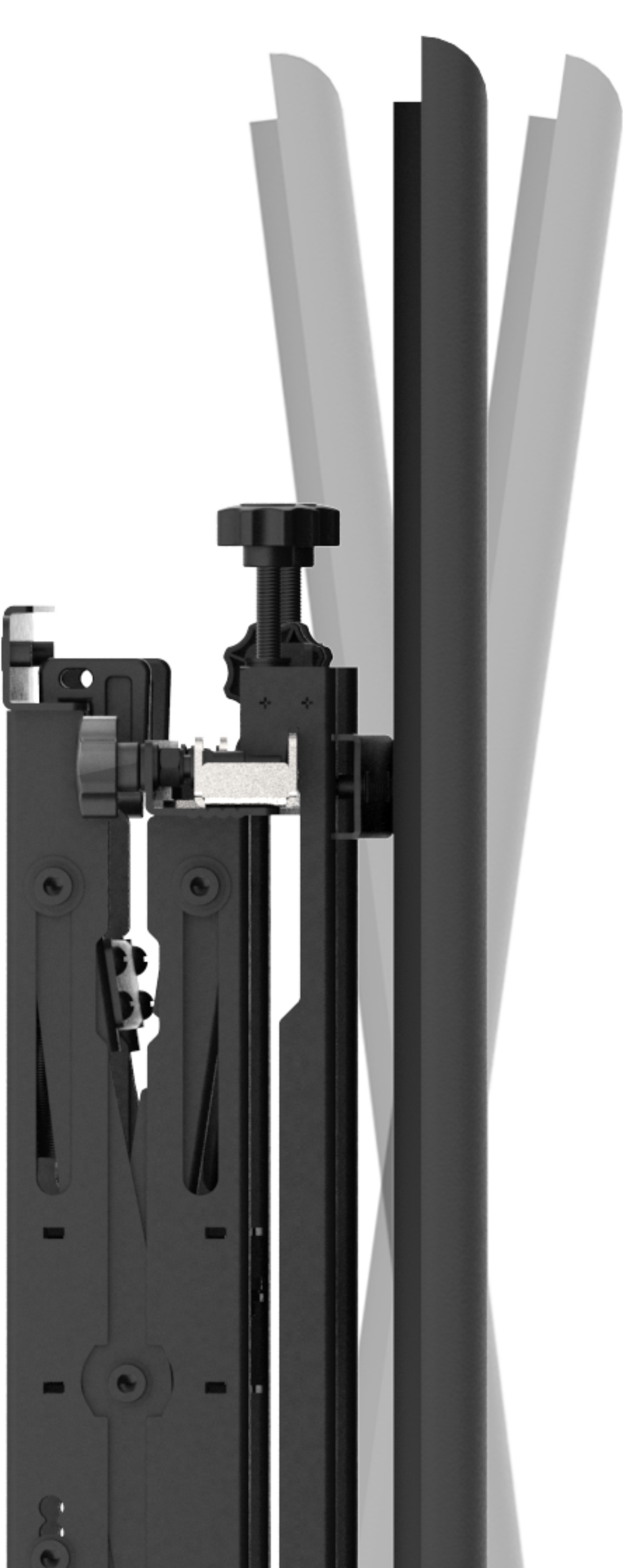

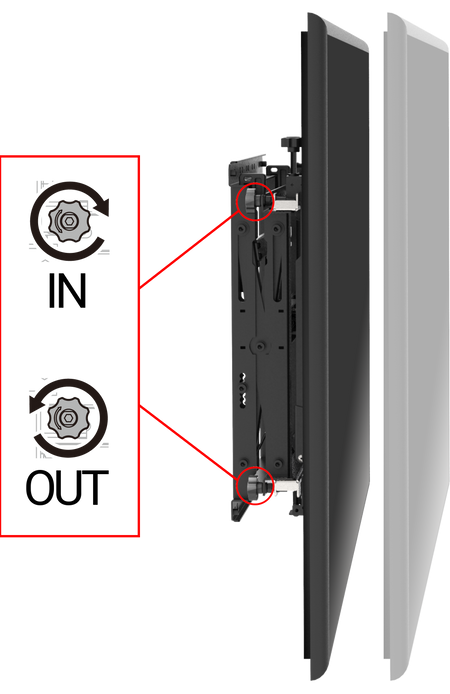

- Adjustment Planes: Using the easy hand-adjustable plastic dials you can adjust tilt (-3° to 2°), rotation, height, and depth. For speed you can also use a hex bit in a power drill to turn these.
- 45-86″ displays: Fits any flat-panel LCD or LED screen which has rear mounting holes up to 600 wide x 400mm tall apart.

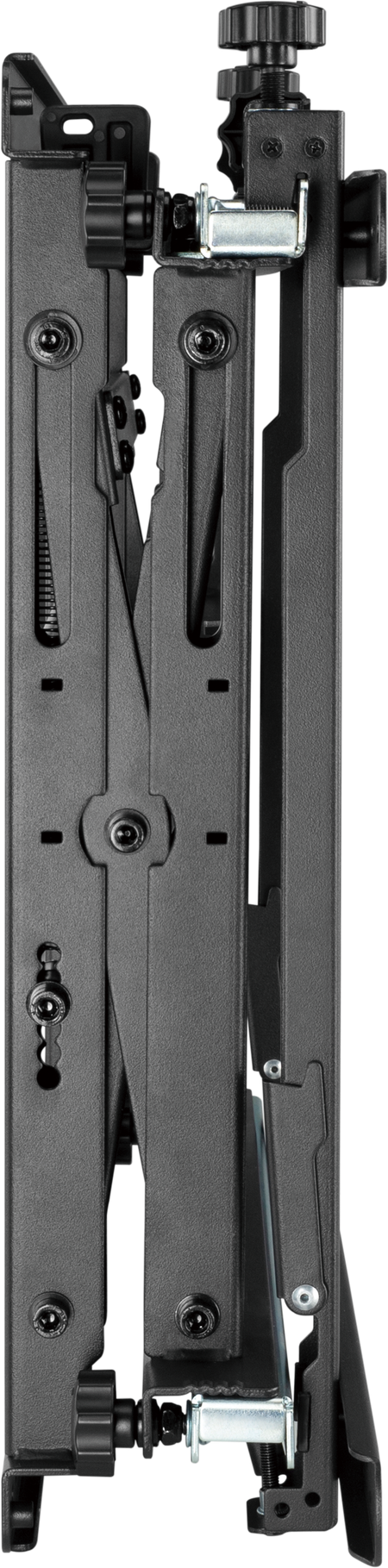

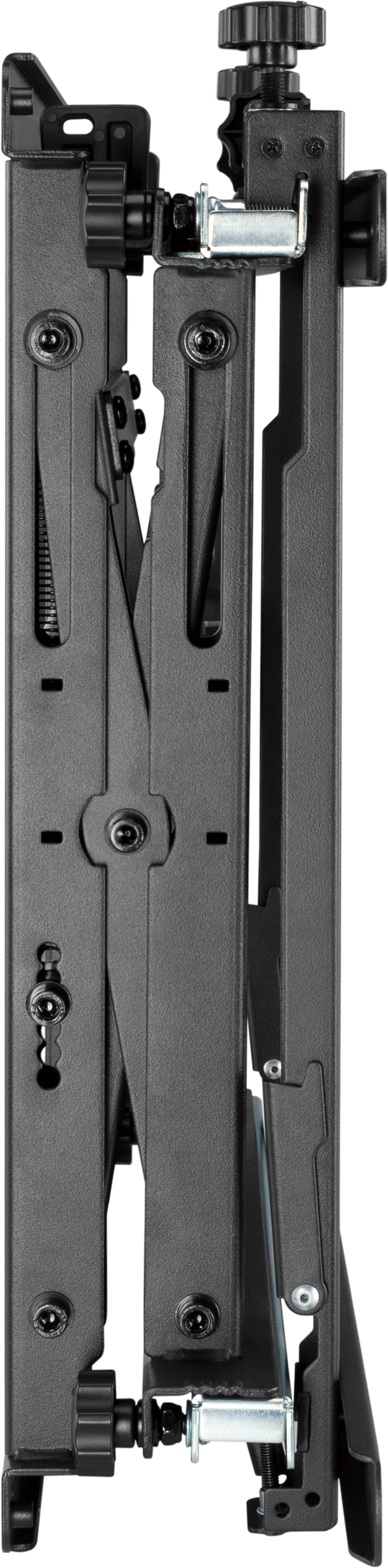

- Depth: The minimum depth in place is 120 mm, and when it pops out it comes out 325 mm.

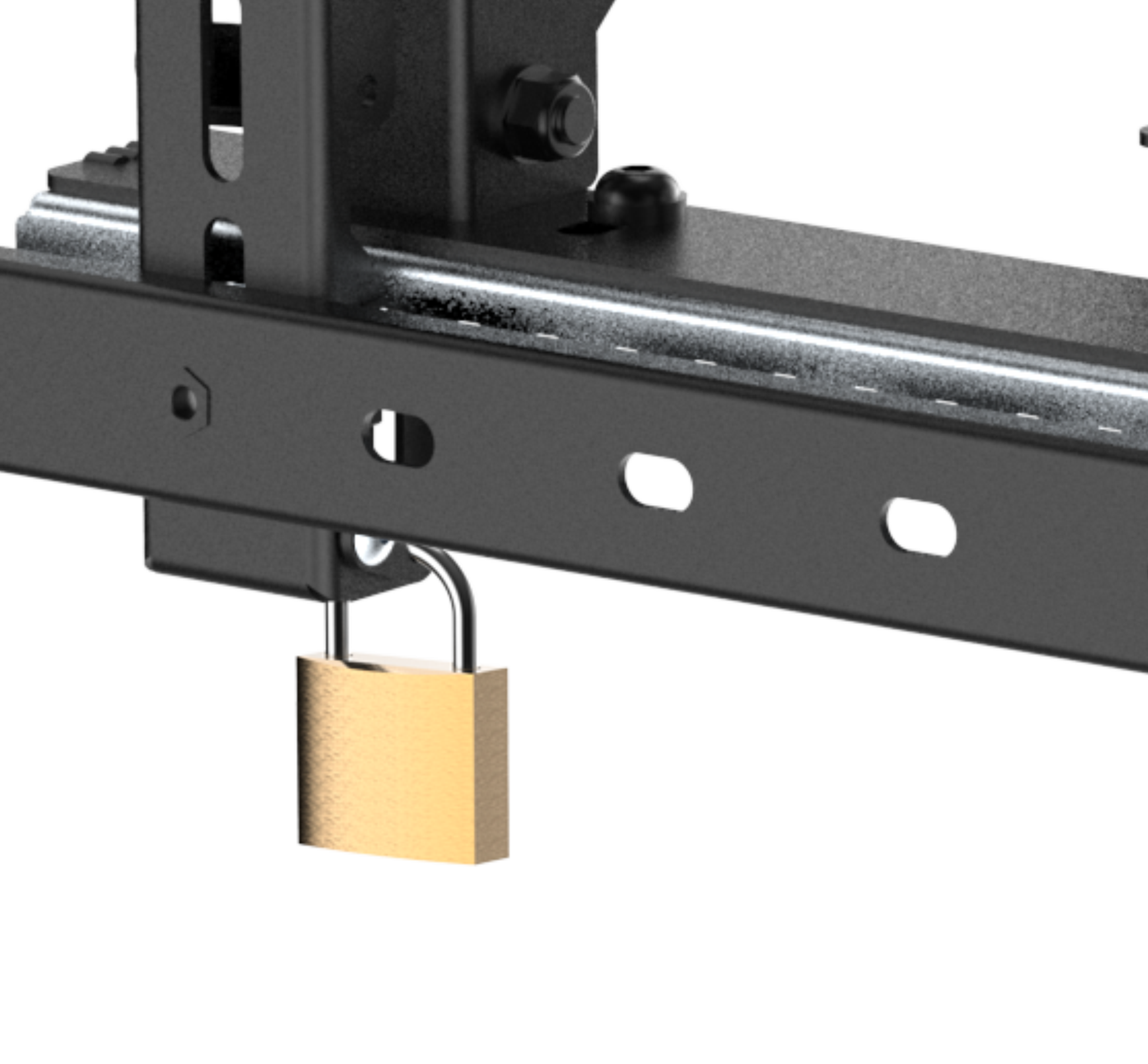

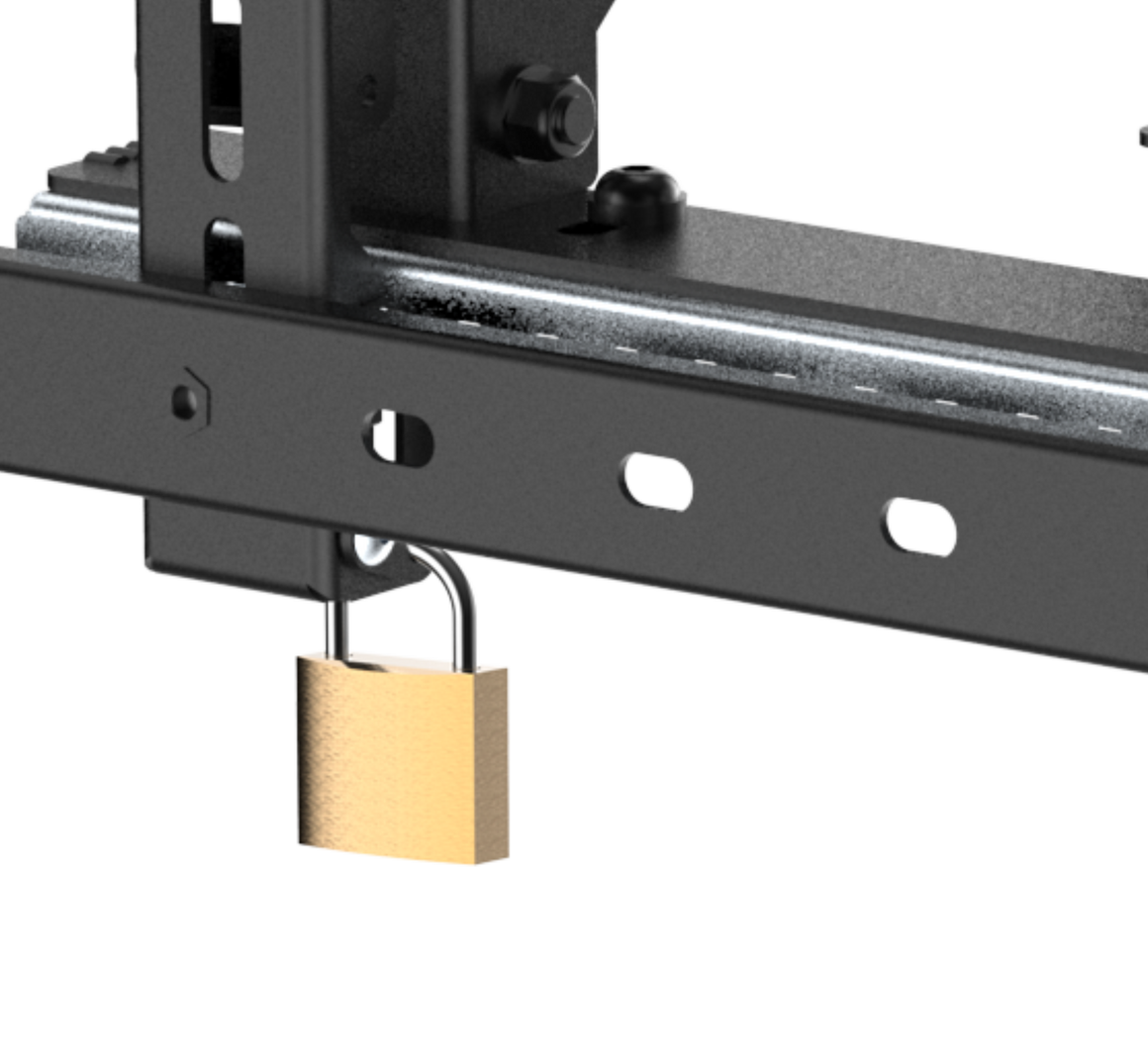

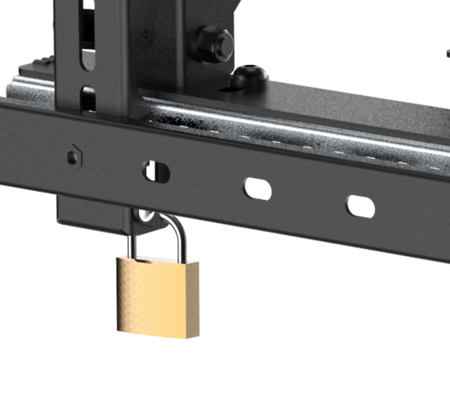

- Lockable: It latches into place and can be locked with a padlock (not included) for further security.

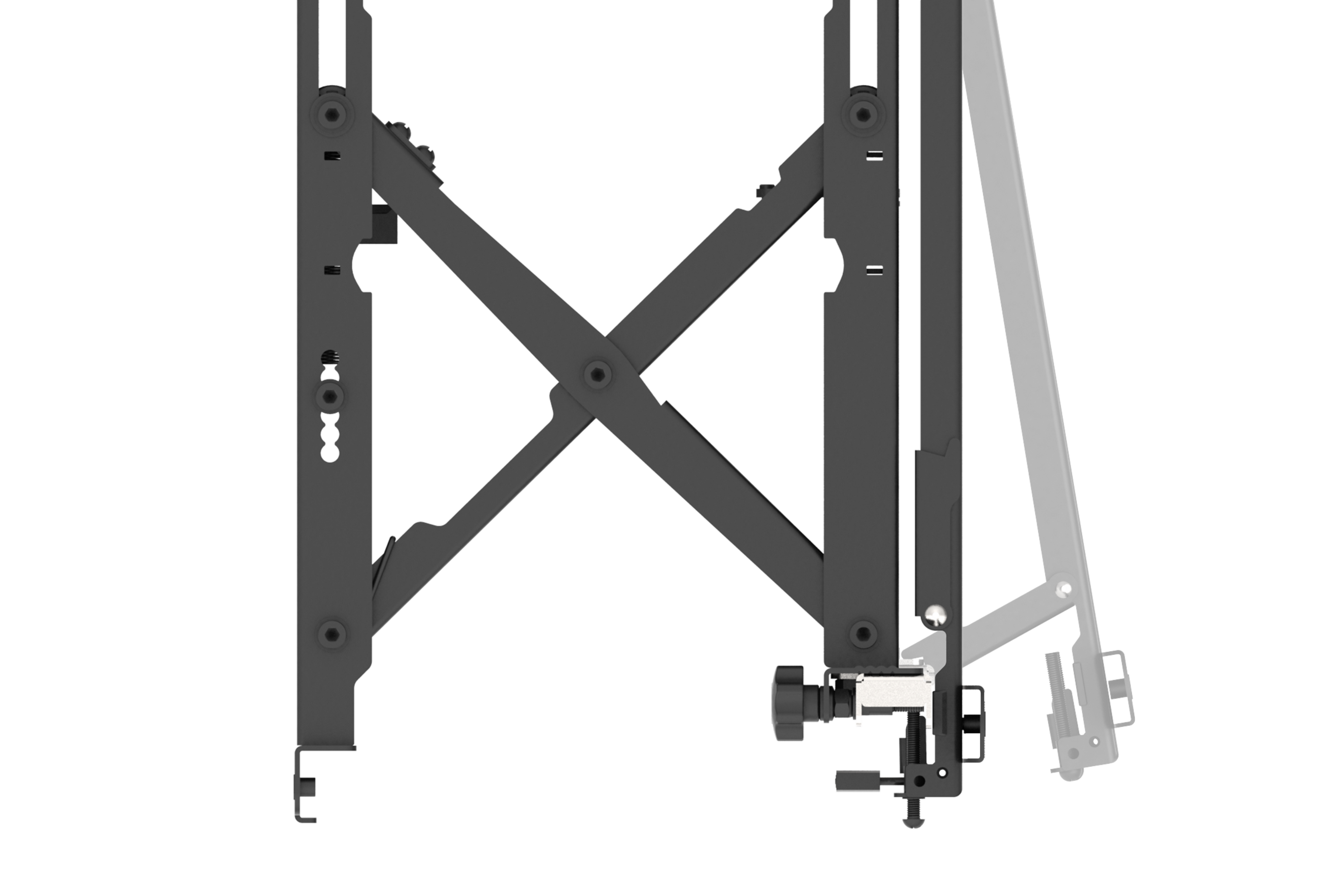

- Kickstand: With the display popped out, you can then pull the bottom of the display out to make access to cable ports even easier. A kickstand holds it at 10° while you work on it.
- Wall Mount: Wall Mount for displays with mounting points up to 600 x 400mm apart
Specifications

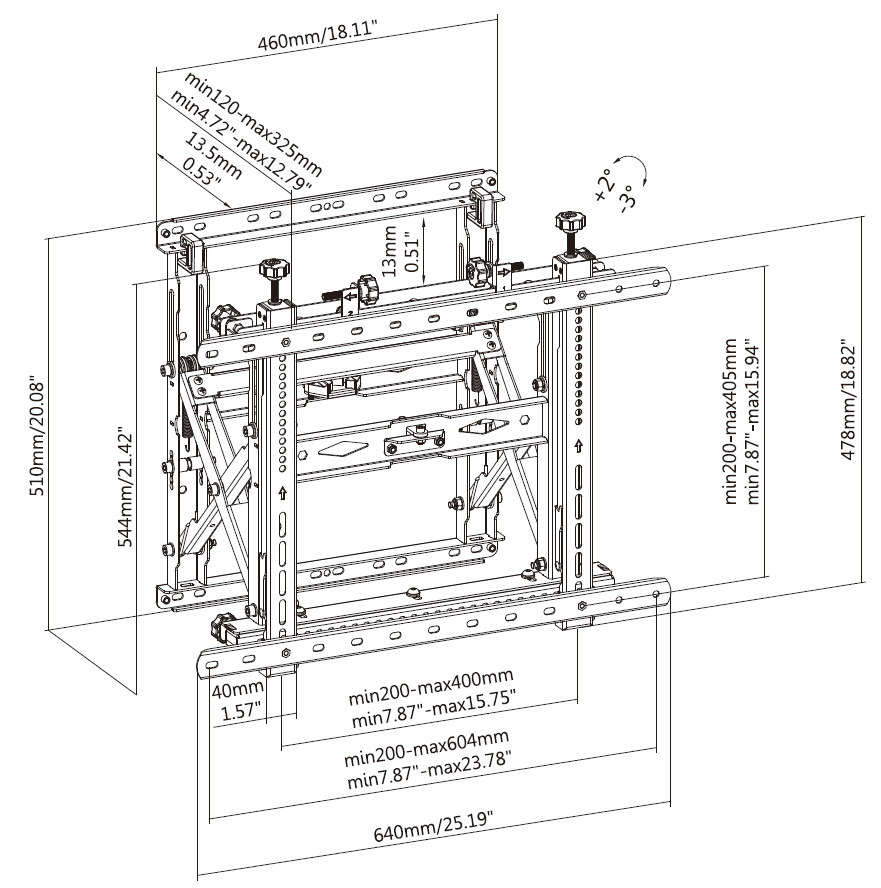

| Product Dimensions | 640 x 544 x 120~325mm (height x width x depth) |
| Packaged Dimensions | 585 x 566 x 135 mm |
| Product Weight | 13.2kg |
| Packaged Weight | 15.1 kg |
| Safe Working Load | 70 kg |
| Contruction Material | Steel (2.5 mm hot rolled plate; Arms: 2.0 mm cold rolled plate) |
| Colour | Powder-coated Black |
| Vesa Sizes | 600 × 400 mm 500 x 400 mm 400 × 400 mm 400 x 300 mm 400 × 200 mm 300 × 400 mm 300 × 300 mm 300 x 200 mm 200 × 400 mm 200 × 200 mm |
| Compliances | RoHS, REACH |
| Tilt | +2 degrees / -3 degrees |
| Country of origin | China |
What's in the Box
- 4 x M5 14 mm screw
- 4 x M6 14 mm screw
- 4 x M6 30 mm screw
- 4 x M8 30 mm screw
- 4 x M8 50 mm screw
Warranty
The Vision Video Wall Mount VESA 600x400 is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
