SKU: DCR200EB-LC

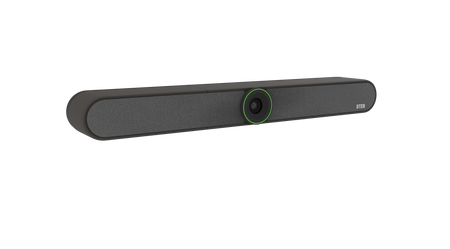

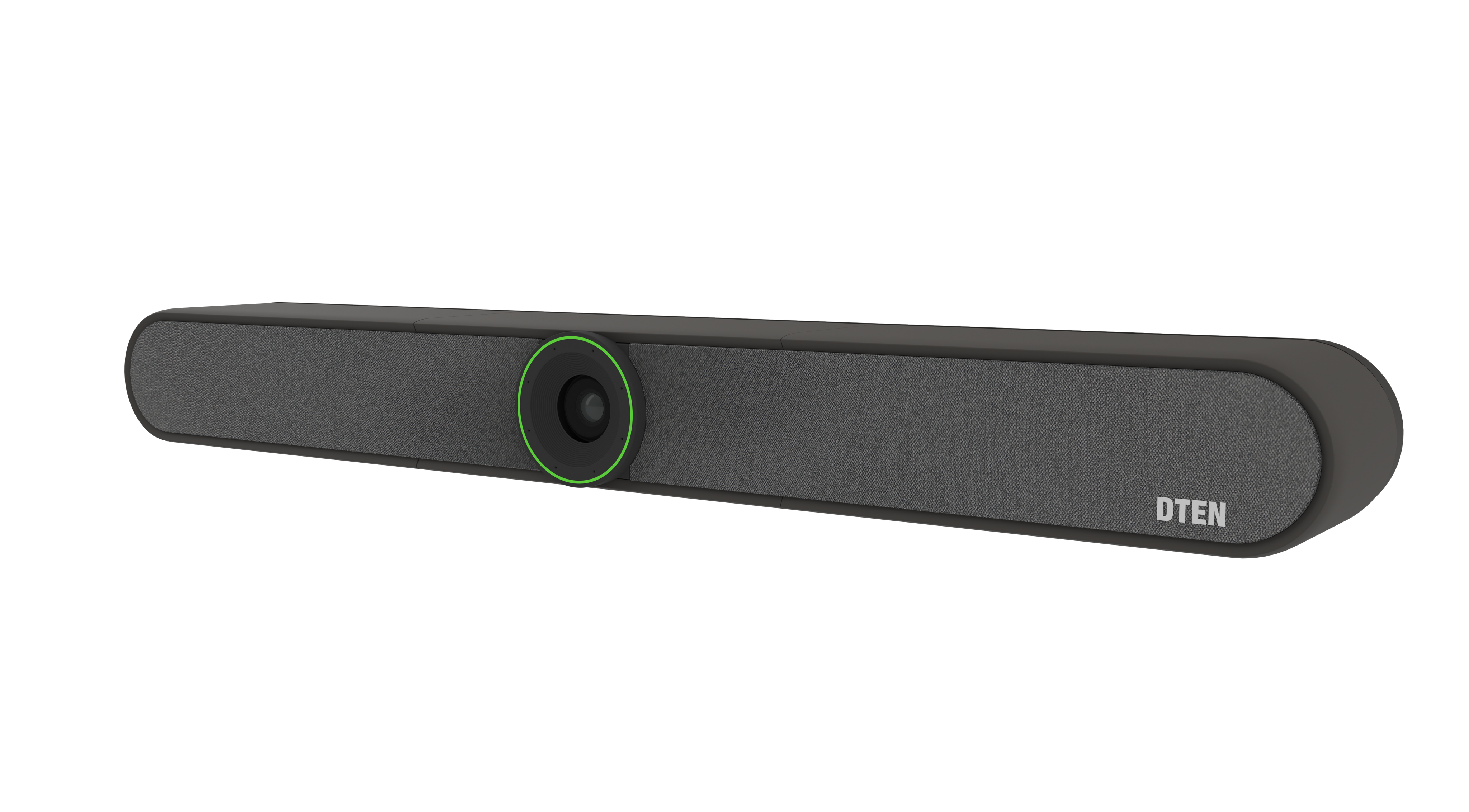

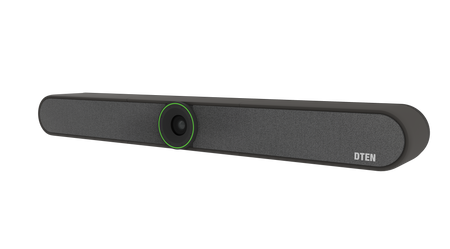

DTEN Bar Connect (BYOD)

DTEN

BYOD All-in-One Video Bar

The DTEN Bar Connect is an all-in-one video collaboration solution that transforms any space into a smart meeting hub. Featuring a 4K camera, 12-microphone array, integrated stereo speakers, and BYOD-ready single-cable USB-C connectivity, it delivers professional-quality video conferencing with minimal IT complexity. Designed for versatility, the Bar Connect integrates seamlessly into hybrid work environments, classrooms, and meeting rooms, ensuring crystal-clear video, audio, and effortless collaboration.

Highlighted Features

  • Complete AV Solution: Combines a 4K camera, 12 microphones, and powerful stereo speakers into one compact device for professional video meetings.
  • Wide-Angle Coverage: Captures the entire room with a 95° horizontal and 104° diagonal field of view, ensuring every participant is seen clearly.
  • Crystal-Clear Audio: Advanced microphone system with noise reduction, echo cancellation, and automatic volume adjustment for natural conversations.

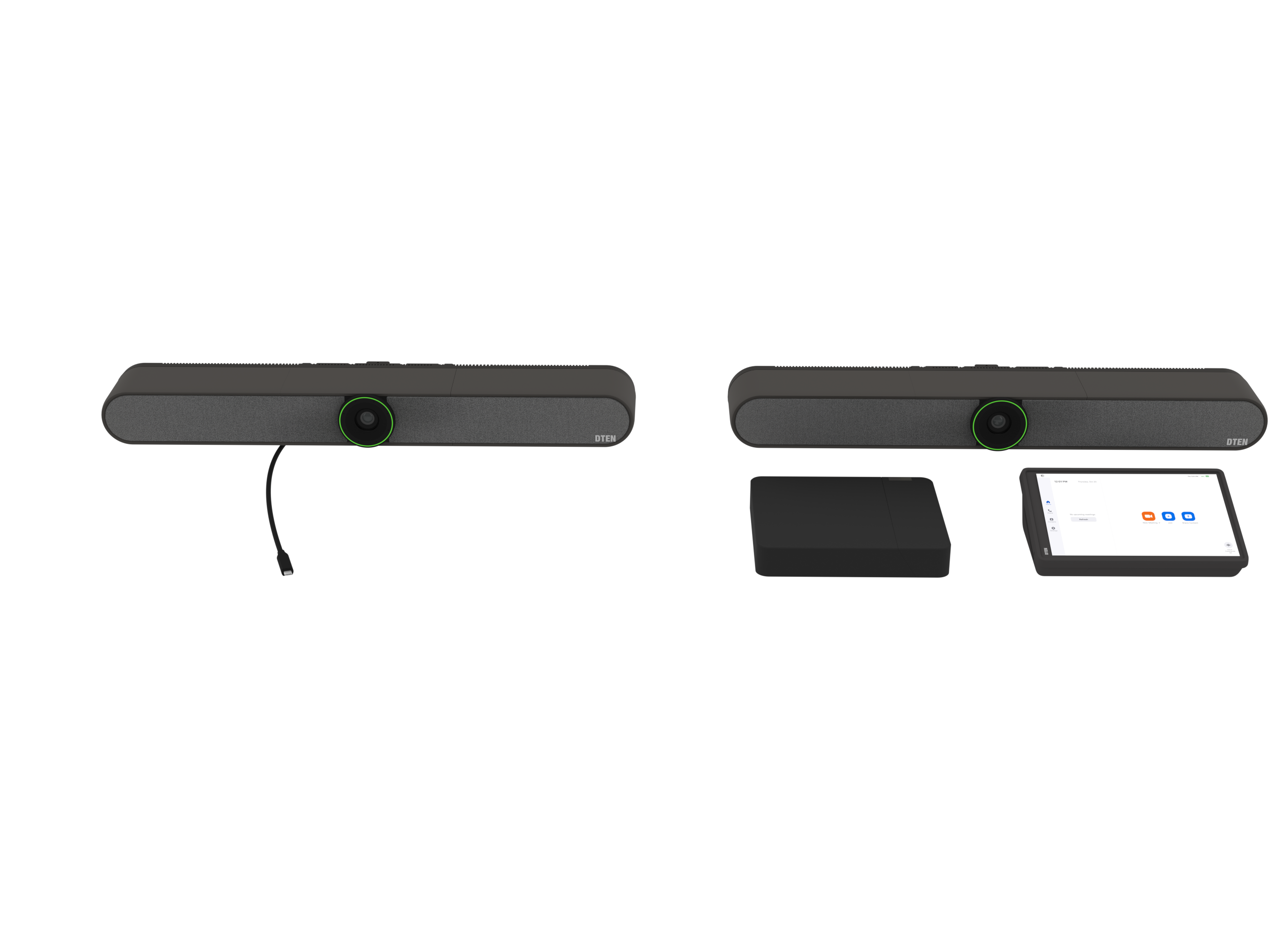

  • Effortless BYOD: A single USB-C connection extends the camera, microphones, and speakers to laptops, simplifying user setup.
  • Flexible Connectivity: Equipped with HDMI, USB, Ethernet, and Bluetooth options to support a wide range of devices and configurations.
  • Secure & Reliable Networking: Features Wi-Fi 6, Gigabit Ethernet, and enterprise-grade authentication for dependable, protected connections.
  • Ready to Install: Includes wall mounts for quick, stable deployment in offices, classrooms, or shared workspaces.
  • Smart App Integration: Works with the DTEN App to streamline setup, control the camera, and manage inputs with ease.

The DTEN Bar Connect empowers businesses and classrooms to transform any room into a collaborative, Zoom-enabled space. With its single-cable BYOD functionality, enterprise-grade security, and simple installation, it provides a future-ready solution for hybrid work and learning environments.

In stock
£1,018.98

Secure checkout

Friendly support

Hassle-free returns

The DTEN Bar Connect is an all-in-one video collaboration solution that transforms any space into a smart meeting hub. Featuring a 4K camera, 12-microphone array, integrated stereo speakers, and BYOD-ready single-cable USB-C connectivity, it delivers professional-quality video conferencing with minimal IT complexity. Designed for versatility, the Bar Connect integrates seamlessly into hybrid work environments, classrooms, and meeting rooms, ensuring crystal-clear video, audio, and effortless collaboration.

DTEN Bar - Doctor setup
DTEN D7X Education Bar Vertical
DTEN Bar - Office setup 2
DTEN Bar - Office setup 3

Key Features

  • All-in-One Appliance: Integrated 4K camera, 12-microphone array, and stereo speakers for premium conferencing experiences.
  • Wide-Angle Camera: Center camera with 95° HFoV and 104° DHoV ensures full-room coverage with lifelike clarity.
  • Advanced Audio System: 12-element microphone array with acoustic echo cancellation, automatic gain control (AGC), and noise reduction.

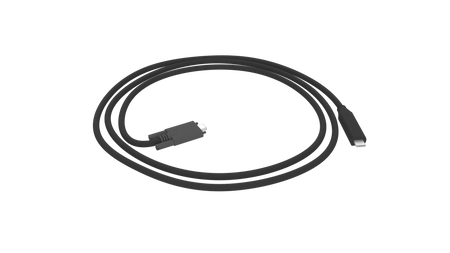

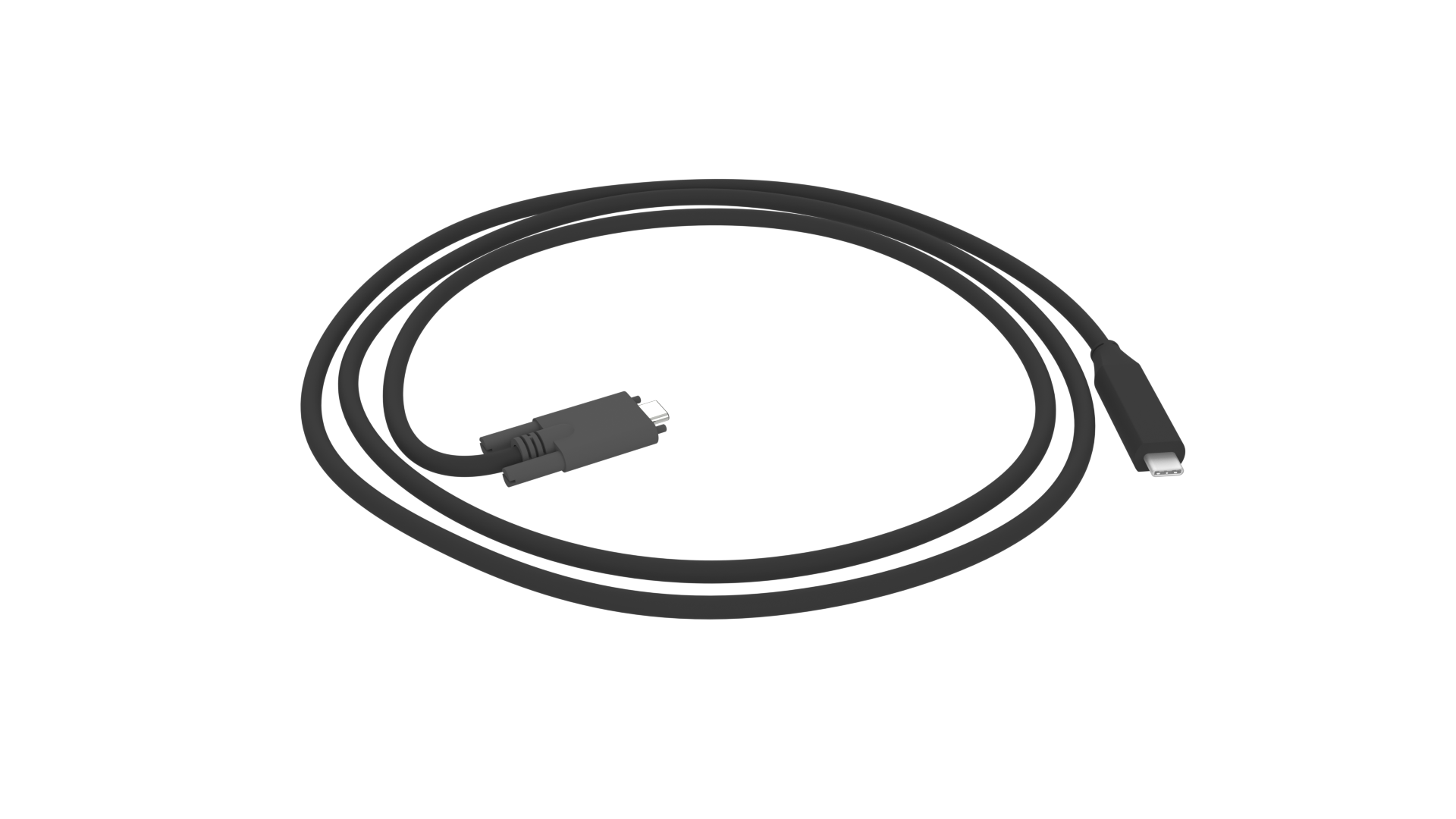

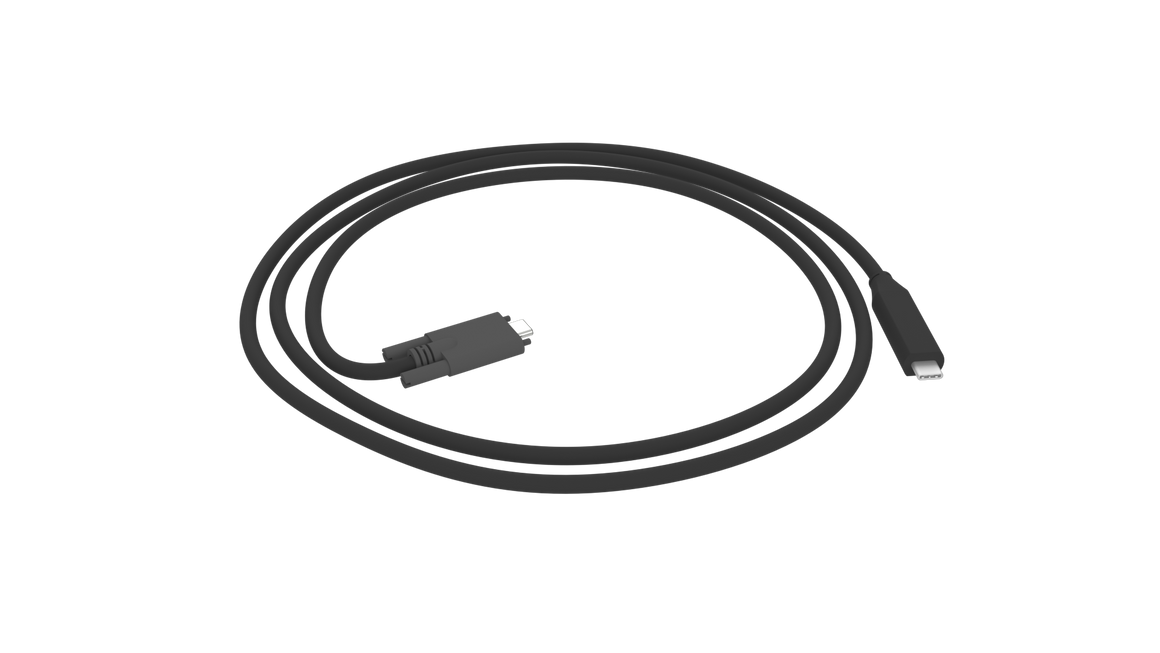

  • Simple BYOD: Single USB-C cable (included) powers BYOD mode, extending the Bar Connect’s camera, microphones, and speakers to laptops.
  • Versatile Connectivity: HDMI In x1, HDMI Out x2, USB-A (2.0) x2, USB-A (3.0) x2, RJ-45 Ethernet, Kensington lock slot.
  • Network & Security: Gigabit Ethernet, Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth 5.0, and enterprise-grade 802.1x authentication.
  • Installation Ready: Includes wall mounts for quick and secure deployment in professional spaces.
  • DTEN App Support: Enables easy setup, automatic input switching, camera control, and app launching (Windows; Mac coming soon).

Specifications

Software DTEN OS; DTEN App (Windows, Mac coming soon)

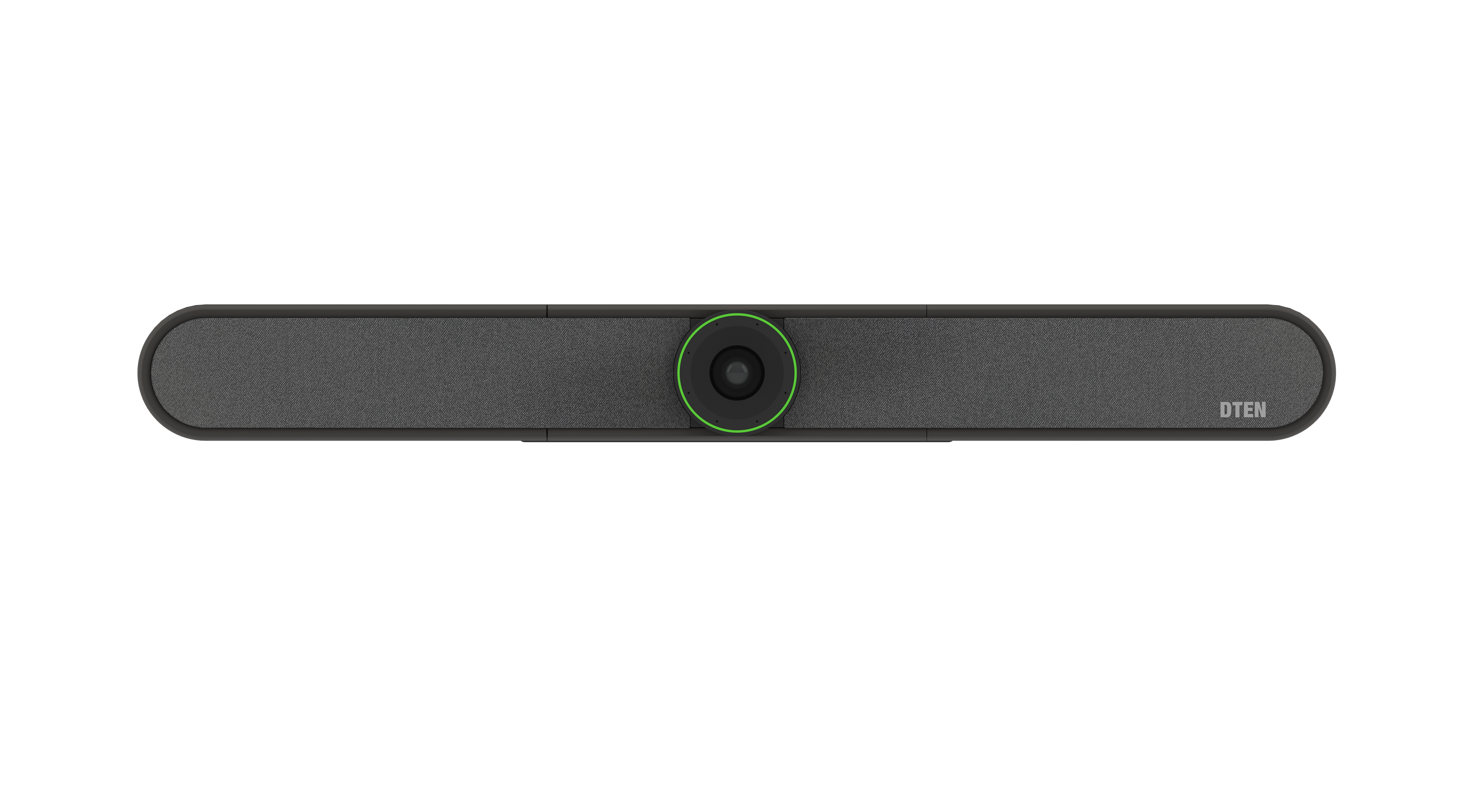

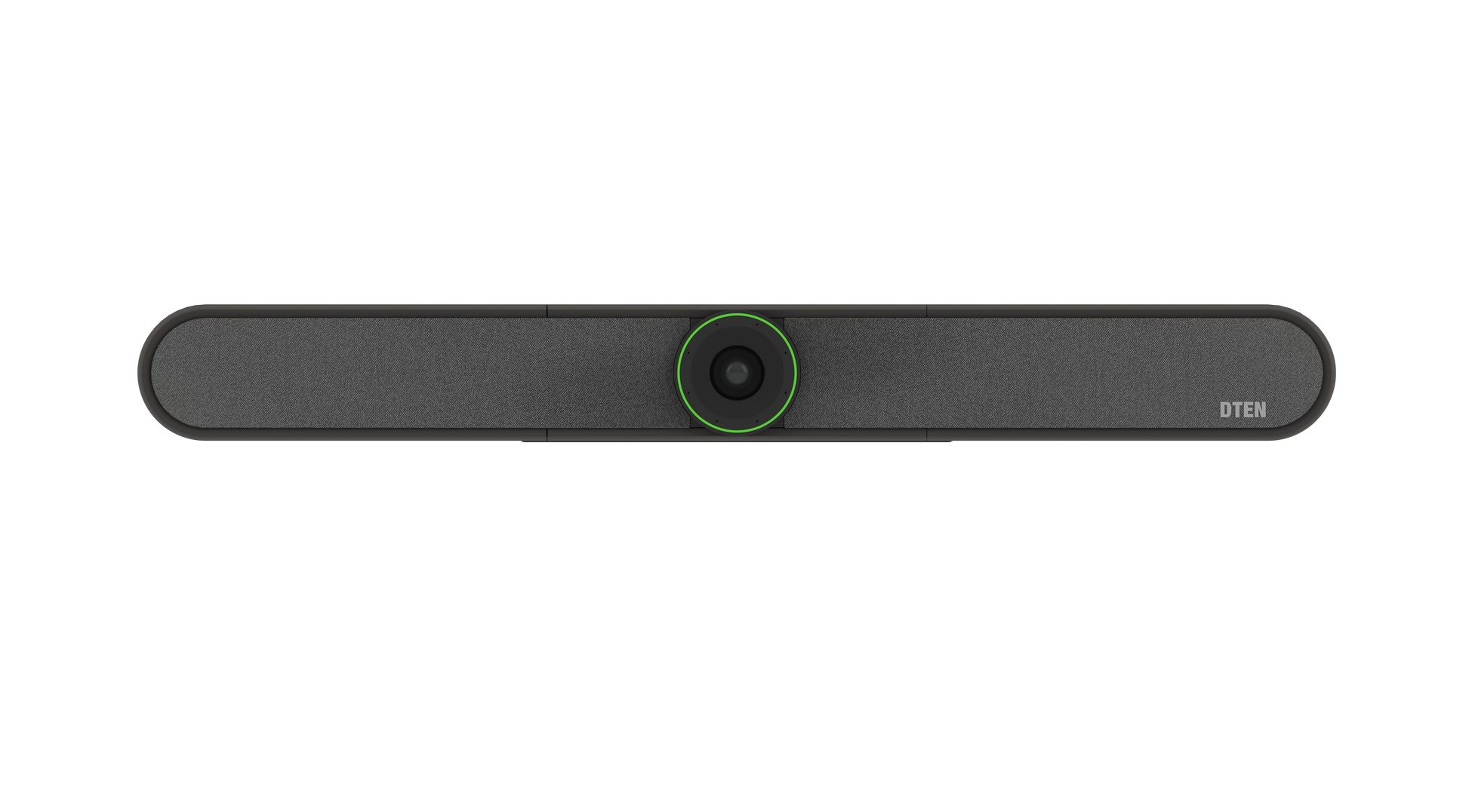

Camera System 4K fixed-lens center camera; 95° HFoV / 104° DHoV
Audio System 12-microphone array; integrated stereo speakers (2 × 15W); Acoustic Echo Cancellation; AGC; Noise Reduction

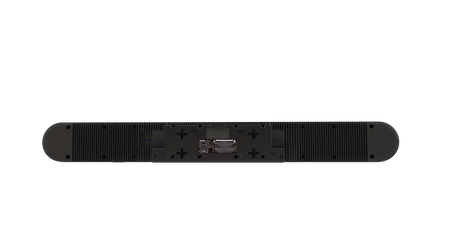

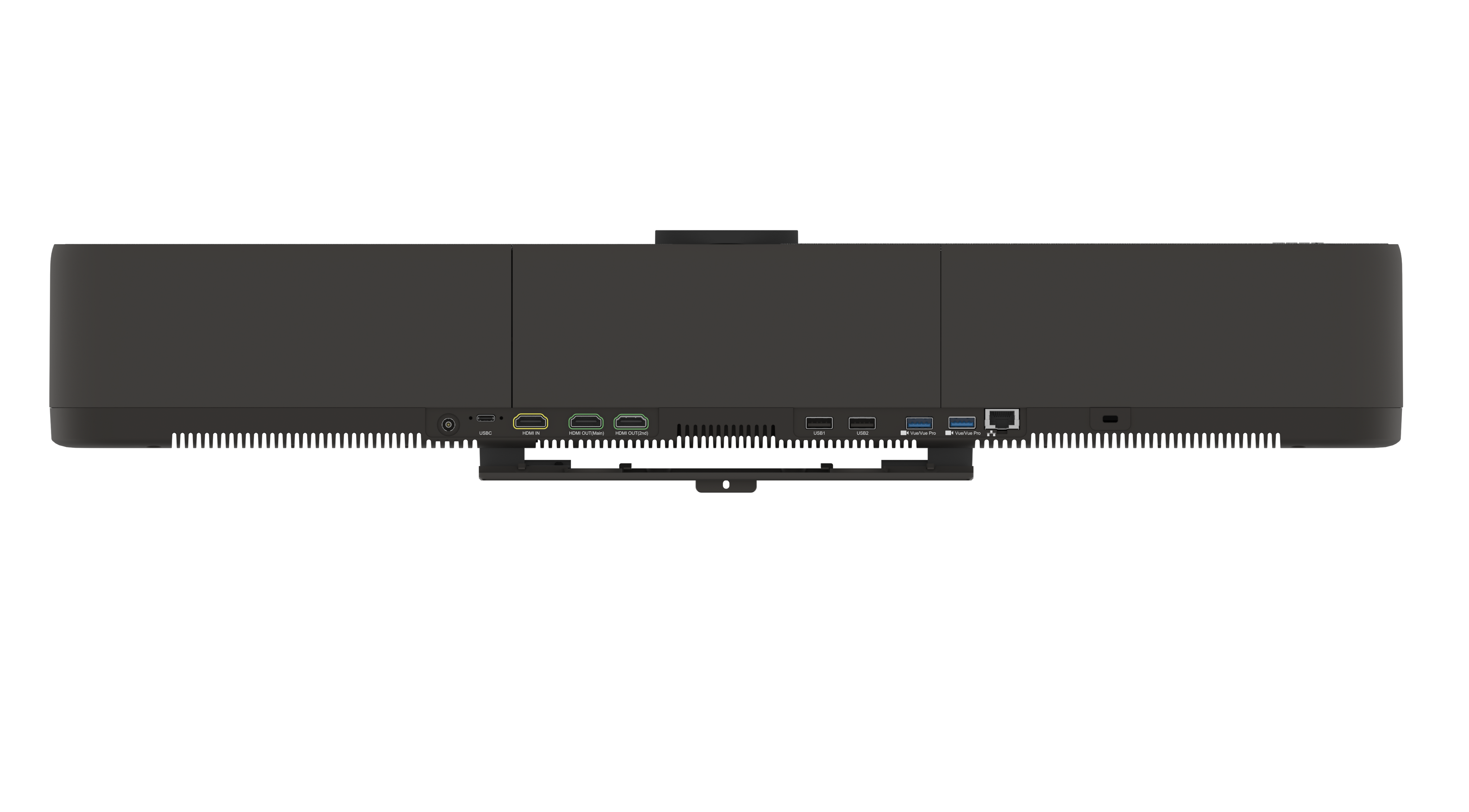

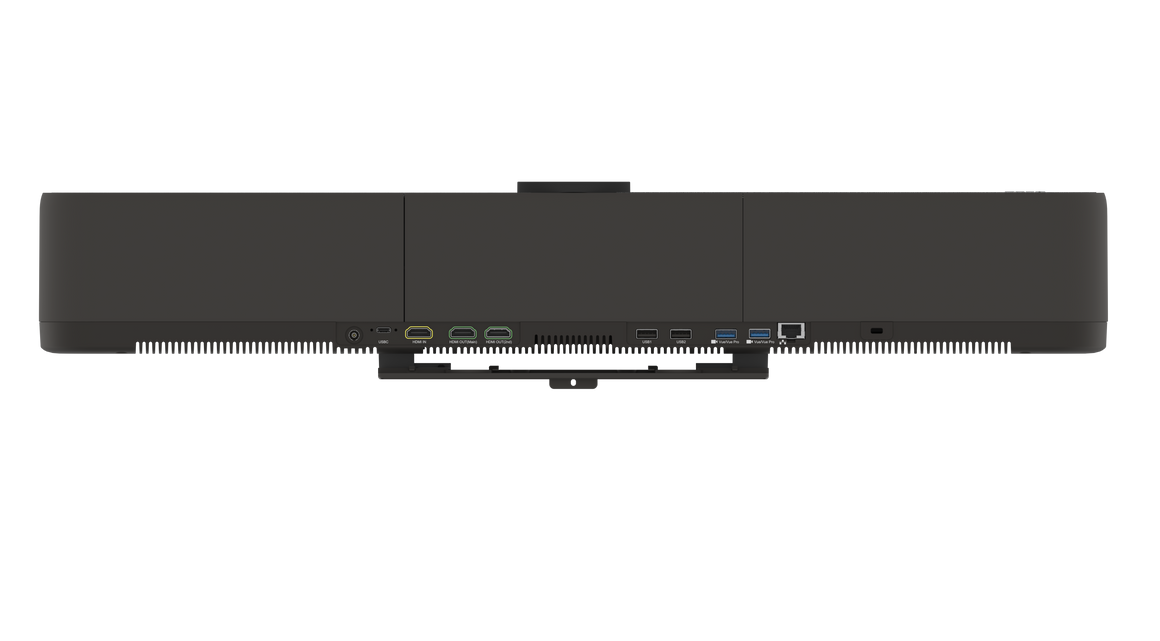

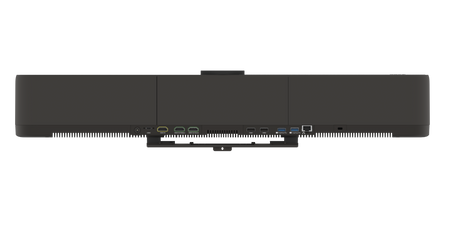

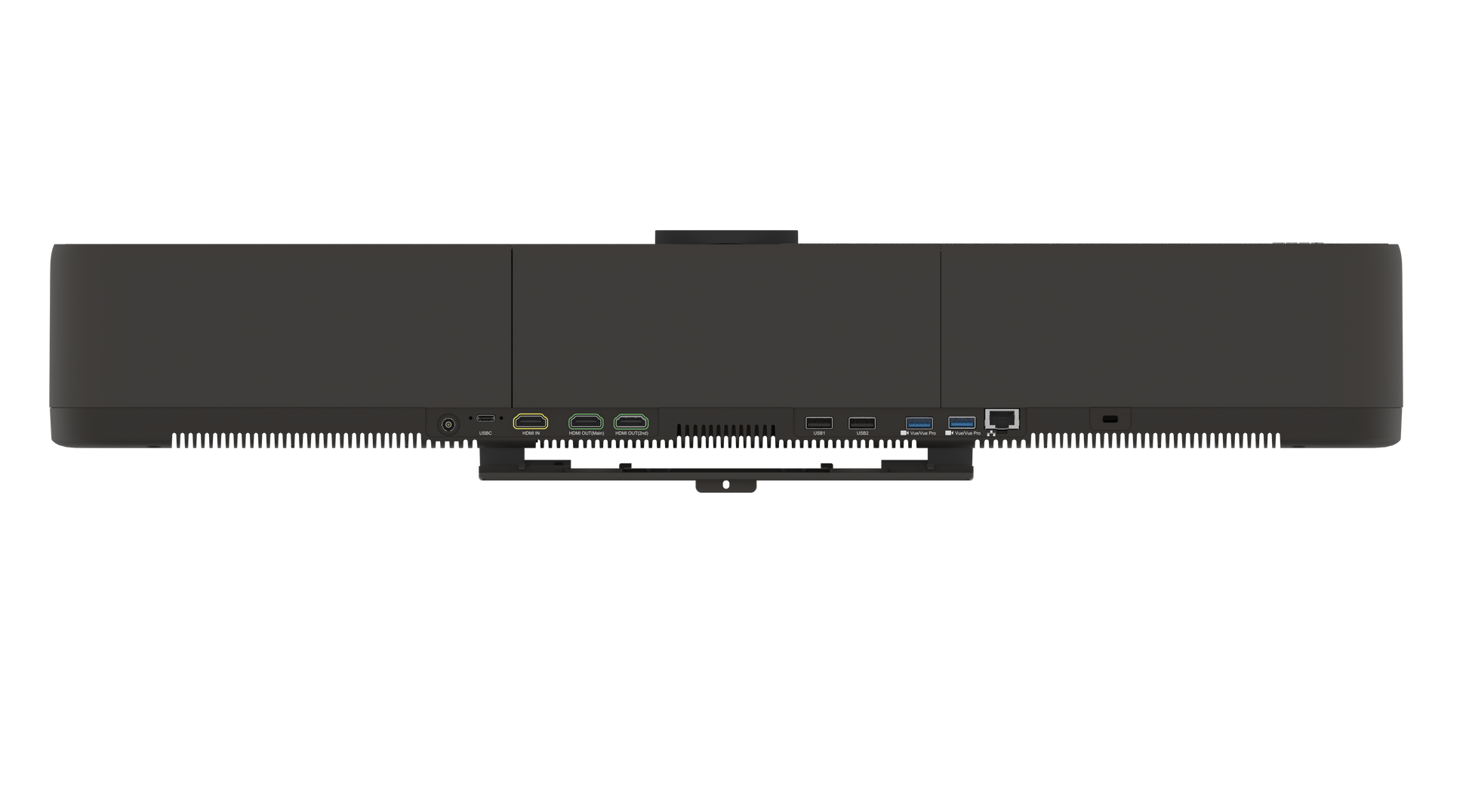

Inputs & Outputs HDMI In x1; HDMI Out x2; USB-C x1 (included); USB-A 2.0 x2; USB-A 3.0 x2; RJ-45 x1; Kensington Lock slot
Network Ethernet (RJ-45) 1000 Mbps; Wi-Fi 802.11 a/b/g/n/ac/ax; Bluetooth 5.0; IPv4 DHCP/Static; HTTP/HTTPS proxy
Security Ethernet/Wi-Fi 802.1x (EAP-MD5, EAP-TLS, EAP-TTLS, PEAP)
Installation Wall mounts included
Power 100–240 VAC, 50–60 Hz
Product Dimensions 2.95 × 26.06 × 5.02 in (75 × 668 × 128 mm)
Product Weight 9.5 lb (4.3 kg)
Packaging Dimensions 29.53 × 7.68 × 7.4 in (750 × 195 × 188 mm)
Packaging Weight 9.5 lb (4.3 kg)

The DTEN Bar Connect empowers businesses and classrooms to upgrade any room into a collaborative Zoom-enabled space with ease. Its single-cable BYOD functionality, enterprise-grade security, and included wall mounts make it a practical, future-ready solution for hybrid work and learning environments.

Application Examples
Small & Medium Meeting Rooms Enable high-quality video and audio collaboration with integrated 4K camera and 12-mic array.
Hybrid Classrooms Deliver clear audio and video for teachers and students, ensuring inclusivity in hybrid learning.
Executive Offices Transform offices into smart conferencing hubs with BYOD-ready single-cable connectivity.
Multi-Purpose Collaboration Spaces Quickly adapt any workspace into a Zoom-enabled collaboration hub with wall-mounted simplicity.
