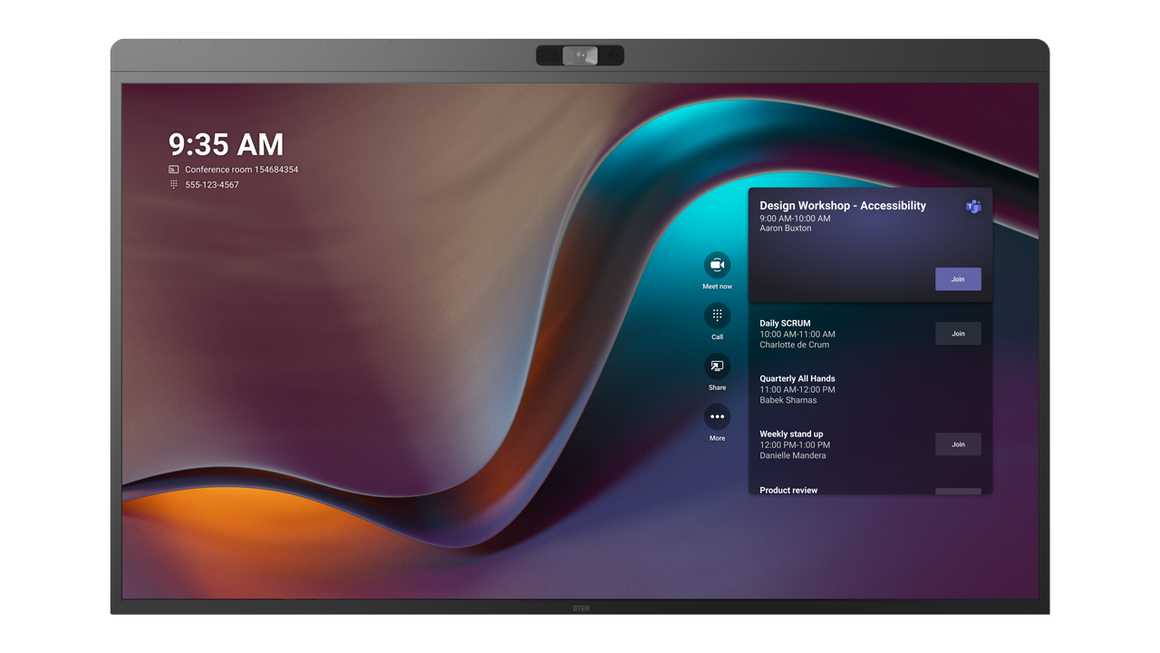

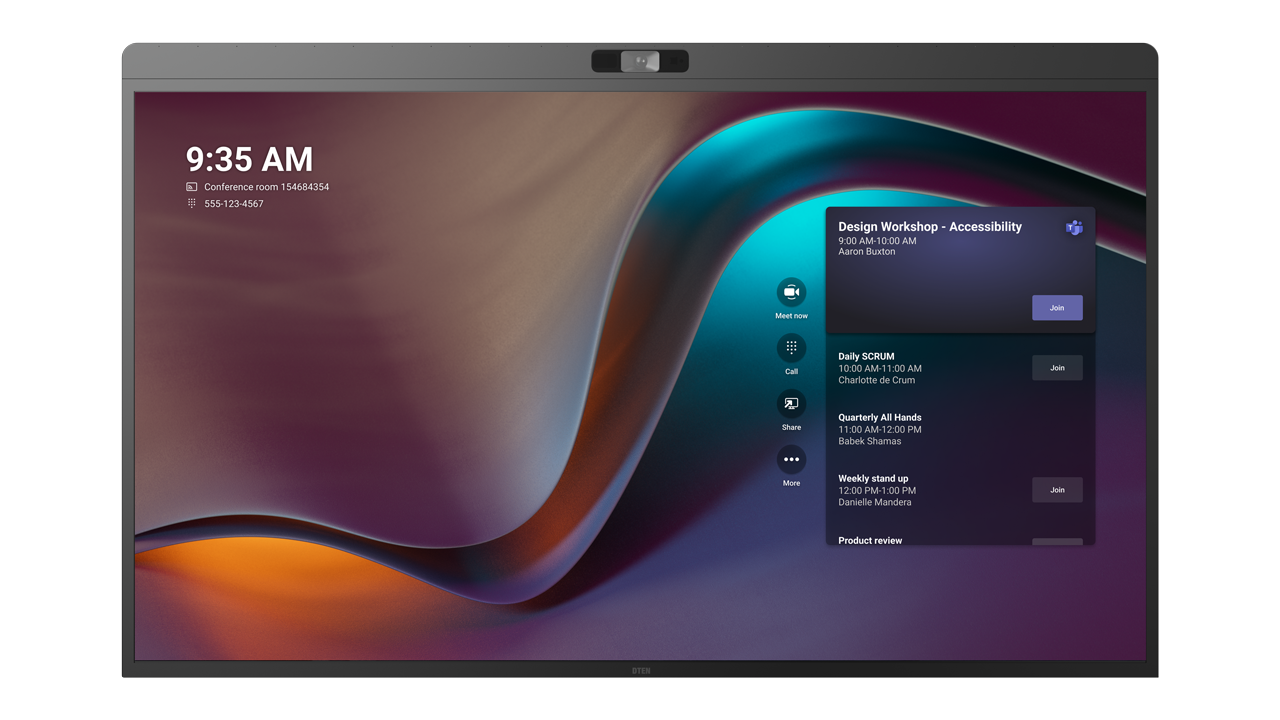

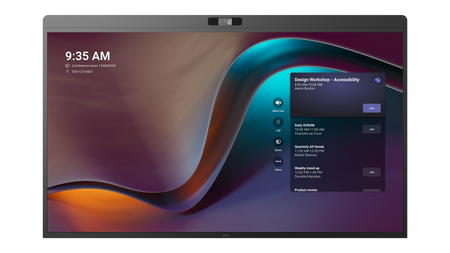

The DTEN D7X Android Edition is a state-of-the-art all-in-one video conferencing solution, available in 55" and 75" models. Certified for both Zoom Rooms® and Microsoft Teams, it combines advanced collaboration tools, AI-driven enhancements, and user-friendly management to create a professional-grade meeting experience. Additionally, the DTEN Vue Pro, an optional product, provides a cutting-edge solution for capturing participants in 4K clarity, elevating the hybrid meeting experience.

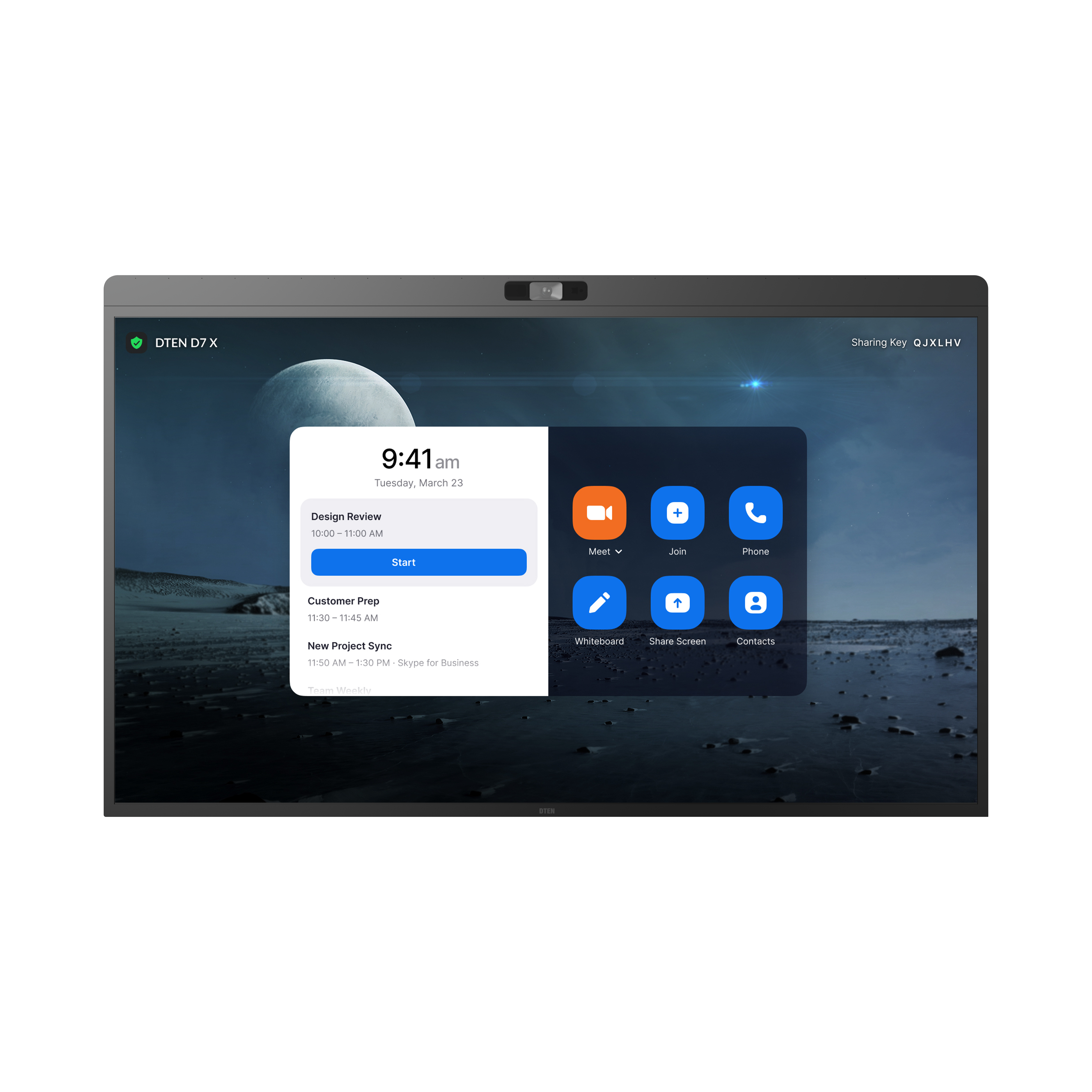

Shown is DTEN D7X & DTEN ONboard

Key Features

  • Certified for Microsoft Teams and Zoom Rooms®: Ensures a reliable and intuitive user interface with one-touch meeting controls, content sharing, and compatibility with key collaboration platforms.
  • Zoom Rooms Smart Gallery: Utilises AI to create individual video feeds of in-room participants, ensuring everyone in hybrid meetings is equally represented and engaged.
  • Enhanced Android Performance: Features upgraded CPUs and GPUs for improved video quality, sharper audio, and fluid touch collaboration. The system is future-ready for additional features and updates.
  • Hear the Difference: AI-assisted audio optimisation reduces distracting sounds, while a 15-microphone array ensures even the softest voices are clearly heard. With speakers four times more powerful, the D7X delivers exceptional audio clarity, even in larger meeting rooms.
  • Collaborative Workspace: Offers a capacitive multi-touch 4K display, ideal for real-time whiteboarding, annotation, and multi-touch gestures to encourage teamwork and creativity.
  • Extend Communication and Collaboration: Instantly add a second display to expand your workspace, creating a dedicated area for presentations or additional collaboration.
  • Bring Your Own Device (BYOD): Features Smart Connect via USB-C or HDMI, with touchback support for Windows and macOS. Use the D7X's camera, microphone, and speakers with any software client.
  • Optional DTEN Mate Room Controller: Available in WiFi or PoE configurations, the DTEN Mate offers intuitive meeting controls and seamless integration with Zoom Rooms and Microsoft Teams Rooms. The WiFi version is certified for use with Zoom Rooms, while the PoE version is recommended for Microsoft Teams Rooms, ensuring a tailored solution for any professional setup.
  • Optional DTEN Vue Pro: Unique in its class, the DTEN Vue Pro is a set of professional 4K cameras cleverly designed to capture in-room participants at eye level. It delivers an innovative solution for capturing participants with 4K clarity, whether they are seated at the front, middle, or back of the room. This provides more immersive and natural-feeling video meetings between in-person and remote participants, enhancing the overall collaboration experience.
  • Worry-Free IT Support: Manage devices remotely with DTEN Orbit, a cloud-based dashboard offering centralised administration, real-time device health monitoring, and faster issue resolution with Mission Control. Regular firmware updates ensure access to the latest features.
  • Quick and Flexible Installation: The preassembled design allows for fast deployment, whether mounted on a wall or placed on a stand, making it suitable for various professional environments.

Specifications

Available Sizes 55" and 75" models
Display Ultra HD 4K LED 55"/75" 16:9
Capacitive Touch Screen Display
20 Touchpoints / Low Latency (50 ms response time)
180 Touchpoint Reporting Rate
AI-based Improvements for Touch Accuracy
Supports Dual Screens
Extended Screen Support Available
Camera System 4K / Fixed Lens / Infinite Focus
D7X 55": Field of View (FOV) 120° / Vertical FOV 88°
D7X 75": Field of View (FOV) 90° / Vertical FOV 88°
PTZ and Preset Support
Zoom Rooms Auto Framing
Zoom Rooms Smart Gallery
Microsoft IntelliFrame
DTEN Smart Framing
Audio 15-microphone array, acoustic echo cancellation, noise suppression, automatic gain control (AGC), integrated stereo speakers
Connectivity USB-A 3.0 x2
3.5 mm Audio jack x2 (headphone and mic)
HDMI out x1 (CEC)
HDMI in x1 (CEC, HDCP 2.2, Dolby AC3)
Ethernet 1 GigE (RJ45) x1
USB-C x2 (USB 3.0 Data + DP 1.4 + 65W Charging)
Network Ethernet (RJ-45) 1000 Mbps
Wi-Fi 802.11a/b/g/n/ax, 802.11ax (2.4, 5 GHz and 6 GHz)
IPv4 Dynamic Host Configuration Protocol (DHCP)/ Static
HTTP/HTTPS Proxy Support
Bluetooth 5.0
Bring Your Own Device (BYOD) Smart Connect via single charging USB-C cable (included) or HDMI In + USB
Extension of display via DP (computer must support USB-C Alt-mode DisplayPort)
Touchback feature for Windows and macOS
Use D7X Camera, Microphone, Touch and Speakers with Any Software Client
HDMI Ingest for Monitor and Content Sharing Modes
Laptop Charging (up to 65W)
Operating System Android OS
Power Supply 100-240 VAC, 50/60 Hz
VESA 55": 400 x 300 mm
75": 800 x 400 mm
Dimensions 55": 49 x 30.5 x 2.13 in (1245 x 774 x 54 mm)
75": 66.1 x 39.5 x 2.18 in (1679 x 1004 x 55.4 mm)
Weight 55": 48.3 lbs (21.9 kg)
75": 80.84 lbs (36.67 kg)
Management DTEN Orbit for cloud-based monitoring and management
In the Box DTEN D7X x1
Wall Mount x1
Stylus x1
Power Cord x5 (Type B, D, F, G, I)
USB-C Cable x1 (For BYOD)
Antenna x2
Product Guide

The DTEN D7X Android Edition is the ultimate choice for hybrid meetings, offering advanced AI features, enhanced performance, and intuitive IT management. Its Teams and Zoom certifications ensure compatibility with the leading collaboration platforms, while the optional DTEN Vue Pro cameras elevate the experience with unmatched 4K clarity, capturing participants at eye level for more immersive video meetings.
