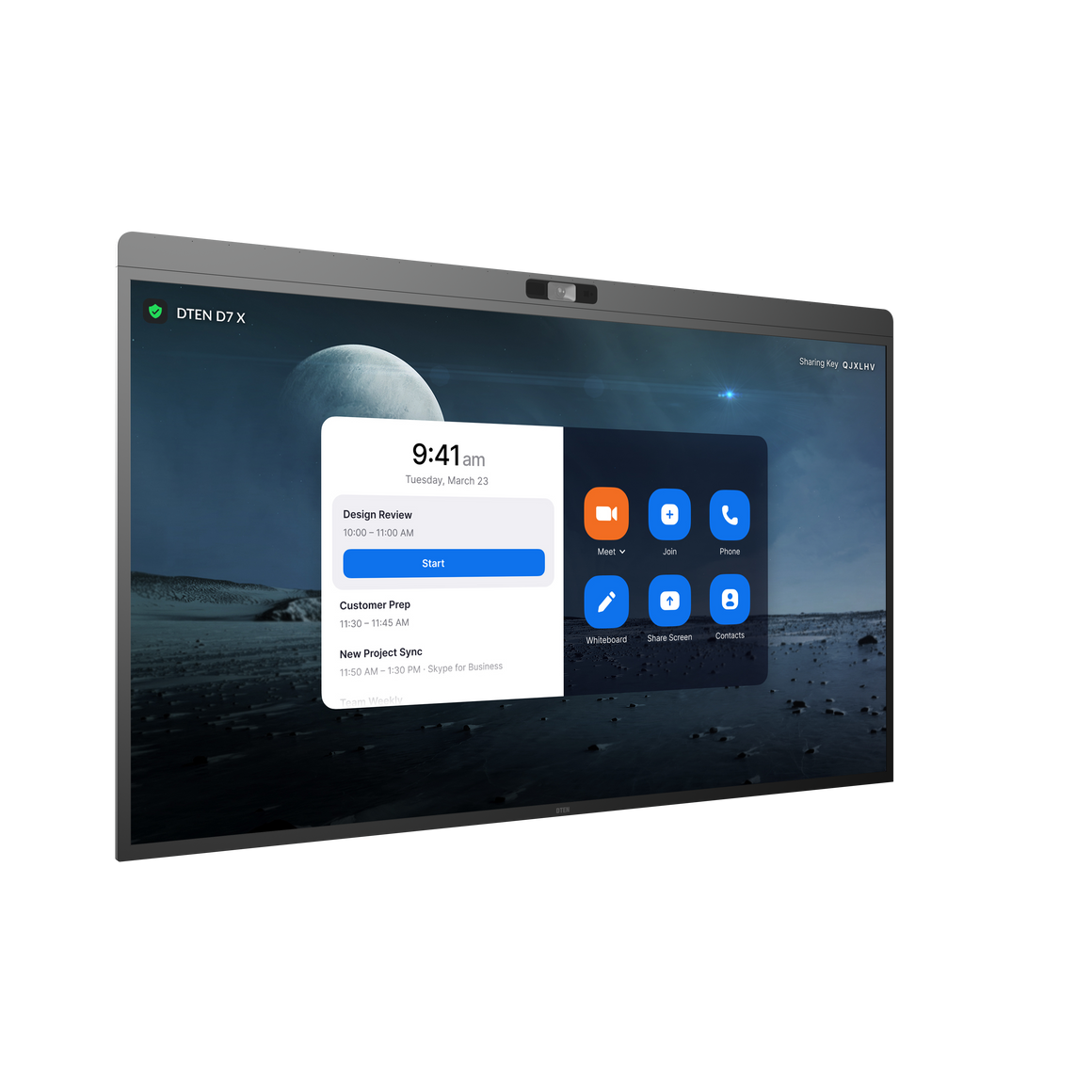

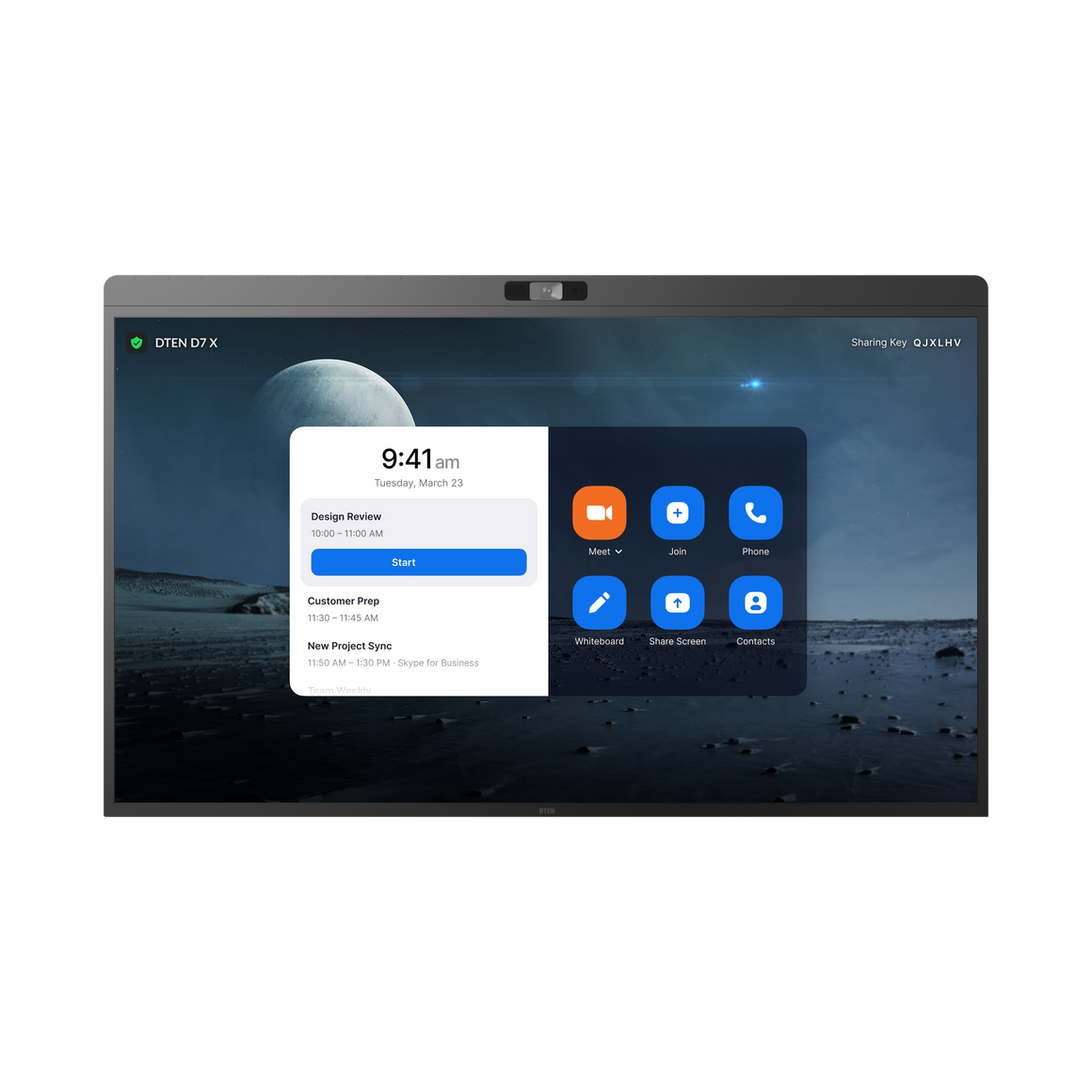

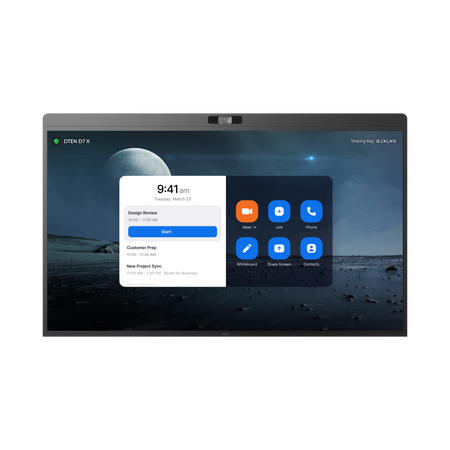

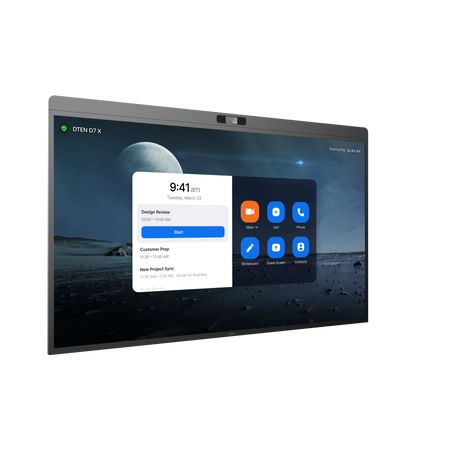

The DTEN D7X Windows Edition is a state-of-the-art all-in-one video conferencing solution, available in 55" and 75" models. Certified for Zoom Rooms®, it combines advanced collaboration tools, AI-driven enhancements, and user-friendly management to create a professional-grade meeting experience. Additionally, the DTEN Vue Pro, an optional product, enhances video clarity and immersion, offering unmatched 4K participant capture for hybrid meetings.


Key Features

  • Certified for Zoom Rooms®: Ensures a reliable and intuitive user interface with one-touch meeting controls, content sharing, and compatibility with the Zoom Rooms® platform.
  • Zoom Rooms Smart Gallery: Utilises AI to create individual video feeds of in-room participants, ensuring everyone in hybrid meetings is equally represented and engaged.
  • Enhanced Windows Performance: Features upgraded CPUs and GPUs for improved video quality, sharper audio, and fluid touch collaboration. The system is future-ready for additional features and updates.
  • Hear the Difference: AI-assisted audio optimisation reduces distracting sounds, while a 15-microphone array ensures even the softest voices are clearly heard. With speakers four times more powerful, the D7X delivers exceptional audio clarity, even in larger meeting rooms.
  • Collaborative Workspace: Offers a capacitive multi-touch 4K display, ideal for real-time whiteboarding, annotation, and multi-touch gestures to encourage teamwork and creativity.
  • Extend Communication and Collaboration: Instantly add a second display to expand your workspace, creating a dedicated area for presentations or additional collaboration.
  • Bring Your Own Device (BYOD): Features Smart Connect via USB-C or HDMI, with touchback support for Windows and macOS. Use the D7X's camera, microphone, and speakers with any software client.
  • Optional DTEN Mate Room Controller: Available in WiFi or PoE configurations, the DTEN Mate offers intuitive meeting controls and seamless integration with Zoom Rooms.
  • Worry-Free IT Support: Manage devices remotely with DTEN Orbit, a cloud-based dashboard offering centralised administration, real-time device health monitoring, and faster issue resolution with Mission Control. Regular firmware updates ensure access to the latest features.
  • Optional DTEN Vue Pro: A set of professional 4K cameras designed to capture in-room participants at eye level. The DTEN Vue Pro provides an innovative solution for capturing participants with 4K clarity, whether they are sitting at the front, middle, or back of the room. It creates more immersive and natural-feeling video meetings between in-person and remote participants.
  • Quick and Flexible Installation: The preassembled design allows for fast deployment, whether mounted on a wall or placed on a stand, making it suitable for various professional environments.

Specifications

Available Sizes 55" and 75" models
Display Ultra HD 4K LED 55"/75" 16:9
Capacitive Touch Screen Display
20 Touchpoints / Low Latency (50 ms response time)
180 Touchpoint Reporting Rate
AI-based Improvements for Touch Accuracy
Supports Dual Screens
Extended Screen Support Available
Camera System 4K / Fixed Lens / Infinite Focus
D7X 55": Field of View (FOV) 120° / Vertical FOV 88°
D7X 75": Field of View (FOV) 90° / Vertical FOV 88°
PTZ and Preset Support
Zoom Rooms Auto Framing
Zoom Rooms Smart Gallery
DTEN Smart Framing
Audio 15-microphone array, acoustic echo cancellation, noise suppression, automatic gain control (AGC), integrated stereo speakers
Connectivity USB-A 3.1 x4
3.5 mm Audio jack x2 (headphone and mic)
HDMI out x1 (CEC, HDCP 2.2)
HDMI in x1 (CEC, HDCP 1.4, Dolby AC3)
Ethernet 1 GigE (RJ45) x1
USB-C x1 (USB 3.1 Data + DP 1.4 + 65W Charging)
Network Ethernet (RJ-45) 1 GigE
Wi-Fi 802.11a/b/g/n/ax, 802.11ax (Support WiFi i6)
IPv4 Dynamic Host Configuration Protocol (DHCP)/ Static
HTTP/HTTPS Proxy Support
Bluetooth 5.0
Bring Your Own Device (BYOD) Smart Connect via single charging USB-C cable (included) or HDMI In + USB
Extension of display via DP (computer must support USB-C Alt-mode DisplayPort)
Touchback feature for Windows and macOS
Use D7X Camera, Microphone, Touch and Speakers with Any Software Client
HDMI Ingest for Monitor and Content Sharing Modes
Laptop Charging (up to 65W)
Operating System Windows IoT
Power Supply 100-240 VAC, 50/60 Hz
VESA 55": 400 x 300 mm
75": 800 x 400 mm
Dimensions 55": 49 x 30.5 x 2.13 in (1245 x 774 x 54 mm)
75": 66.1 x 39.5 x 2.18 in (1679 x 1004 x 55.4 mm)
Weight 55": 47 lbs (21.3 kg)
75": 79.6 lbs (36.1 kg)
Management DTEN Orbit for cloud-based monitoring and management
In the Box DTEN D7X x1
Wall Mount x1
Stylus x1
Power Cord x5 (Type B, D, F, G, I)
USB-C Cable x1 (For BYOD)
Antenna x2
Product Guide

The DTEN D7X Windows Edition is the ultimate choice for hybrid meetings, offering advanced AI features, enhanced performance, and intuitive IT management. Certified for Zoom Rooms®, it ensures seamless compatibility with one of the leading collaboration platforms, making it ideal for modern professional spaces. With the addition of the optional DTEN Vue Pro, users can enhance meeting clarity and create more immersive, natural-feeling hybrid experiences.
