SKU: DBR1455E-WB

DTEN ONboard (Android)

DTEN

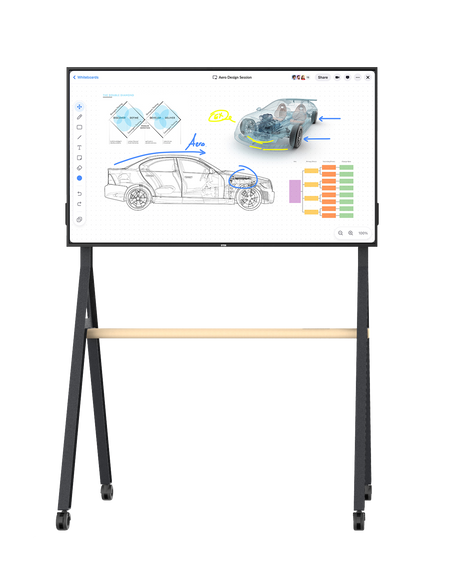

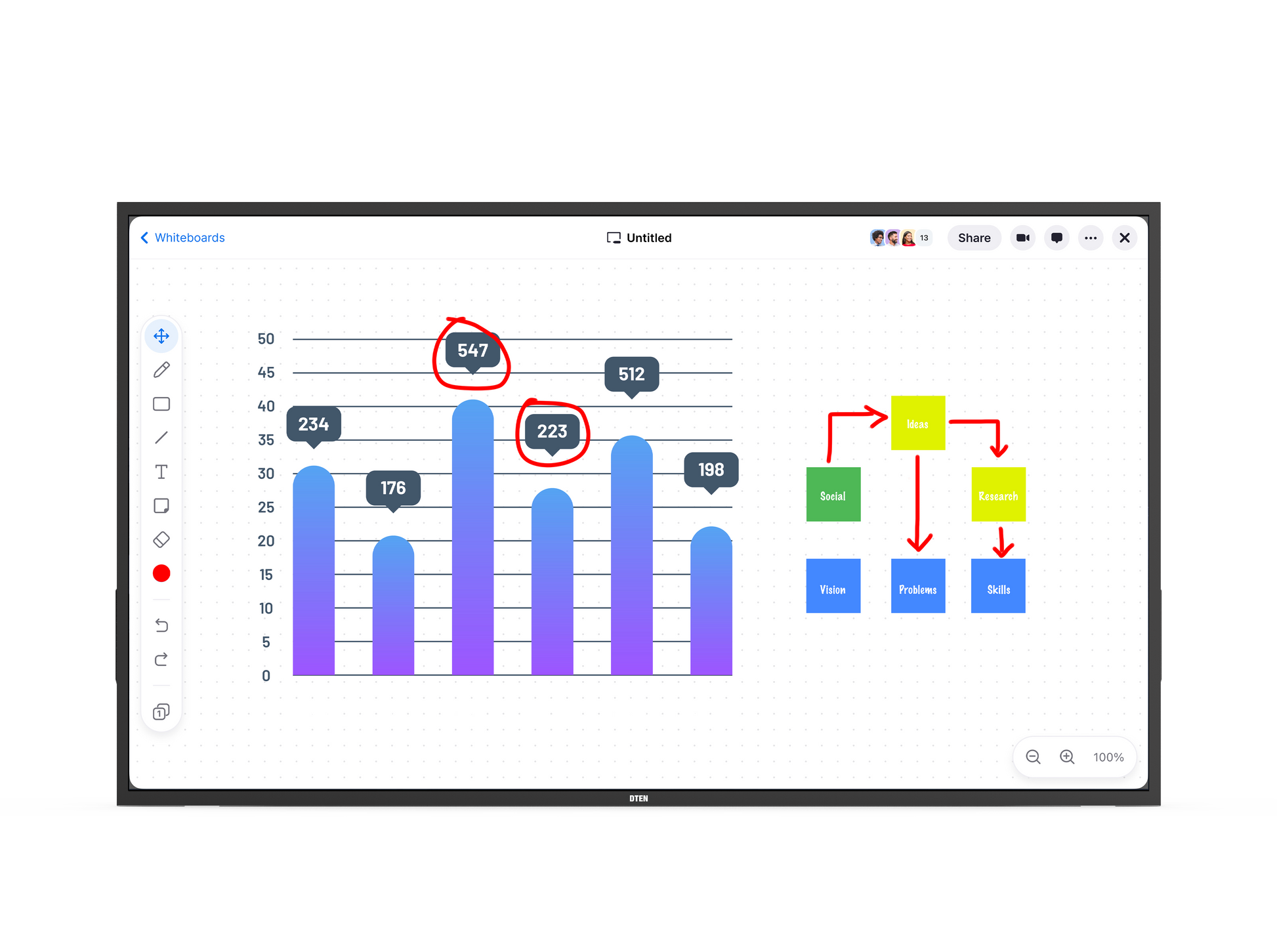

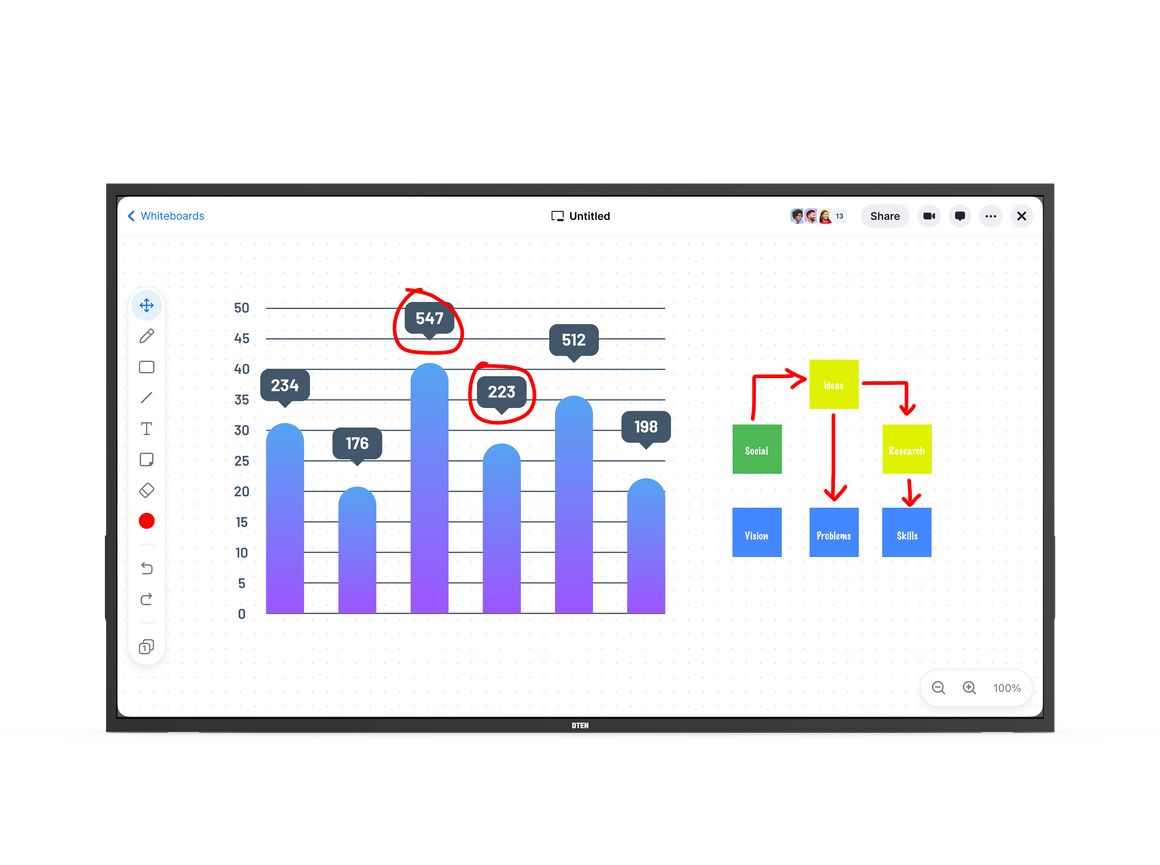

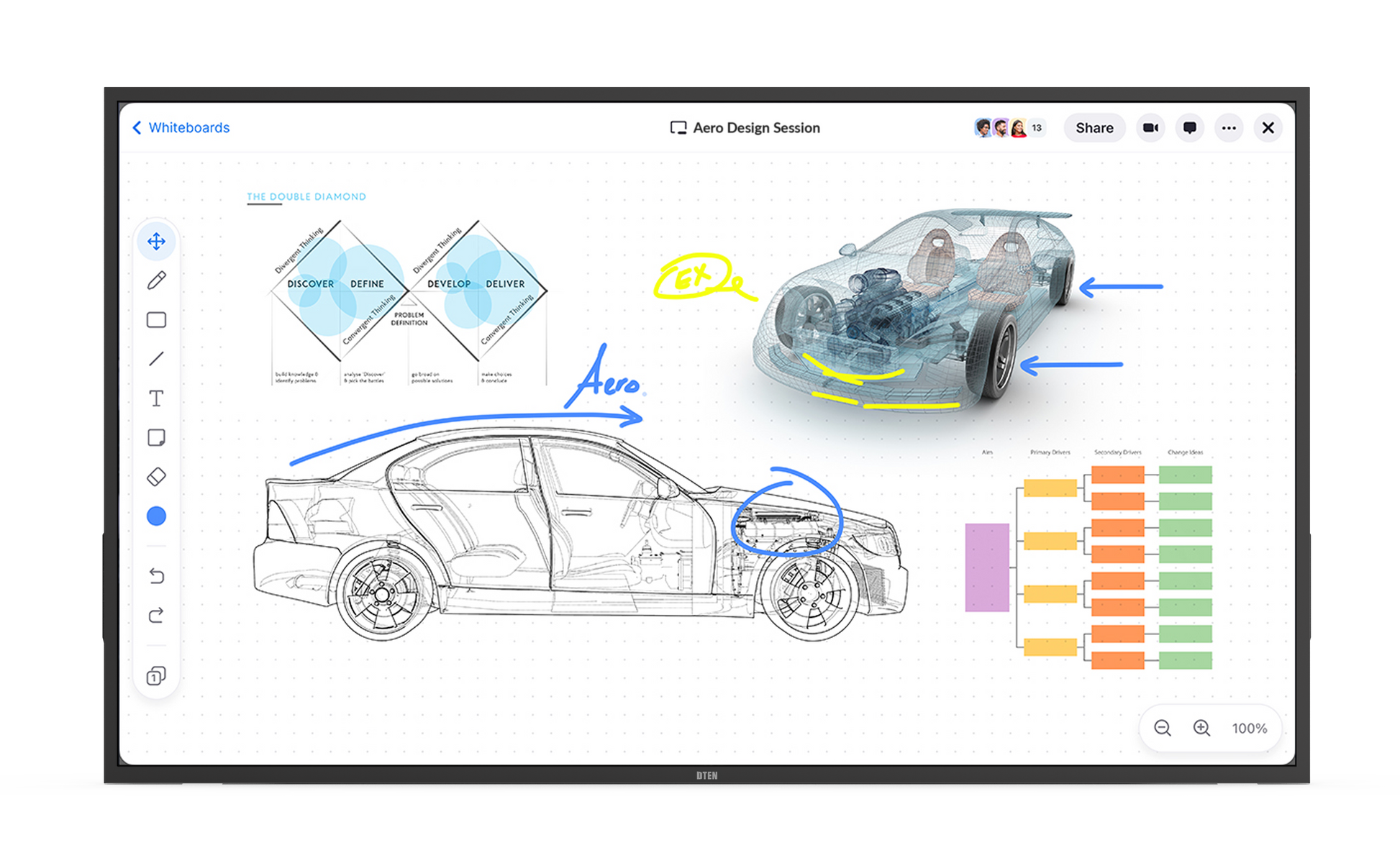

55 inch Ultra HD 4K Whiteboard and Collaboration Display

The DTEN ONboard is a 55″ Ultra HD 4K capacitive touch collaboration display designed as a companion whiteboard and content-sharing device. Running on the DTEN Android OS, it integrates seamlessly into hybrid meeting spaces, providing intuitive multi-touch interaction, digital annotation, and a natural writing experience with the included styluses. With integrated stereo speakers and a wide range of connectivity options, the ONboard extends Zoom Rooms and other collaboration platforms by adding a dedicated whiteboarding and content-sharing surface.

Highlighted Features

  • Immersive 55″ 4K Touch Display: Provides ultra-clear visuals and smooth, natural touch response for precise writing and collaboration.
  • Dedicated Whiteboarding Experience: Enhances teamwork by adding a separate interactive canvas for brainstorming and content sharing.
  • Built-In Sound System: Integrated stereo speakers deliver clear, room-filling audio to support engaging discussions.
  • Seamless Connectivity Options: Multiple ports including USB, HDMI, and Ethernet allow flexible integration with existing setups.
  • Quick and Simple Setup: Ships with wall mount, styluses, and region-specific power cords to ensure hassle-free deployment.
  • Enterprise-Grade Ready: Designed for business environments with wired/wireless networking, proxy support, and VESA mounting compatibility.

The DTEN ONboard empowers teams with a dedicated digital whiteboard and content collaboration tool, delivering a seamless extension of Zoom Rooms and enhancing productivity in hybrid environments.

In stock
£2,985.12

Secure checkout

Friendly support

Hassle-free returns

The DTEN ONboard is a 55″ Ultra HD 4K capacitive touch collaboration display designed as a companion whiteboard and content-sharing device. Running on the DTEN Android OS, it integrates seamlessly into hybrid meeting spaces, providing intuitive multi-touch interaction, digital annotation, and a natural writing experience with the included styluses. With integrated stereo speakers and a wide range of connectivity options, the ONboard extends Zoom Rooms and other collaboration platforms by adding a dedicated whiteboarding and content-sharing surface.

DTEN Onboard office setup
DTEN ONboard hybrid workspace 3
DTEN ONboard EDU primary
DTEN ONboard hybrid workspace 8

Key Features

  • 55″ 4K Multi-Touch Display: Ultra HD LED panel with capacitive touch for precise, natural inking and annotation.
  • Companion Whiteboard: Enhances collaboration by extending Zoom Rooms with a dedicated interactive surface.
  • Integrated Audio: Built-in stereo speakers provide clear sound for immersive collaboration.
  • Flexible Connectivity: USB 3.0, USB-C, HDMI in/out, audio jacks, and Ethernet for versatile integration.
  • Easy Setup & Deployment: Includes wall mount, styluses, and power cords for different regions.
  • Enterprise-Ready: Supports Wi-Fi and wired networking, proxy environments, and standard VESA mounting.

Specifications

Software DTEN Android OS
Display 55″ Ultra HD 4K LED (16:9), Capacitive Touch Screen
Audio System Integrated Stereo Speakers
Network Ethernet (RJ-45) 100 Mbps; Wi-Fi 802.11a/b/g/n, 802.11ac (2.4/5 GHz); IPv4 DHCP/Static; HTTP Proxy Support
Inputs & Outputs USB 3.0 ×2; USB-C ×2; HDMI In ×1; HDMI Out ×1; 3.5 mm Audio Jack ×2; Ethernet LAN (RJ-45) ×1
VESA 400 × 300 mm
Power 100 to 240 VAC, 50/60 Hz
Product Dimensions 30.5 × 49 × 2.13 in (774 × 1245 × 54.2 mm)
Product Weight 50.7 lb (23 kg)
Packaging Dimensions 36 × 56 × 8.5 in (920 × 1420 × 215 mm) with outer box
Packaging Weight 60 lb (27 kg)
Operating Environment Temp: 0°C–40°C; Storage: -10°C–60°C; Humidity: 20%–80% RH operating, 10%–60% RH storage
In the Box DTEN ONboard ×1; Wall Mount Bracket ×1; Stylus ×2; Power cords ×5 (Type B,D,F,G,I); Antennas ×2; Bluetooth Antenna ×1; Product Guide

The DTEN ONboard empowers teams with a dedicated digital whiteboard and content collaboration tool, delivering a seamless extension of Zoom Rooms and enhancing productivity in hybrid environments.

Application Examples
Meeting Rooms Extend Zoom Rooms functionality with a dedicated digital whiteboard for brainstorming, annotation, and content sharing.
Education & Training Enable interactive lessons, annotations, and hybrid learning with the 55″ touch display and collaboration tools.
Corporate Collaboration Spaces Provide teams with an intuitive tool for ideation and content sharing, improving hybrid workflows and creativity.
Executive Briefing Centers Enhance presentations with real-time whiteboarding and seamless integration into professional AV setups.
